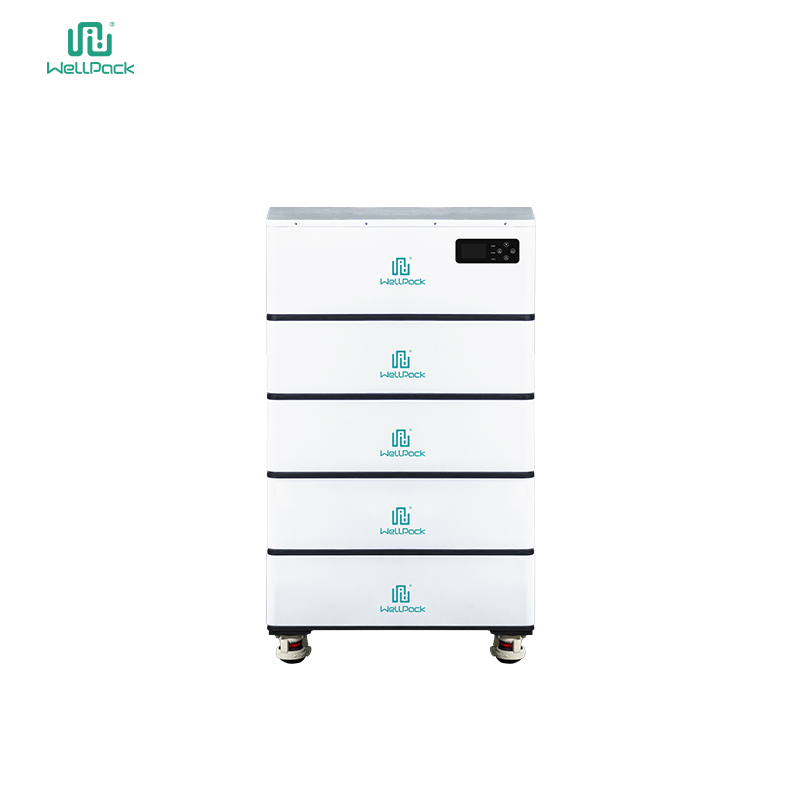

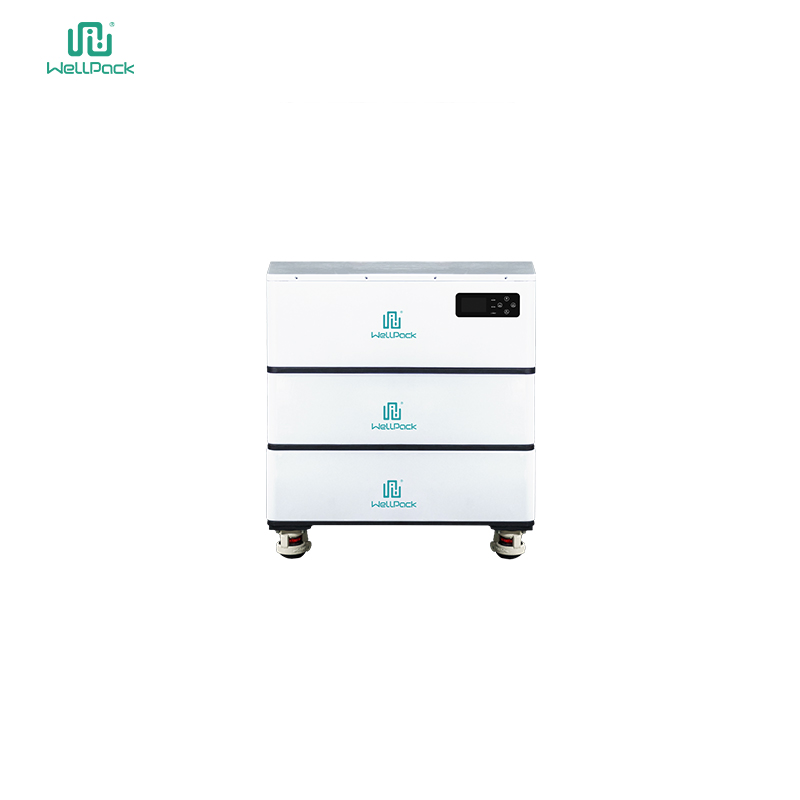

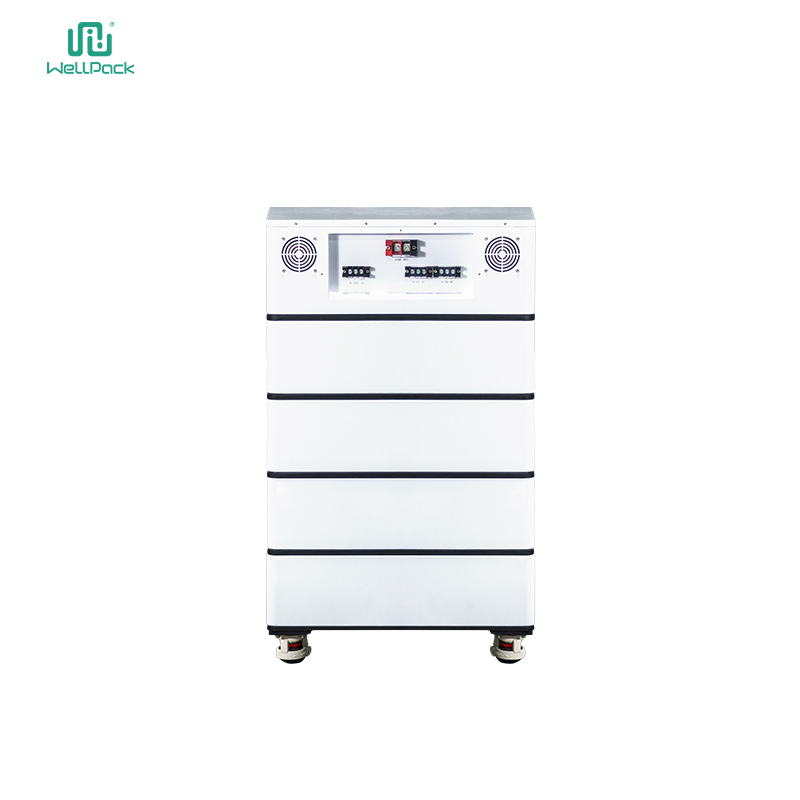

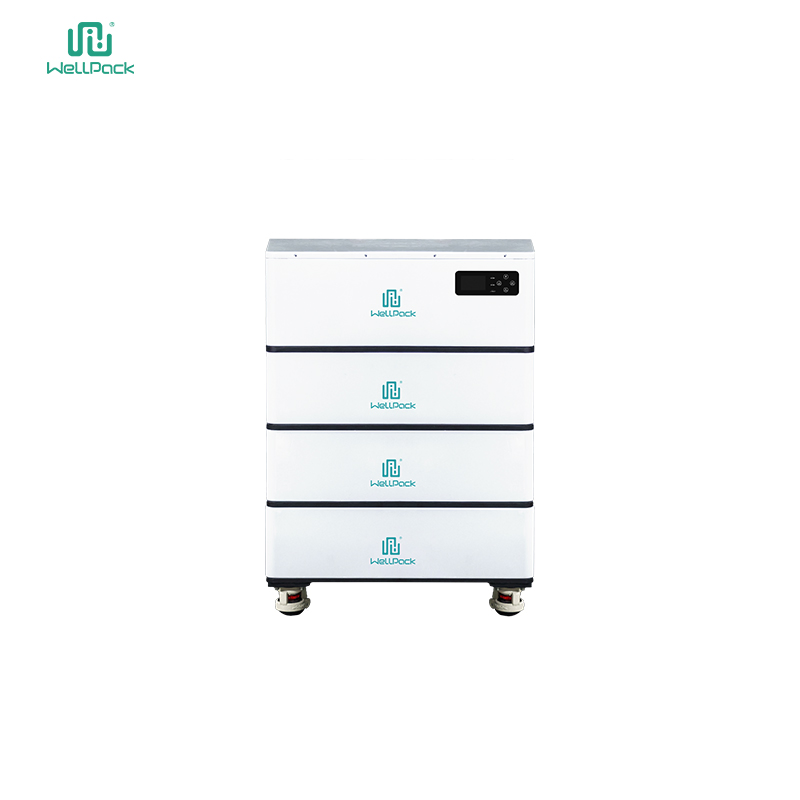

Residential Stacked Household Energy Storage Battery System
(10~20KWh, All In One)
The Residential Energy Storage System (10~20KWh, All In One) adopts advanced integrated technology. It can efficiently obtain electric energy from photovoltaic systems, mains, and other multi-channel power supply facilities, realizing 24-hour safe, economic, and uninterrupted electricity consumption for modern homes.
| No. | Item | General Parameter | Note |
|---|---|---|---|
| 1 | Battery type | Lithium ion battery | - |
| 2 | Battery material | LiFePO4 | - |
| 3 | Nominal voltage | 51.2V | 16S1P |
| 4 | Voltage range | 48~57.6V | Operating range |
| 5 | Charge limit voltage | 57.6V | - |
| 6 | Battery capacity | 100Ah / 5.12KWh | At 25ºC, 0.2C |
| 7 | Internal resistance | ≤80mΩ | AC 1kHz |
| 8 | Charging voltage | 57.6V±0.5V | - |
| 9 | Charge limit current | 10A | - |
| 10 | Max charge current | 100A | High current support |
| 11 | Equalization current | 80mA | - |
| 12 | Charging Temp range | 0ºC ~ 45ºC | Optimal range |
| 13 | Overcharge protection | 58.4V±0.5V | - |
| 14 | Discharge termination | 40V±0.5V | Cut-off voltage |
| 15 | Max discharge current | 100A | - |
| 16 | Series/Parallel | Parallel only | Up to 16 units |
| 17 | Interface | Same interface | Charge/Discharge |
| 18 | Dimension | 620*440*182.5mm | - |
| 19 | Weight | 40Kg | - |
| 20 | Shell material | Sheet metal + plastic spraying | Durable design |
