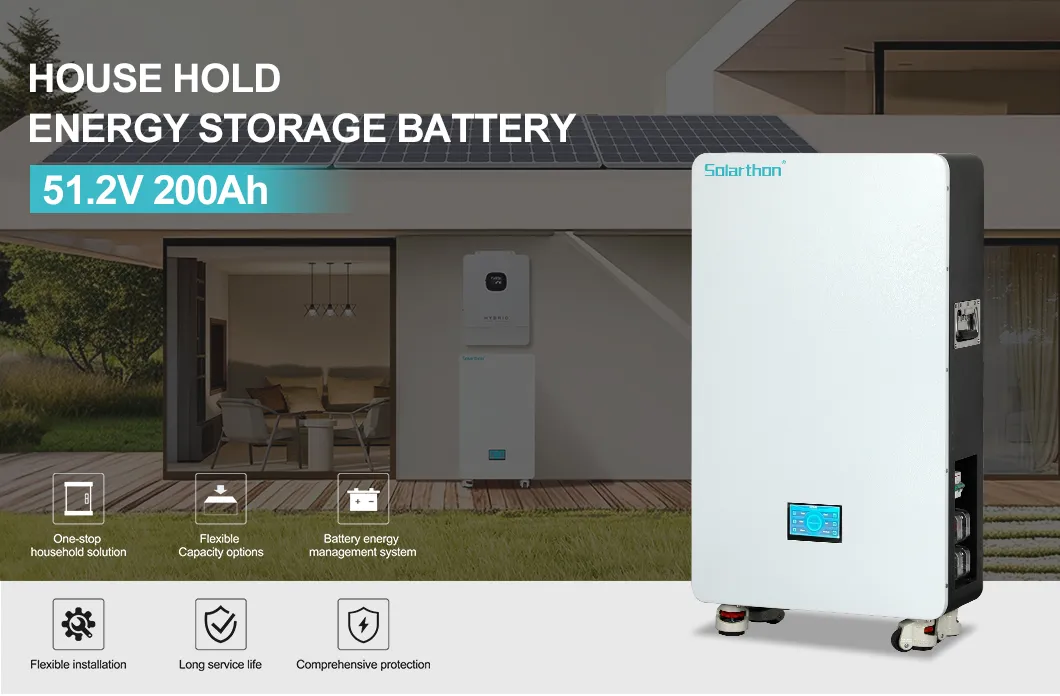

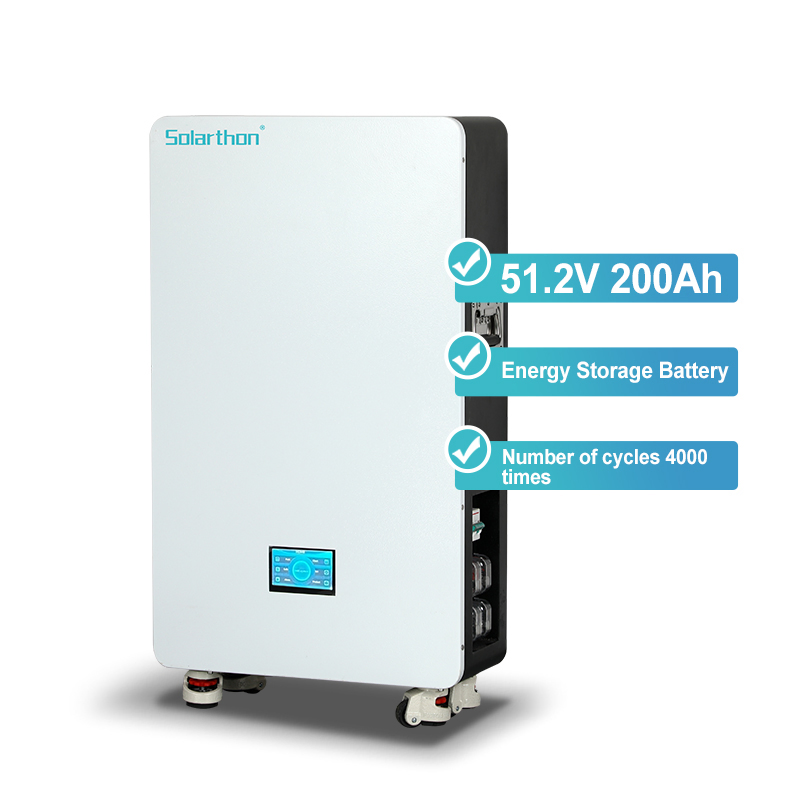

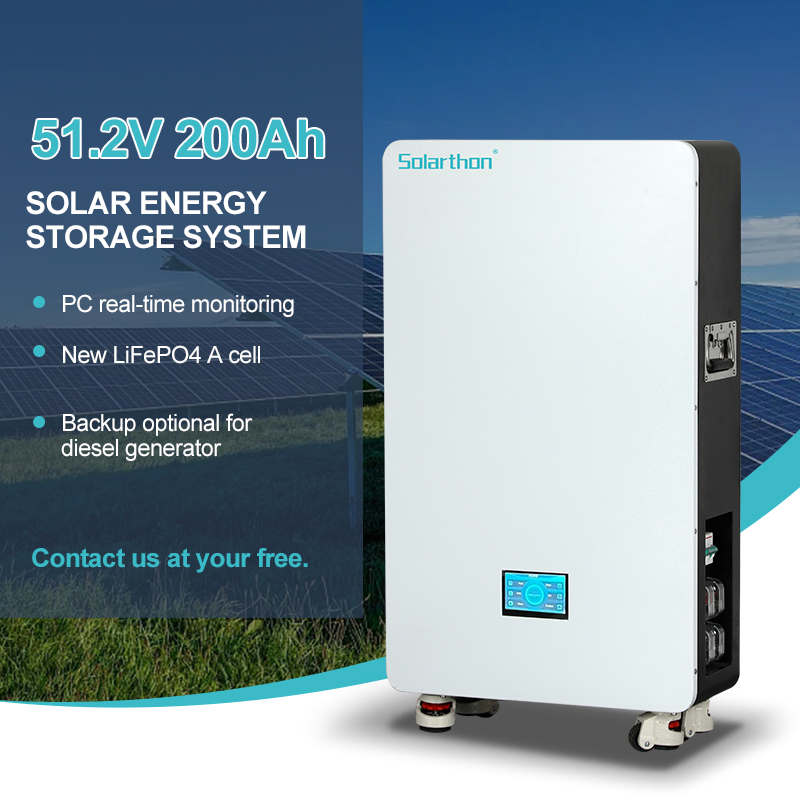

Advanced 51.2V Solar Energy Storage System for Residential Use

Basic Product Information

Model NO.	LF52200-10
Battery Type	LiFePO4
Nominal Capacity	200Ah
Nominal Voltage	51.2V
Cycle Life	>4000 Cycles
Charging Cut-off Voltage	58.4V
Discharging Cut-off Voltage	40V
Communication	RS485/RS232/CAN
Installation	Cabinet/Wall/Floor Mount
Dimensions	810485197mm

Product Description

The 51.2V 200AH mobile home energy storage lithium battery series is engineered using state-of-the-art high-power cell technology. It is specifically designed for environmentally sensitive areas requiring enhanced cycle life capabilities across commercial, industrial, residential, and private applications.

The maintenance-free construction and advanced design features make this series the definitive choice for Solar and Renewable Energy Storage, Electric Vehicles, Golf Carts, Industrial Equipment, Robotics, Marine, and Telecom UPS systems.

Advanced 51.2V Solar Energy Storage System

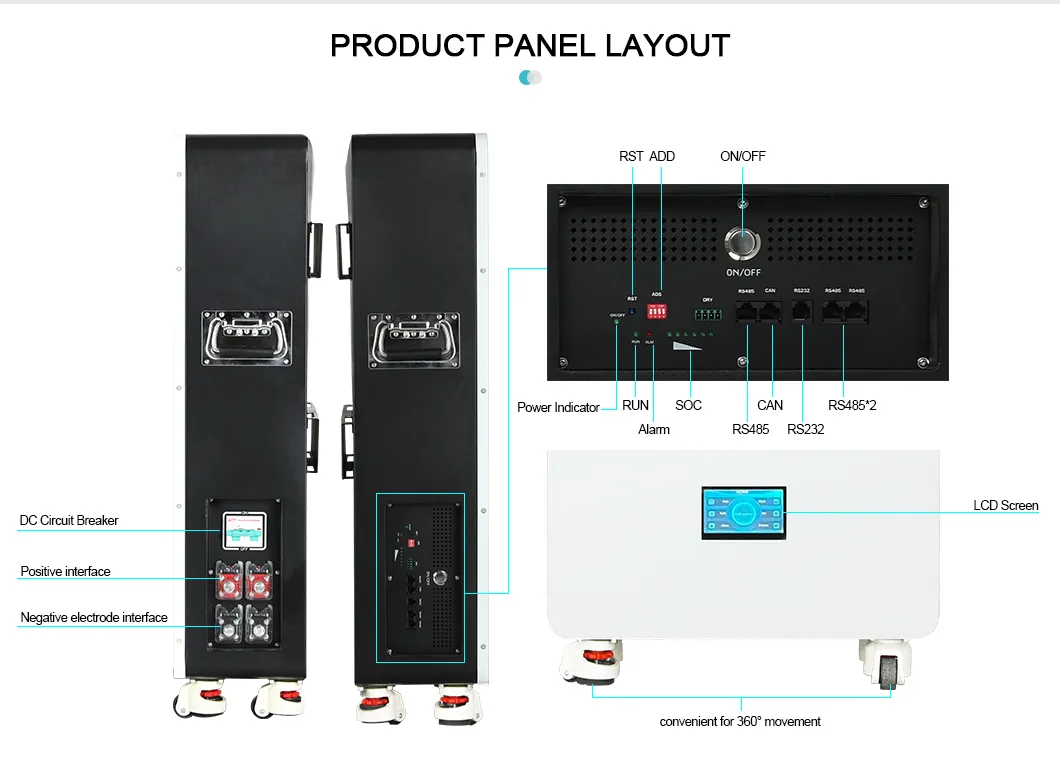

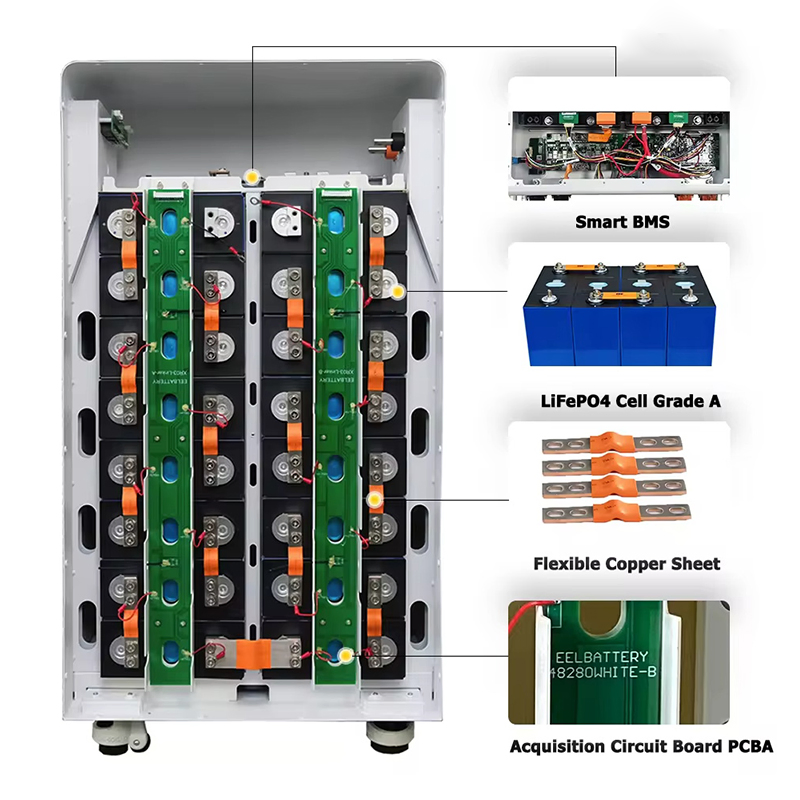

💡 Built-in BMS Intelligent Security

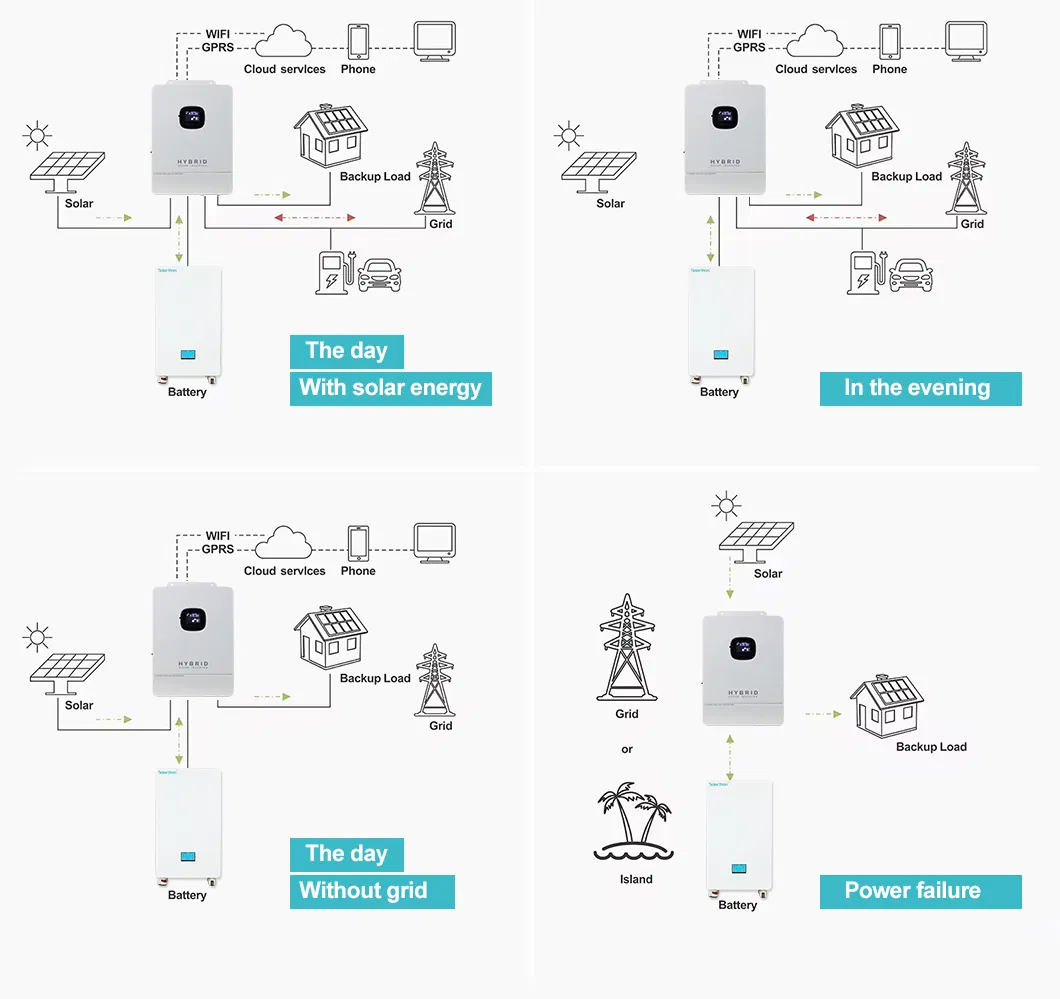

Photovoltaic + energy storage + diesel combined supply
Six layers of intelligent safety protection
Automatic protection state triggers via BMS monitoring
Off-Grid & Hybrid Inverter Optional
Remote Firmware Upgrade capability
CAN Communication Port enabled
Modular & Stacked Design for simple expansion
High efficiency charge and discharge cycles

Technical Specifications

Specification Item	Details
Max. Continuous Charging Current	300A
Max. Continuous Discharging Current	200A
Working Temperature (Charge)	-3ºC ~ 65ºC
Working Temperature (Discharge)	23ºC ~ 65ºC
Warranty	3 Years
System Type	Rack-Mounted / All-in-One

Our Advantages

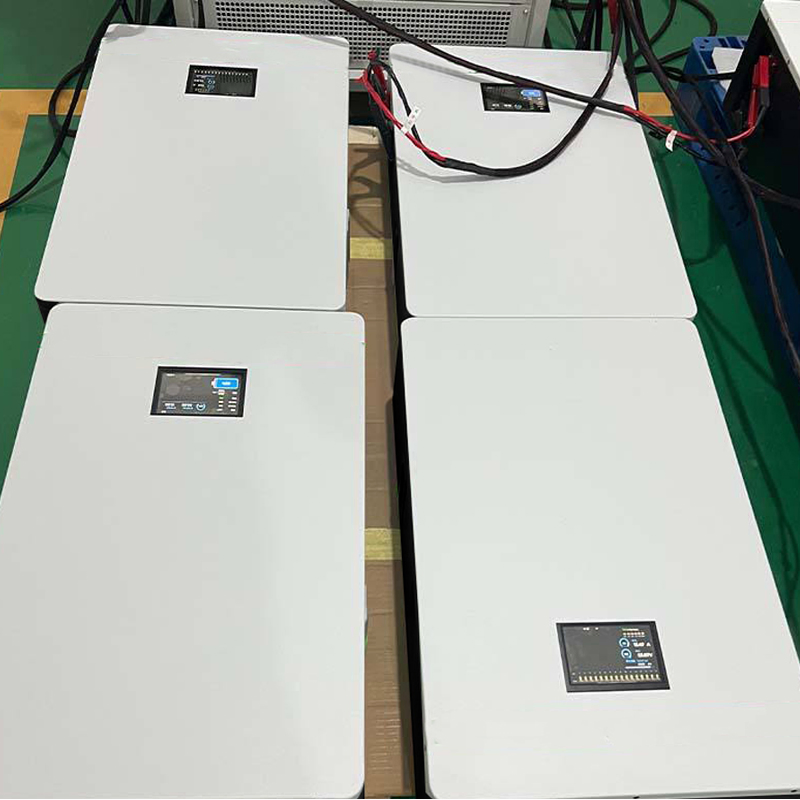

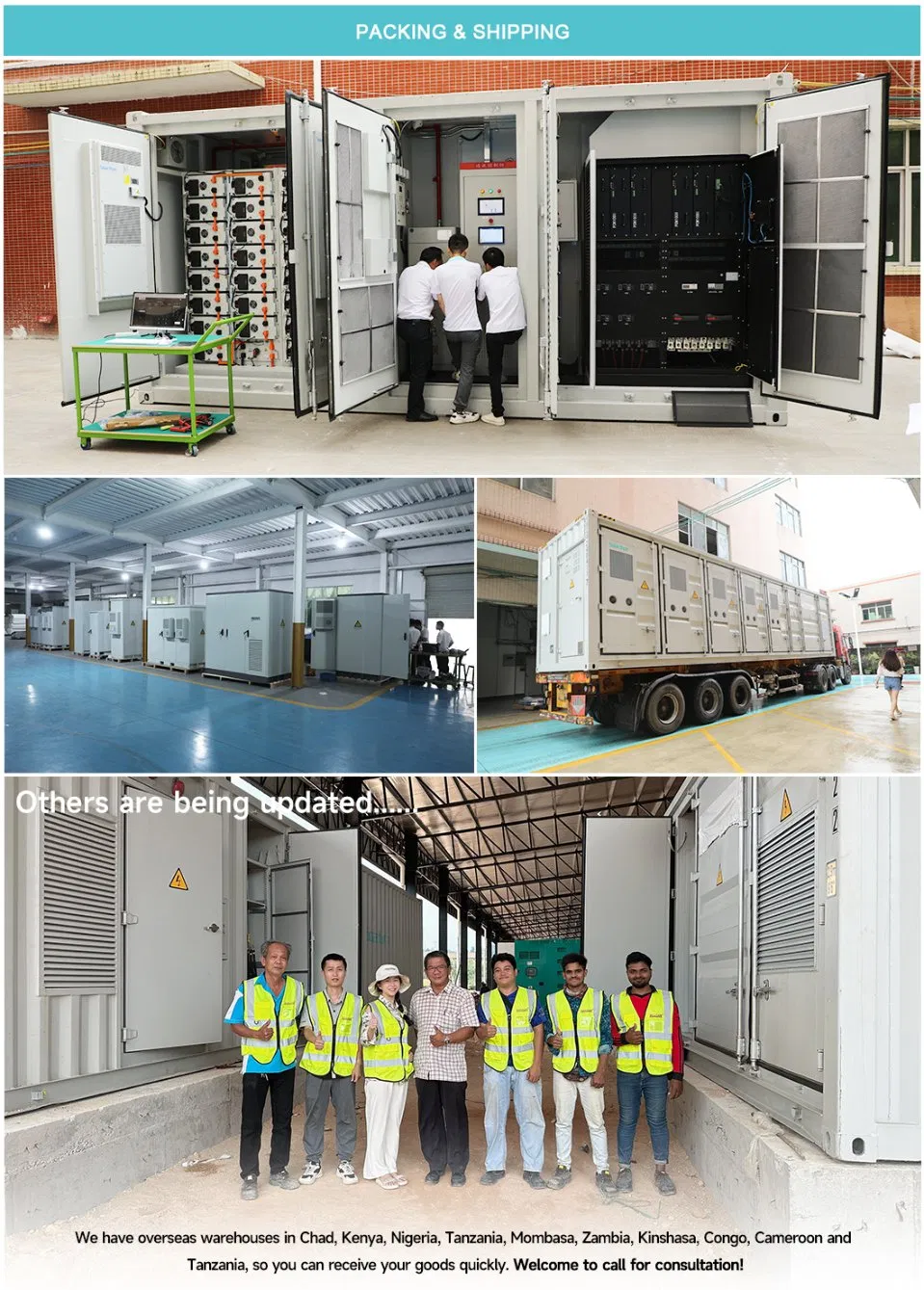

Quality Assurance: Every battery undergoes strict inspection before delivery. We use custom thick sponges and multi-layer corrugated cartons for maximum protection.

Traceability: Each battery unit features a unique QR code to guarantee its origin and technical history.

Certifications & Logistics

Frequently Asked Questions

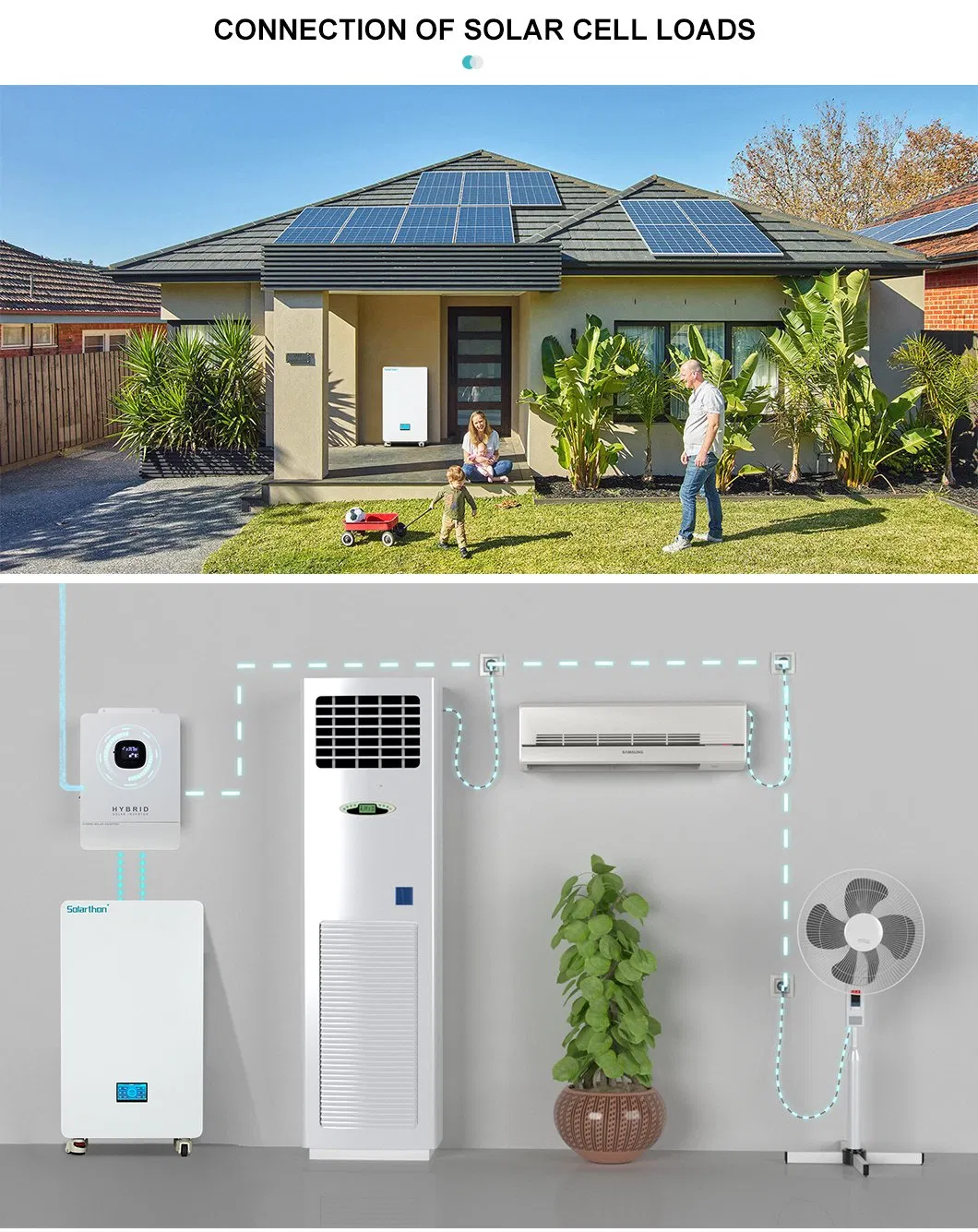

What kind of appliances can this battery system power?

Our systems are designed to power a wide range of appliances including refrigerators, air conditioners, water pumps, and other household or office equipment.

What are the benefits of the built-in BMS?

The Intelligent Battery Management System (BMS) provides six layers of safety protection, monitoring voltage and current to extend battery life and prevent damage.

Is a power inverter absolutely required for this system?

While not strictly required for the battery itself, an inverter is essential if you want to use standard AC appliances (110V/220V) powered by the solar energy stored.

What output voltages are supported?

Our solutions support various output options including 110V, 120V, 220V, 230V, and 240V with self-adapting frequencies of 50/60Hz.

How long is the expected cycle life of the LiFePO4 battery?

The battery is designed for a long lifespan, offering over 4000 cycles, making it a highly durable choice for renewable energy storage.

What happens if the product is damaged during transit?

We provide comprehensive after-sale support. If a product arrives damaged, simply provide photos or video, and we will arrange for the necessary spare parts or solutions.
