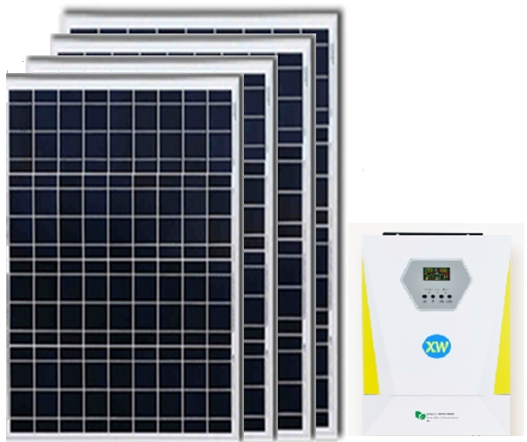

Residential Ess Power Solution - Lithium/Lead-Acid Battery Compatible Energy Storage

1 / 5

Residential Ess Power Solution - Lithium/Lead-Acid Battery Compatible Energy Storage

Customization:	Available
Weight:	10kg
Warranty:	1year

Send Inquiry

Product Description

Basic Specifications

🔄

Cycle Life 2000+ Cycles

🔋

Nominal Capacity Customizable

⚡

System Voltage 24V

🔌

Output Power 5-10kw

☀️

Max PV Charge 60A

📦

Production Capacity 50,000 PCS Per Year

Product Description

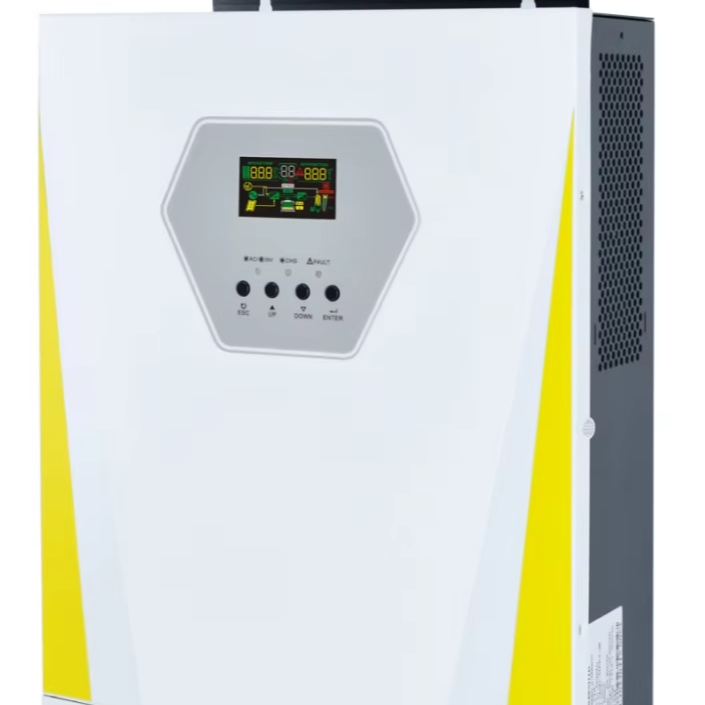

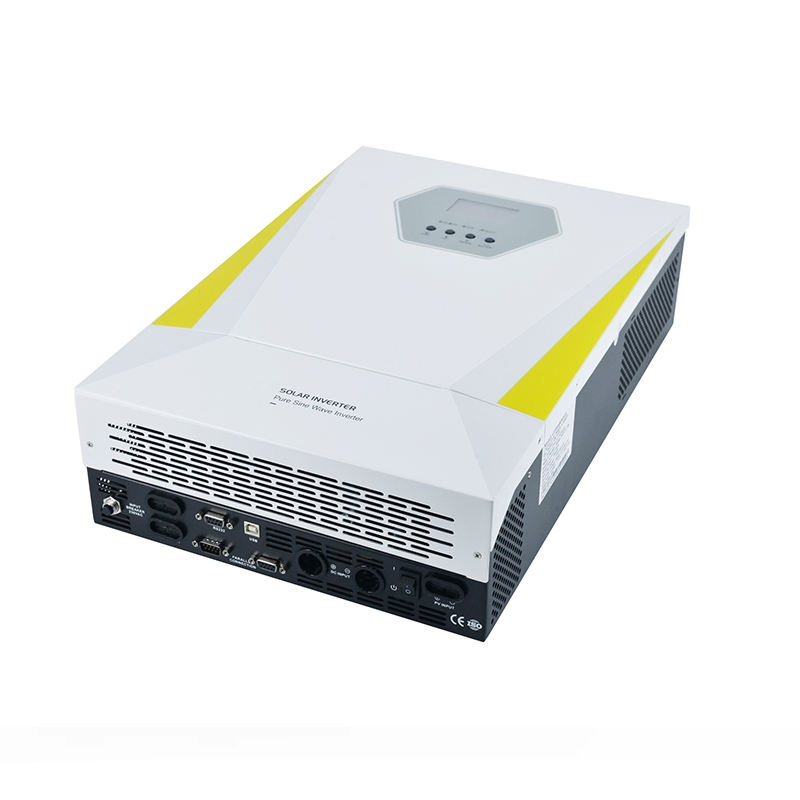

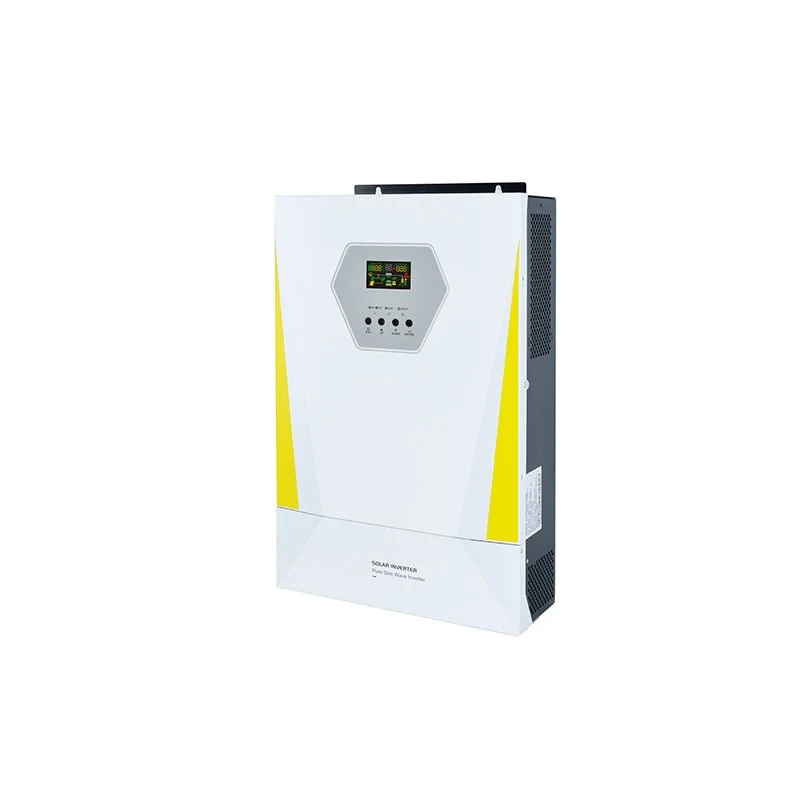

1200W/2400W Pure Sine Wave Inverter Charger with MPPT Solar Input

This series is a high-performance pure sine wave inverter/charger designed for off-grid solar systems, emergency backup power, and mobile applications. It supports 220V/110V AC and features seamless UPS switching (<10ms). Compatible with lead-acid, gel, and lithium batteries, it integrates MPPT solar charging and dual AC/solar charging modes, making it ideal for RVs, boats, homes, and remote power systems.

Pure Sine Wave Output: Clean and stable power for sensitive electronics.

Multi-Mode Operation: UPS mode (≤10ms) and inverter mode for uninterrupted power.

MPPT Solar Charging: Supports up to 1600W PV arrays with high efficiency.

Smart LCD Display: Real-time monitoring of mode, load, and input/output status.

Robust Protection: Overload, short-circuit, and battery reverse polarity safeguards.

Ultra-Quiet Design: Low noise (<45dB) and toroidal transformer for low standby power.

Technical Specifications

Model	D1512	D2024E	D3024E
Rated Power	1200W	1600W	2400W
AC Input Voltage	220V/110V (154-264VAC Normal / 185-264VAC UPS)
Output Waveform	Pure Sine Wave
Battery Rated Voltage	12VDC	24VDC
Max PV Array Power	800W	1600W
Max PV Charge Current	60A
Transfer Time	≤10ms (UPS) / ≤20ms (INV)
Noise Level	<45dB
Dimensions (mm)	345 × 254 × 105

Product Detailing

Certifications

Frequently Asked Questions

What types of batteries are compatible with this inverter?

The inverter is highly versatile and compatible with external lead-acid, Gel, and Lithium battery systems (12V or 24V depending on the model).

How fast is the UPS switching time?

The unit features a seamless transfer time of ≤10ms in UPS mode, ensuring that sensitive electronics like computers and medical equipment do not restart during a power outage.

Can I use both solar and AC power to charge my batteries?

Yes, the system supports dual charging modes. It integrates an MPPT solar controller and an AC charger, allowing for efficient energy management from both the grid and PV panels.

Is the output stable for sensitive home appliances?

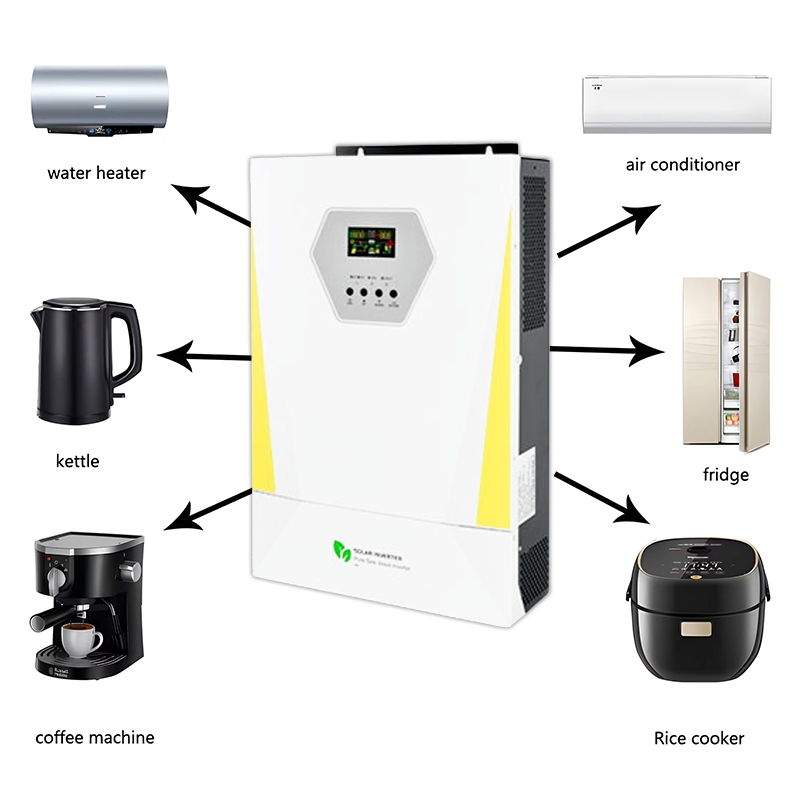

Absolutely. It provides a Pure Sine Wave output, which is the same quality as utility power, making it safe for all sensitive electronics, motors, and appliances.

What kind of protections are built into the device?

The inverter includes comprehensive protection against overload, short circuits, battery low voltage, and battery reverse polarity via internal fuses and smart monitoring.

How do I monitor the system status?

The unit is equipped with a color segment LCD screen and LED indicators that display real-time operating modes, load levels, battery status, and any potential fault codes.
