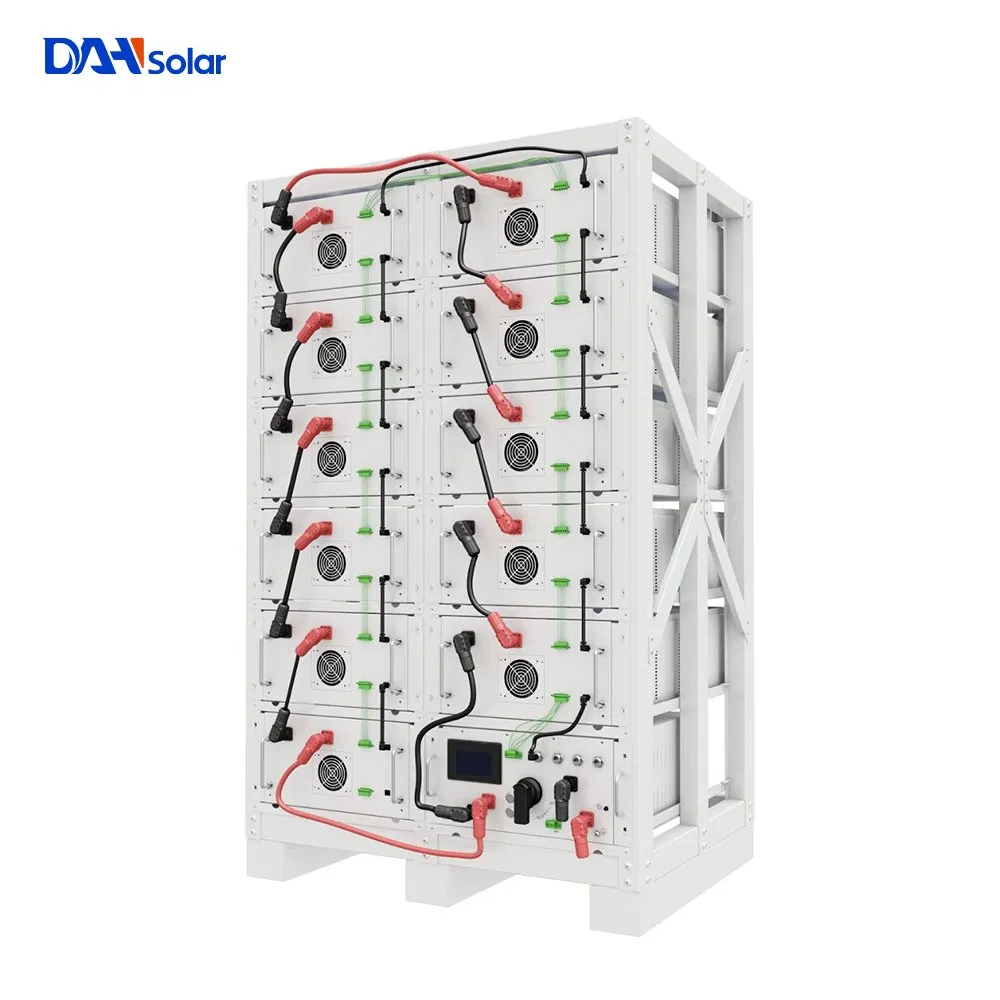

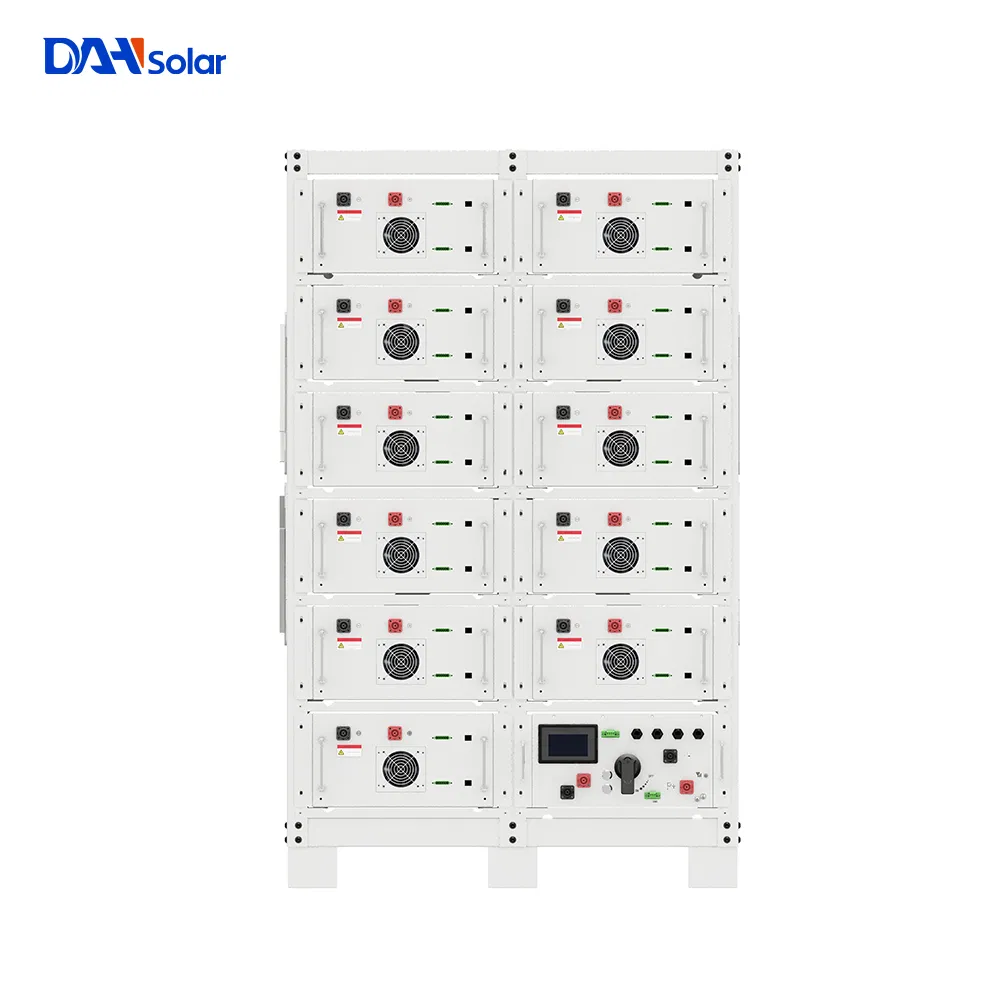

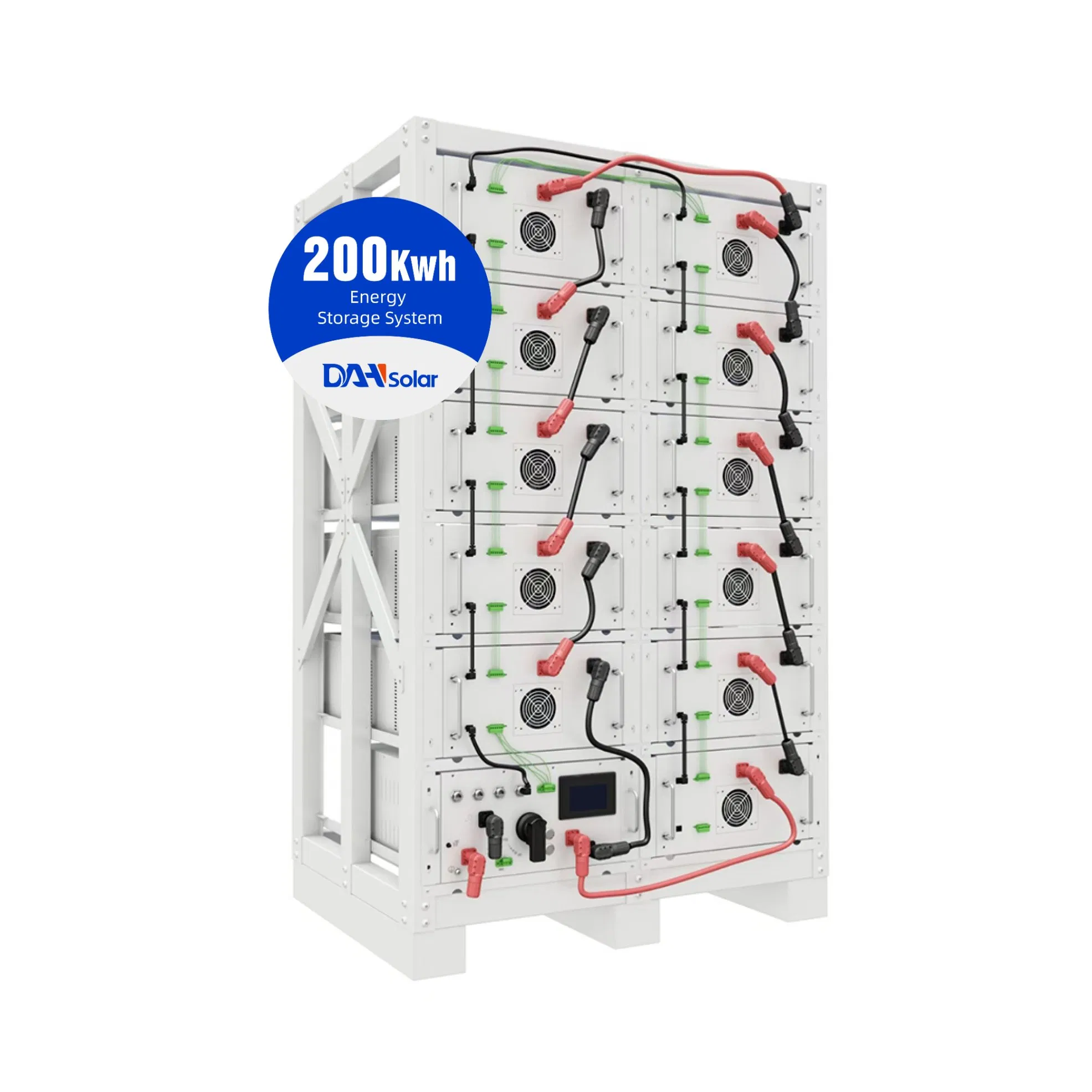

Hybrid Solar System 100kw 250kw 500kw 630kw Power Conversion 200kwh 500kwh 1000kwh Battery
Hybrid Solar System 100kw 250kw 500kw 630kw Power Conversion 200kwh 500kwh 1000kwh Battery
Hybrid Solar System 100kw 250kw 500kw 630kw Power Conversion 200kwh 500kwh 1000kwh Battery
Hybrid Solar System 100kw 250kw 500kw 630kw Power Conversion 200kwh 500kwh 1000kwh Battery
Hybrid Solar System 100kw 250kw 500kw 630kw Power Conversion 200kwh 500kwh 1000kwh Battery
1 / 5
Hybrid Solar System 100kw 250kw 500kw 630kw Power Conversion 200kwh 500kwh 1000kwh Battery
Hybrid Solar System 100kw 250kw 500kw 630kw Power Conversion 200kwh 500kwh 1000kwh Battery
Hybrid Solar System 100kw 250kw 500kw 630kw Power Conversion 200kwh 500kwh 1000kwh Battery
Hybrid Solar System 100kw 250kw 500kw 630kw Power Conversion 200kwh 500kwh 1000kwh Battery
Hybrid Solar System 100kw 250kw 500kw 630kw Power Conversion 200kwh 500kwh 1000kwh Battery

Hybrid Solar System 100kw 250kw 500kw 630kw Power Conversion 200kwh 500kwh 1000kwh Battery

Still deciding? Get samples of $ !
Order Sample
Send Inquiry

Product Description

Basic Information

Model NO.
DAH-200K280
Rechargeable
Yes
Application
Solar Power System
Standard Ratio
0.2c
Max Current
200A
Cycle Life
>6000 Times (0.5c/0.5c)
Communication
RS485/RS232/CAN
Specification
200kwh

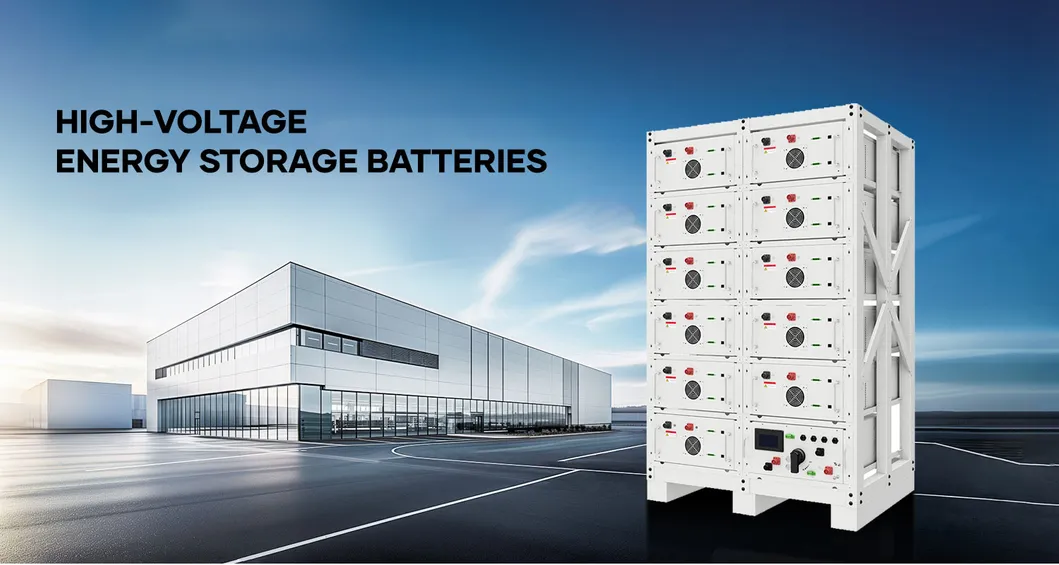

Energy Storage System Overview
System Configuration

Technical Specifications

Nominal Voltage716.8V
Nominal Capacity280AH 716.8V
Storage Capacity200.7KWH
Module Dimensions483*245*792mm * 14

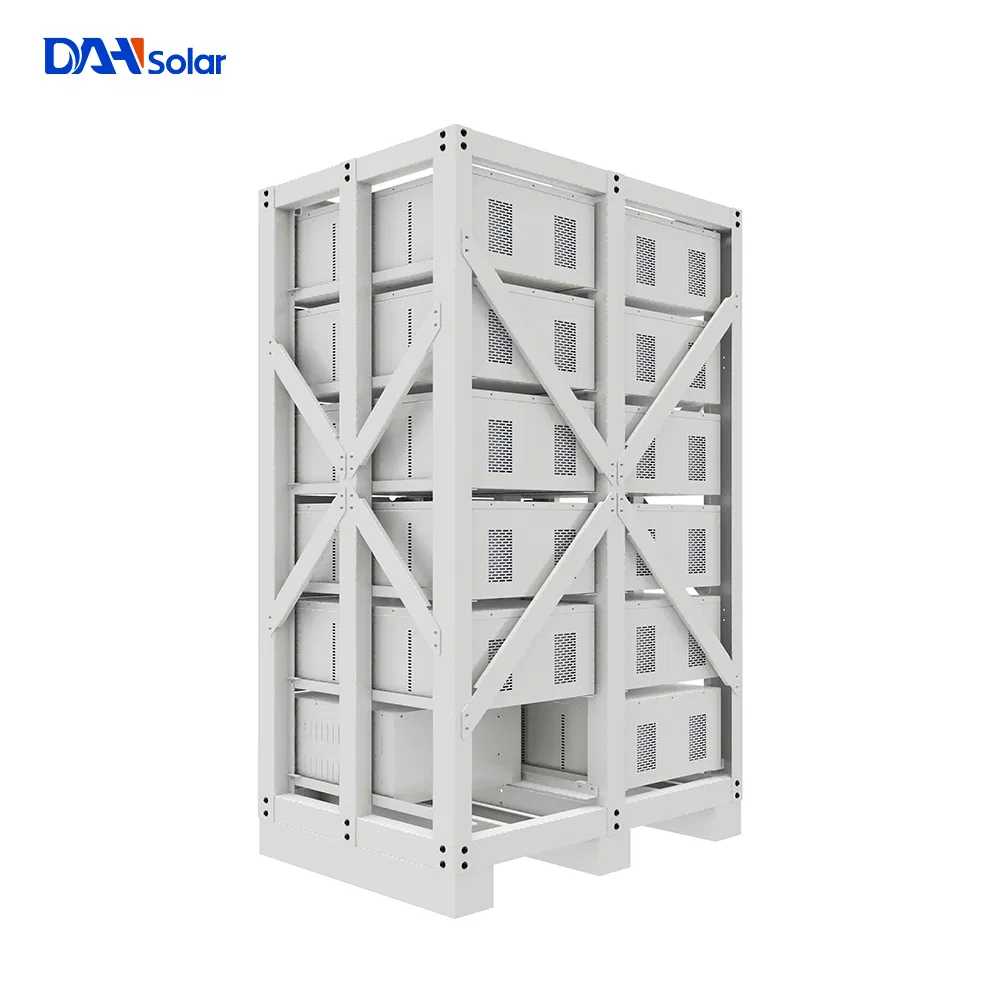

Rack Dimensions1090*780*2190mm
Total Weight1804 kg
Discharge Cut-Off Voltage616V
Charge Cut-Off Voltage795.2V
Working TemperatureCharge: 0ºC~50ºC / Discharge: -10ºC~50ºC
Design Life15 Years+
CertificationsCE / IEC / UL / UN38.3 / MSDS

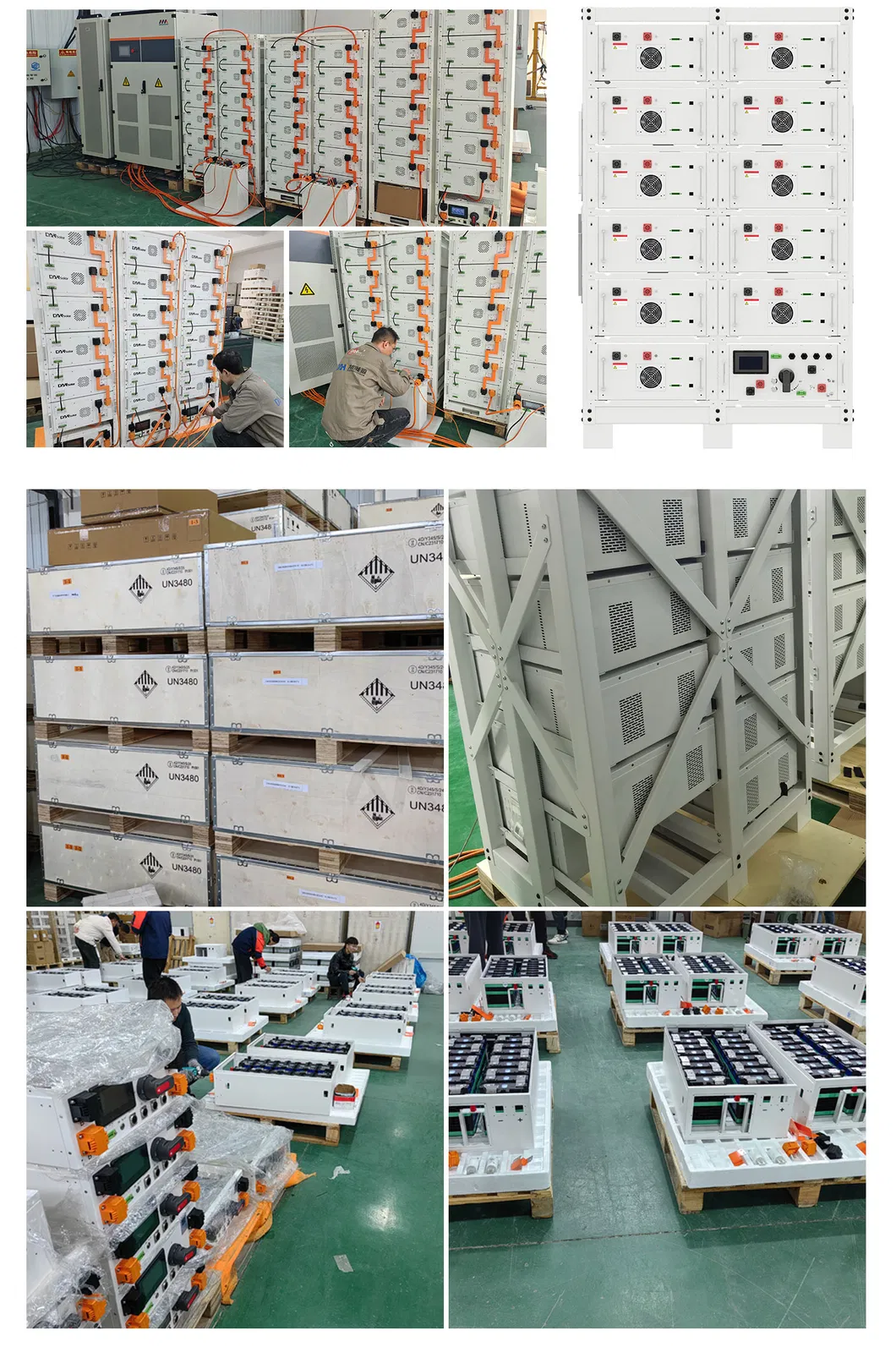

Detailed Technical Chart

Product Description & Expertise

Our energy storage solutions are designed to meet the growing demand for reliable, efficient, and eco-friendly power systems. We specialize in high-performance lithium-ion batteries tailored for various solar applications.

1. Residential Storage: Efficient batteries ensuring uninterrupted power supply for homes day and night.
2. Commercial & Industrial: Scalable systems reducing energy costs and enhancing grid independence.
3. Off-Grid & Hybrid: Robust power solutions for remote areas or unstable grid environments.
4. Customized Integration: Tailored battery systems to meet specific project requirements.
Manufacturing Process

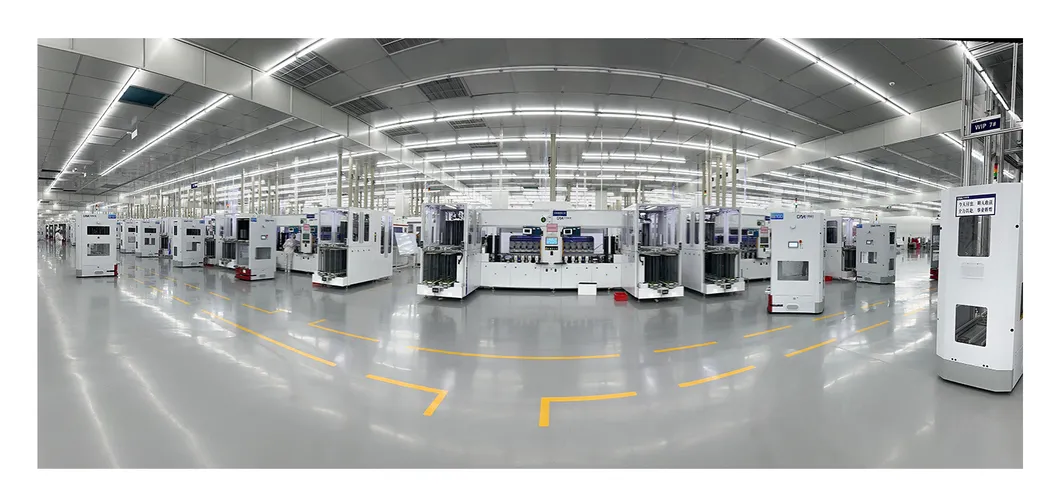

Quality Control

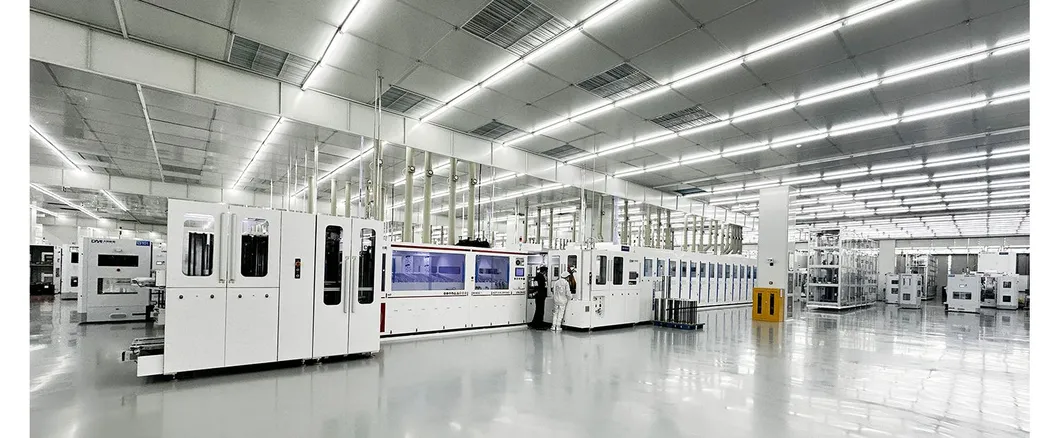

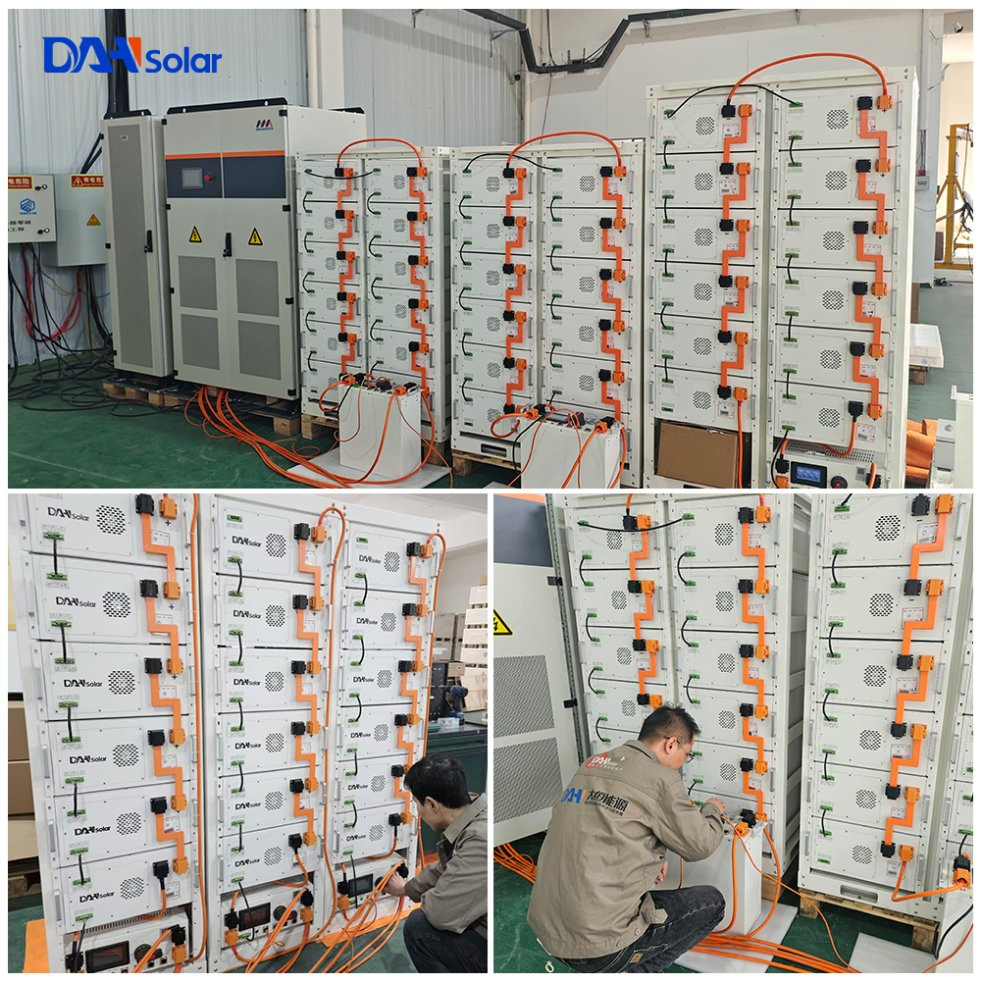

System Installation

Frequently Asked Questions

Q1: What is the expected cycle life of this battery system?
The system features a cycle life of over 6,000 times based on 0.5C charge/discharge at 80% Depth of Discharge (DoD).
Q2: Which communication protocols are supported for system monitoring?
The battery system supports RS485, RS232, and CAN communication interfaces for seamless integration and monitoring.
Q3: What are the safe operating temperature ranges?
The recommended charging temperature is 0ºC to 50ºC, and the discharging temperature is -10ºC to 50ºC. Storage should be kept between -20ºC and 60ºC.
Q4: Can this system be expanded for larger power needs?
Yes, the system supports series functions, allowing for up to 16 units to be connected in series for scalable energy storage.
Q5: What is the total energy capacity of the DAH-200K280 model?
This specific model provides a nominal capacity of 200.7KWH with a nominal voltage of 716.8V.
Q6: What certifications does this product carry for safety and transport?
The product is fully certified with CE, IEC, UL, UN38.3, and MSDS, ensuring high safety standards and compliance for global shipping.
