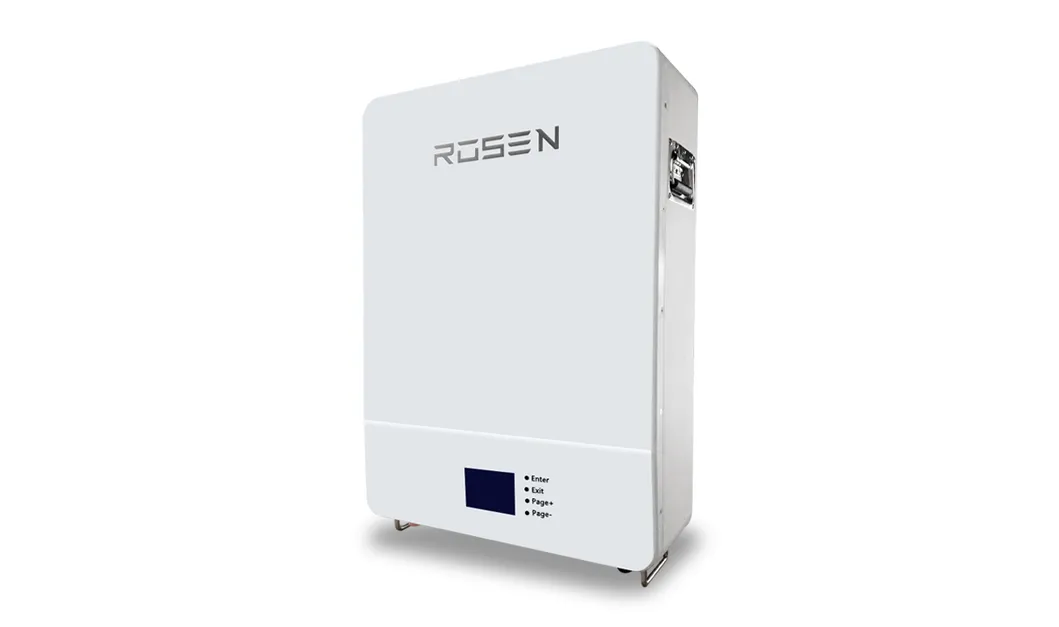

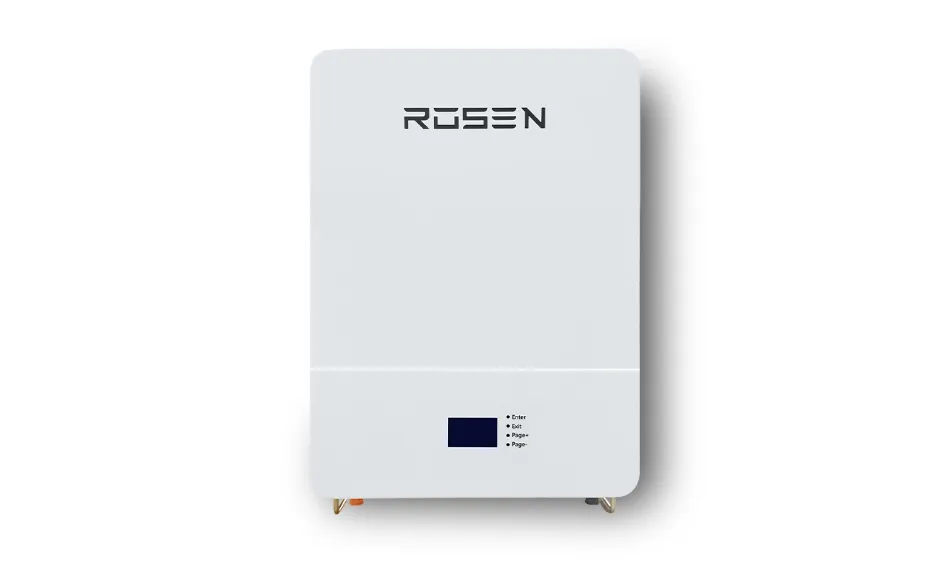

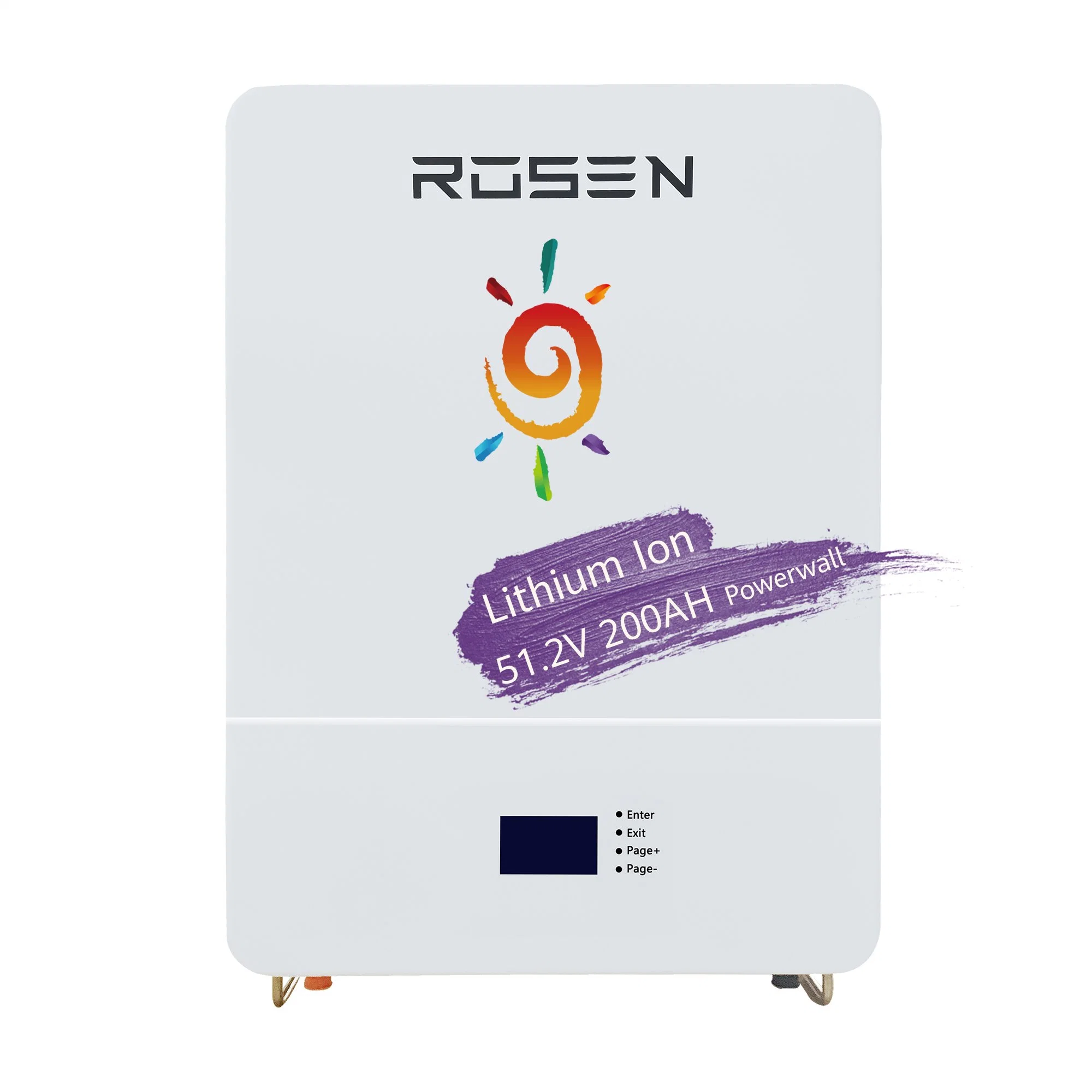

Compact design featuring an LCD screen and convenient setting buttons. Compatible with Bluetooth monitoring on smartphones. All cables and accessories are ready for installation. OEM logo customization is available for global cooperation.
The Lithium Ion Powerwall series is widely used in residential and commercial solar systems. Featuring more than 6000 deep cycles and up to 90% DOD using phosphate battery cells, this technology has won global approval.

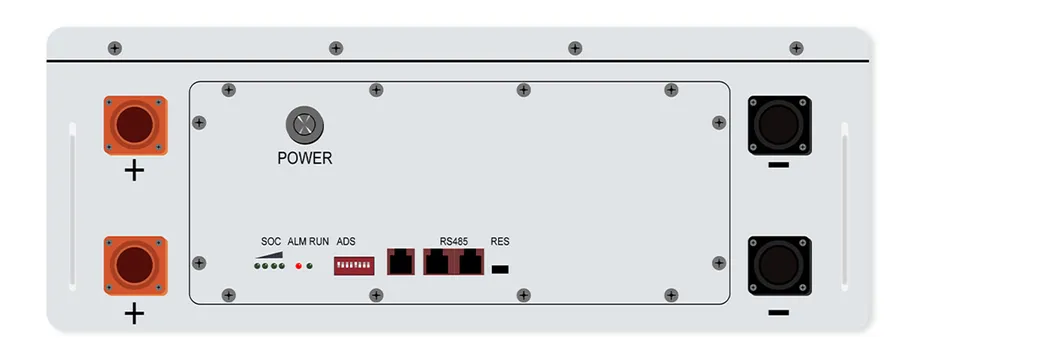

Can be installed in parallel with a combiner box for extra protection. Includes integrated BMS communication protocol compatible with comprehensive hybrid and off-grid inverters.
| Parameter | LFP48V50AH | LFP48V100AH | LFP48V150AH | LFP48V200AH | LFP48V300AH |
|---|---|---|---|---|---|
| Capacity [Ah] | 50Ah | 100Ah | 150Ah | 200Ah | 300Ah |
| Energy [kWh] | 2.4 | 4.8 | 7.2 | 9.6 | 14.4 |
| Max Discharge [A] | 50 | 100 | 150 | 200 | 300 |
| Net Weight [kg] | 35 | 68 | 95 | 108 | 144 |
| Dimension [mm] | 442*480*185 | 680*495*185 | 680*495*185 | 680*495*185 | 1020*495*190 |
| Nominal Voltage | 48Vdc | ||||
| Cycle Life | > 6000 Cycles | ||||
| Warranty | 10 Years | ||||
| Standard | TUV / CE / EN62619 / IEC62040 / UN38.3 | ||||

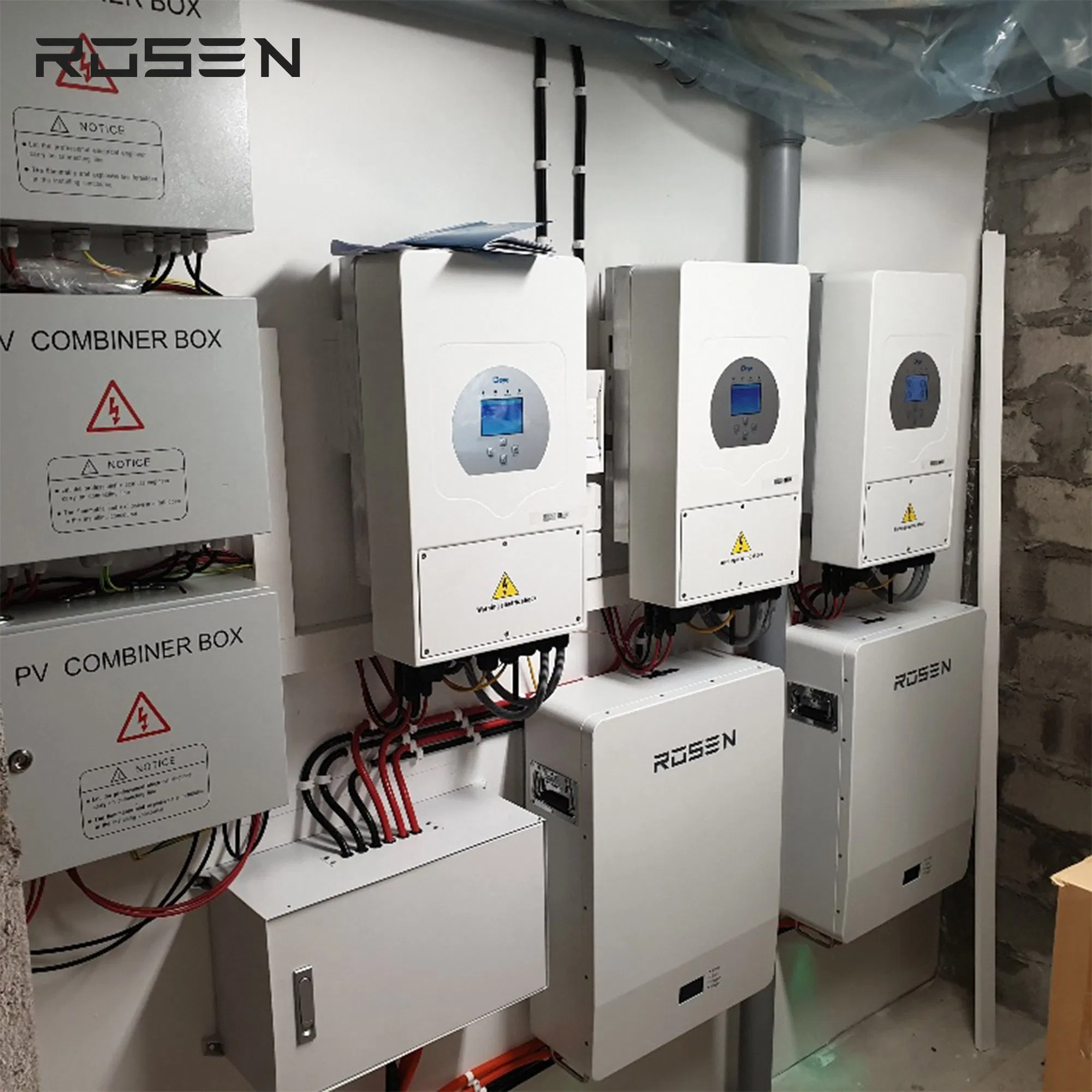

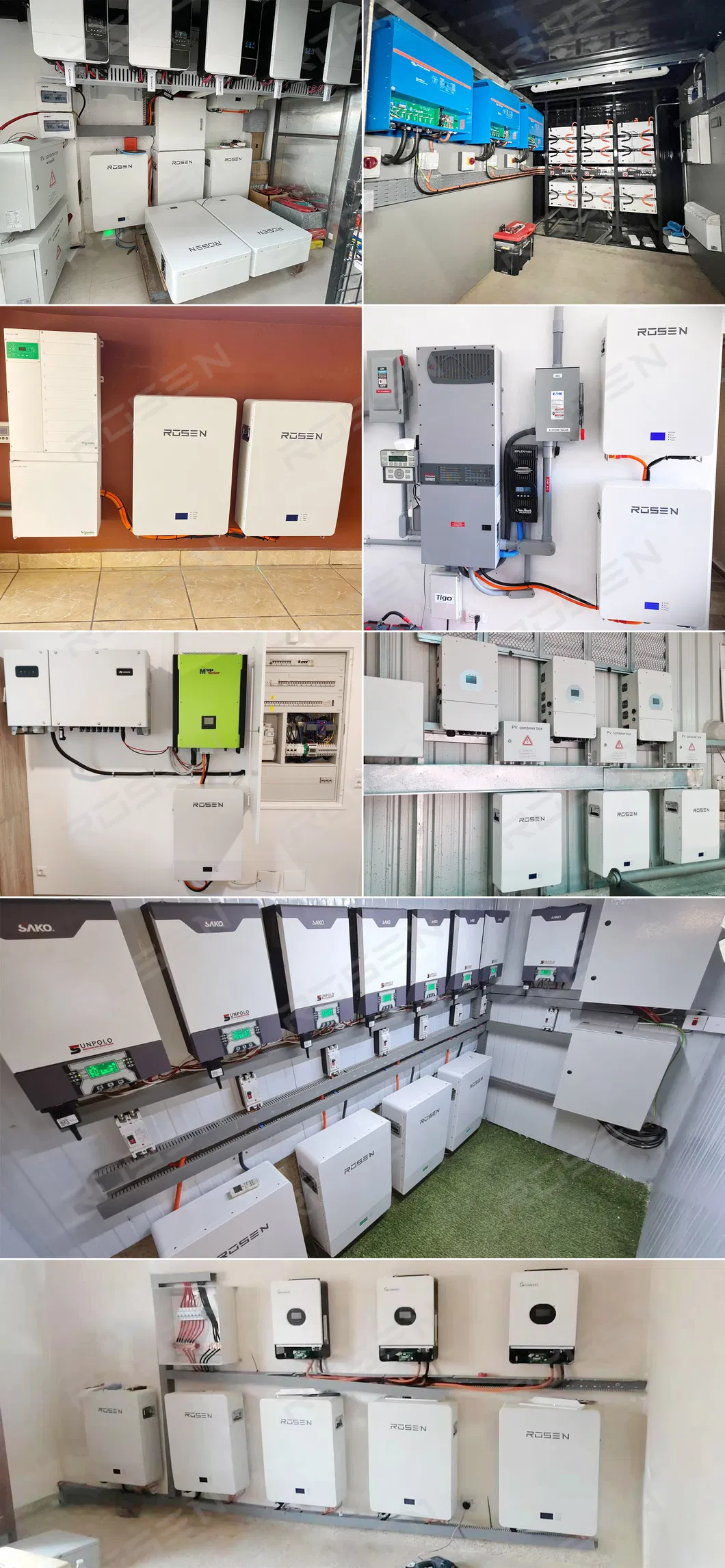

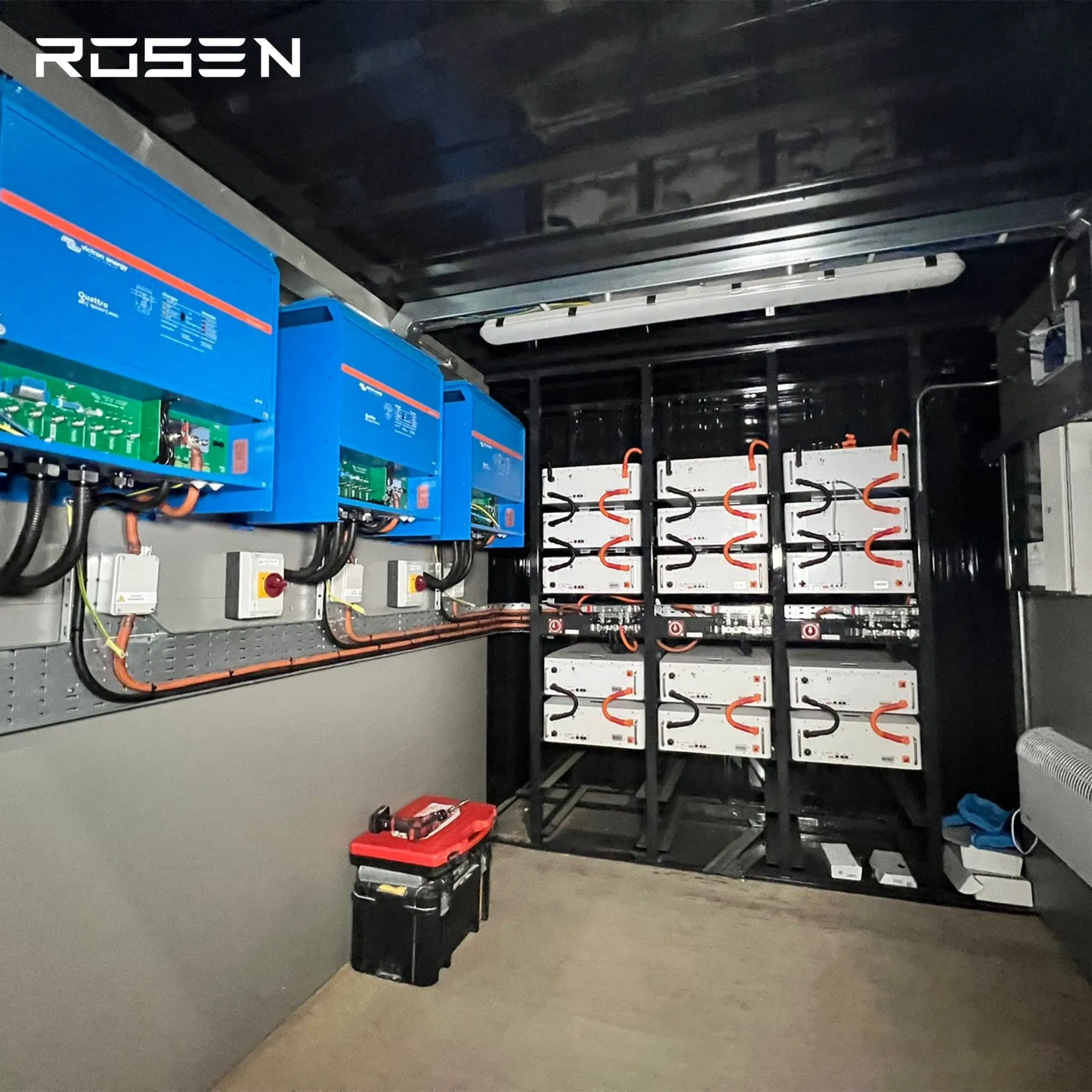

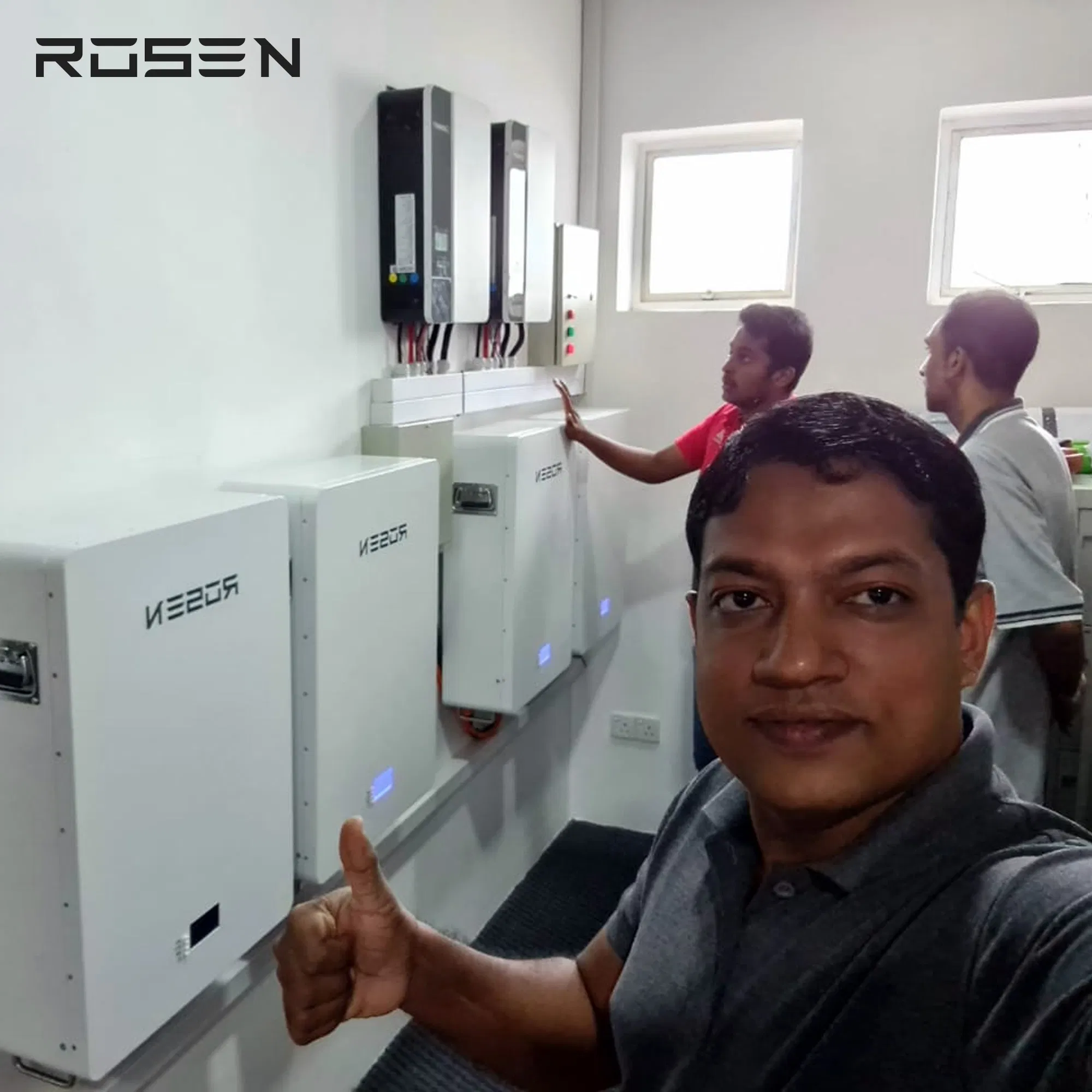

Our lithium battery projects are installed worldwide for residential and commercial solar solutions. Home projects typically utilize 48Vdc or 51.2Vdc systems (50Ah to 400Ah) compatible with 3kw-12kw hybrid storage inverters. Commercial BESS projects scale from 100kw to 10MW with containerized designs and programmable EMS. All installations meet MSDS/UN38.3 safety standards.
