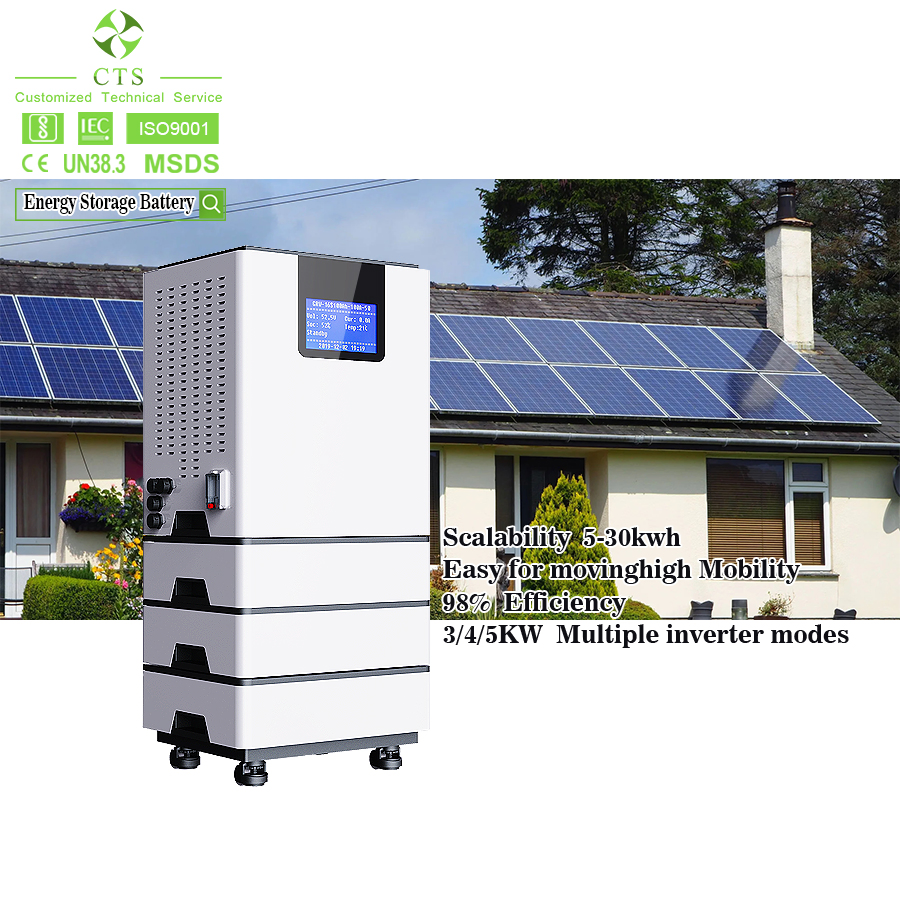

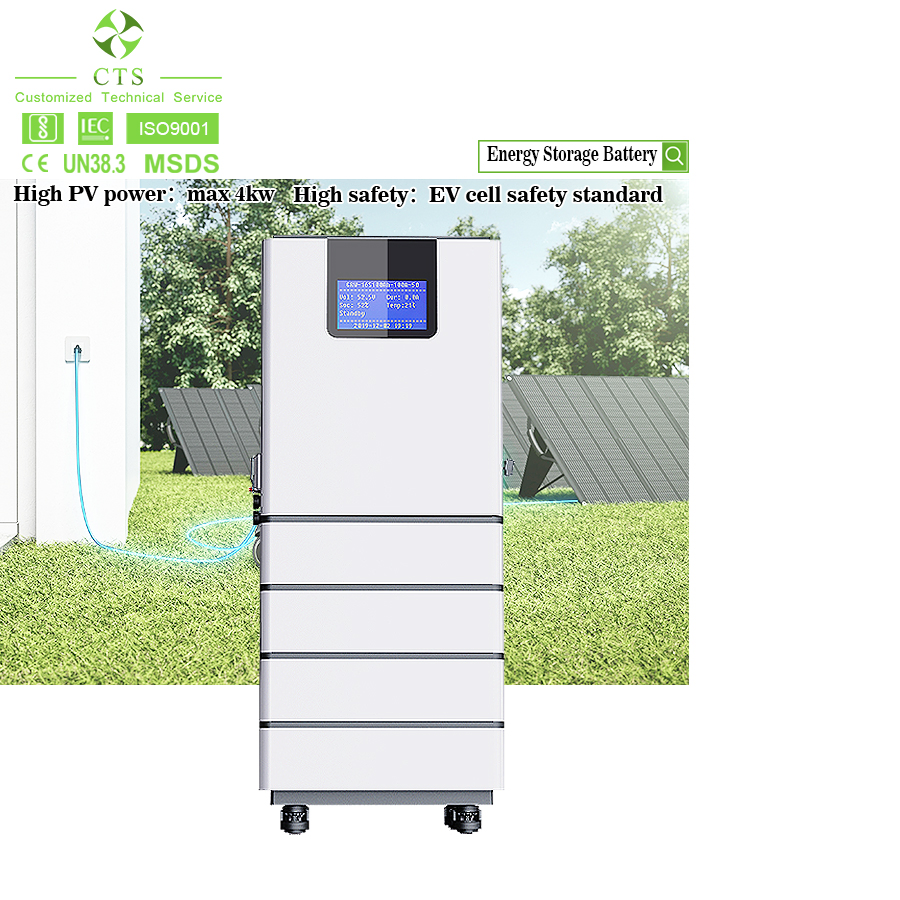

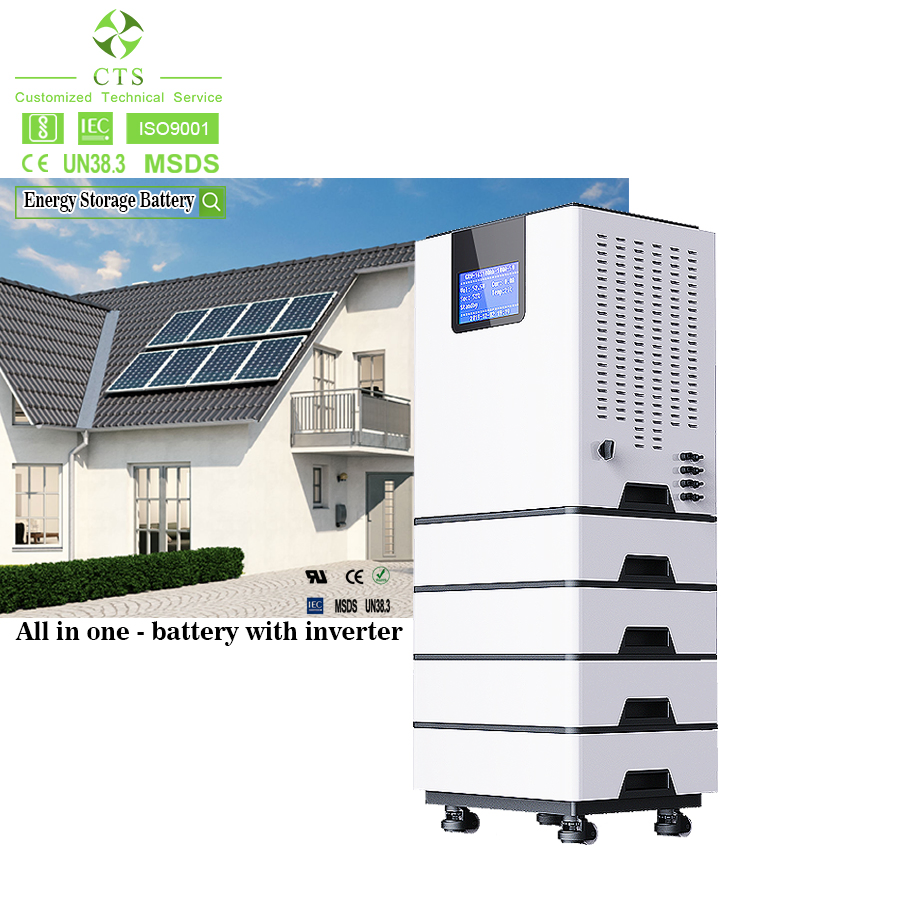

Cts High Voltage 15kwh 20kwh 25kwh 30kwh Solar Stacked Energy Storage Lithium Battery with Hybrid Inverter All in One Battery

1 / 5

Cts High Voltage 15kwh 20kwh 25kwh 30kwh Solar Stacked Energy Storage Lithium Battery with Hybrid Inverter All in One Battery

Still deciding? Get samples of $ !

Order Sample

Send Inquiry

Product Description

Basic Information

Model NO.

HS15-HP8T

Rechargeable

Yes

Size

Medium

ODM/OEM

Allowed

Model Number

High Voltage Solar System Battery

Communication Port

Can, RS232, RS485

Nominal Voltage

153.6V/204.8V/256V/307.2V

Nominal Capacity

100ah/200ah

Transport Package

Wooden

HS Code

85079090

Production Capacity

50000 units/Per Year

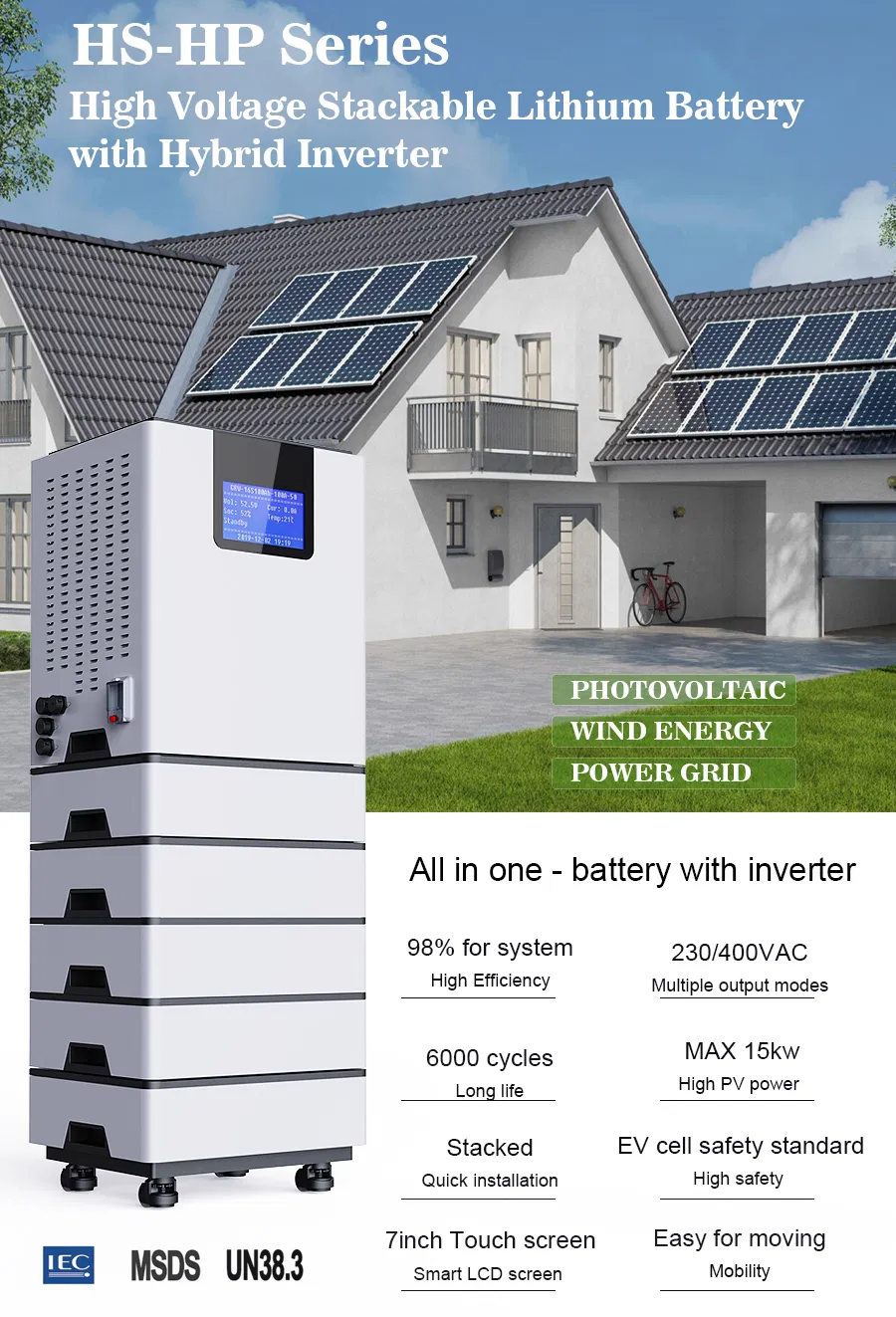

High Voltage 15kwh 20kwh 25kwh 30kwh Solar Stacked Energy Storage Lithium Battery with Hybrid Inverter All in One

🛡️

A+++ LFP cell and reliable BMS design

⚙️

Module design with flexible expansion to 30kwh

🚀

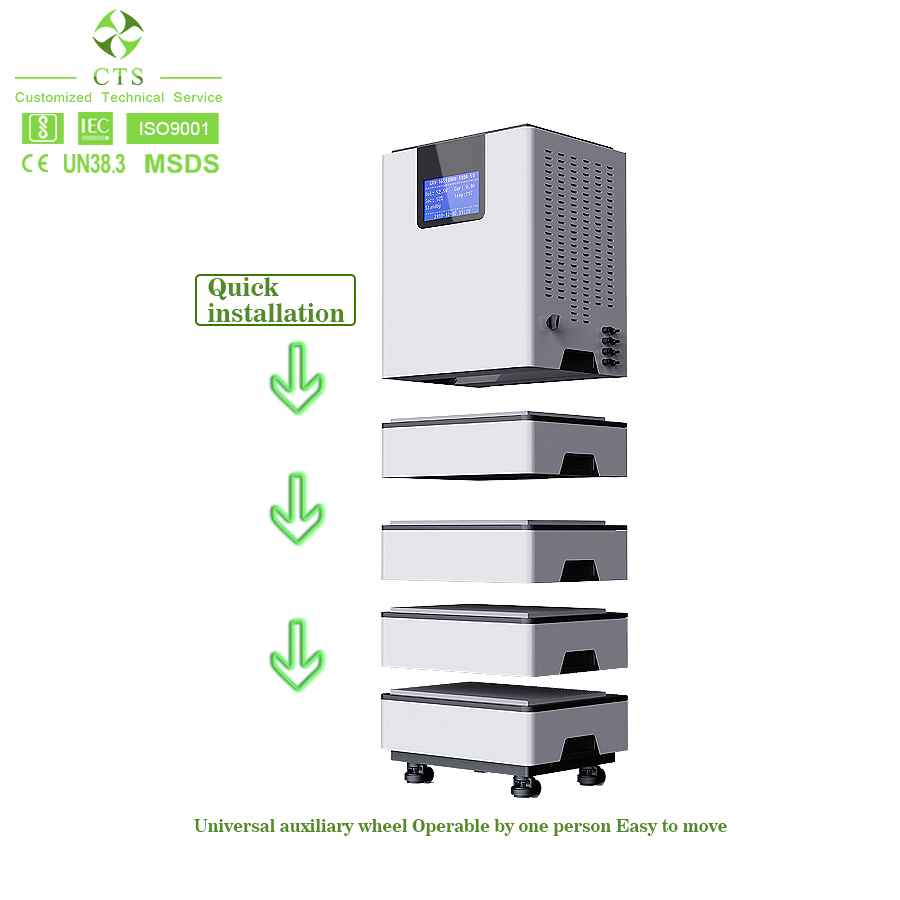

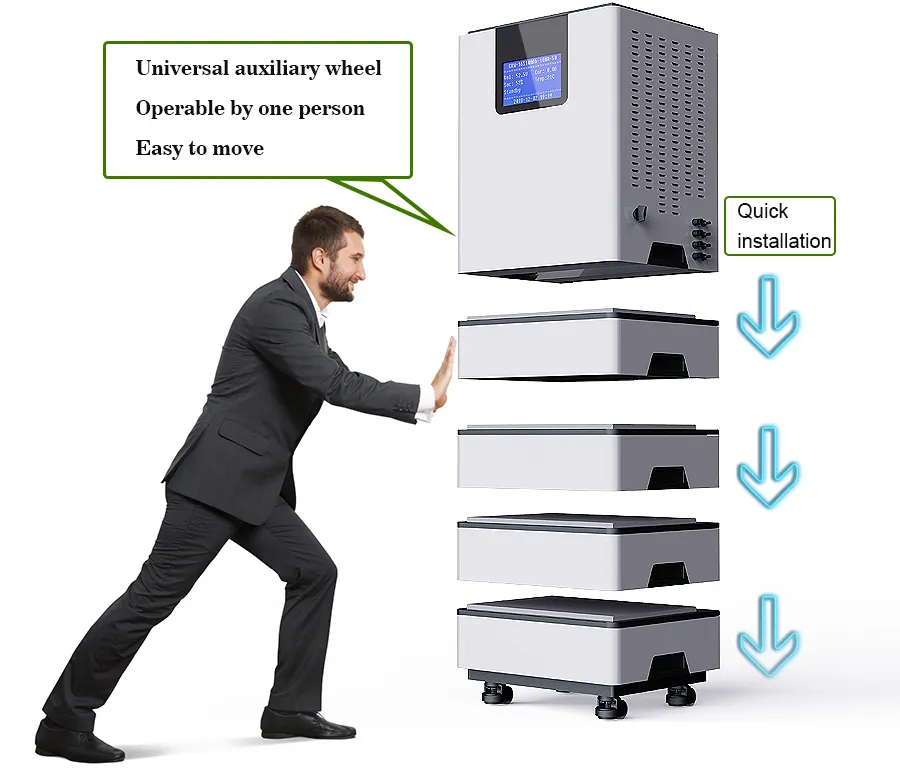

Pulley and rail design ensures easy and quick installation

⚡

Build in MPPT with 99% efficient

🌡️

Operating temperature ranges from -10°C to 55°C

Technical Specifications

Model	HS15-HP8T	HS20-HP10T	HS25-HP12T	HS30-HP12T
Inverter Parameters
PV Input Power	10kW	13kW	15kW	15kW
Max PV Voltage	1000VDC
MPPT Voltage Range	180~850VDC
EPS Output Power	8.8KVA	11KVA	13.2KVA	13.2KVA
EPS Output Voltage	400VAC
Battery Parameters
Battery Type	LiFePo4
Rated Voltage	153.6V	204.8V	256V	307.2V

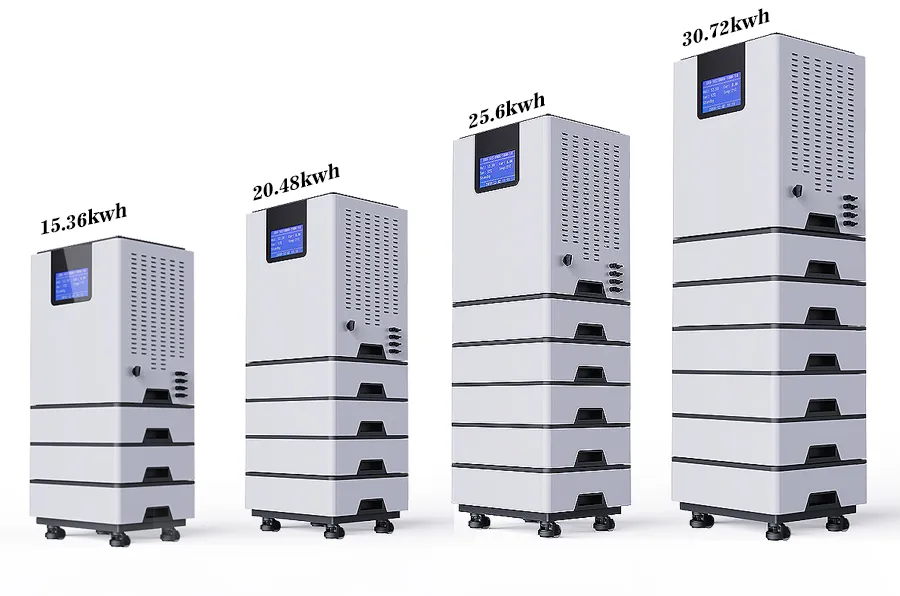

Energy (25°C)	15.36kWh	20.48kWh	25.6kWh	30.72kWh
System Parameters
Display	7 inch touch LCD
Size (WDH)	6404001604mm	6404001872mm	6404002140mm	6404002408mm
Weight	184kg	232kg	280kg	328kg

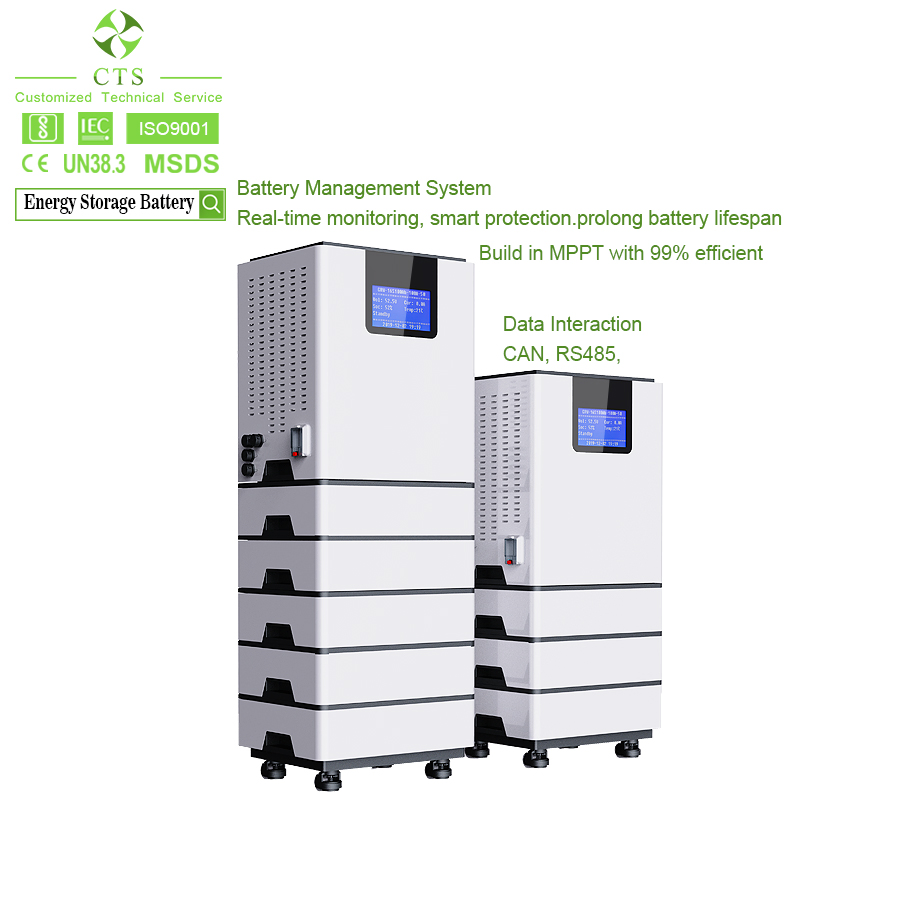

Intelligent Battery Management System

🔵 Data Monitoring: Voltage, Current, Temperature, etc.
🔴 Safety Protection: Overcharge, Overdischarge, Overcurrent, Overtemperature.
🟢 Data Interaction: CAN, RS485 communication ports.

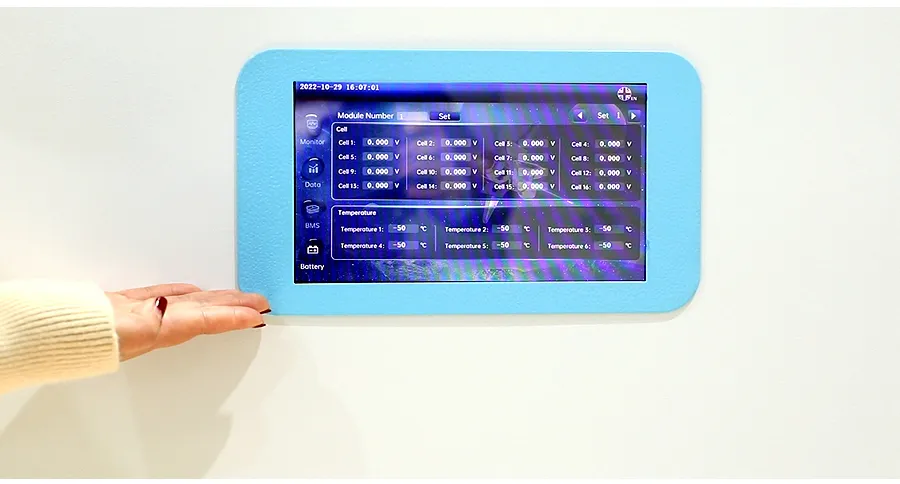

Smart 7 Inch Touch screen displays parameters in real time, making running status clear at a glance.

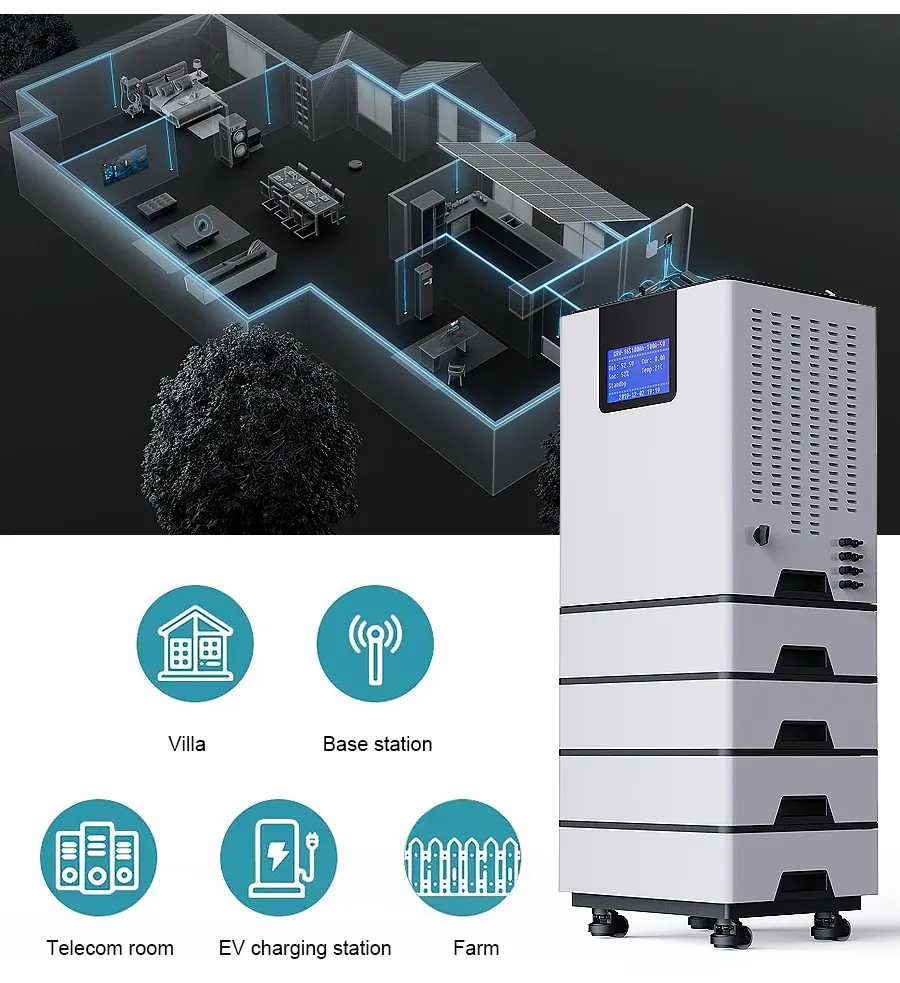

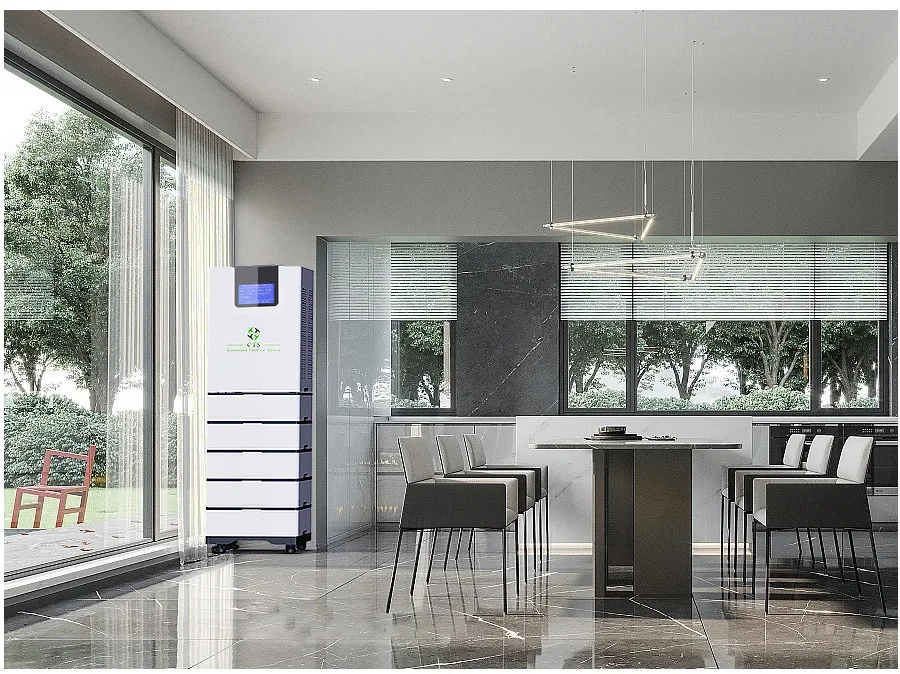

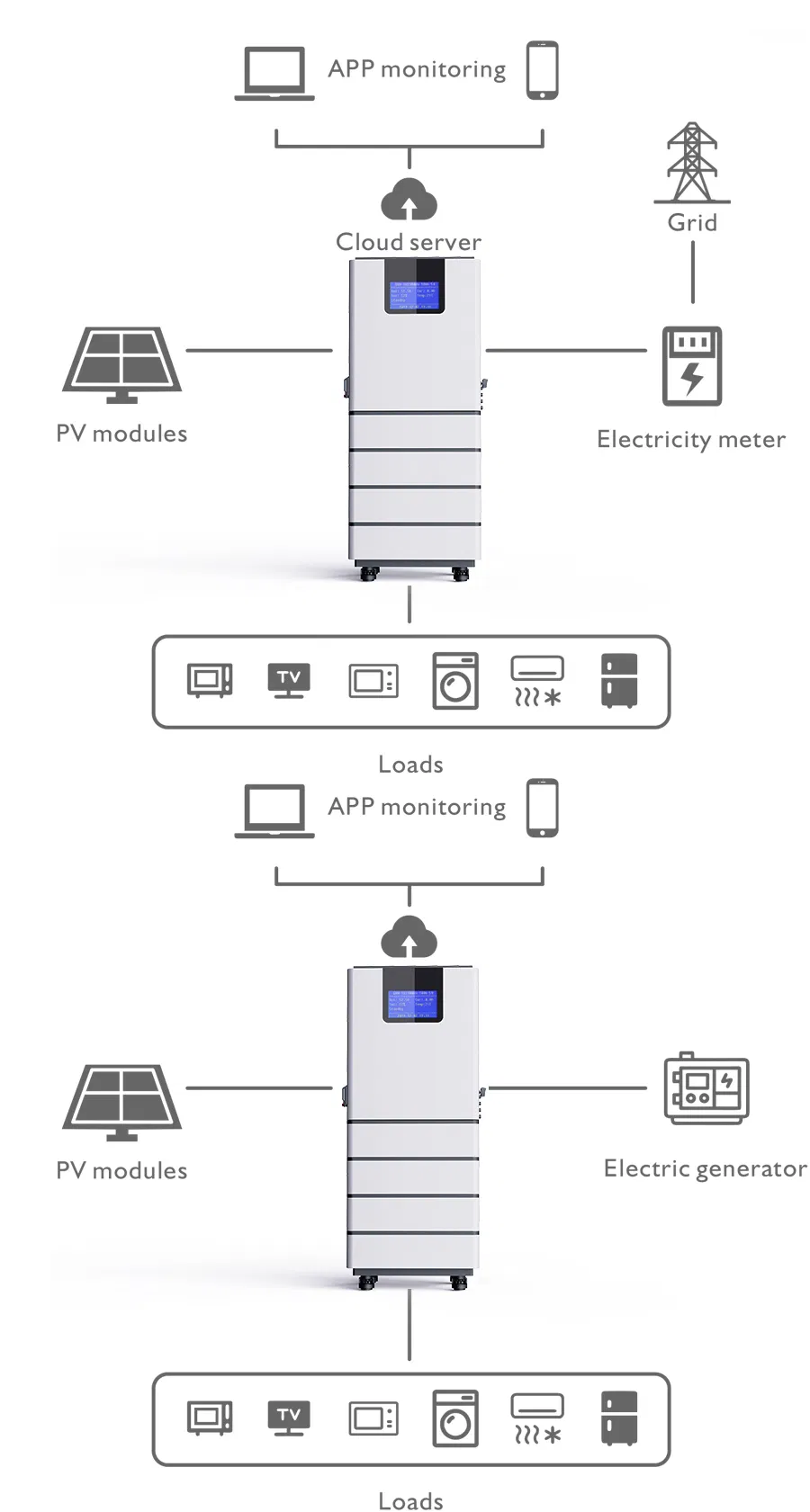

Residential Energy Storage System

Combined with advanced LiFePO4 batteries, hybrid inverters, and energy management systems, this solution is ideal for household energy storage, farms, and other power-critical applications.

Frequently Asked Questions

What is the battery type used in this energy storage system?

The system utilizes high-quality A+++ LiFePO4 (Lithium Iron Phosphate) cells, known for their safety, long life, and reliability.

Is the capacity of the system expandable?

Yes, the system features a modular design that allows for flexible expansion, supporting energy capacities up to 30kWh.

What communication ports does the battery system support?

The system is equipped with multiple data interaction ports, including CAN, RS232, and RS485 for seamless integration.

Does the system include an inverter?

Yes, it is an "all-in-one" system that integrates both the lithium battery storage and a hybrid inverter (options for 3kW, 4kW, or 5kW).

What are the operating temperature limits?

The system is designed to operate efficiently within a temperature range of -10°C to 60°C.

How is the system installed?

The system features a pulley and rail design, which ensures a quick, easy, and stackable installation process.

Cts High Voltage 15kwh 20kwh 25kwh 30kwh Solar Stacked Energy Storage Lithium Battery with Hybrid Inverter All in One Battery

Product Description

High Voltage 15kwh 20kwh 25kwh 30kwh Solar Stacked Energy Storage Lithium Battery with Hybrid Inverter All in One
