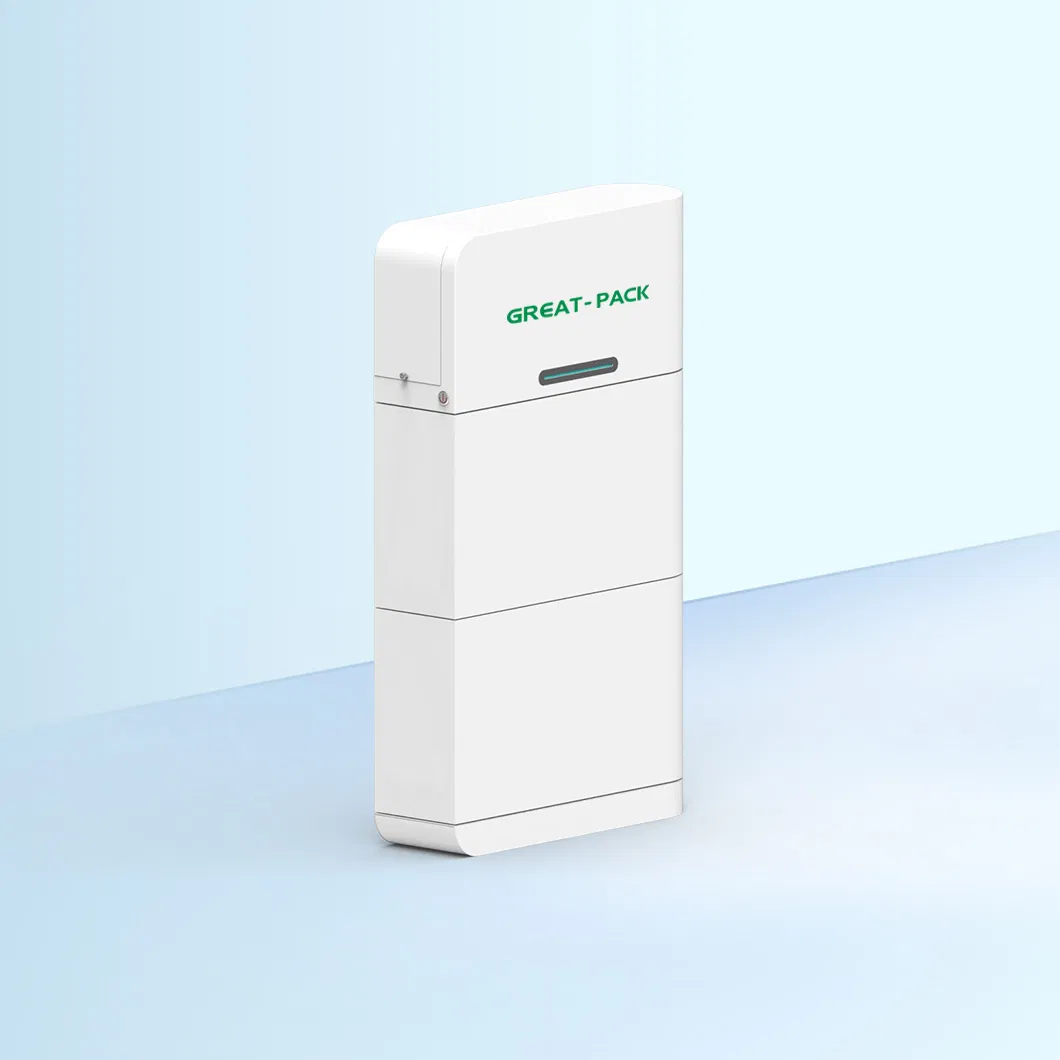

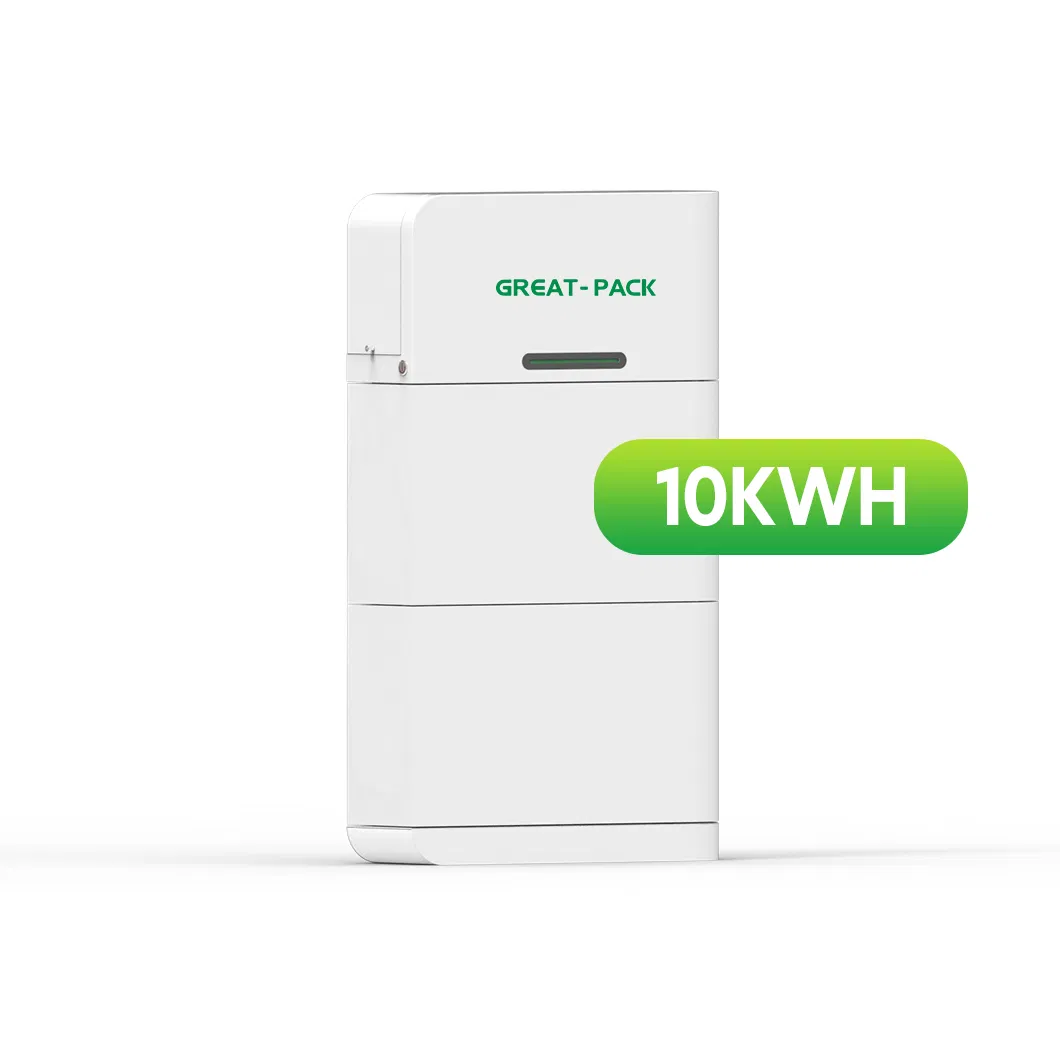

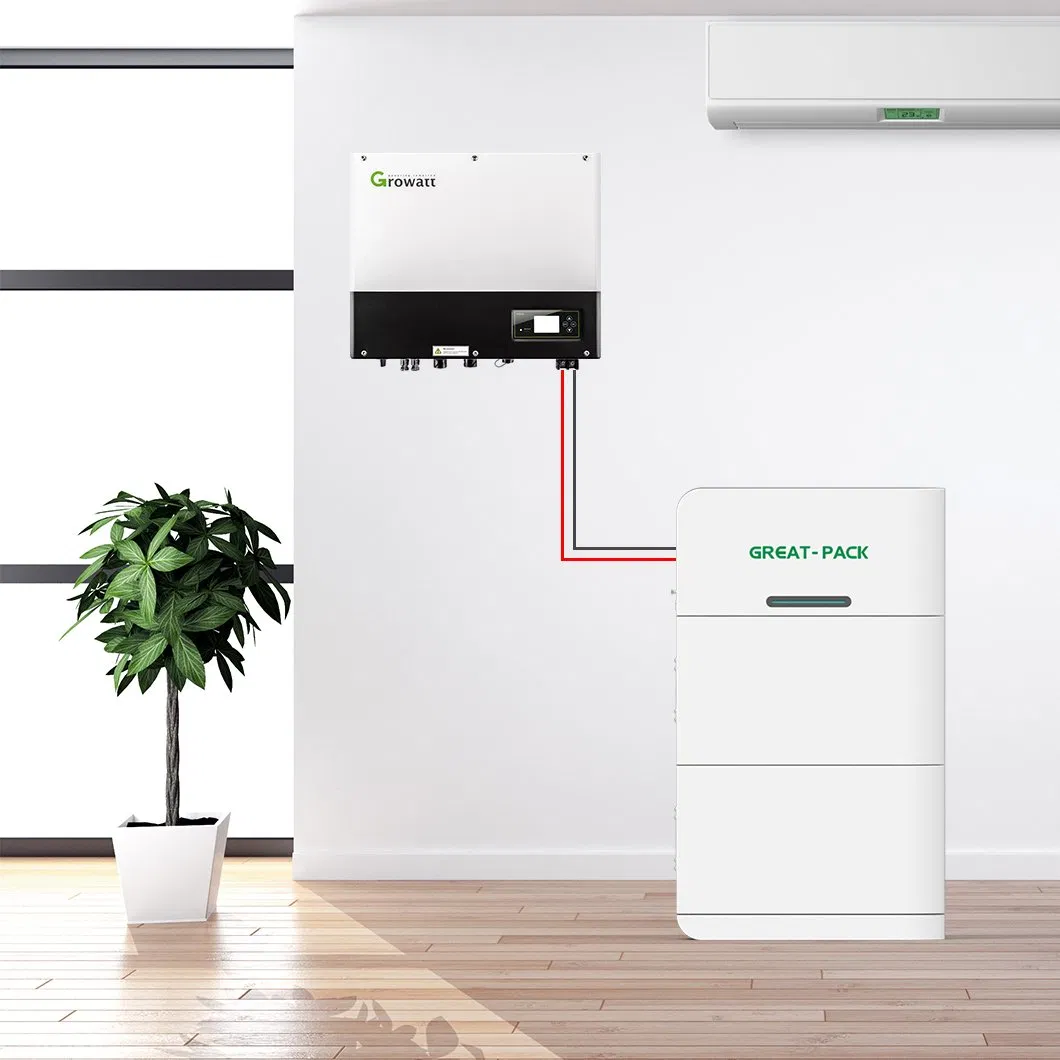

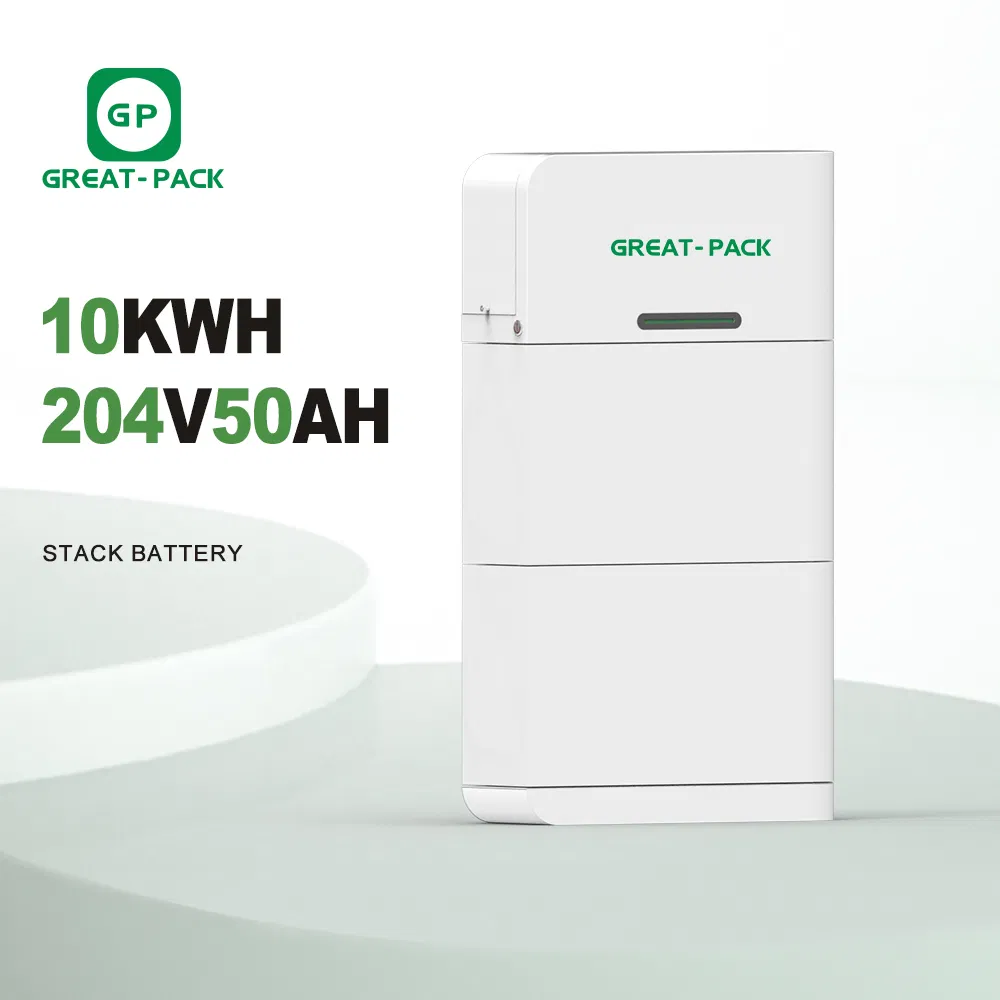

10kwh 20kwh 25kwh High Voltage Pack 204V50ah Stacked LiFePO4 Lithium Battery for Growatt Hybrid Solar System
10kwh 20kwh 25kwh High Voltage Pack 204V50ah Stacked LiFePO4 Lithium Battery for Growatt Hybrid Solar System
10kwh 20kwh 25kwh High Voltage Pack 204V50ah Stacked LiFePO4 Lithium Battery for Growatt Hybrid Solar System
10kwh 20kwh 25kwh High Voltage Pack 204V50ah Stacked LiFePO4 Lithium Battery for Growatt Hybrid Solar System
10kwh 20kwh 25kwh High Voltage Pack 204V50ah Stacked LiFePO4 Lithium Battery for Growatt Hybrid Solar System
1 / 5
10kwh 20kwh 25kwh High Voltage Pack 204V50ah Stacked LiFePO4 Lithium Battery for Growatt Hybrid Solar System
10kwh 20kwh 25kwh High Voltage Pack 204V50ah Stacked LiFePO4 Lithium Battery for Growatt Hybrid Solar System
10kwh 20kwh 25kwh High Voltage Pack 204V50ah Stacked LiFePO4 Lithium Battery for Growatt Hybrid Solar System
10kwh 20kwh 25kwh High Voltage Pack 204V50ah Stacked LiFePO4 Lithium Battery for Growatt Hybrid Solar System
10kwh 20kwh 25kwh High Voltage Pack 204V50ah Stacked LiFePO4 Lithium Battery for Growatt Hybrid Solar System

10kwh 20kwh 25kwh High Voltage Pack 204V50ah Stacked LiFePO4 Lithium Battery for Growatt Hybrid Solar System

Still deciding? Get samples of $ !
Order Sample
Send Inquiry

Product Description

ℹ️ Basic Information
Model NO.
GP-HV10K
Rechargeable
Yes
Size
Large
Cells
LFP 3.2V 50ah Prismatic
Warranty
10 Years
Certification
CE/RoHS/Un38.3/MSDS
Application
Home Energy Storage, Solar & Wind System
Transport Package
Carton Box, Wooden Pallet
📦 Product Description
10kWh 20kWh 25KWh High Voltage Stacked LiFePO4 Lithium Battery

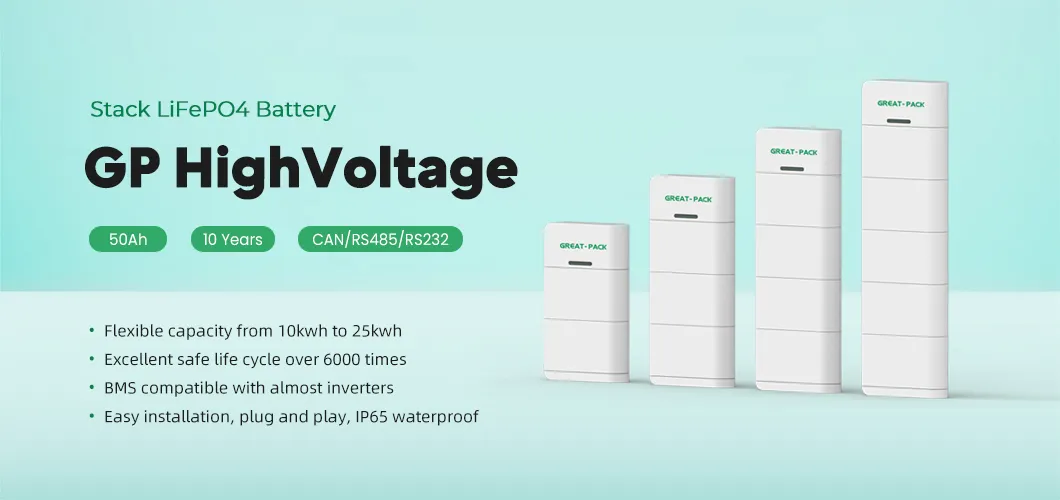

High Voltage Stacked Battery
Model GP-HV10K GP-HV15K GP-HV20K GP-HV25K
Battery Module 102.4V 50Ah, 5KWh, 49kg, 630*185*345mm
Number of Modules 2 3 4 5
Nominal Voltage 204.8V 307.2V 409.6V 512V
Energy Capacity 10.24KWh 15.36KWh 20.48KWh 25.60KWh
Charge Voltage 224V 336V 448V 560V
IP Class / Material IP65 / Metal Case / Stand Stack

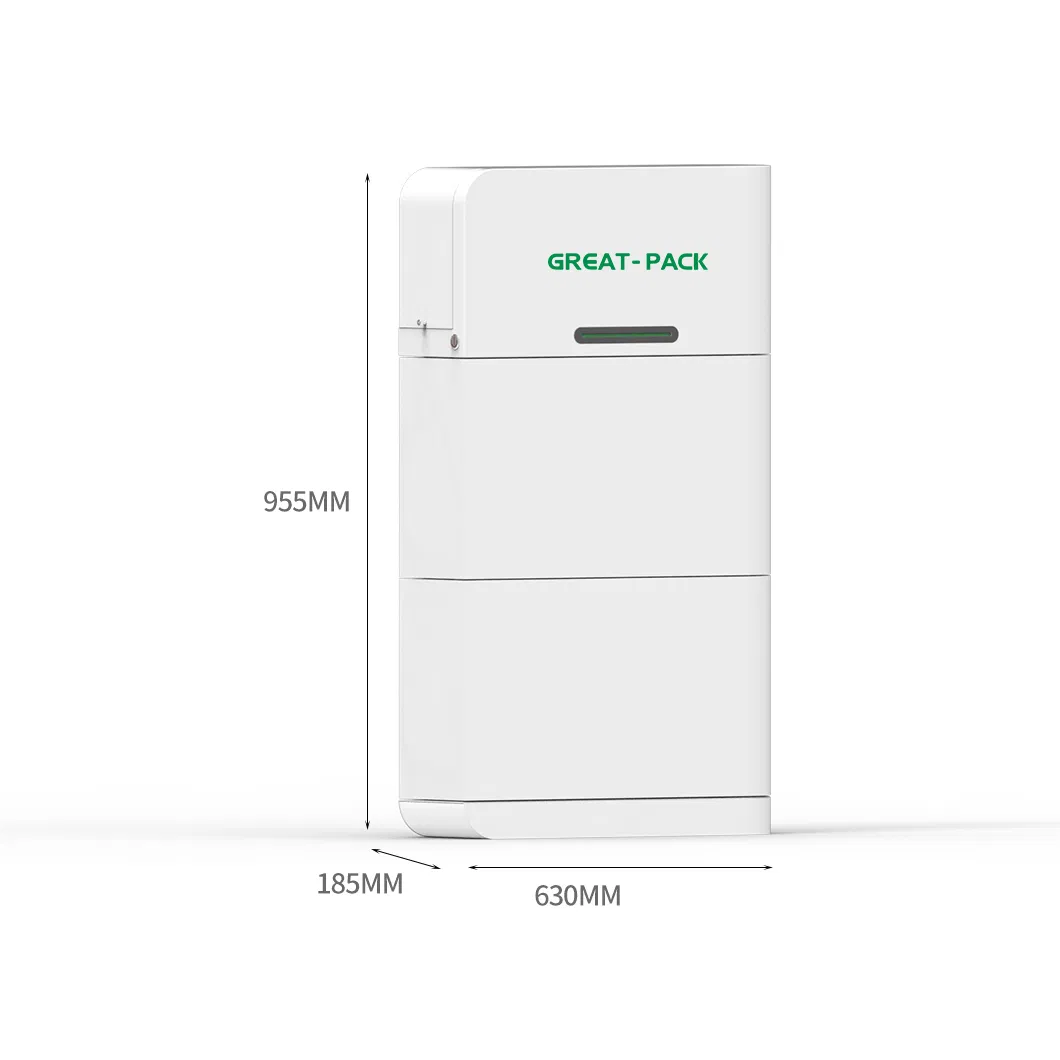

Dimensions (W/D/H) 630*185*955mm 630*185*1300mm 630*185*1650mm 630*185*2000mm
📷 Detailed Photos

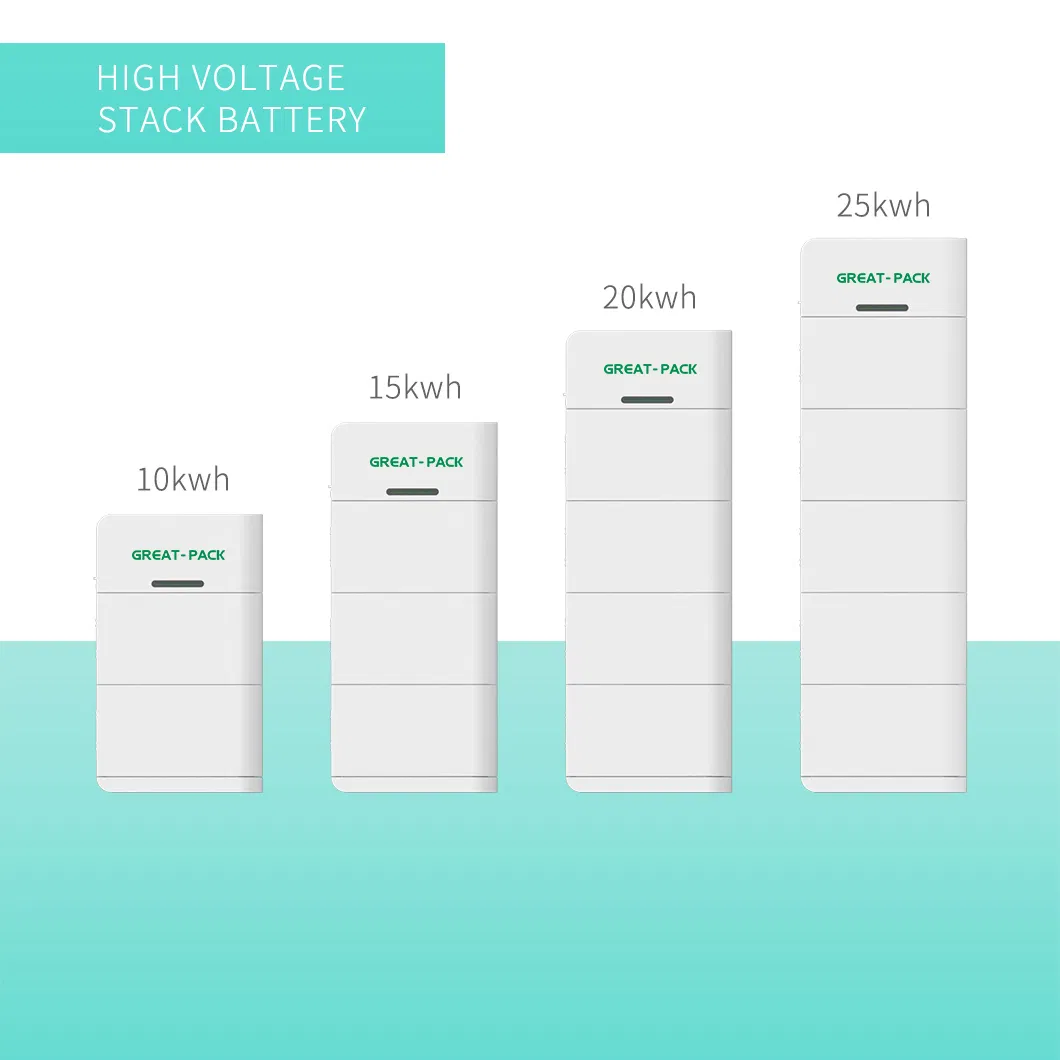

Detail View 1

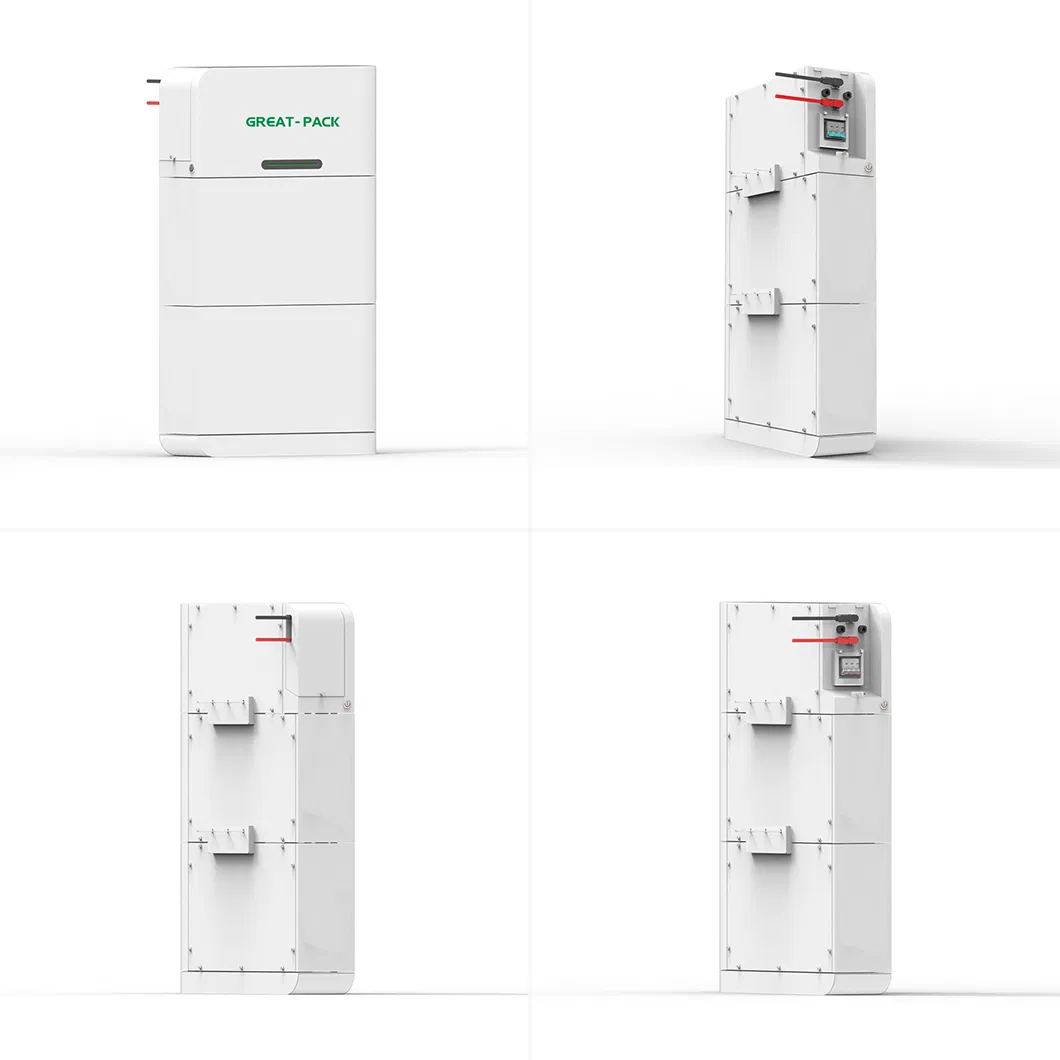

Detail View 2

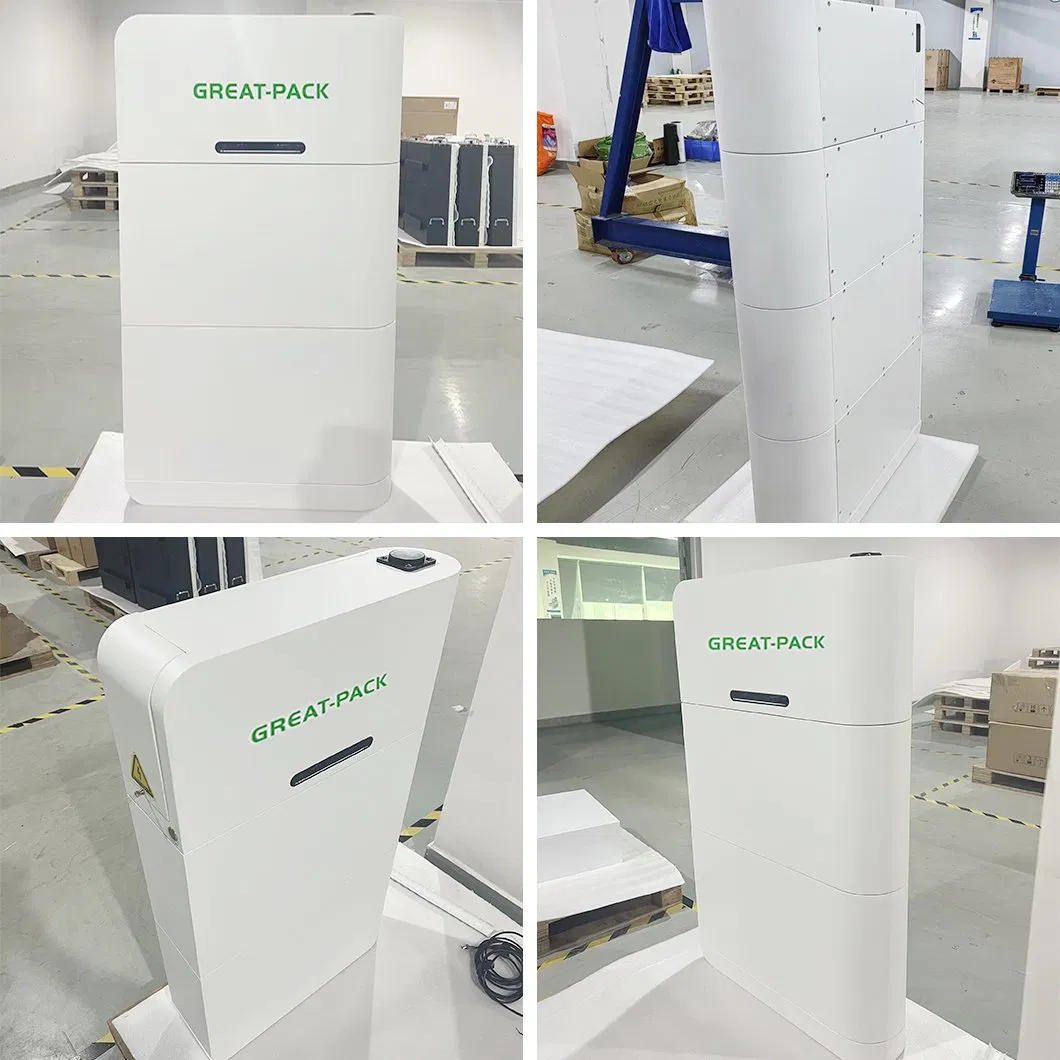

Detail View 3
🛠️ System Compatibility & Projects

Our batteries are compatible with major hybrid inverters: Growatt, Goodwe, Deye, Sermatec, Megarevo, Solis, SMA, and more.

Inverter Compatibility List

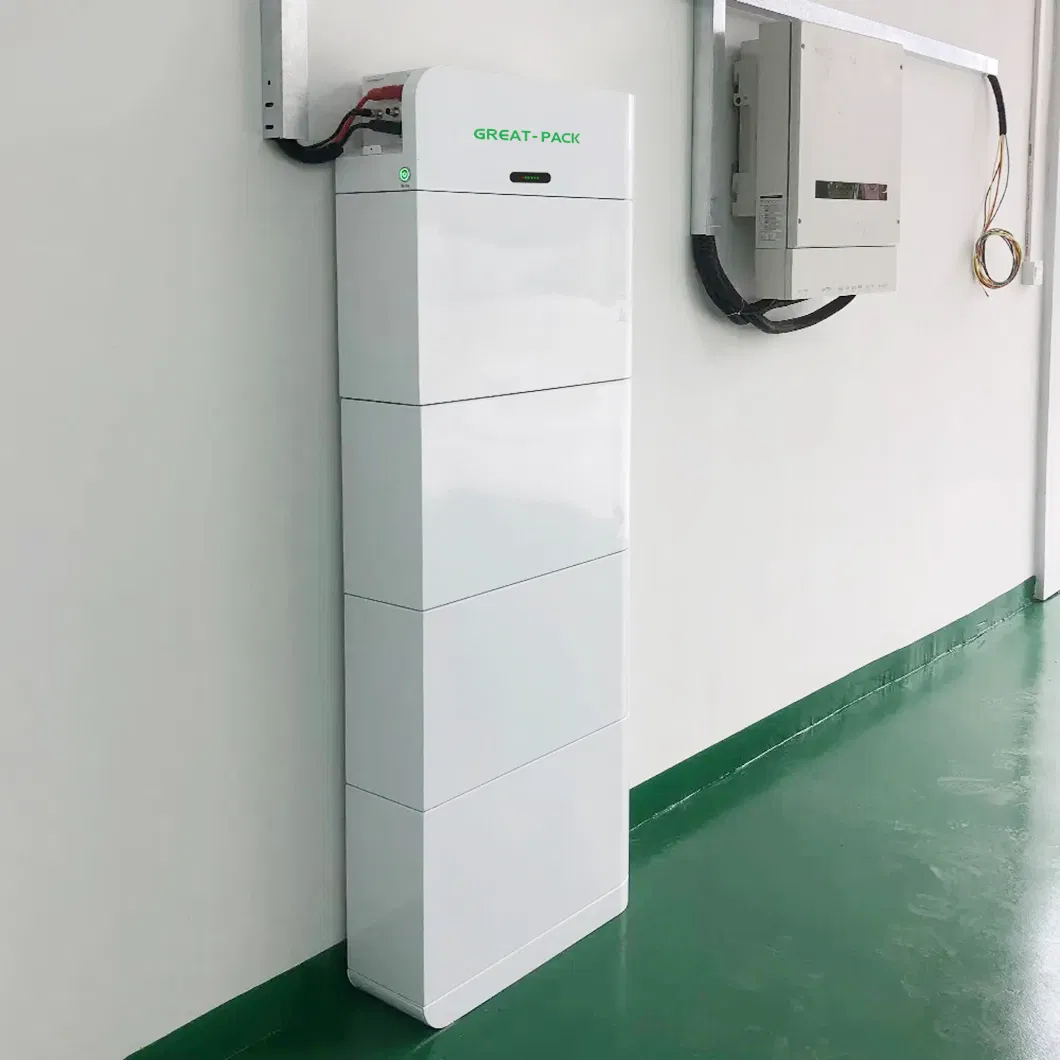

Project Site 1

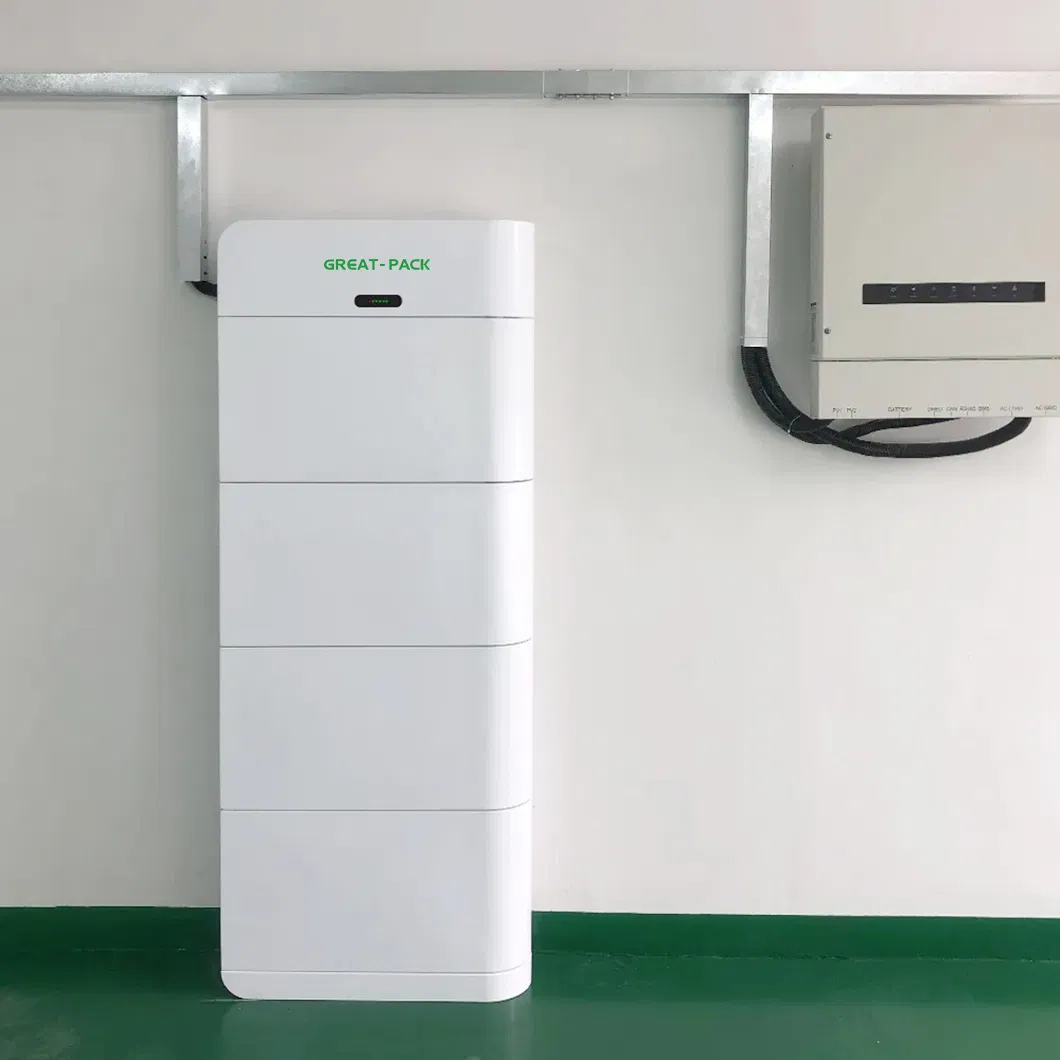

Project Site 2

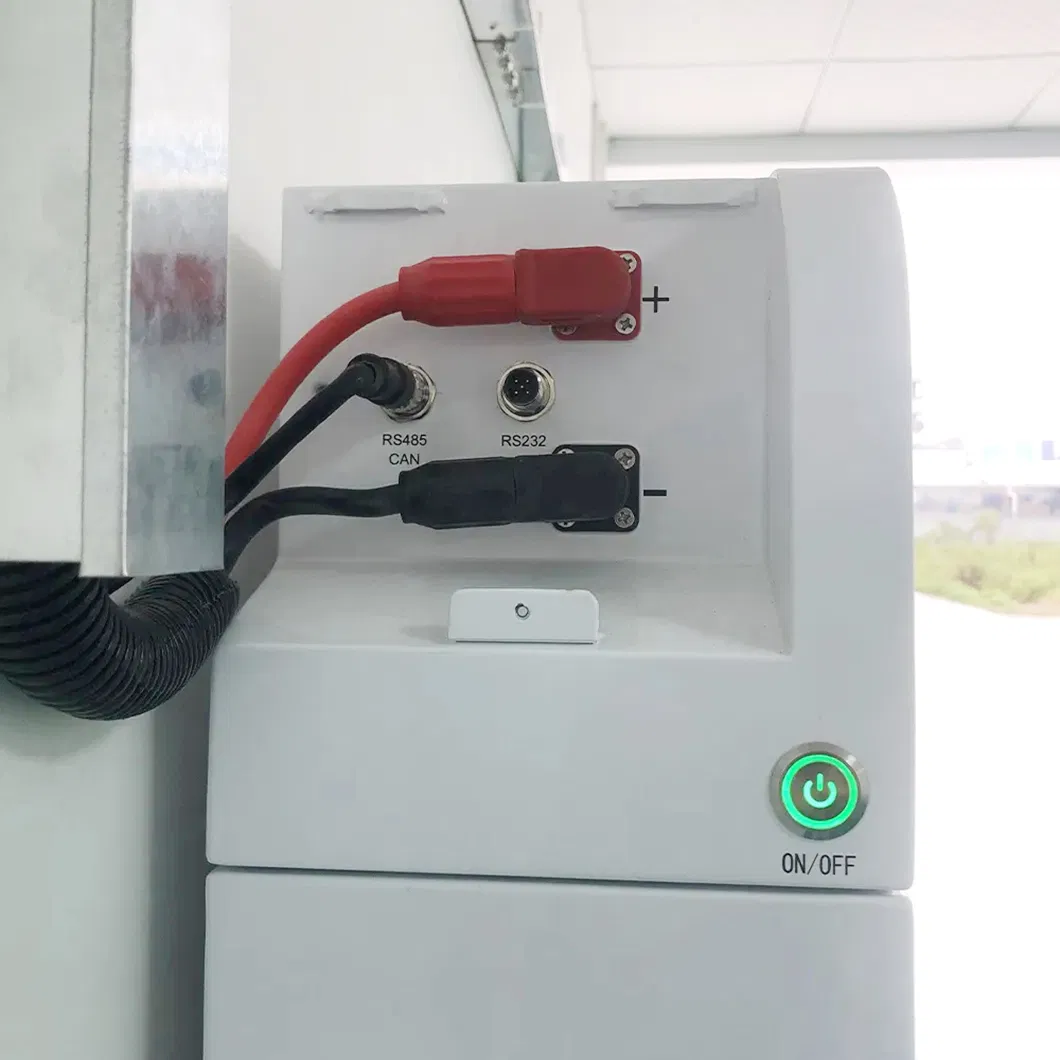

Project Site 3

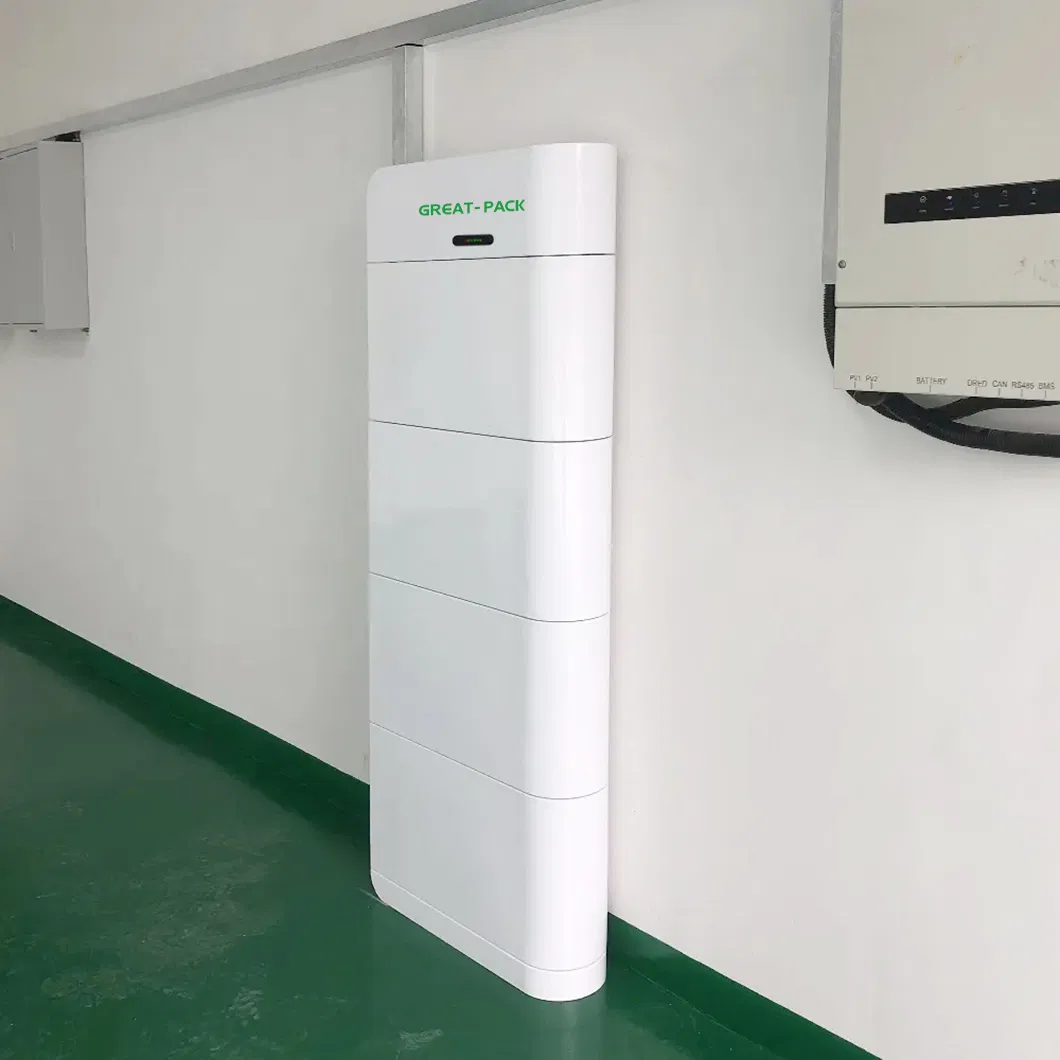

Project Site 4

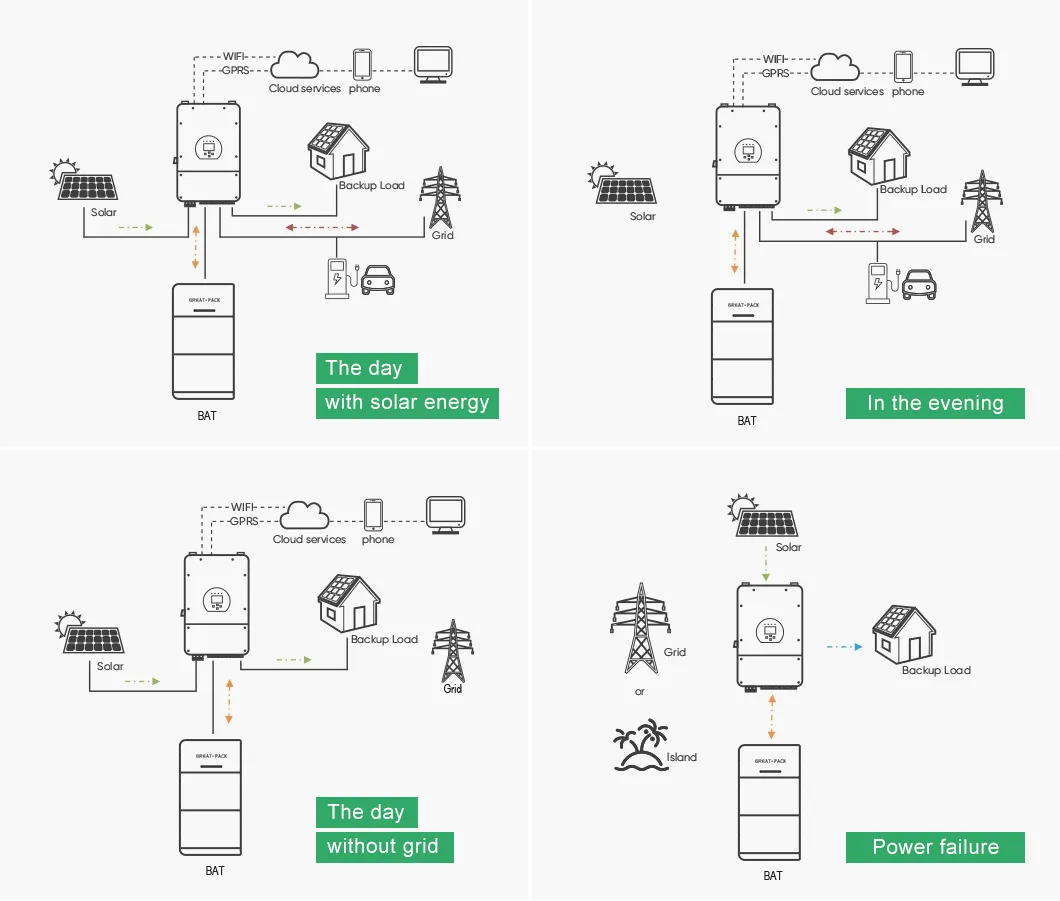

System Diagram
🏭 Factory & Quality Control

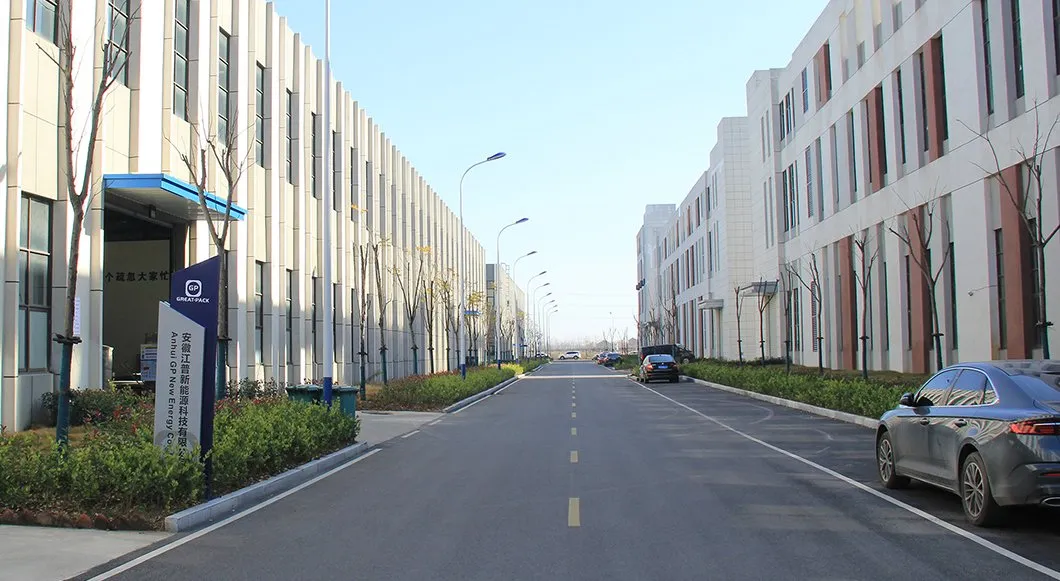

Production Line

Specializing in LiFePO4 and lithium-ion rechargeable solutions for green energy. With over 8 years of experience in the lithium battery field, we provide professional one-stop power solutions and excellent OEM/ODM services.

International Exhibitions

Global Exhibitions

Safety Certifications

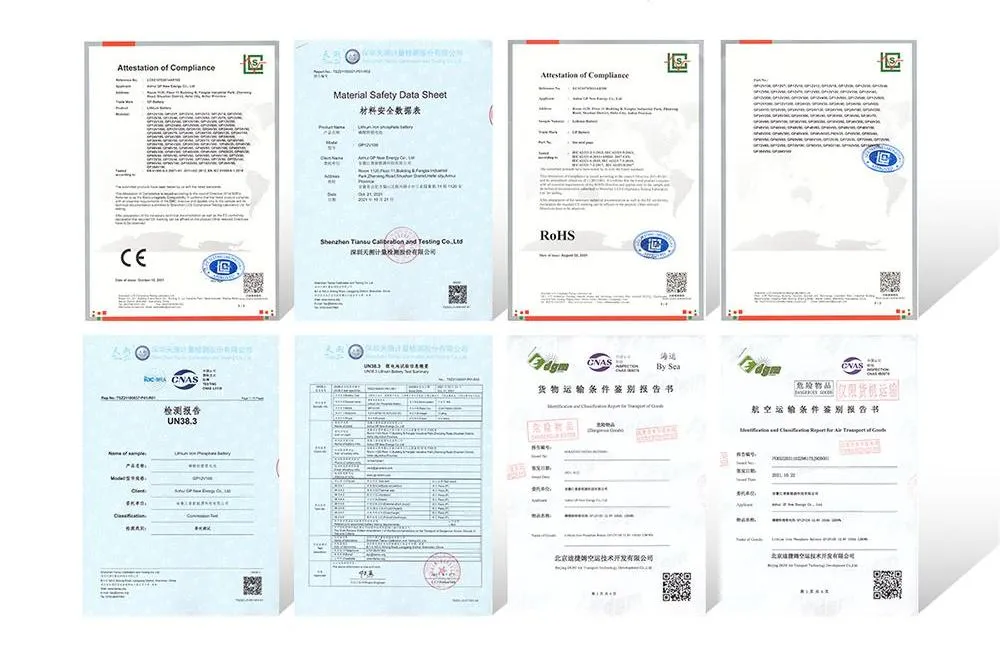

CE RoHS Certificates
❓ Frequently Asked Questions
What is the lifespan of the LiFePO4 battery?
Our lithium batteries are designed for long-term use and come with a 10-year warranty, ensuring reliable performance for your solar energy system.
Is this system compatible with my existing inverter?
Yes, the battery is compatible with most leading hybrid inverters on the market, including Growatt, Goodwe, Deye, and Solis.
Can the capacity be expanded later?
The stacked design allows for easy expansion. You can start with a 10kWh setup and add more modules later to reach up to 25.6kWh per stack.
What safety certifications do these batteries hold?
All products have passed rigorous testing and hold CE, UN38.3, RoHS, and MSDS certifications for international shipping and safety.
What is the lead time for orders?
The standard lead time is approximately 10 working days for typical project requirements, depending on the order volume.
What is the protection rating for outdoor installation?
The battery system is IP65 rated, meaning it is protected against dust and water ingress, making it suitable for various installation environments.
