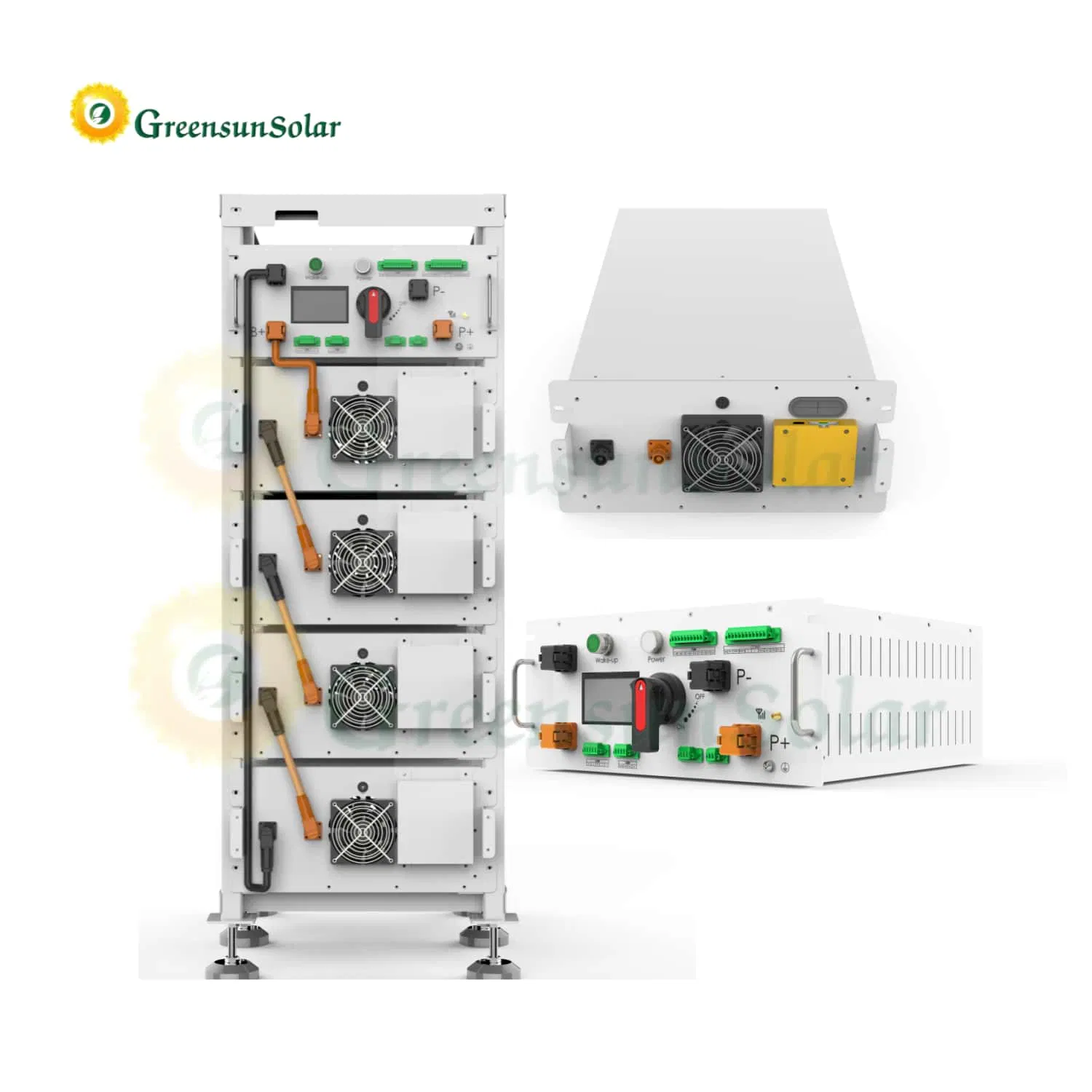

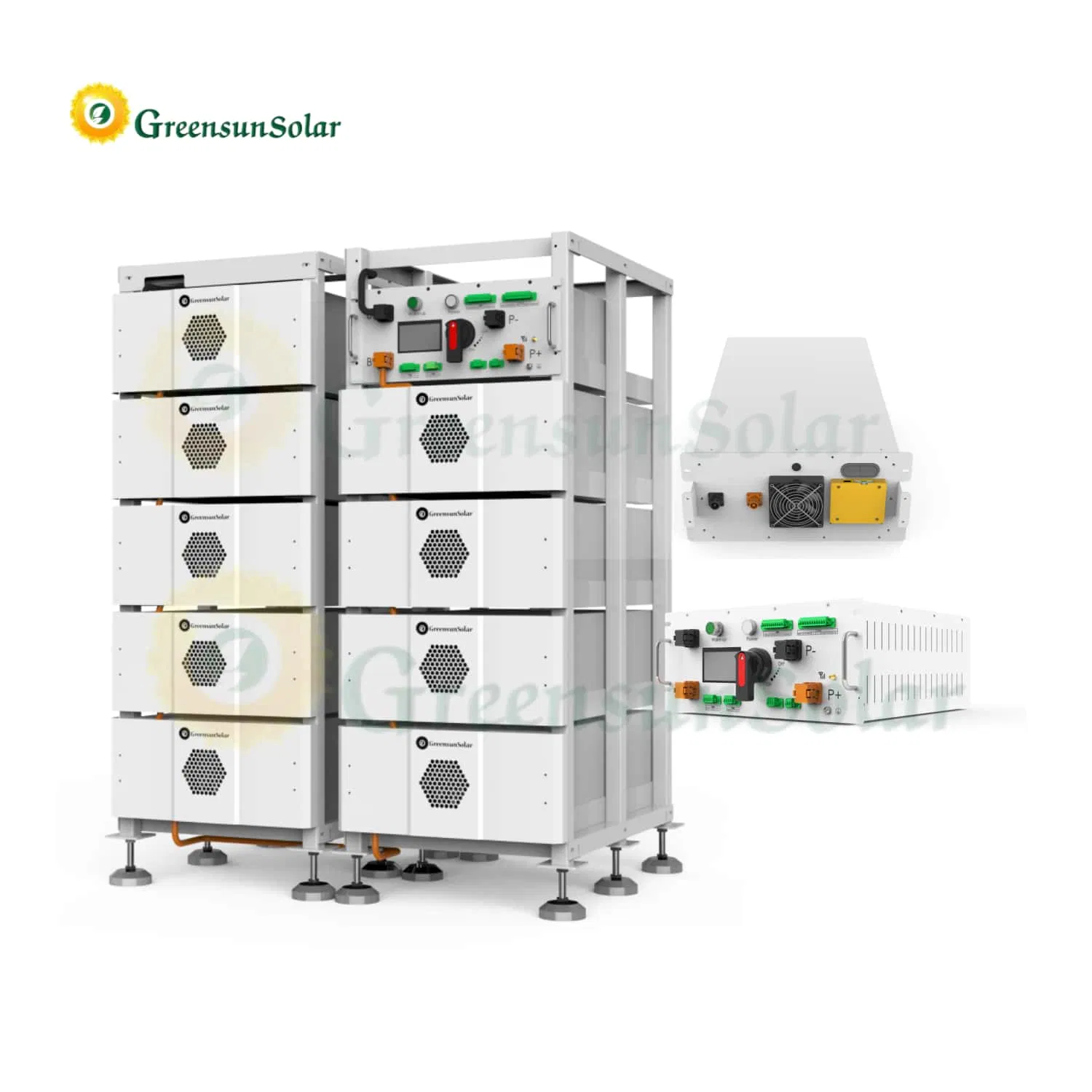

Greensun Factory 314ah 112kwh 100kwh 64~241kwh Hybrid Solar Lithium Enegy Storage Battery for Home Factory Solar Power System

1 / 5

Greensun Factory 314ah 112kwh 100kwh 64~241kwh Hybrid Solar Lithium Enegy Storage Battery for Home Factory Solar Power System

Still deciding? Get samples of $ !

Request Sample

Send Inquiry

Product Description

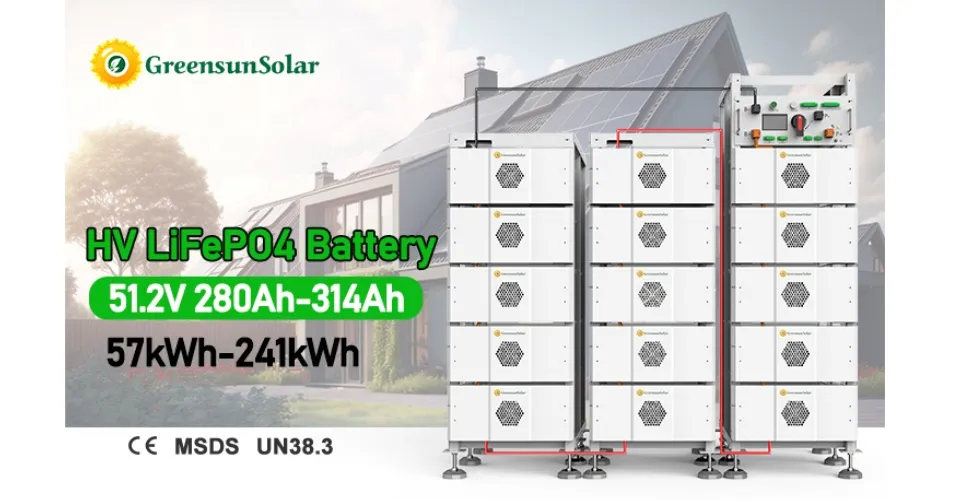

🏠 Home, Commercial, Industrial and Utility-scale Energy Storage Lithium Battery System

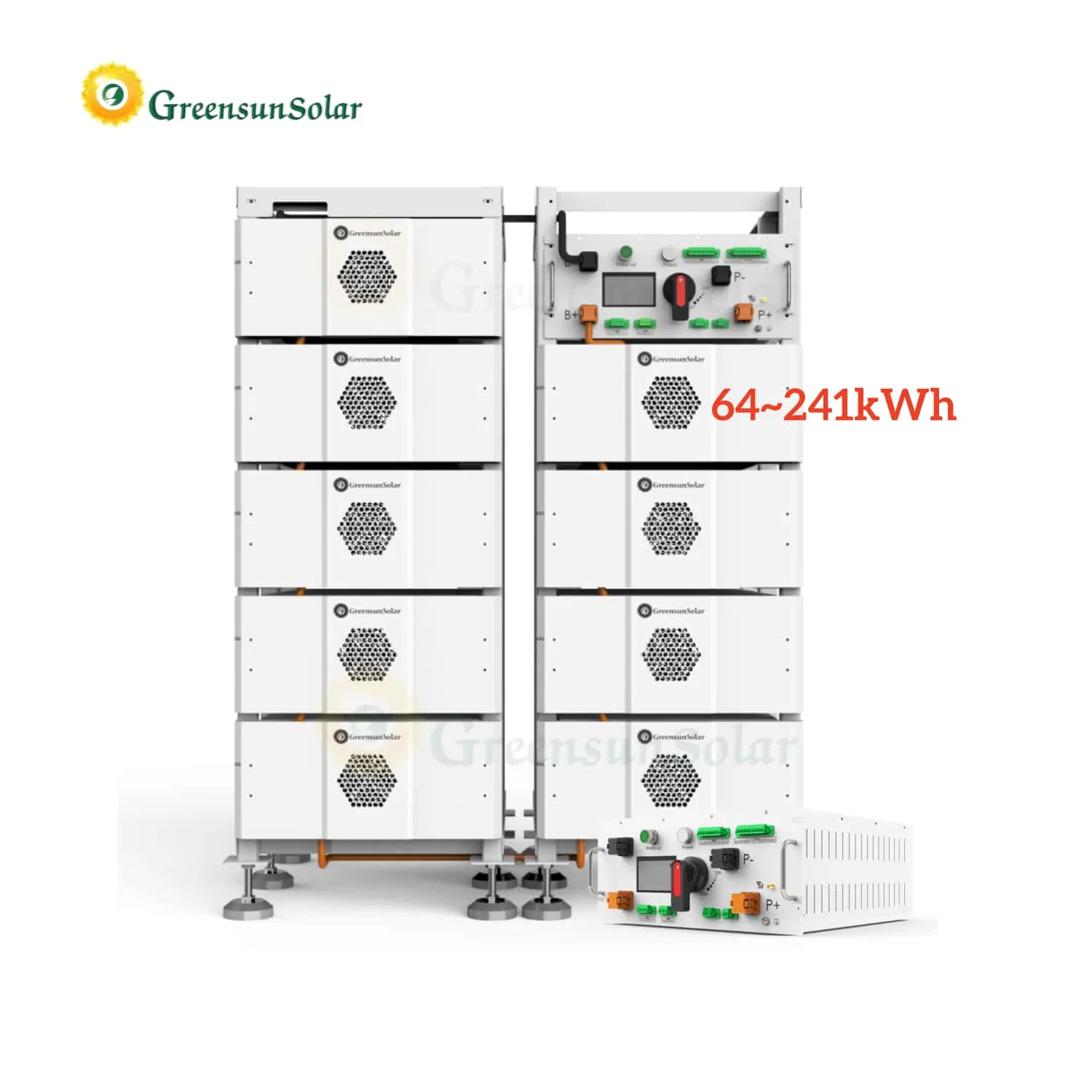

Grade A cell 3.2V 314Ah (8000+ cycles EOL70%) adopted, single cluster energy reaches 241kWh. Ideal for Commercial & Industrial ESS and BESS Container solutions.

📊 Basic Information

Model NO.

GHR-314-E112

Nominal Capacity

314Ah

Cycle Life

> 6000 Cycles

Battery Type

Lithium Ion (LiFePO4)

BMS

Active Balancing 3-Level BMS

Designed Life

15 Years

Energy

112kWh

Cooling

Forced Air Cooling

Communication

CAN/RS485/WiFi/Bluetooth

Dimensions

838*582*1480mm

📝 Product Description

⚙️ Technical Data Sheet

Main Parameter - Model GHR-314
Cell Chemistry	LiFePO4
Module Energy (kWh)	16.076kWh
Module Nominal Voltage (V)	51.2V
Model Number	E64	E80	E96	E112	E128	E144
Modules in Series	4	5	6	7	8	9
System Energy (kWh)	64.31	80.39	96.46	112.53	128.61	144.69
Usable Energy (90% DoD)	57.88	72.35	86.81	101.28	115.75	130.22
Charging Current	157A
Cycle Life	≥6000 Cycles (25℃, 0.5C, 80% DOD)
Warranty	10 Years

🔗 Relevant Products

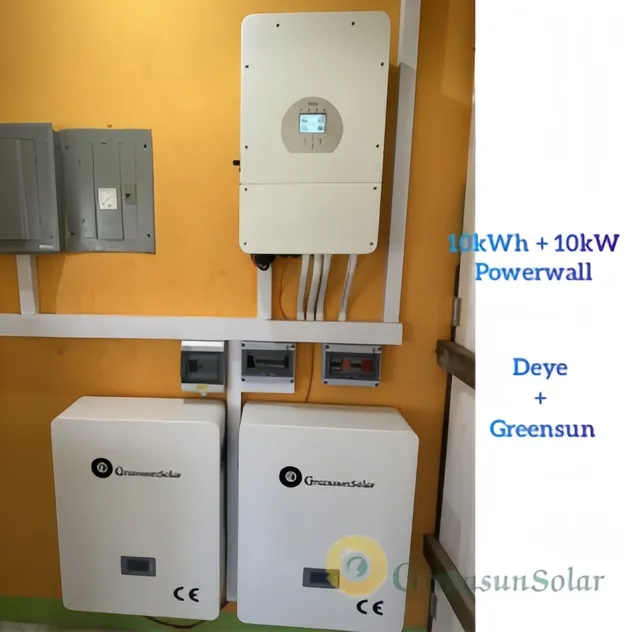

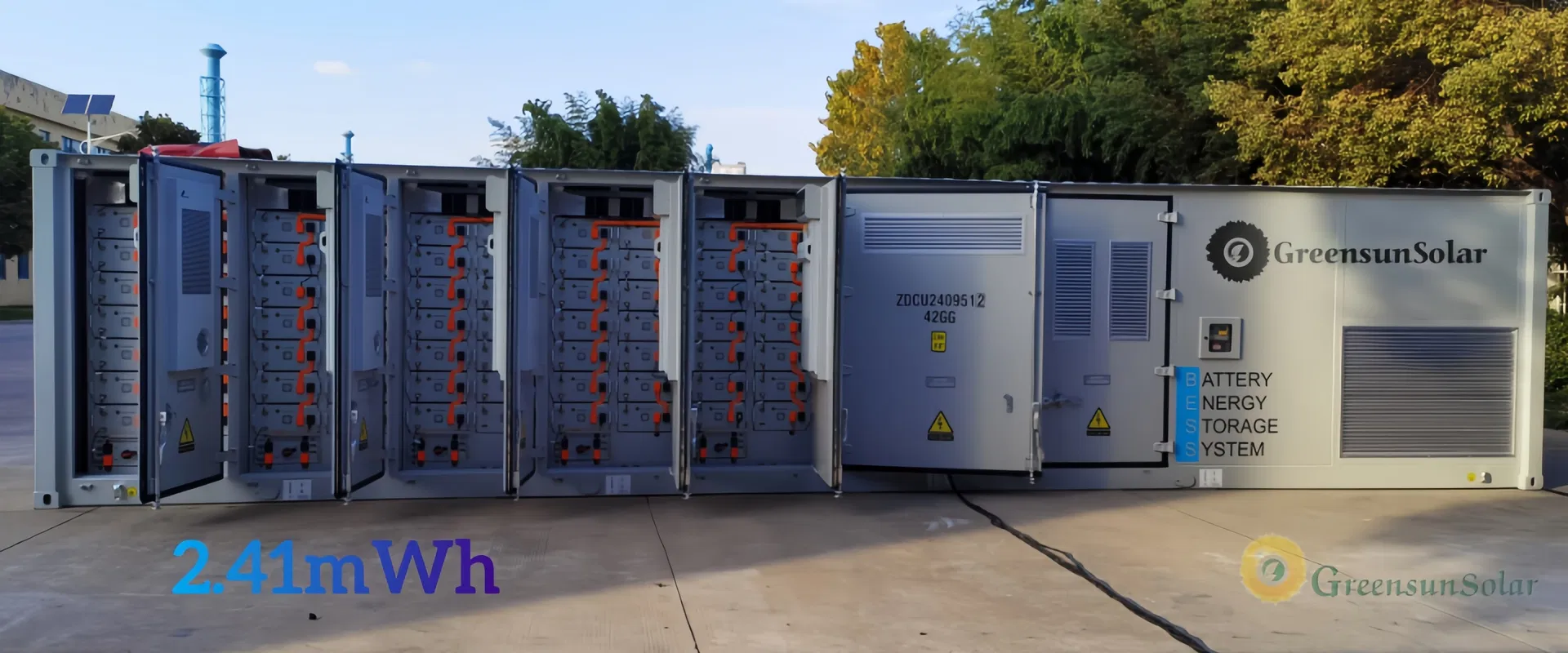

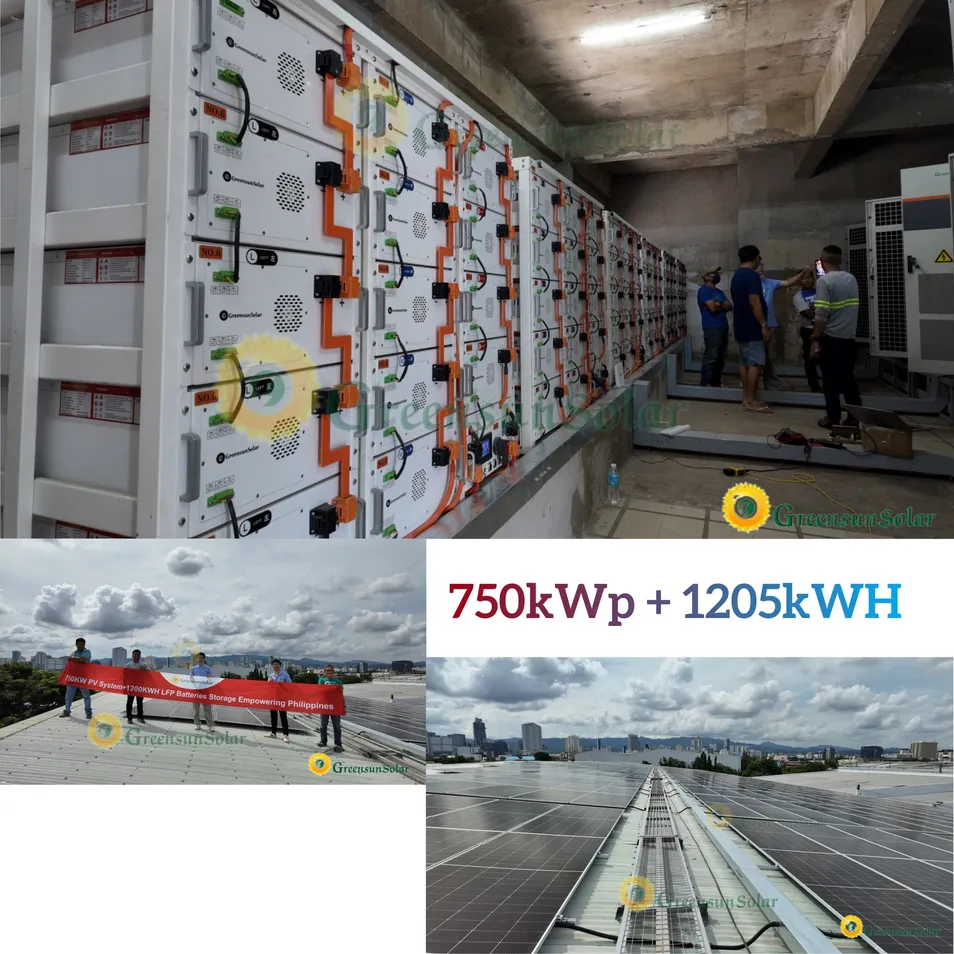

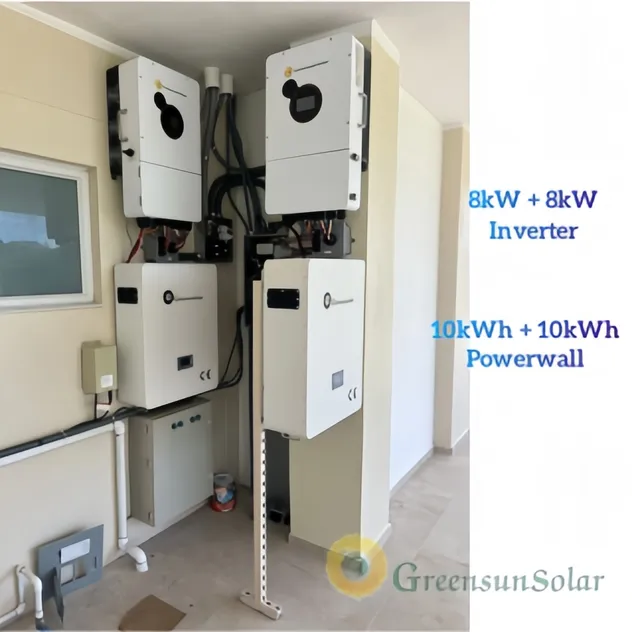

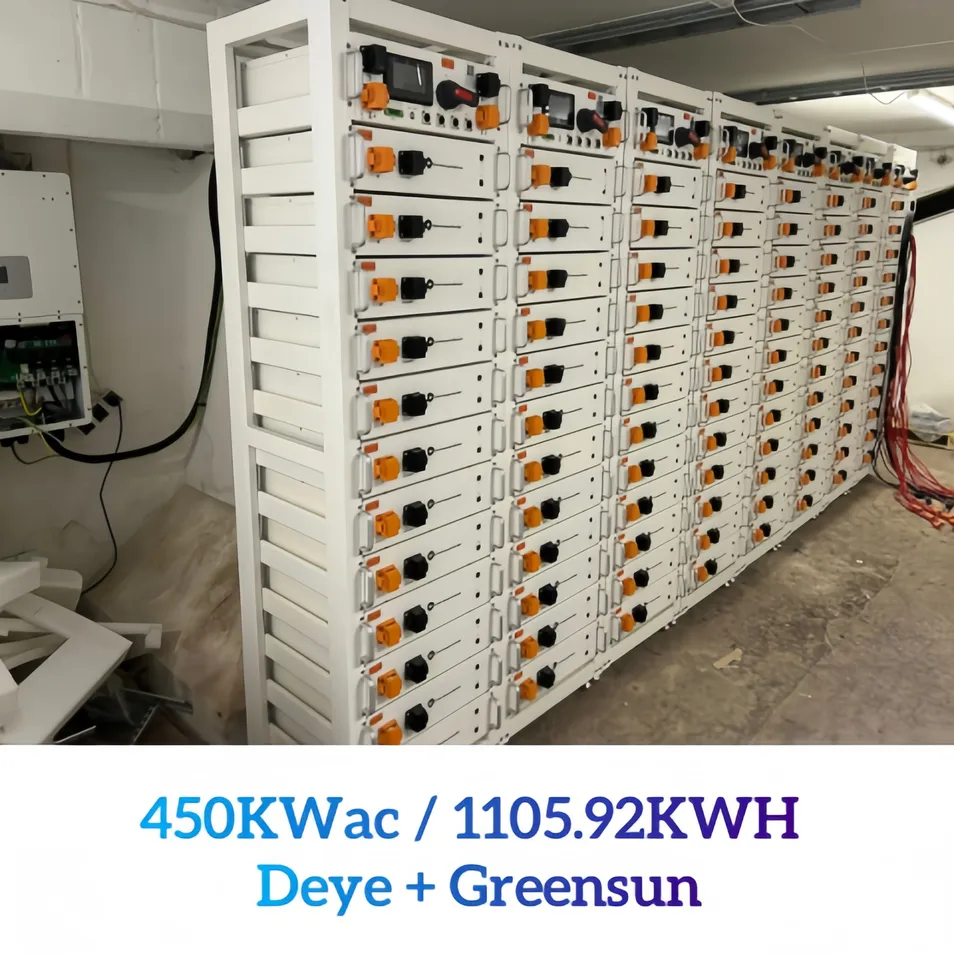

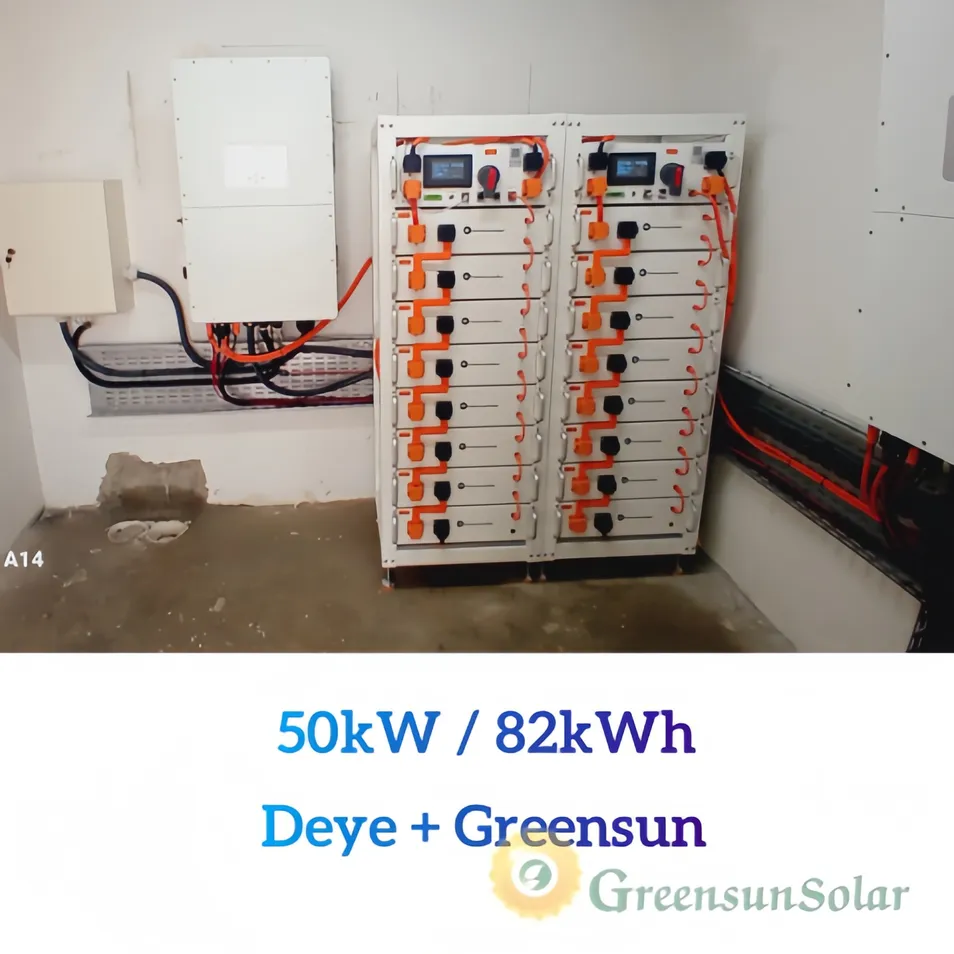

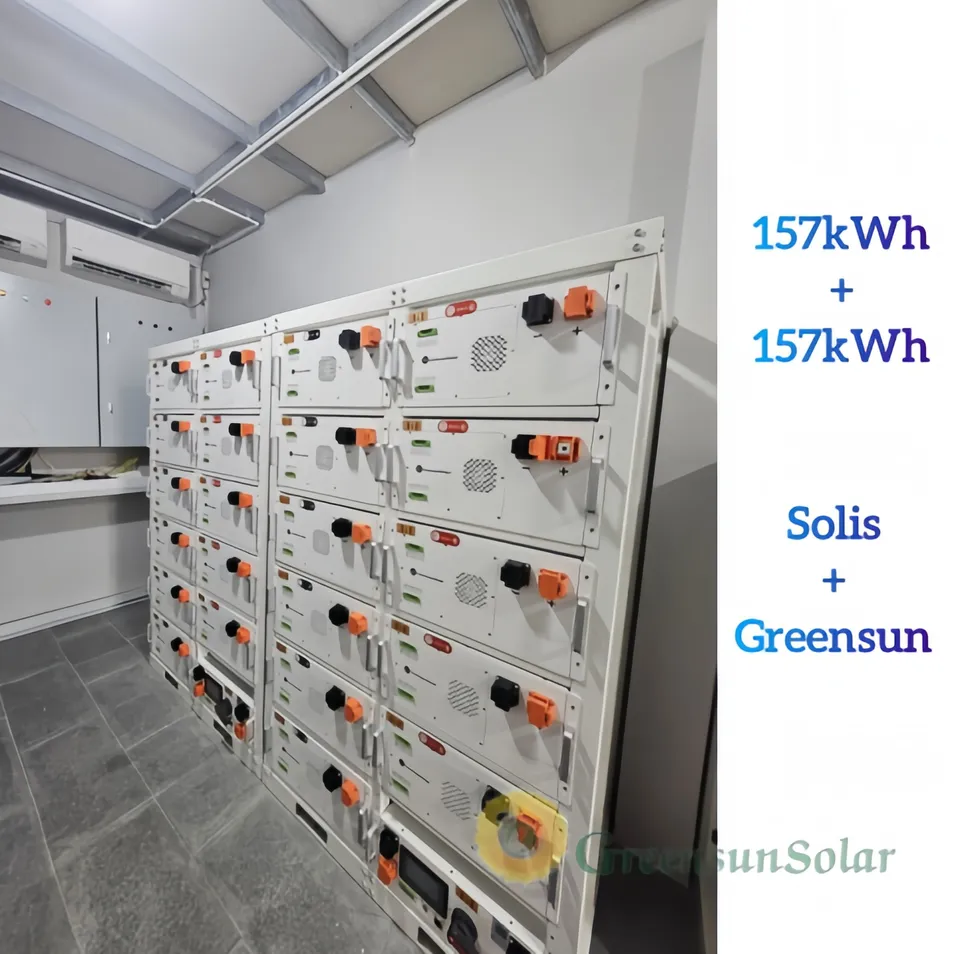

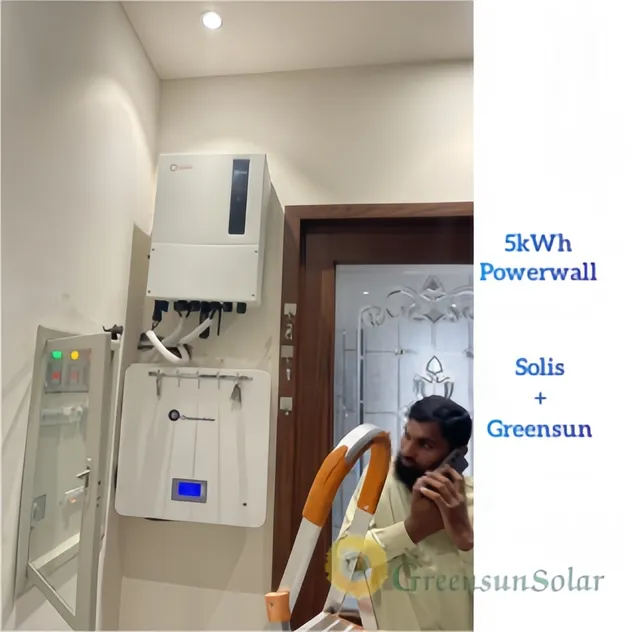

🏢 Project Cases

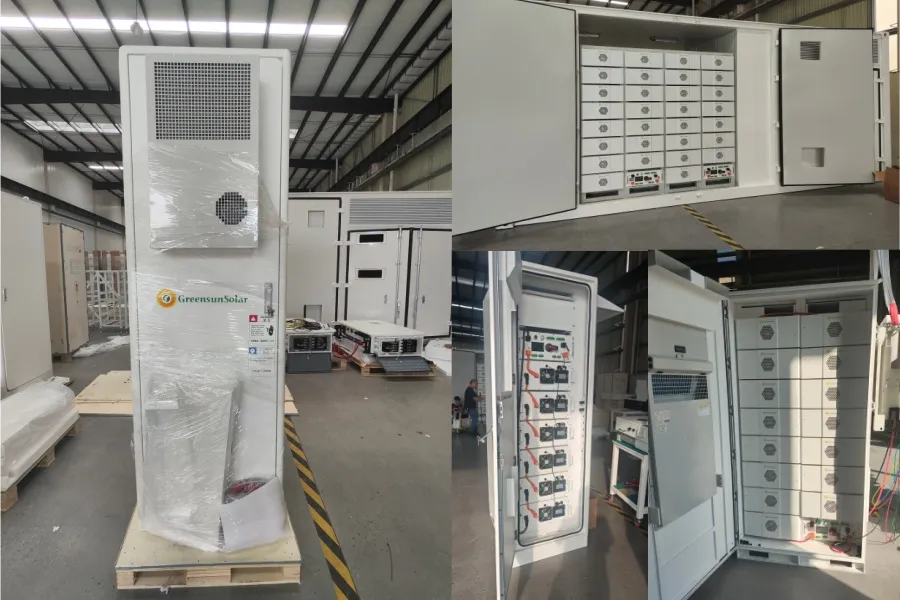

📦 Packaging & Shipping

❓ Frequently Asked Questions

What type of battery cells are used in this system?

The system utilizes high-quality Grade A 3.2V 314Ah LiFePO4 (Lithium Iron Phosphate) cells, which are known for their safety and long cycle life.

How many cycles can I expect from the GHR-314 series?

The battery system is designed to provide over 6000 cycles at 80% depth of discharge (DOD) under standard operating conditions (25±2℃, 0.5C).

What is the maximum energy capacity of a single cluster?

A single cluster can reach an energy capacity of up to 241kWh when configured with 15 modules in series (Model GHR-314-E241).

Does the system come with a management interface?

Yes, it features a 3-level active balancing BMS and includes communication ports for CAN and RS485, along with built-in WiFi and Bluetooth connectivity.

What is the recommended depth of discharge and warranty period?

The recommended depth of discharge is 90%, and the system comes with a comprehensive 10-year warranty.

Where can this high-voltage battery system be installed?

It is designed for rack mounting and is suitable for various applications including UPS, solar power systems, homes, offices, and large-scale industrial energy storage systems (ESS).
