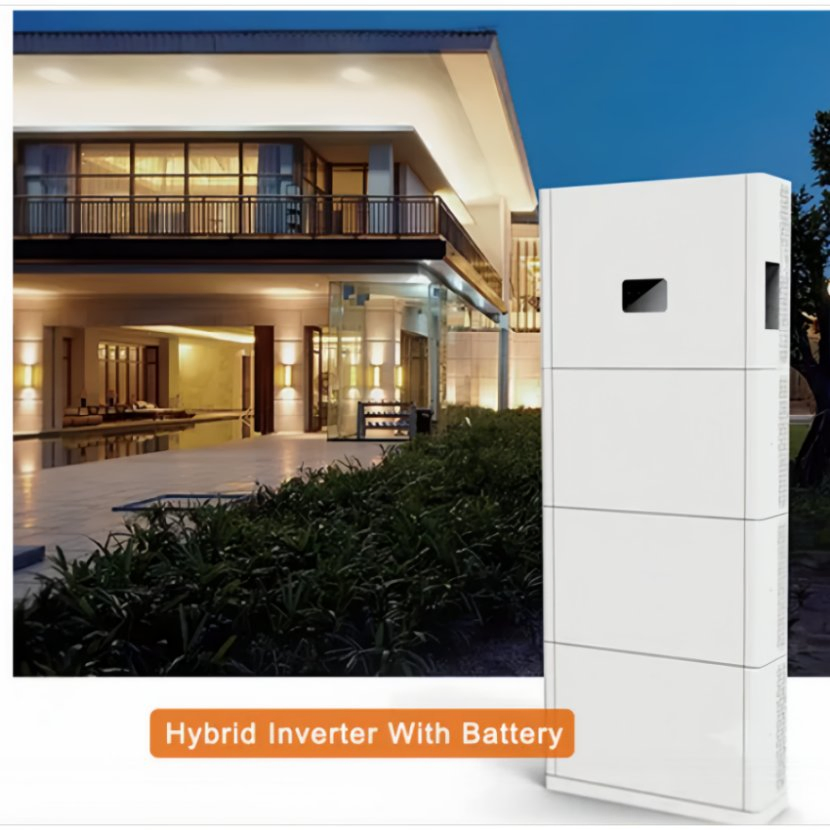

All-Scenario Residential Energy Storage: From 7.6kwh to 34.5kwh, Flexibly Meeting The Energy Demands of Households
All-Scenario Residential Energy Storage: From 7.6kwh to 34.5kwh, Flexibly Meeting The Energy Demands of Households
All-Scenario Residential Energy Storage: From 7.6kwh to 34.5kwh, Flexibly Meeting The Energy Demands of Households
All-Scenario Residential Energy Storage: From 7.6kwh to 34.5kwh, Flexibly Meeting The Energy Demands of Households
All-Scenario Residential Energy Storage: From 7.6kwh to 34.5kwh, Flexibly Meeting The Energy Demands of Households
1 / 5
All-Scenario Residential Energy Storage: From 7.6kwh to 34.5kwh, Flexibly Meeting The Energy Demands of Households
All-Scenario Residential Energy Storage: From 7.6kwh to 34.5kwh, Flexibly Meeting The Energy Demands of Households
All-Scenario Residential Energy Storage: From 7.6kwh to 34.5kwh, Flexibly Meeting The Energy Demands of Households
All-Scenario Residential Energy Storage: From 7.6kwh to 34.5kwh, Flexibly Meeting The Energy Demands of Households
All-Scenario Residential Energy Storage: From 7.6kwh to 34.5kwh, Flexibly Meeting The Energy Demands of Households

All-Scenario Residential Energy Storage: From 7.6kwh to 34.5kwh, Flexibly Meeting The Energy Demands of Households

Customization: Available
Weight: 437kg
Warranty: 10 Years
Send Inquiry

Product Description

Basic Information

Model NO.
ZT-B691HV
Cycle Life
4000 Times
Nominal Capacity
34.5kwh
Battery Capacity (Ah)
50ah
Env. Temperature
2°C-58°C / -18°C-58°C
Communication
CAN / RS485
Protection Functions
Anti-Over Charge/Discharge/Current
Battery Module
ZT-B7750
Specification
580*395*1620
Origin
China

Product Description

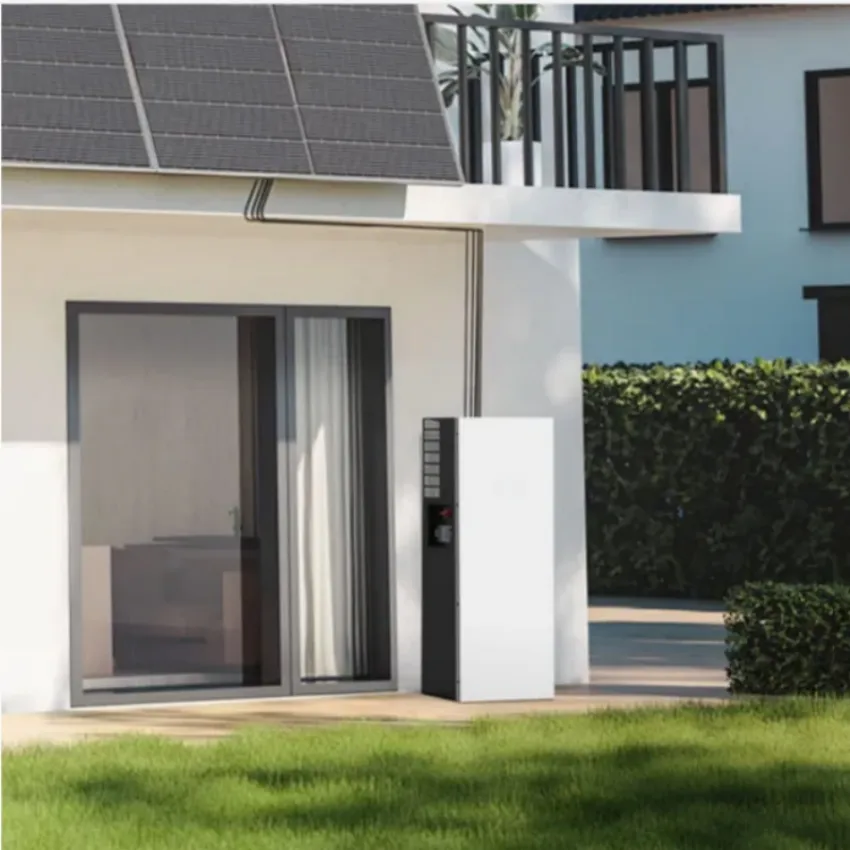

Residential Energy Storage

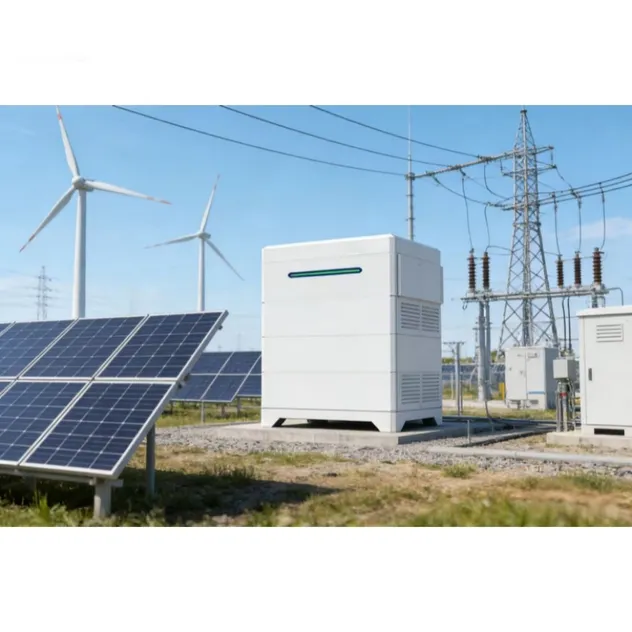

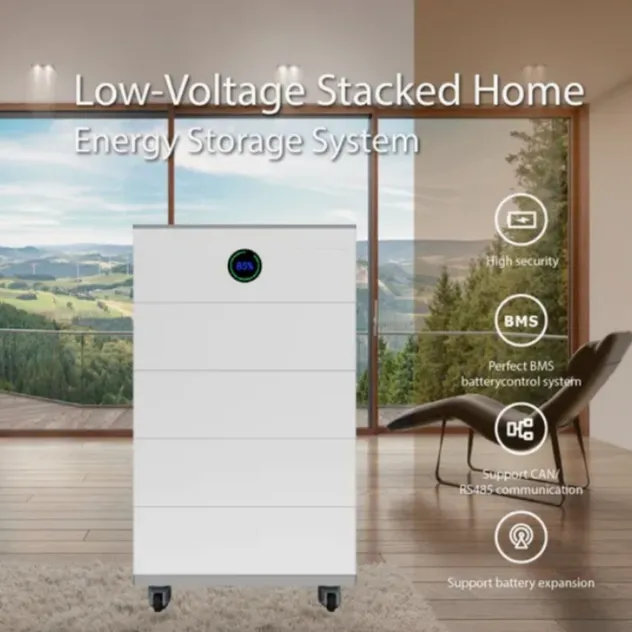

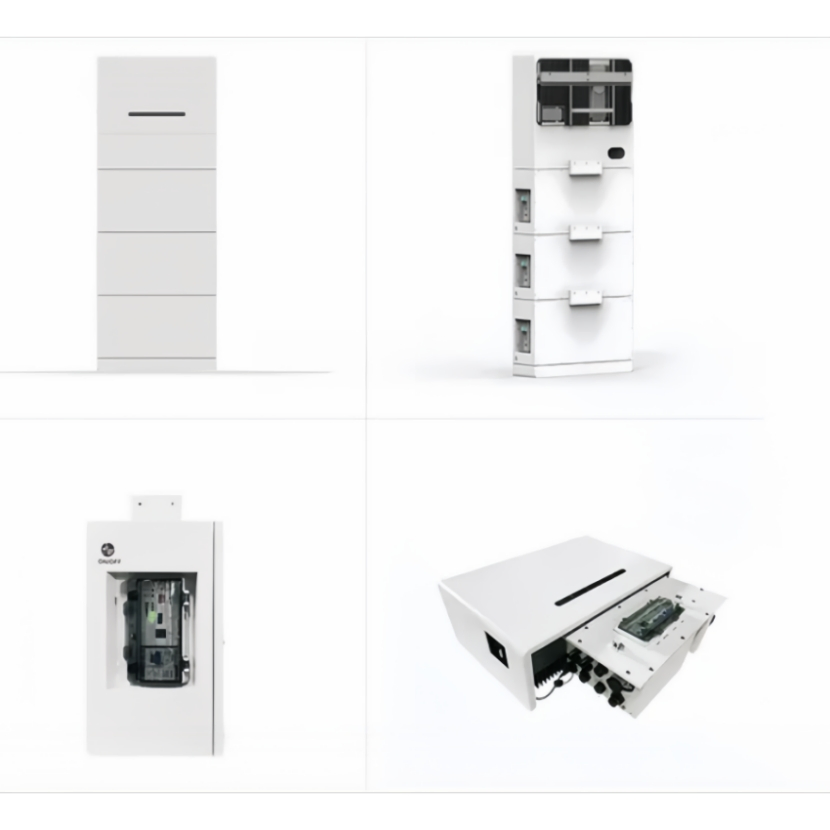

Energy Storage Detail 1 Energy Storage Detail 2 Energy Storage Detail 3
Model ZTB154HV ZTB230HV ZTB307HV ZTB384HV ZTB461HV ZTB5380HV ZTB615HV ZTB691HV
System Power 7.6kWh 11.5kWh 15.3kWh 19.2kWh 23kWh 26.8kWh 30.7kWh 34.5kWh
Battery Capacity 50Ah
Rated Voltage (V) 153.6 230.4 307.2 384 460.8 537.6 614.4 691.2
Max Discharge (kW) 7.7 10 15
Dimensions (mm) 580*395*570 580*395*720 580*395*870 580*395*1020 580*395*1170 580*395*1320 580*395*1470 580*395*1620
Cycle Life 4000 times
Warranty 10 Years

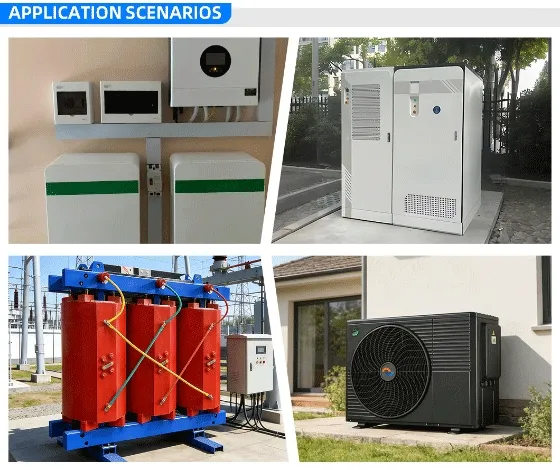

Feature Overview Application Scenario

Company Profile

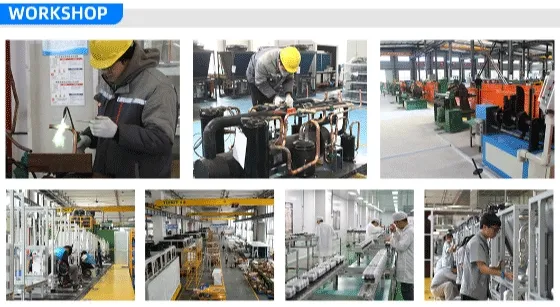

Production Line 1 Production Line 2 Quality Control
Factory View Equipment Certificates
Warehouse Team

Frequently Asked Questions

Are you a trading company or manufacturer?
We are a professional manufacturer of energy storage systems based in Sichuan, China, with a large-scale production team of over 800 people.
Do you provide OEM and ODM services?
Yes, we provide both OEM and ODM services, subject to a minimum order quantity requirement.
How long is the warranty period for your battery products?
Our product warranty ranges from 3 to 10 years, depending on the specific model and configuration.
What makes your energy storage systems stand out from other suppliers?
We specialize in the complete production chain, including PCS, Battery PACK, BMS, EMS, transformers, and heating systems, ensuring high integration and quality.
How do you handle after-sales service?
We have a team of 50 professional engineers providing 1-on-1 assistance. If necessary, our engineers can provide on-site service to solve technical issues.
Can I request a sample of the product?
Yes, samples are available. Please leave your contact details, and our sales manager will reach out to discuss your requirements.
