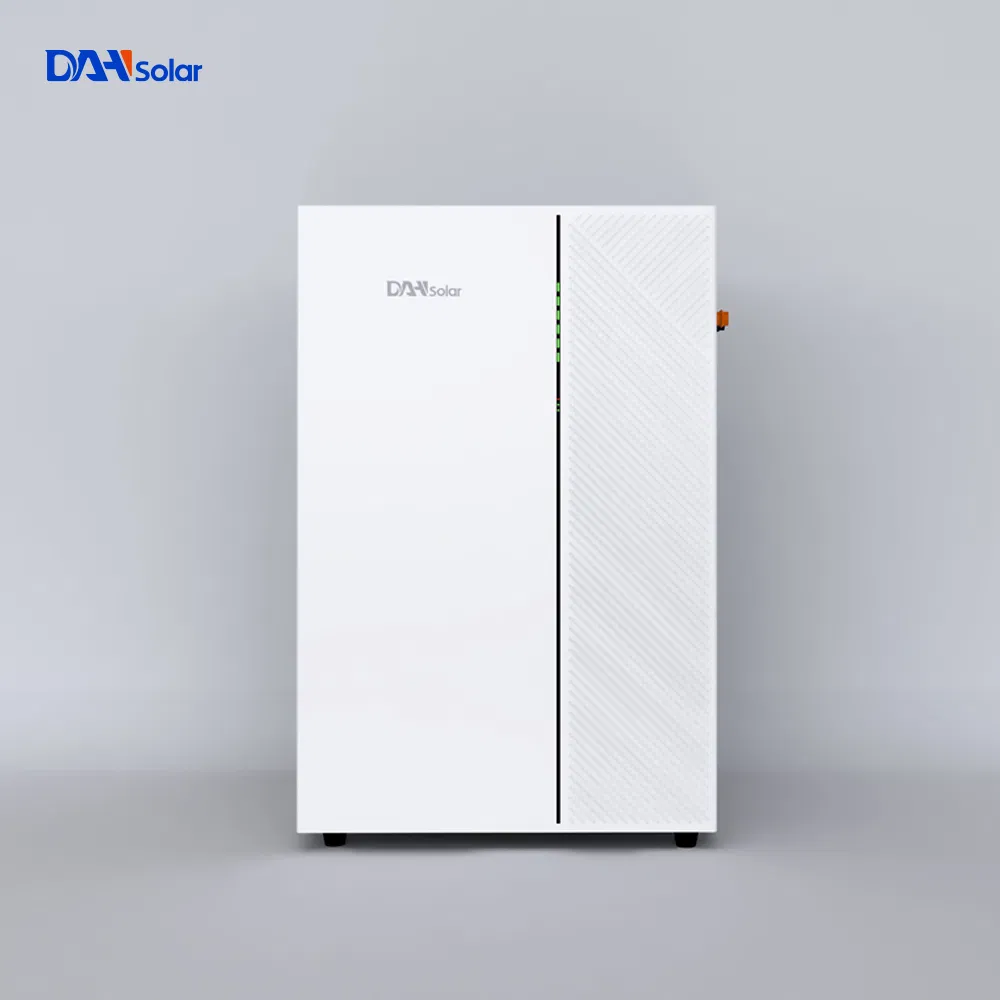

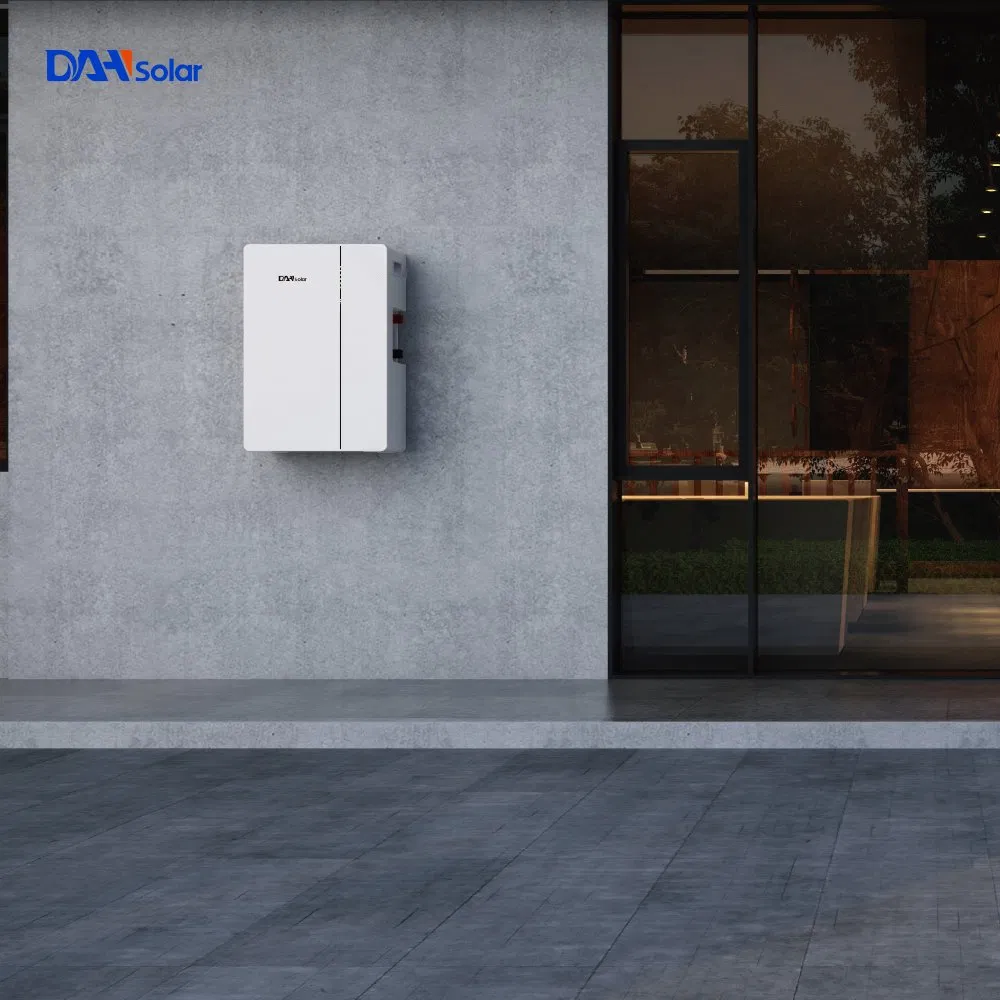

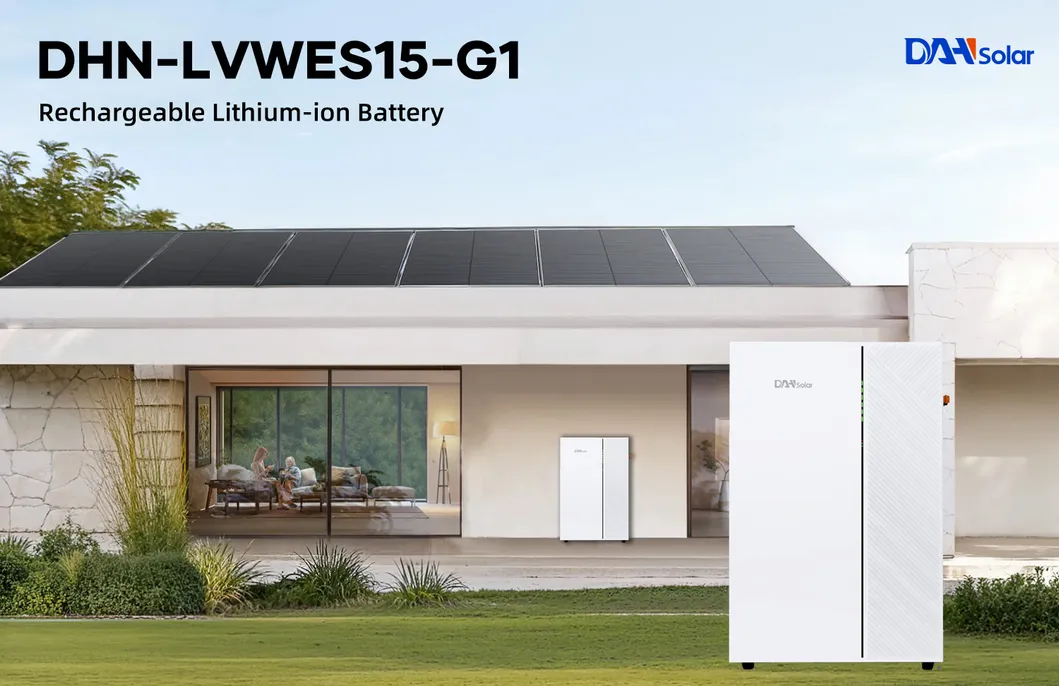

DHN-LVWES15-G1
Rechargeable Lithium-ion Battery

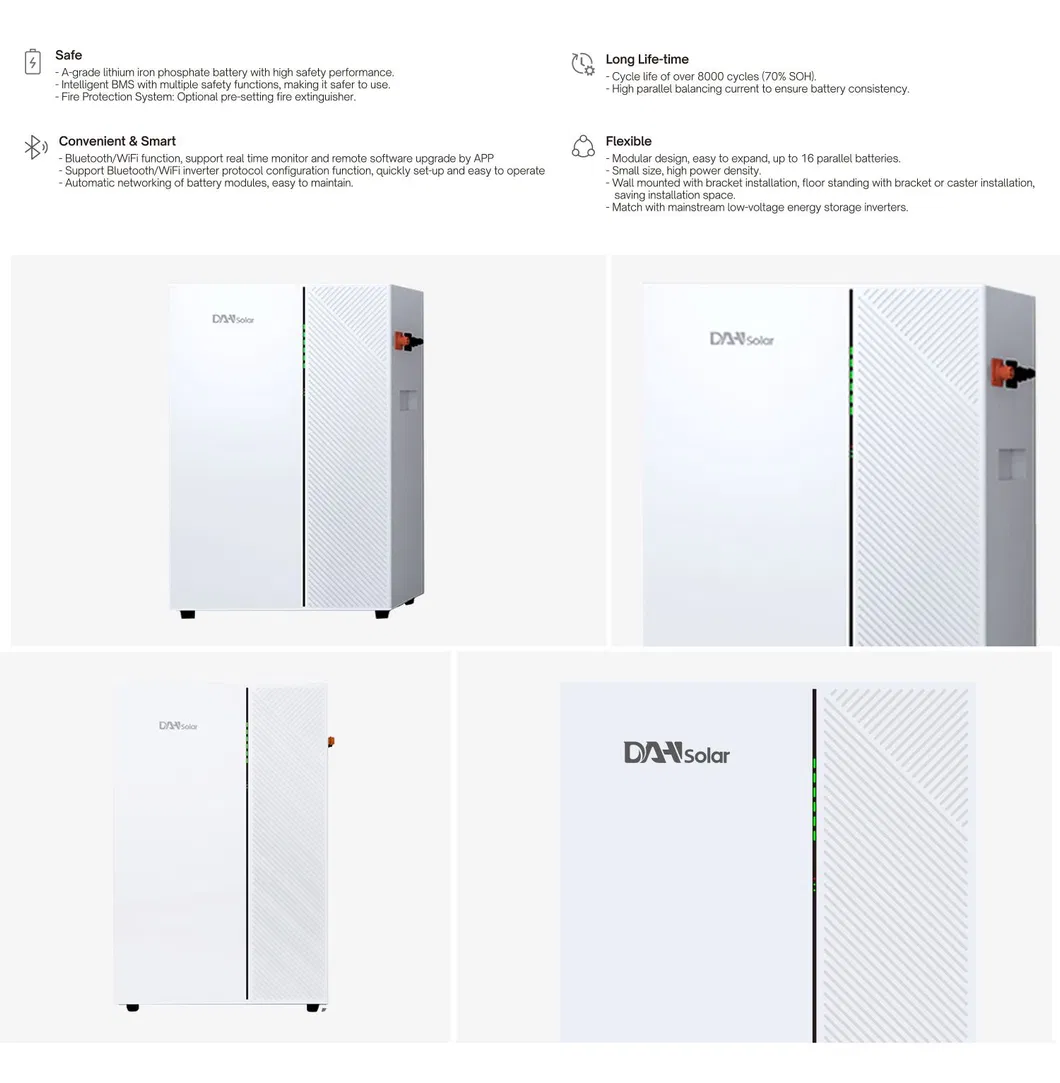

The DHN-LVWES series product is a low-voltage energy storage battery designed to provide efficient and reliable energy storage solutions for households, businesses, and specific occasions. Adopting top tier brand lithium iron phosphate battery cells, with high safety, stability, energy density, and long cycle life. Built in efficient intelligent battery management system(BMS), comprehensively monitoring and controlling the battery energy storage system to ensure its safe, stable and high-performance operation.
| Model | DHN-LVWES15-G1 |
| Battery Type | LiFePO4 |

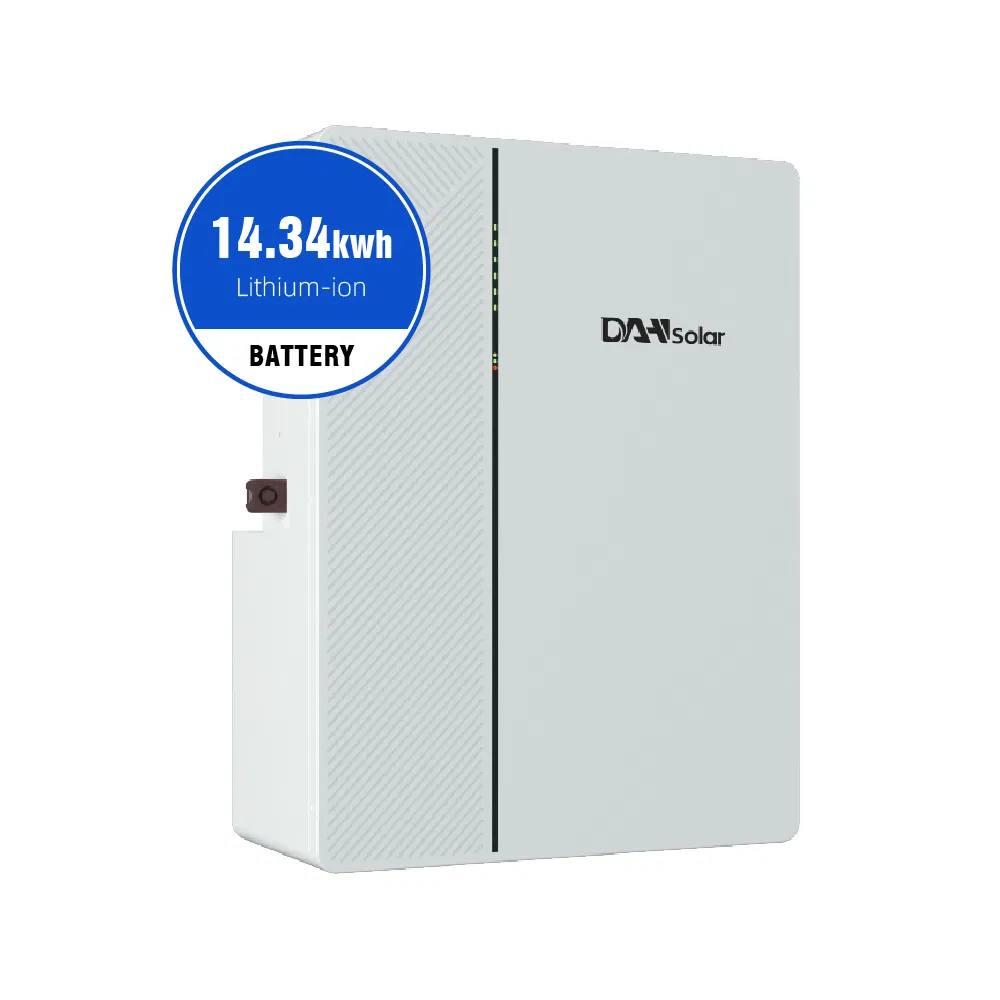

| Battery Rated Energy (kWh) | 14.34 |
| Battery Rated Capacity (Ah) | 280 |
| Scalability | Parallel connection of up to 16 units |
| Nominal Voltage (V) | 51.2 |
| Operating Voltage(V) | 43.2~57.6 |
| Charge/Discharge Current(A) | Recommend: 140 / Max: 200 |
| Depth of Discharge(%) | ≤90 |
| System Dimension (mm) | 520x680x232 |
| System Weight (kg) | 114 |
| IP Rating | IP20 |
| Operating Temp (ºC) | Charge:0~55 / Discharge:-20~55 |
| Cycle Life | ≥8000 (25±2ºC, 0.5C/0.5C, 70%EOL) |

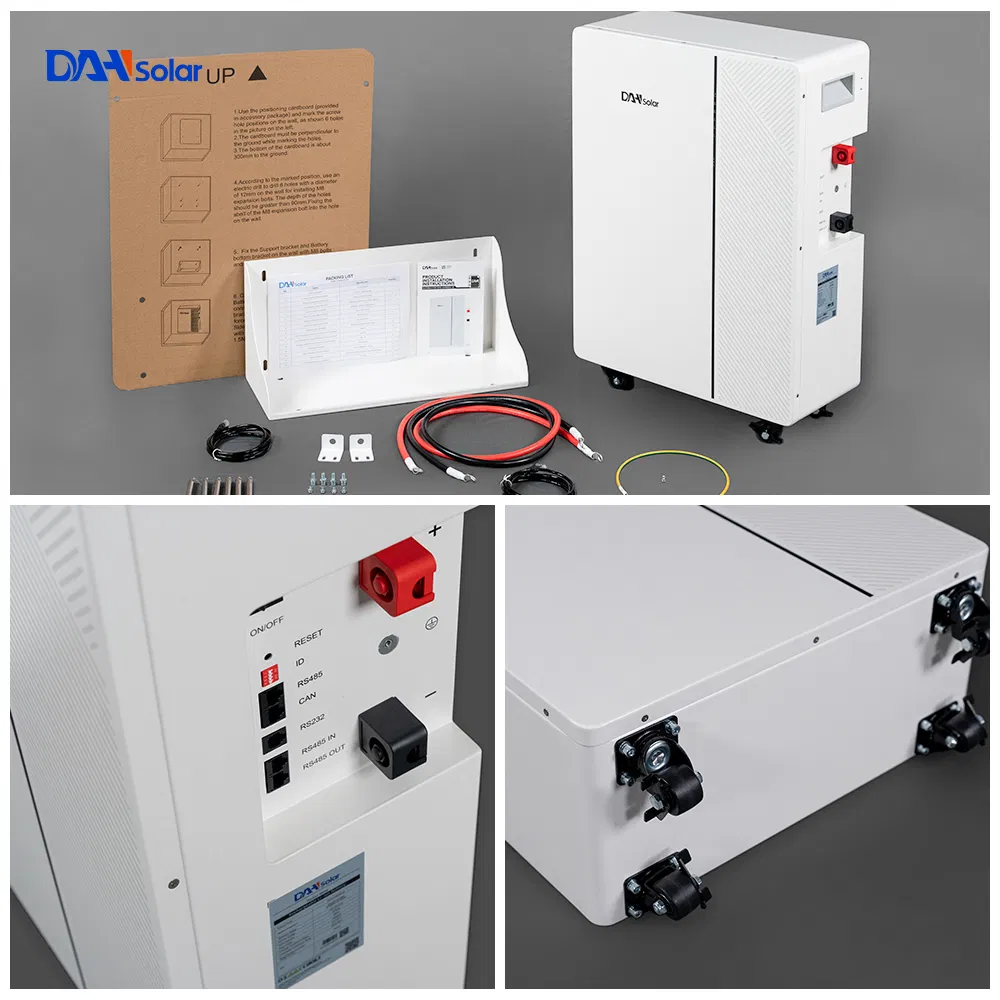

| Communication | CAN2.0 / RS485 |
| Certification | IEC62619-CB, CE, UN38.3 |
| Compatible Inverters | LUXPOWERTEK / SENERGY / SRD etc |
