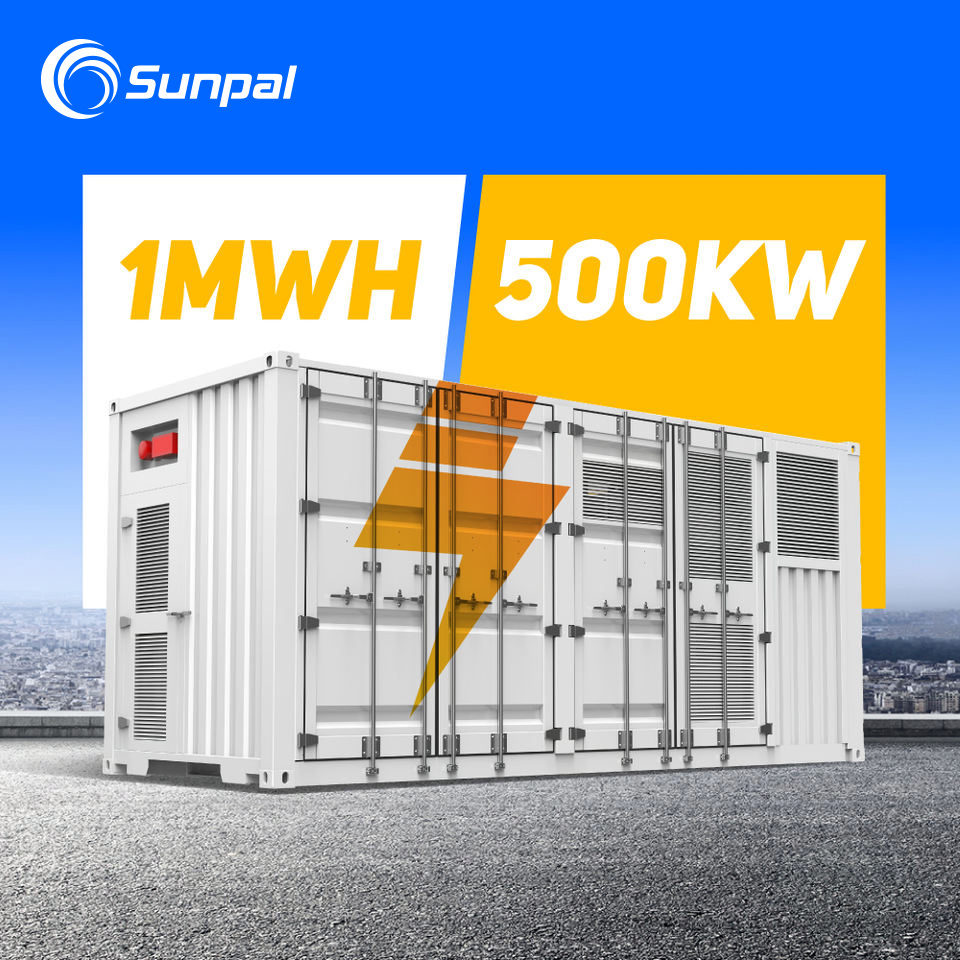

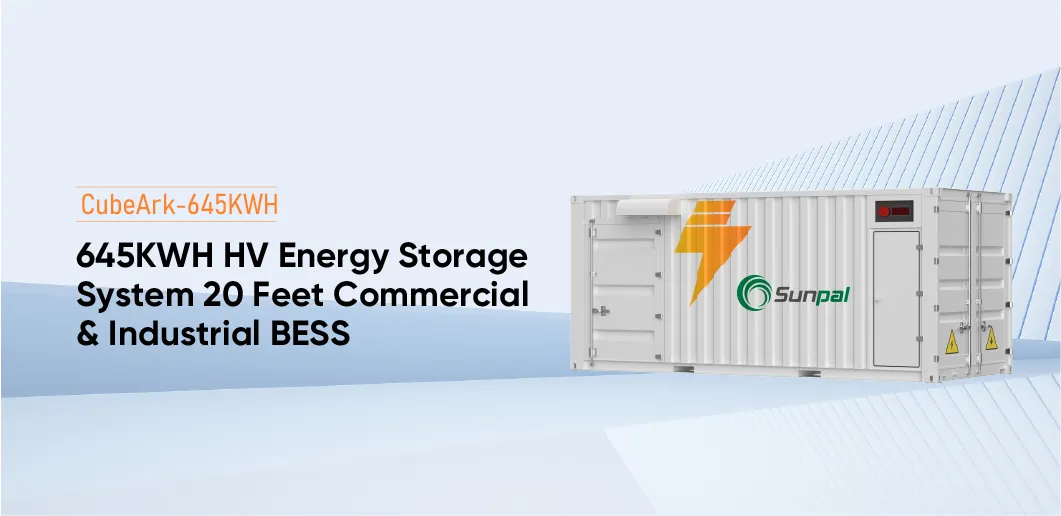

Basic Information
Model NO.
BESS 500kW/3MWH
Nominal Voltage
600-1500V
Nominal Capacity
500KW-1MWh
Communication Port
RS485/CAN
BMS
3 Level Smart Protection
Certification
MSDS, UN38.3, ROHS, IEC62619, CE
Product Description
| Battery System Parameters |
| Model | HV-768V 280AH*3P |
| Rated voltage | 768V |
| Rated capacity | 840ah (0.2C) |
| Charge voltage | 852VDC (adjustable) |
| Discharge voltage | 672VDC |
| Rated working current | 300A (0.35C) |
| Max. working current | 420A (0.5C) |
| Rated power | 252KW |
| Max. output power | 322KW |
| Cycle life | 25±2°C, 0.2C/0.2C, EOL70%≥6000 |
| Protection level | IP65 |
| Dimension | 20 feet container |
PCS Specifications
| PCS DC & PV Input Side |
| DC Voltage Range | 420-850VDC (768V) |
| Max. Photovoltaic Power | 360KW |
| Max. Photovoltaic Voltage | 1000V |
| MPPT Range | 250-850VDC |
| Rated AC Power (On-grid) | 275KVA |
| Rated Frequency | 50/60Hz |
| AC Phase | 3W+N+PE |

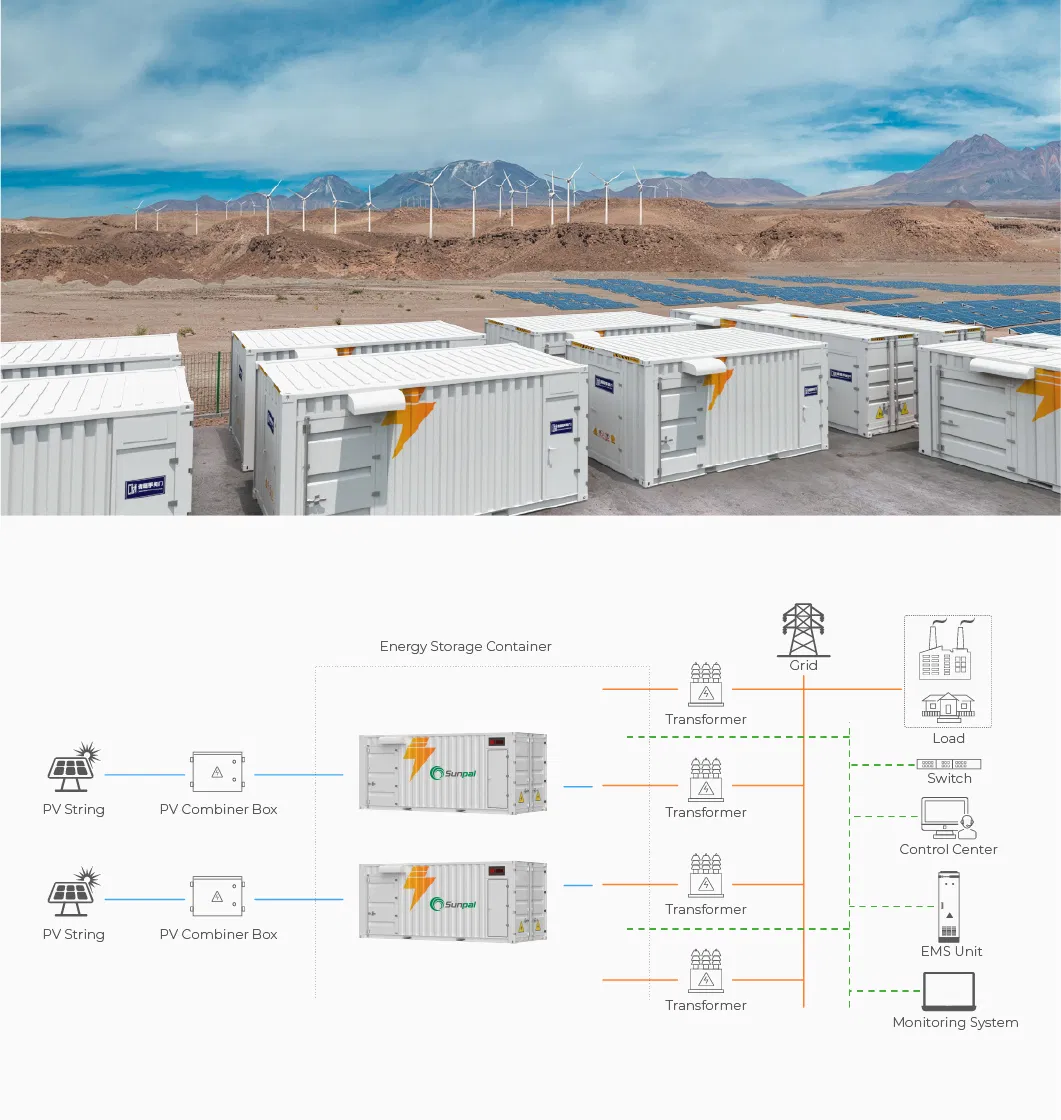

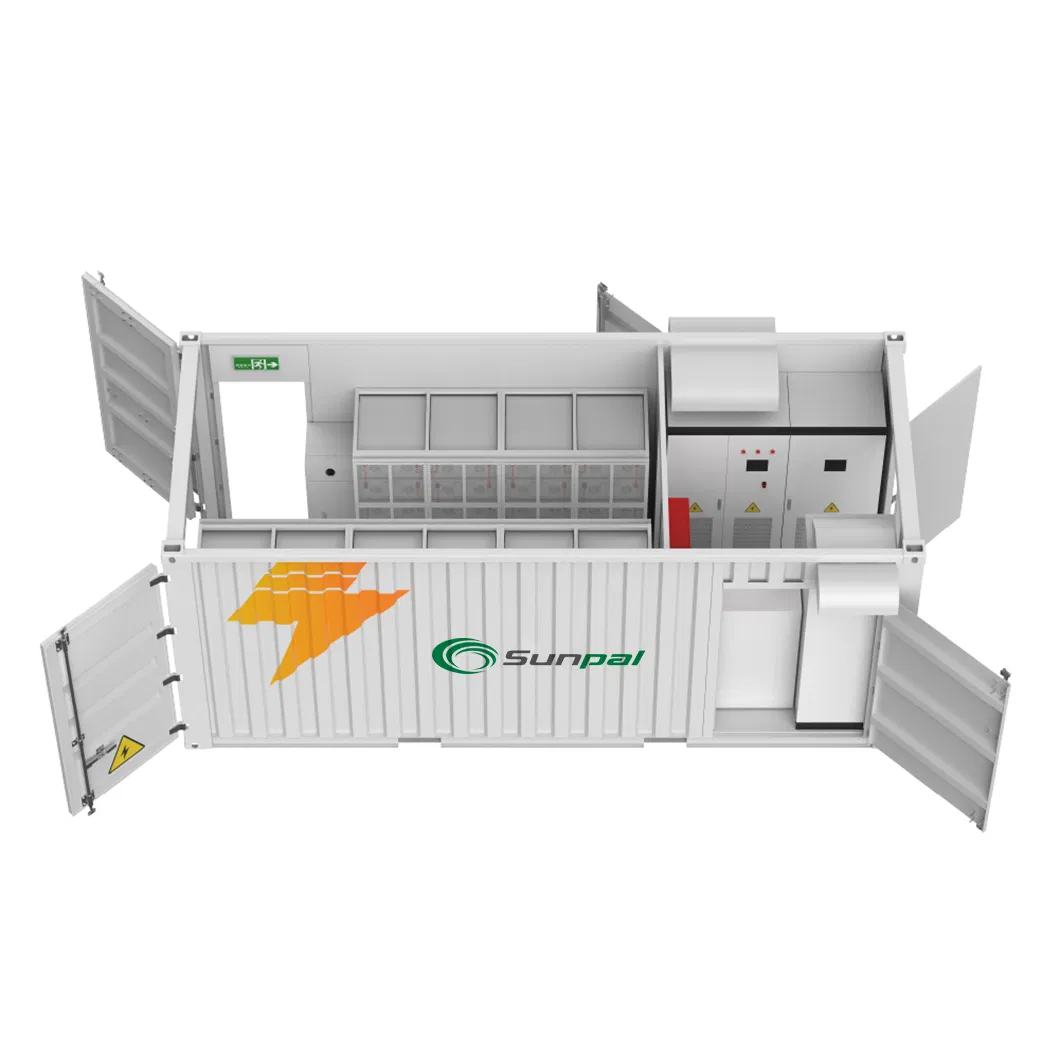

Pictures & Application
Product Series

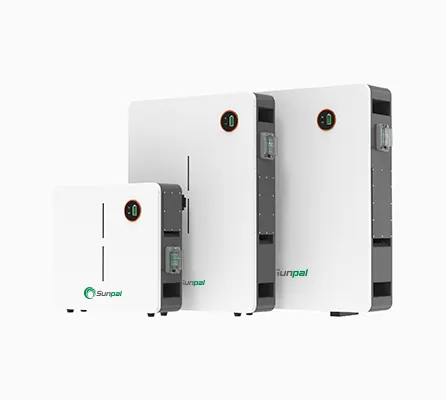

Wall-Mounted Series
48V/51.2V | 2.5kWh-15kWh

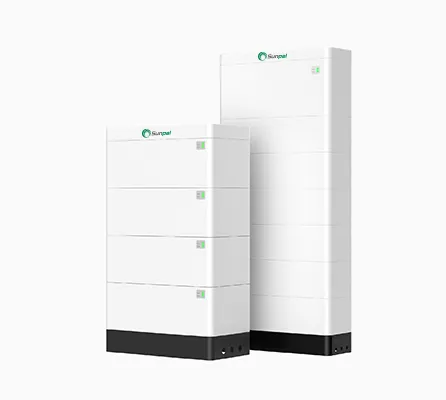

Stack Series
Low & High Voltage | 5kWh-30kWh

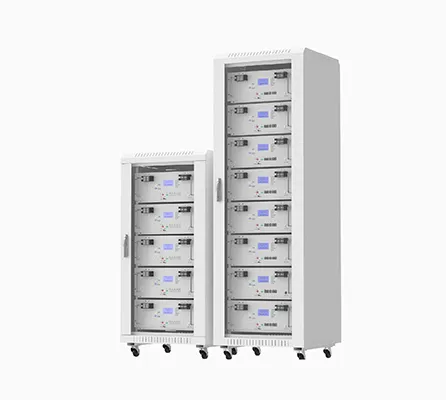

Rack Series
48V/51.2V | 50-200Ah

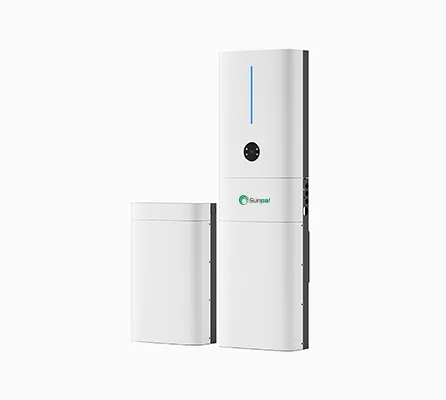

Ground Series
All In One ESS | 3-12kW

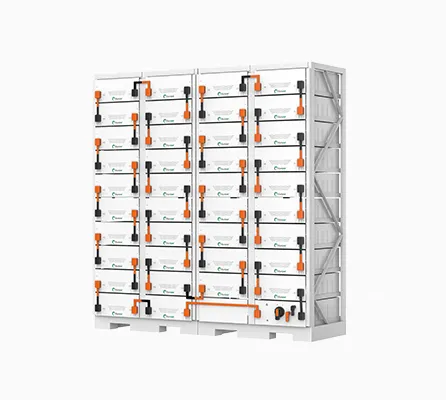

Rack-HV Series
High Voltage | 72-320kWh

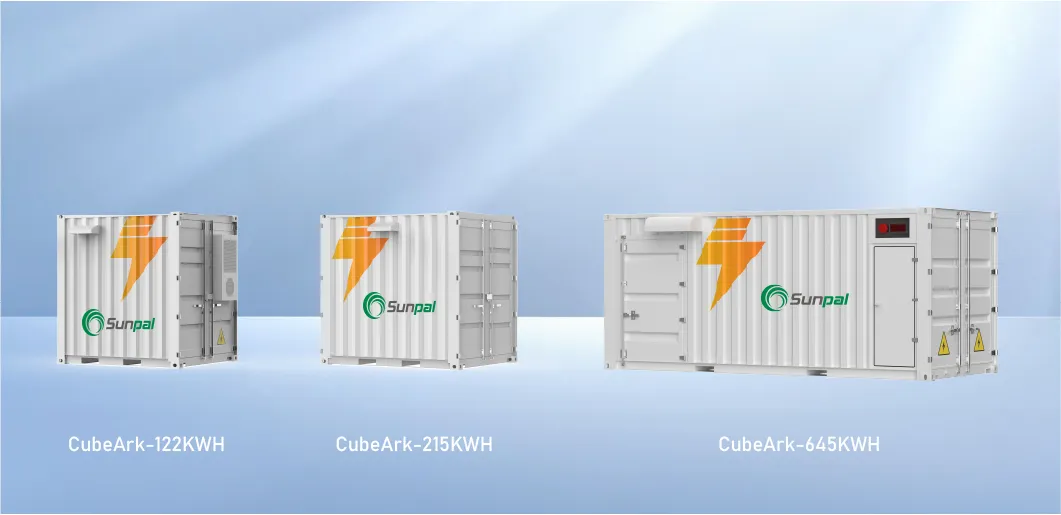

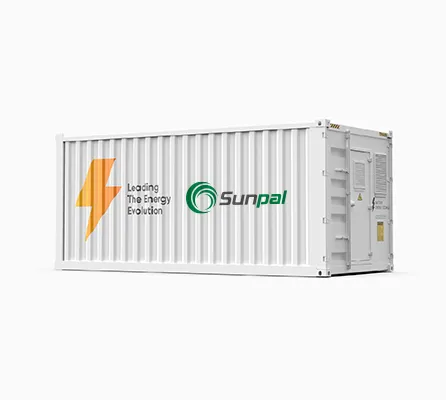

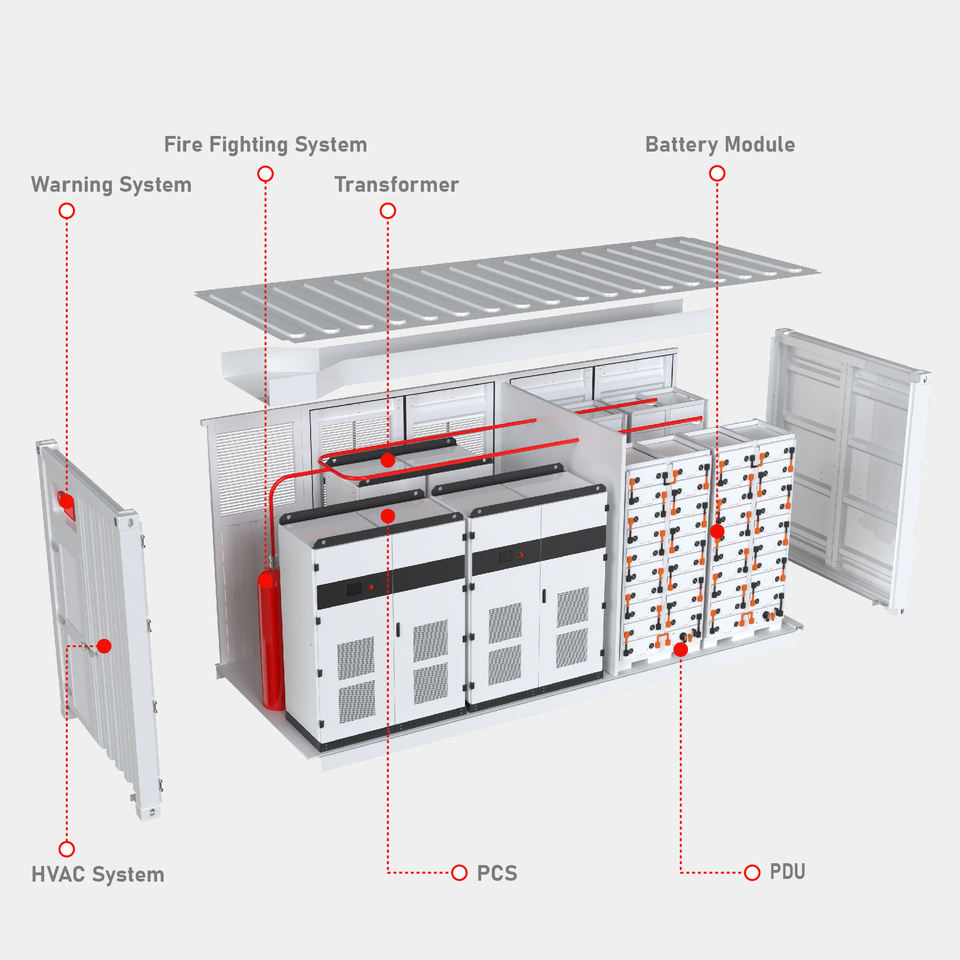

Container Series
50-1200kW | 64kWh-2064kWh

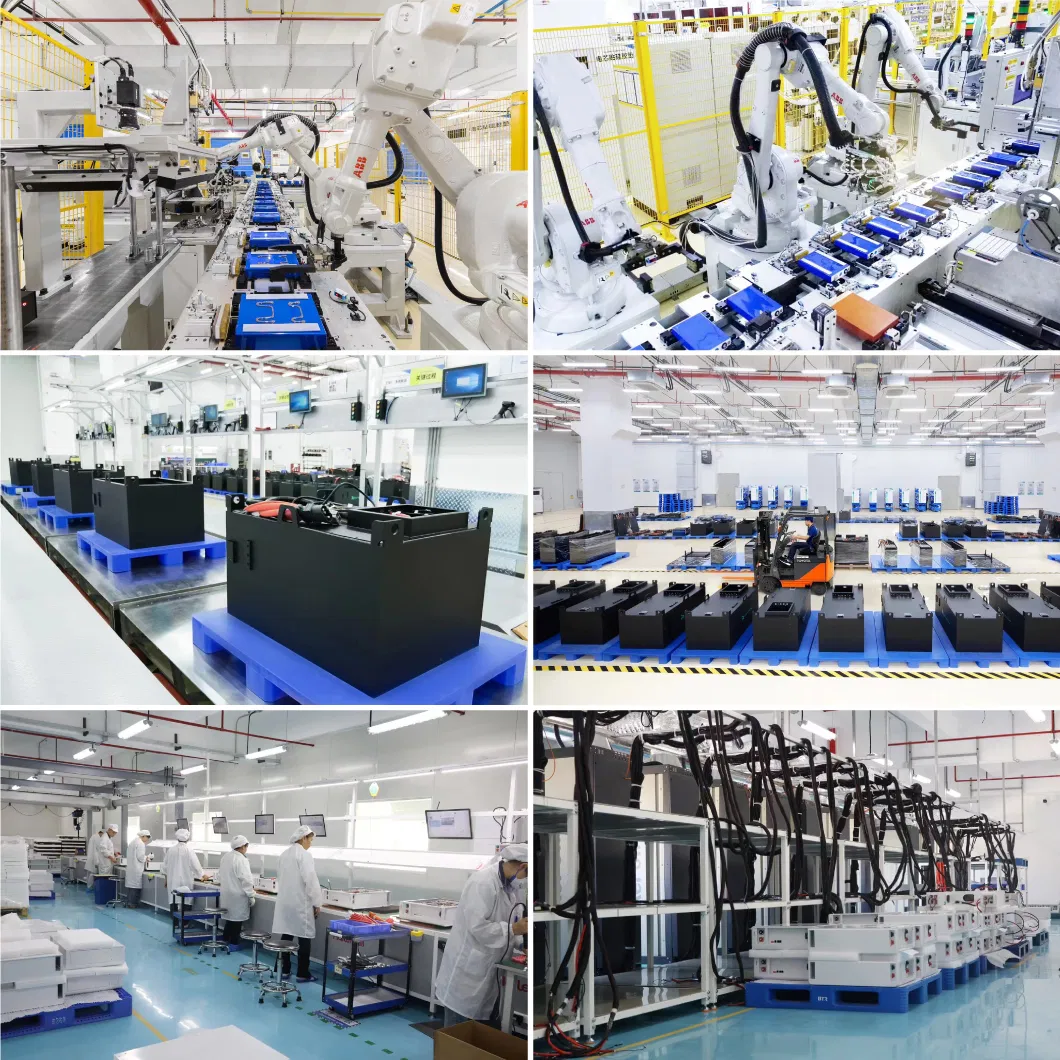

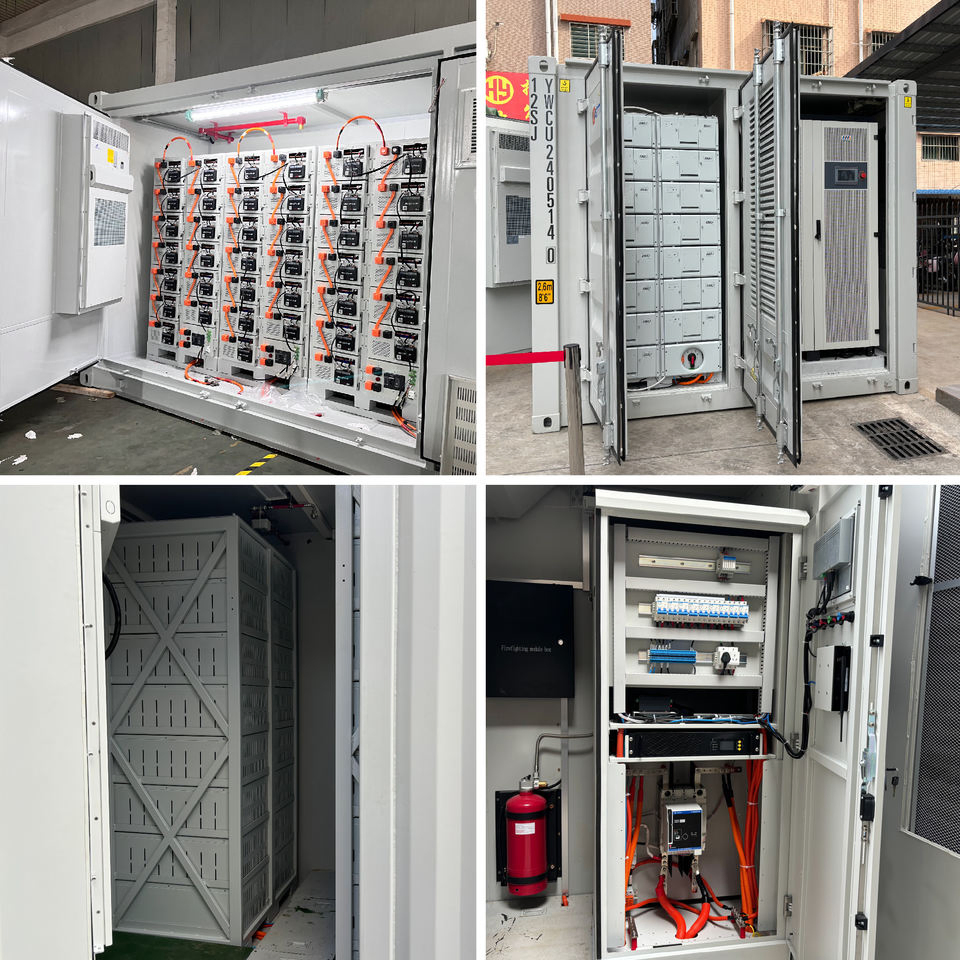

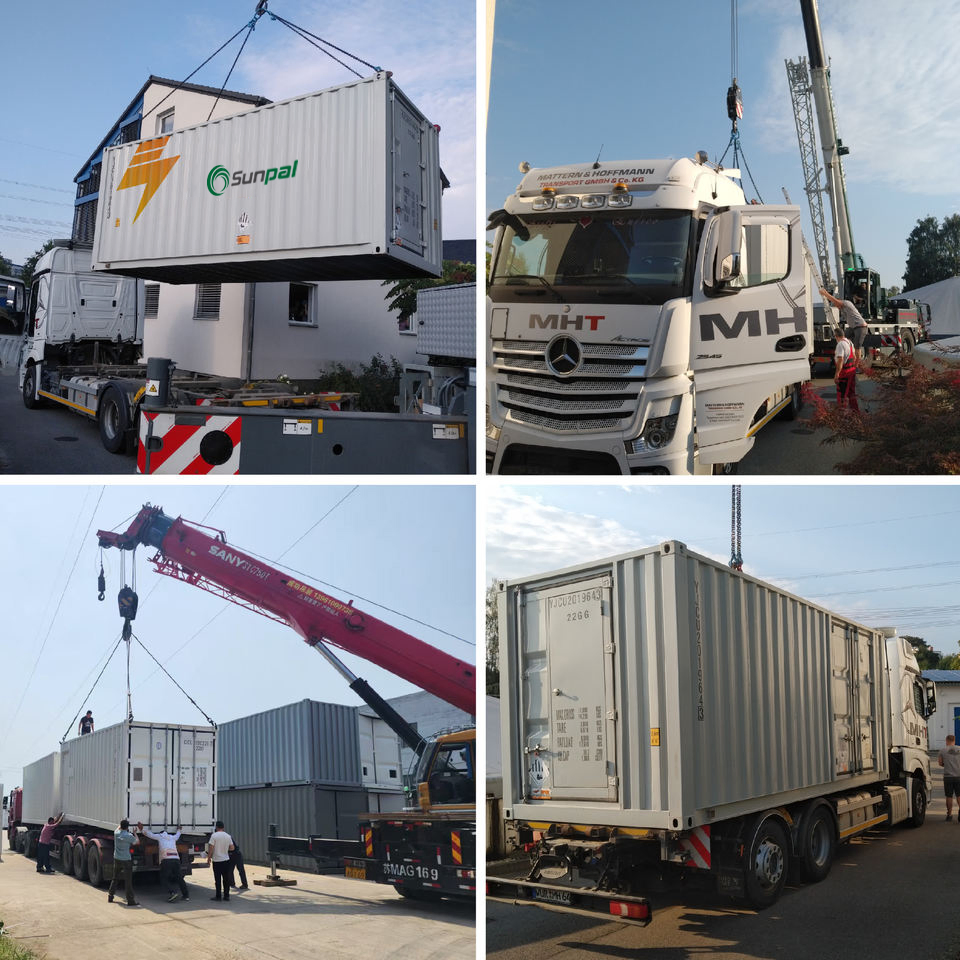

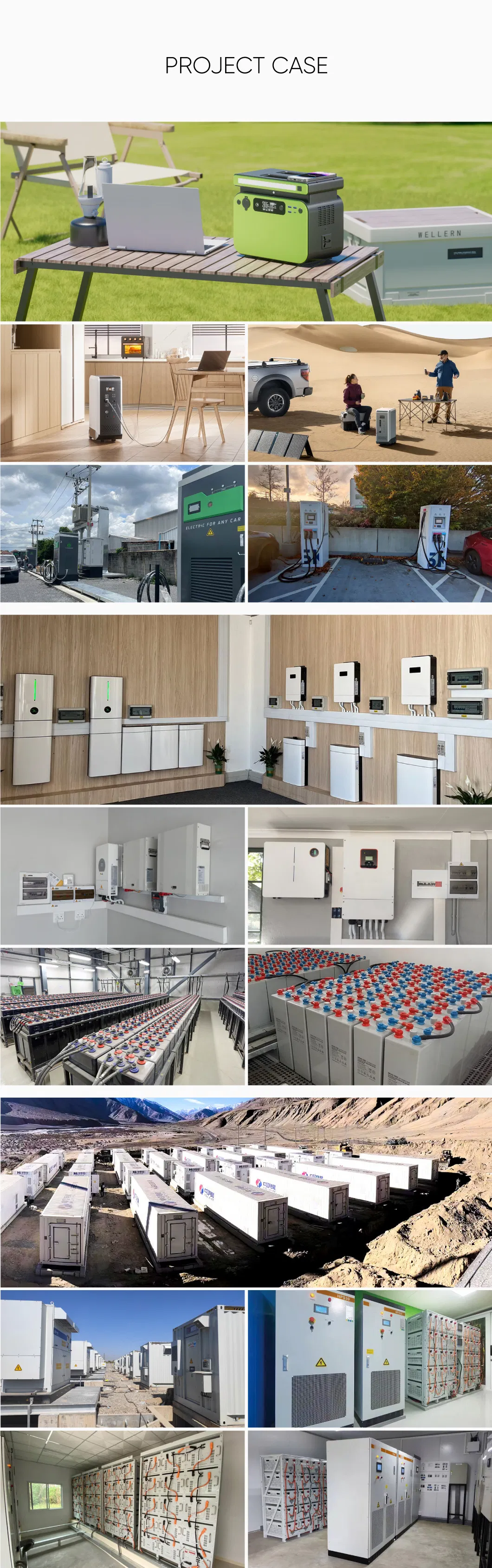

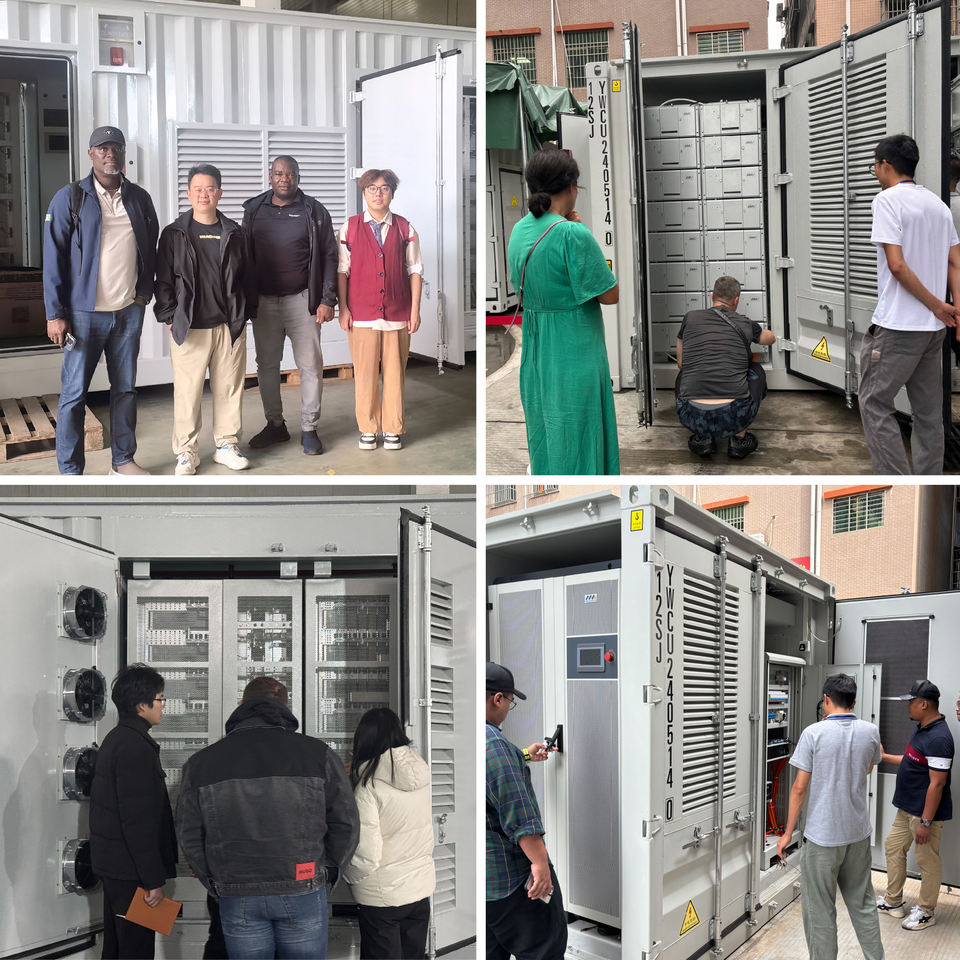

Project Cases & Manufacturing
Frequently Asked Questions
What is the expected cycle life of this battery system?
The system features high-quality Lithium Ion cells providing a cycle life of up to 8000 cycles at standard operating conditions.
How is the battery system cooled?
The system utilizes advanced Liquid Cooling technology to ensure optimal temperature management and longevity.
What certifications does the product hold?
It is fully certified with MSDS, UN38.3, ROHS, IEC62619, and CE, meeting international safety and quality standards.
Can this system be used in extreme temperatures?
Yes, the operating temperature range is -20°C to 65°C, making it suitable for a wide variety of climates.
What communication protocols are available?
The system supports RS485 and CAN communication ports for seamless integration with different monitoring and control systems.
What is the warranty period for this industrial ESS?
The product comes with a comprehensive 10-year warranty, reflecting our confidence in its durability and performance.
