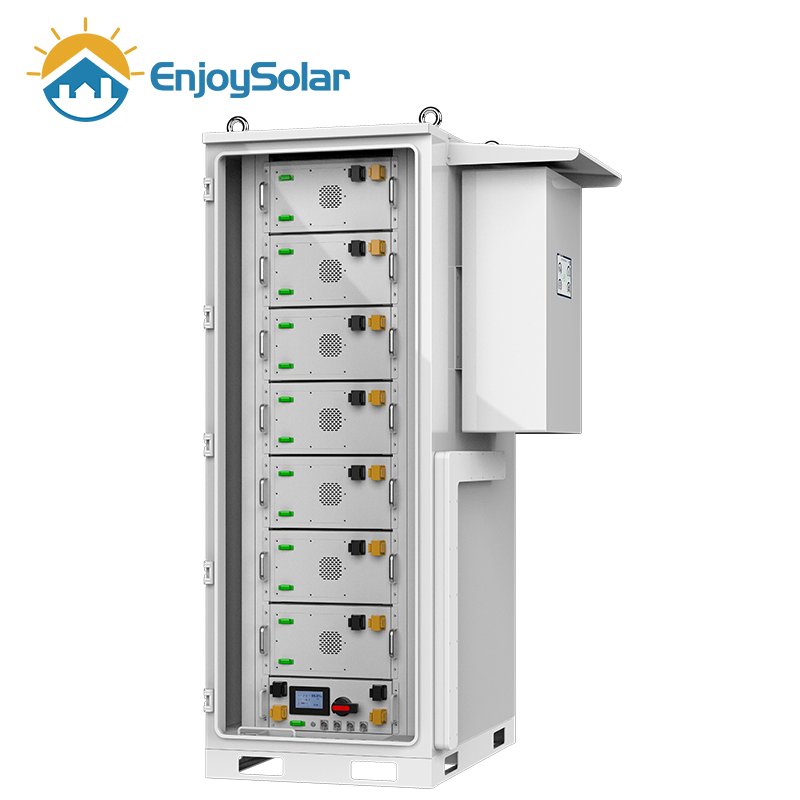

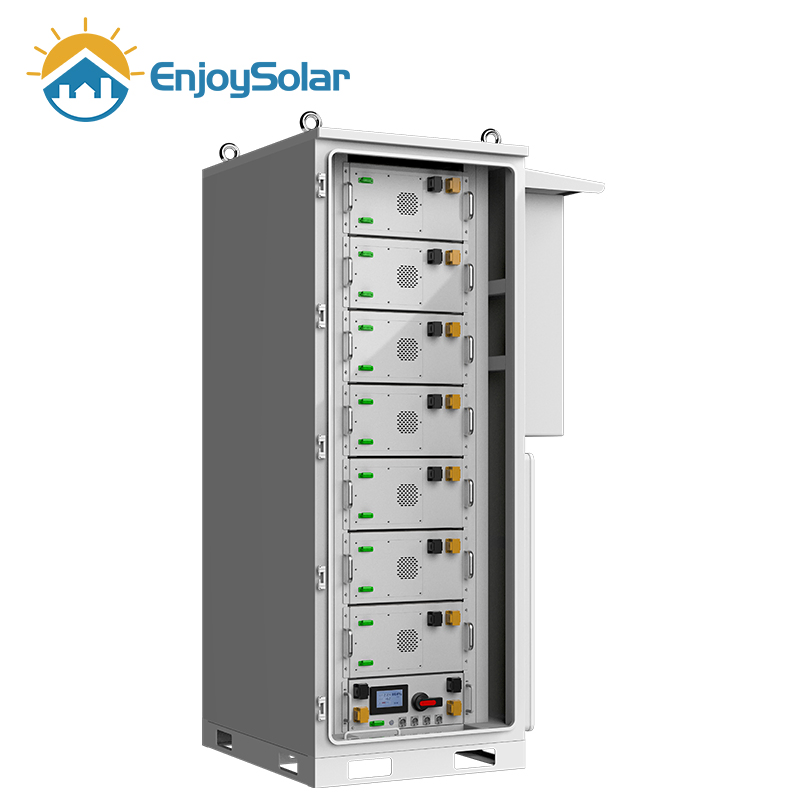

Enjoy Solar All in One 50kwh 100kwh 200kwh Lithium-Ion Battery Storage Packs with 50ke Solar Hybrid Inverter for Solar Energy System

Basic Info

Model NO.

ES-100K

Nominal Capacity

100kwh

Cycle Life

6000cycles+

Max Charge/Discharge

140A

Protection Class

IP55

Cooling Method

Air Cooling

Inverter Power

50kw

AC Output

Three Phase 220V/380V

Certificate

CE, TUV, UL, Un38.3

Design Life

10 Years

Product Description

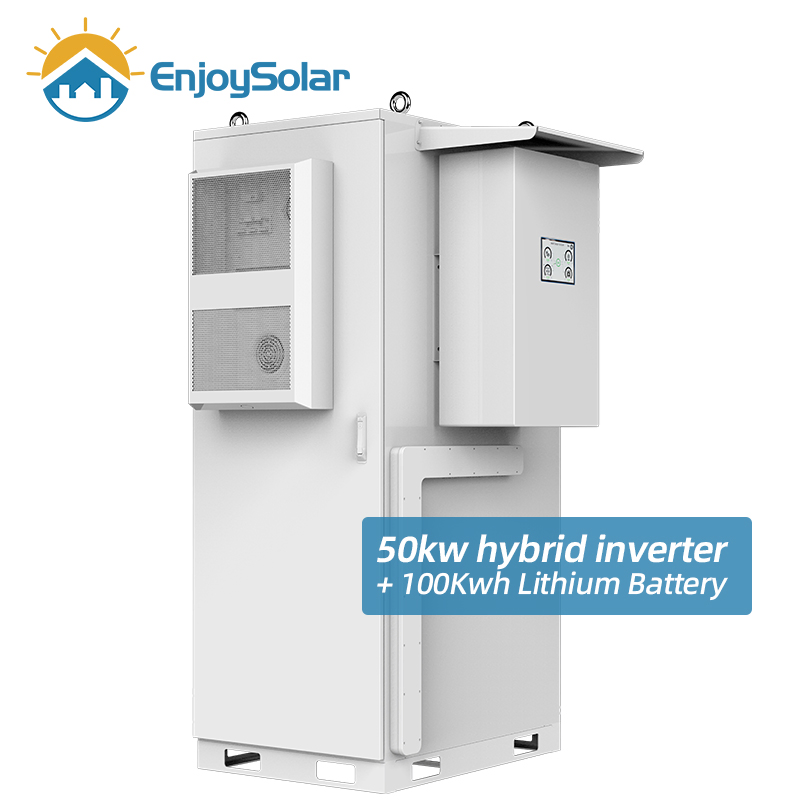

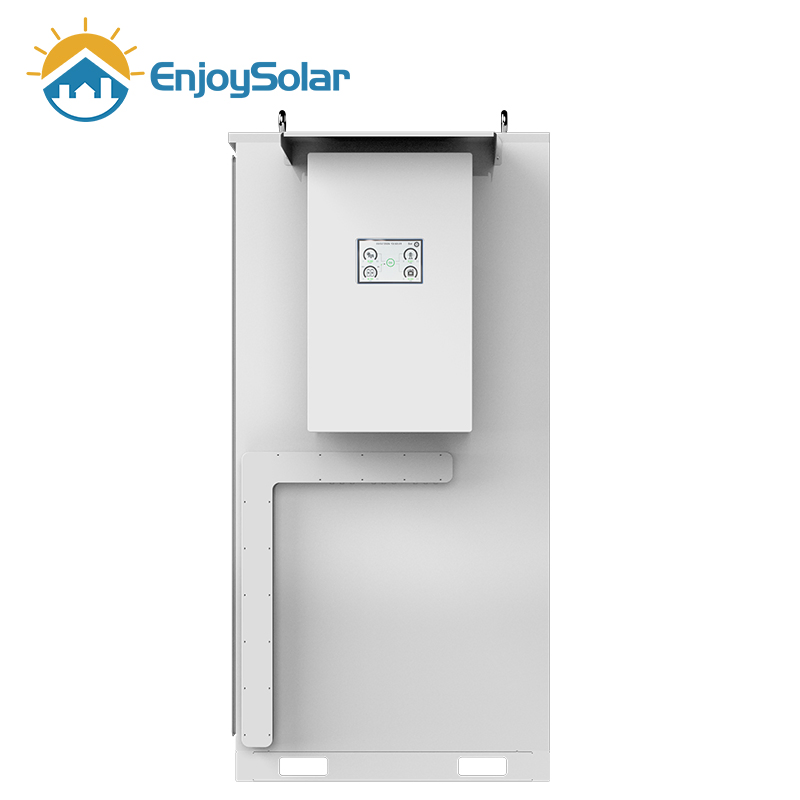

ES-100K Integration of Energy Storage

A high-performance cobalt-free Lithium Iron Phosphate (LFP) battery solution designed for safety, longevity, and efficiency.

Safer

Cobalt Free LFP Battery: Safety and long lifespan, high efficiency and high power density. Intelligent BMS providing complete protection.

Reliable

Support high discharge power, IP55 protection, natural cooling, and wide temperature range: -20ºC to 55ºC.

Flexible

Modular design, easy to expand. Suited to residential and commercial applications for increasing self-consumption ratio.

Product Components

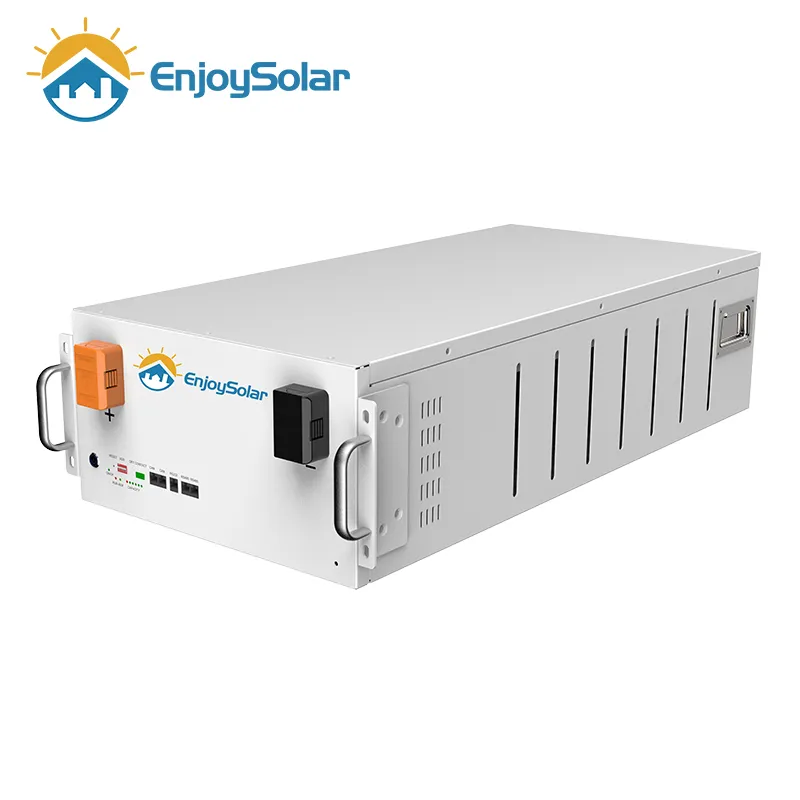

51.2V 280Ah Battery Module

19 inch Modular design, light weight
3.2V 280Ah core, higher energy density
Intelligent system control, stable performance
Long life: more than 10 years

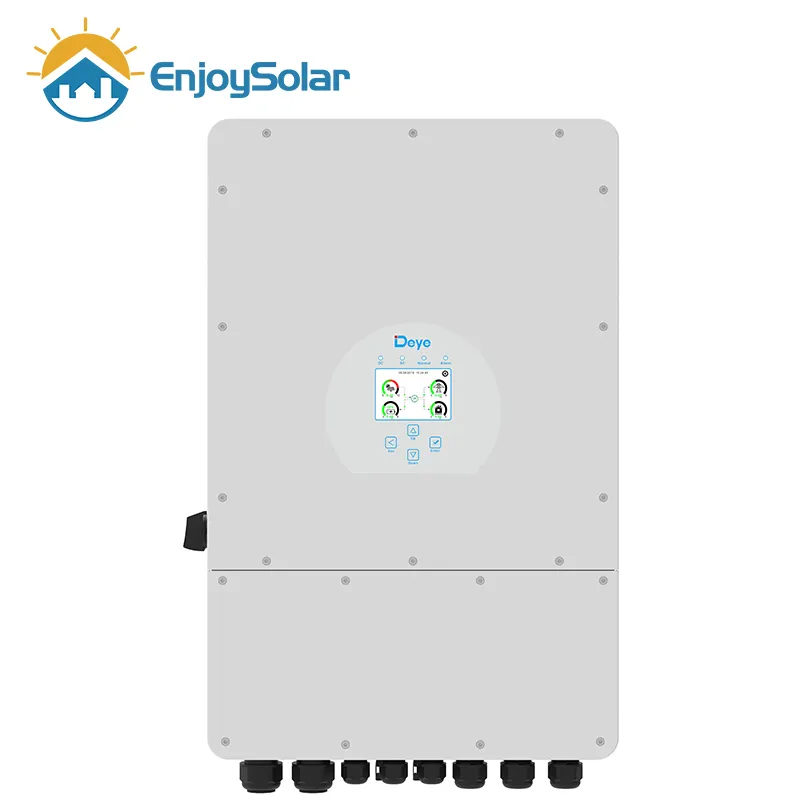

50Kw Hybrid Solar Inverter

100% unbalanced output each phase
AC couple to retrofit existing solar systems
Max 10 pcs parallel for on/off-grid
6 time periods for battery charging

Product Parameters

MODEL	ES-100K	ES-200K	ES-172K
Nominal Voltage	358.4V	716.8V	614.4V
Nominal Capacity	280AH	280AH	280AH
Cabinet Size (mm)	125012452175	162612452175	162612452175
Weight (kg)	1260KG	2200KG	200KG
BATTERY SPECIFICATIONS
Nominal Capacity (KWh)	100KWh	200KWh	172KWh
Cycle Life	(0.5C/0.5C-80% DOD) > 6000 times
AC SPECIFICATIONS
Rating Power	50KW	50KW/100KW	50KW/100KW
Rated AC Voltage	400V	400V	400V

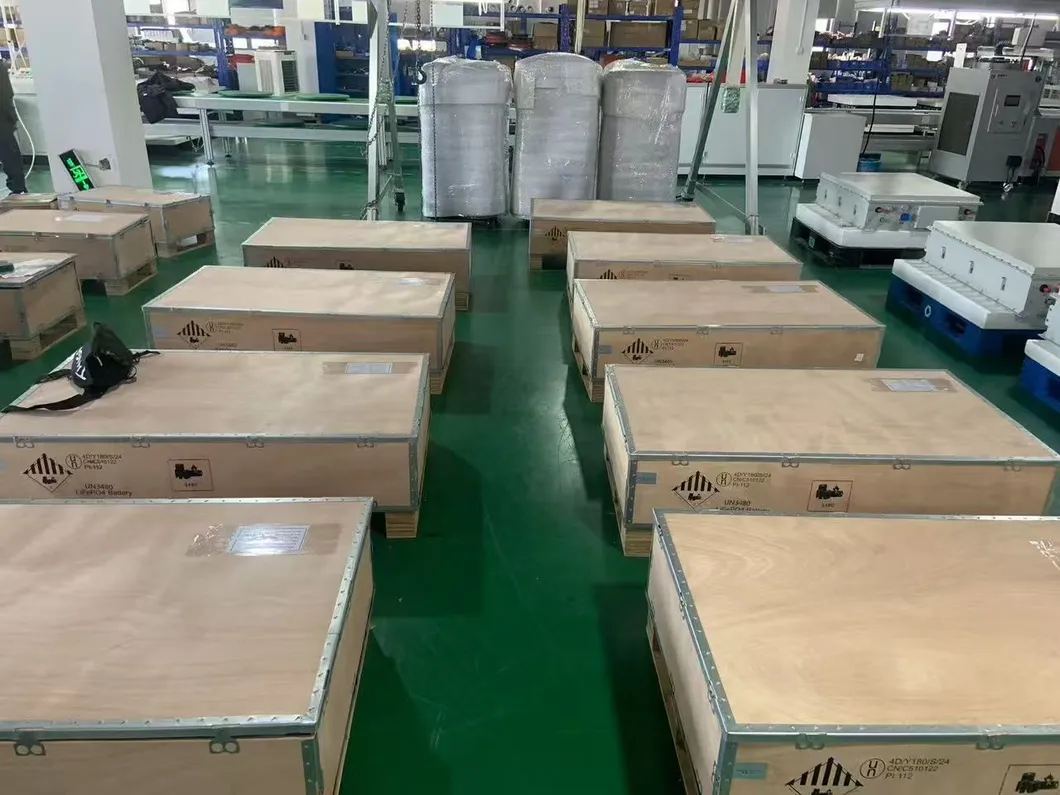

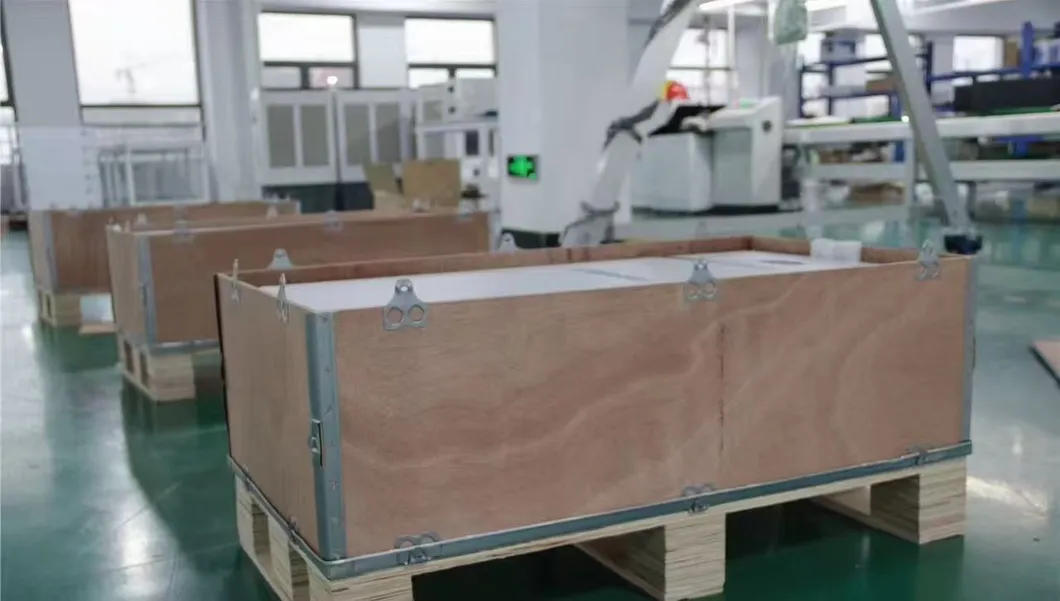

Packaging & Shipping

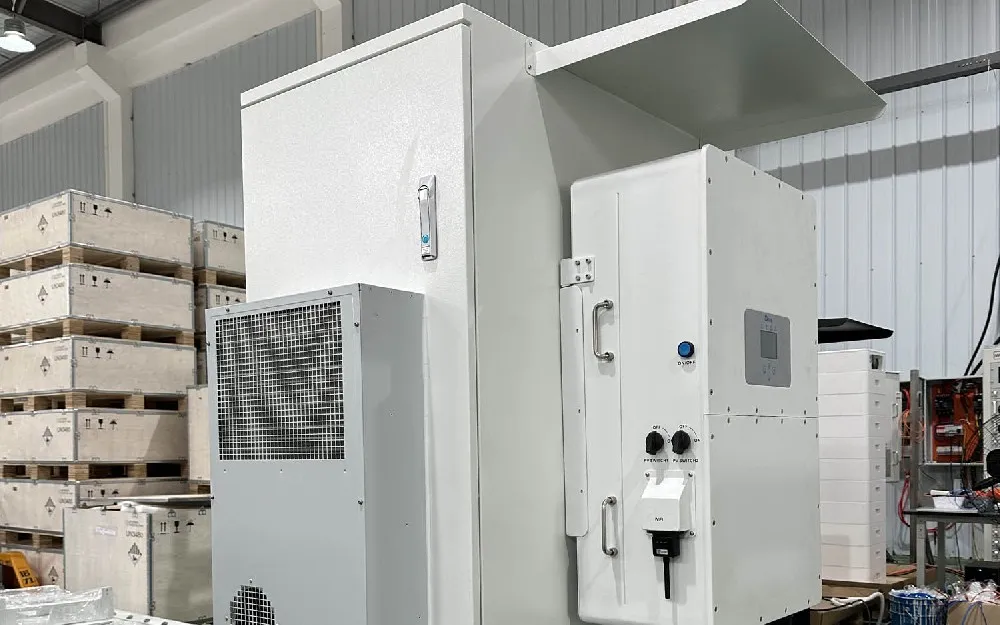

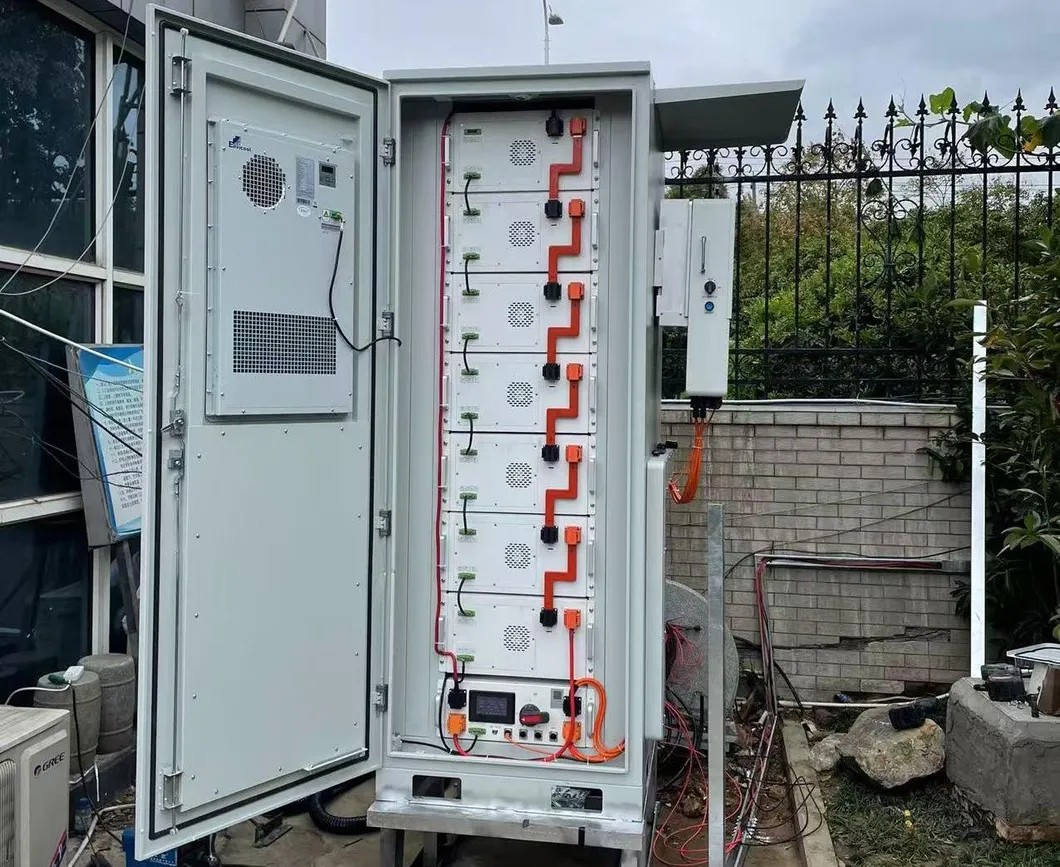

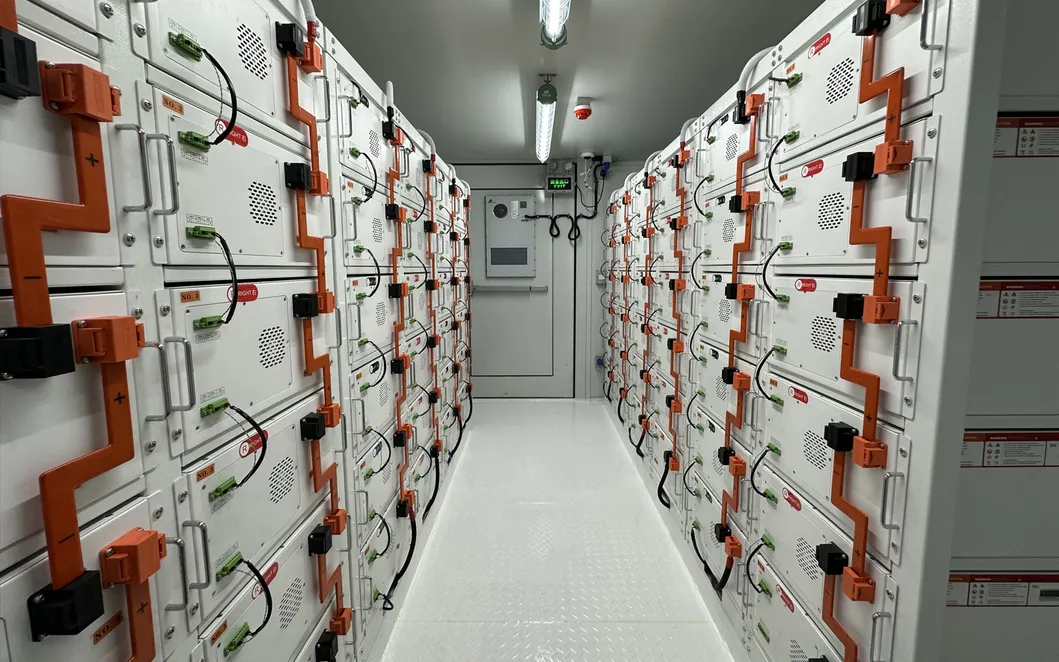

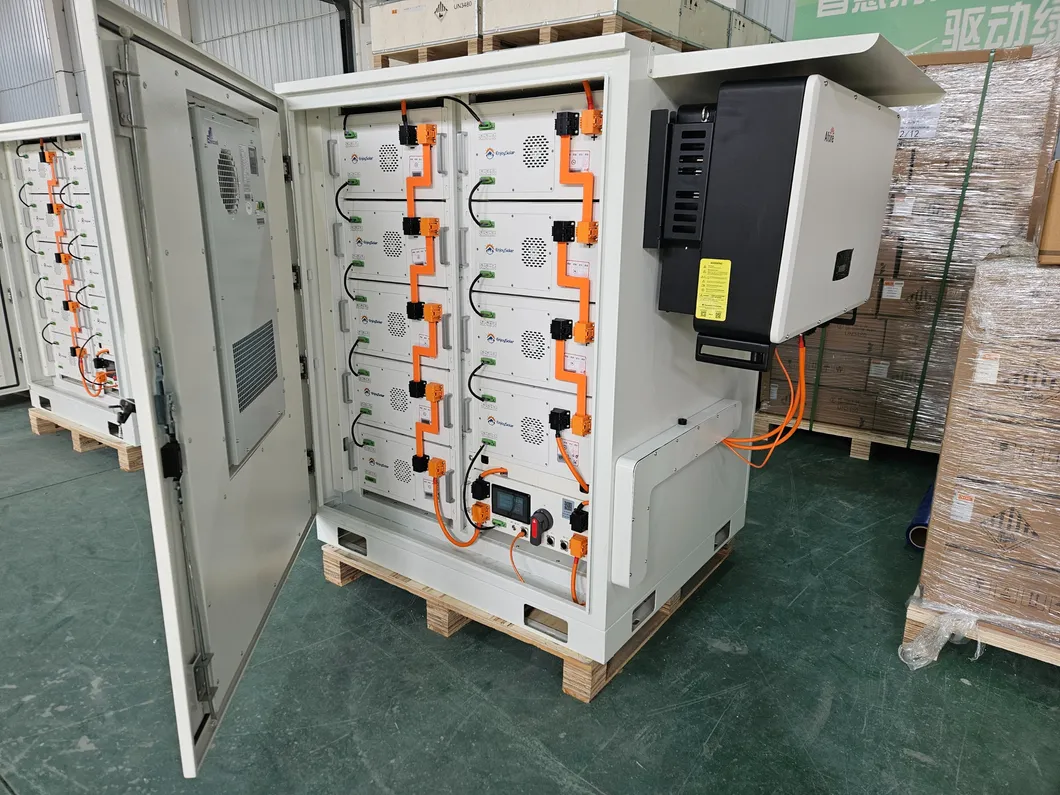

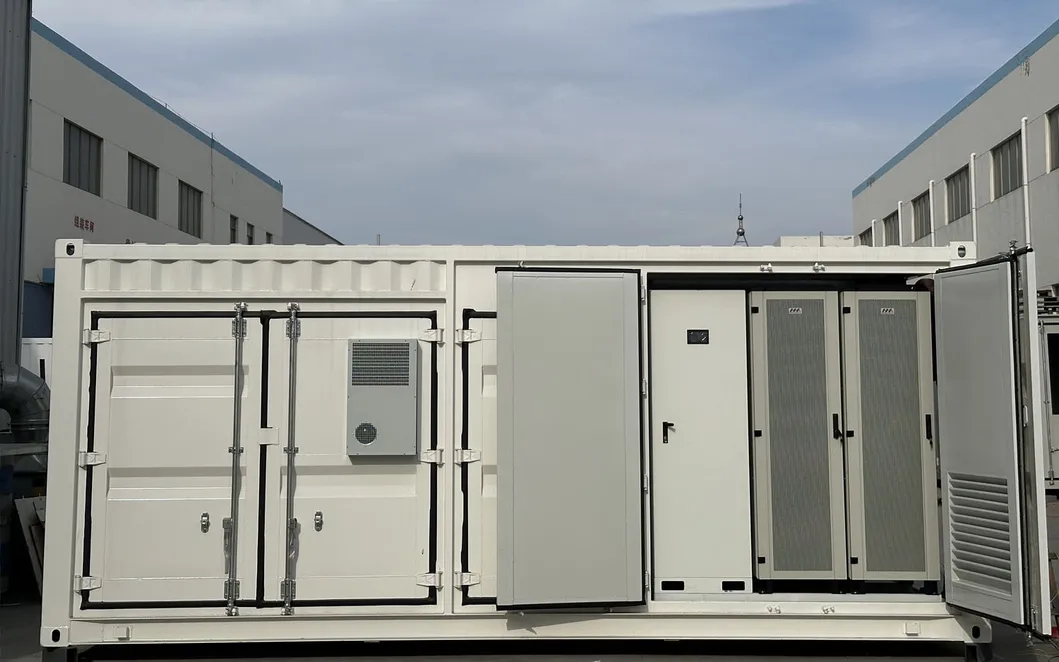

Portfolio

Frequently Asked Questions

What are the primary components of this energy storage system?

The system consists of high-capacity 51.2V 280Ah Lithium Iron Phosphate (LFP) battery modules and a Deye hybrid solar inverter, integrated into a modular cabinet.

Is the system suitable for outdoor installation?

Yes, the system features an IP55 protection class rating, making it resistant to dust and water, suitable for various environmental conditions.

Can I expand the storage capacity later?

Absolutely. The modular design allows for easy expansion. You can parallel multiple units to meet increasing energy consumption demands.

What is the expected lifespan of the battery modules?

The battery modules are designed for a cycle life of over 6000 cycles (at 80% DOD) and have a design life of more than 10 years.

How is quality controlled during manufacturing?

We utilize fully automatic production lines with advanced equipment. Every unit undergoes strict inspection by a professional QC team before packaging.

Does the system support remote monitoring?

Yes, it supports remote monitoring and firmware upgrades via various communication protocols including RS485, CAN, and Ethernet.
