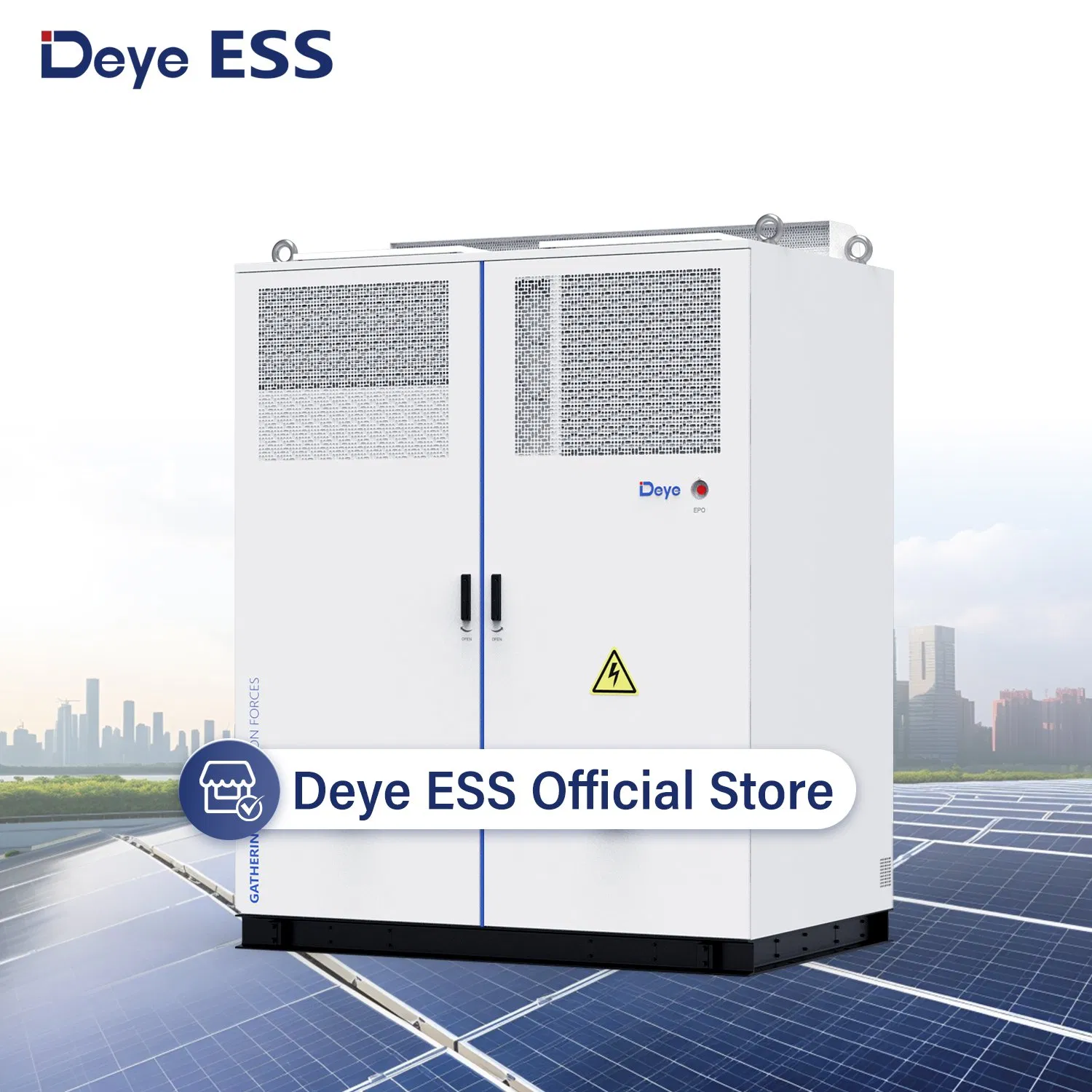

Deye Ess Ms-LC430-2h2 Manufacturer Commercial Solar Energy LiFePO4 Lithium Battery Storage Cabinet

Customization: Available
Type: Li-ion Battery
Cathode Material: LFP

Product Description

📋 Product Overview

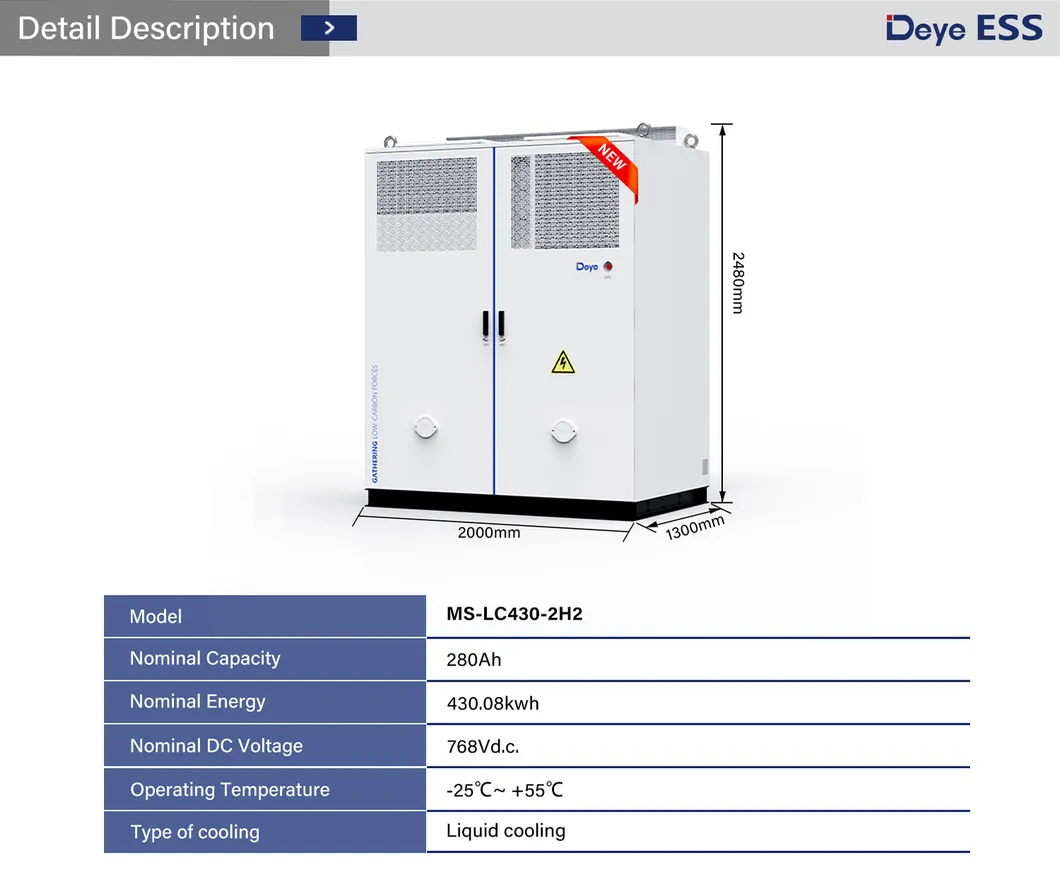

Commercial Solar Energy Storage Cabinet
Model NO.
MS-LC430-2H2
Nominal Capacity
280ah
Nominal Energy
430.08kwh
Cooling Type
Liquid Cooling
Protection Grade
IP54
Temperature Range
-25℃ to +55℃
Fire Suppression
Aerosol, Water

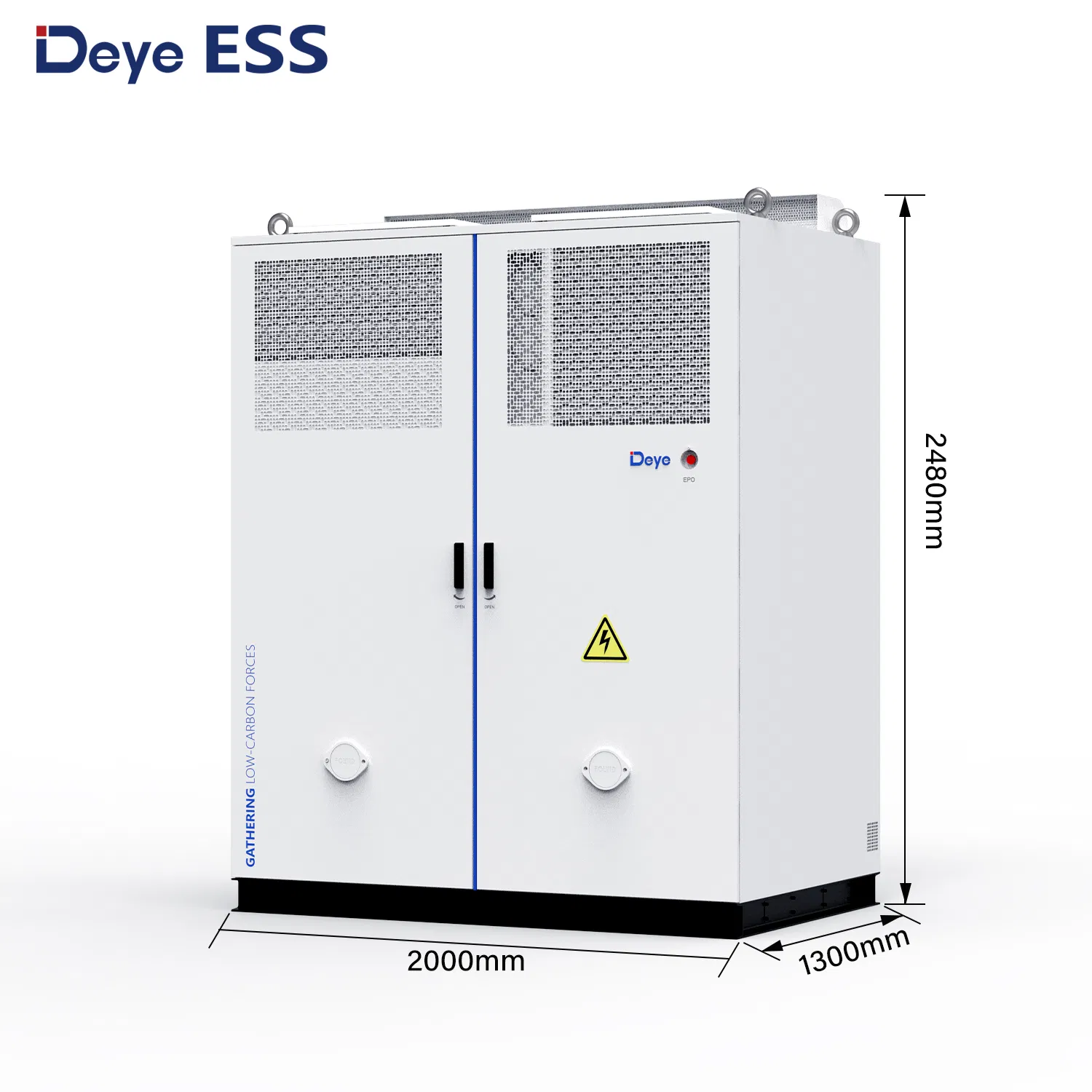

Dimensions
2000×1300×2480mm
🚀 Detailed Description
Energy Storage System Detail 1

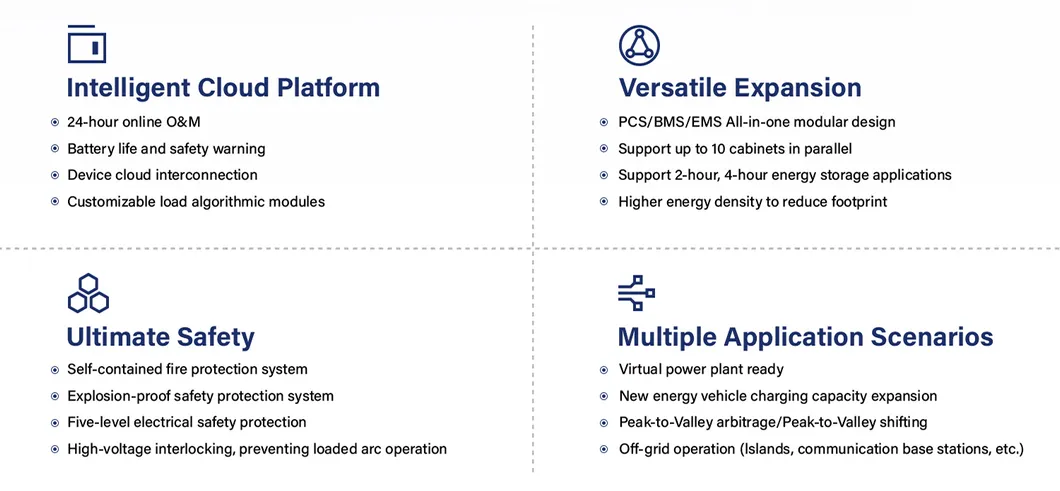

Energy Storage System Detail 2
Technical Specifications: MS-LC430-2H2 (AC BESS)
Operating Temperature -25ºC to +55ºC
Storage Temperature -30ºC to +60ºC
Humidity 0-95% (No condensation)
Cooling System Liquid cooling
Fire Suppression Aerosol, Water
Ingress Protection IP54
Anticorrosion Grade ≥C4
Max Altitude ≤2000m
Communication RS485, Modbus TCP, DIDO
Total Weight ≤4600kg
Module View
Interior View
Control System
⚙ Advanced Technology & Manufacturing

Our energy storage systems utilize advanced technologies to provide high-quality energy conversion solutions. With a focus on innovation-driven development, the manufacturing process integrates research, production, and service to create safe, durable, and environmentally friendly products.

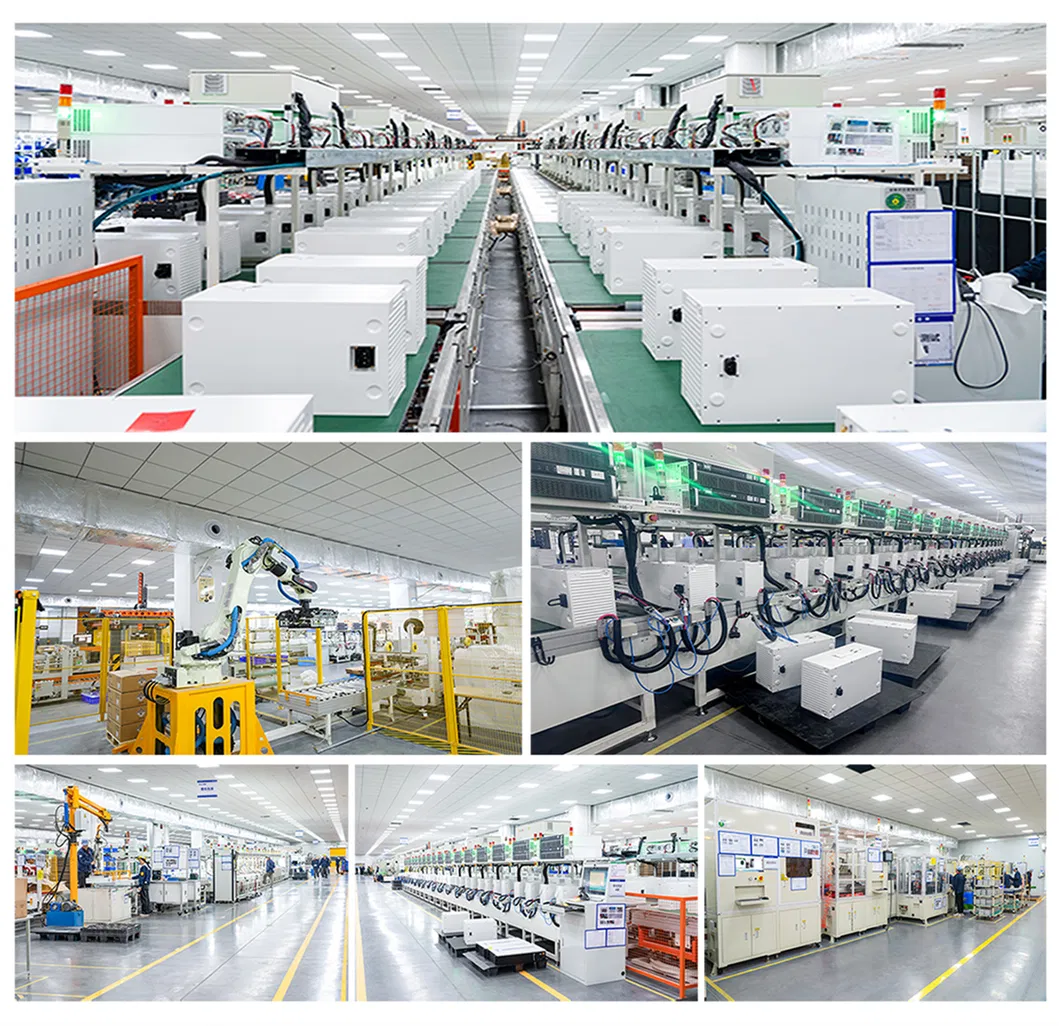

Production Line

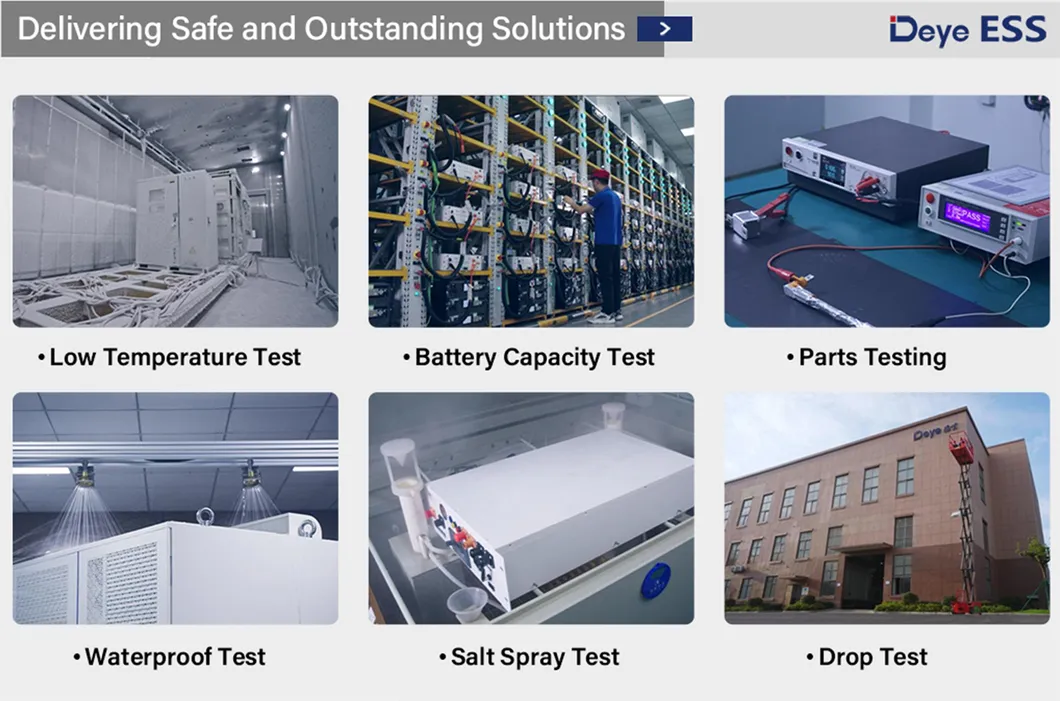

Quality Control
Components

The intelligent manufacturing base produces world-class energy storage systems, Battery Management Systems (BMS), and energy IoT products. We offer a comprehensive range of solutions including low-voltage household storage, high-voltage residential systems, portable power stations, and utility-scale energy storage cabinets.

Factory Overview
Installation
Certification
🌍 Global Solutions

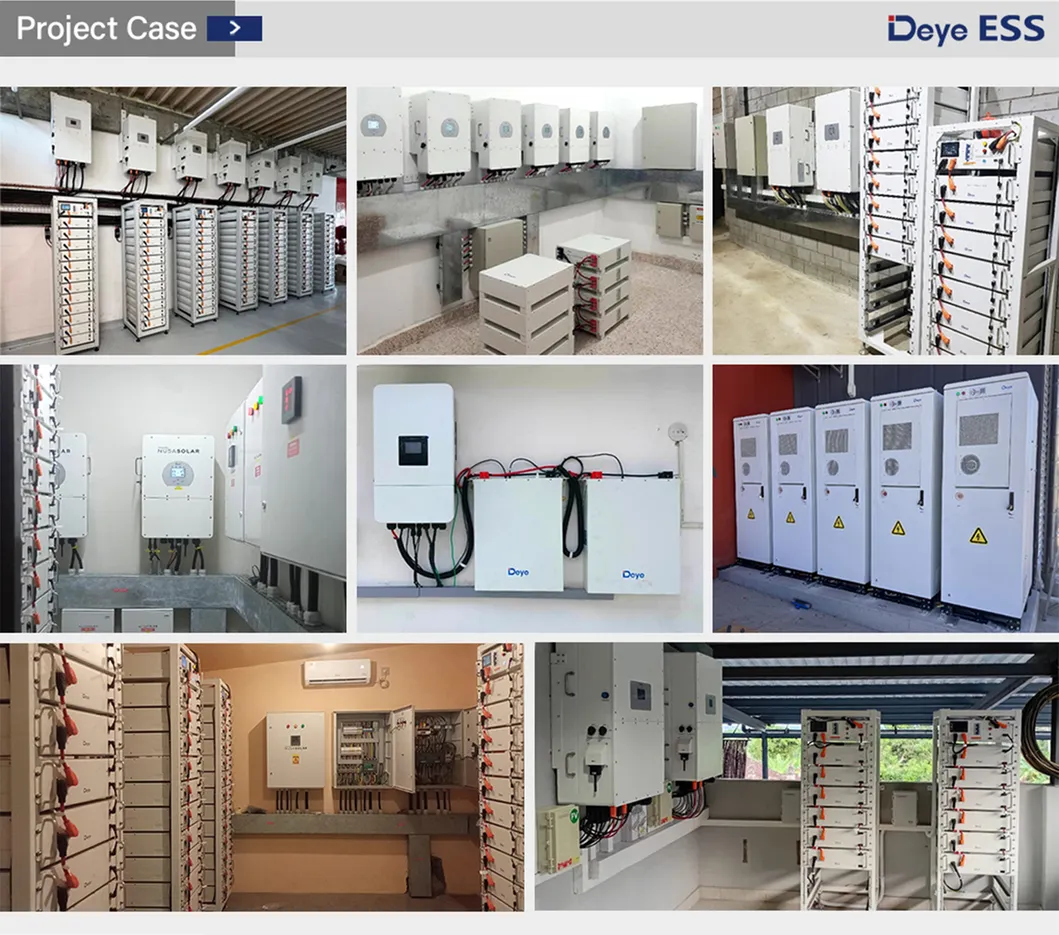

Global Applications
Project Case 1
Project Case 2
Project Case 3
Project Case 4
Project Case 5
Project Case 6

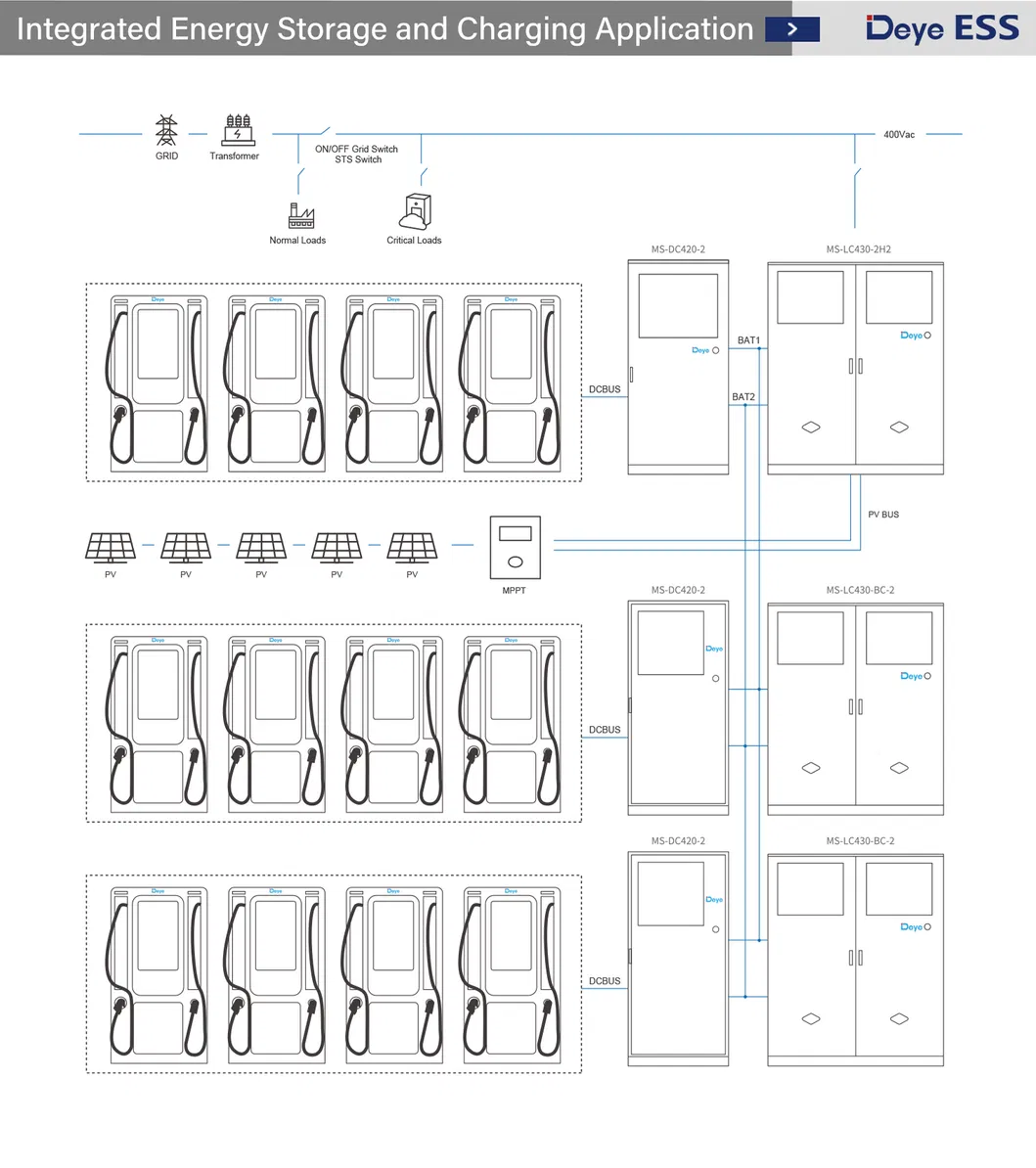

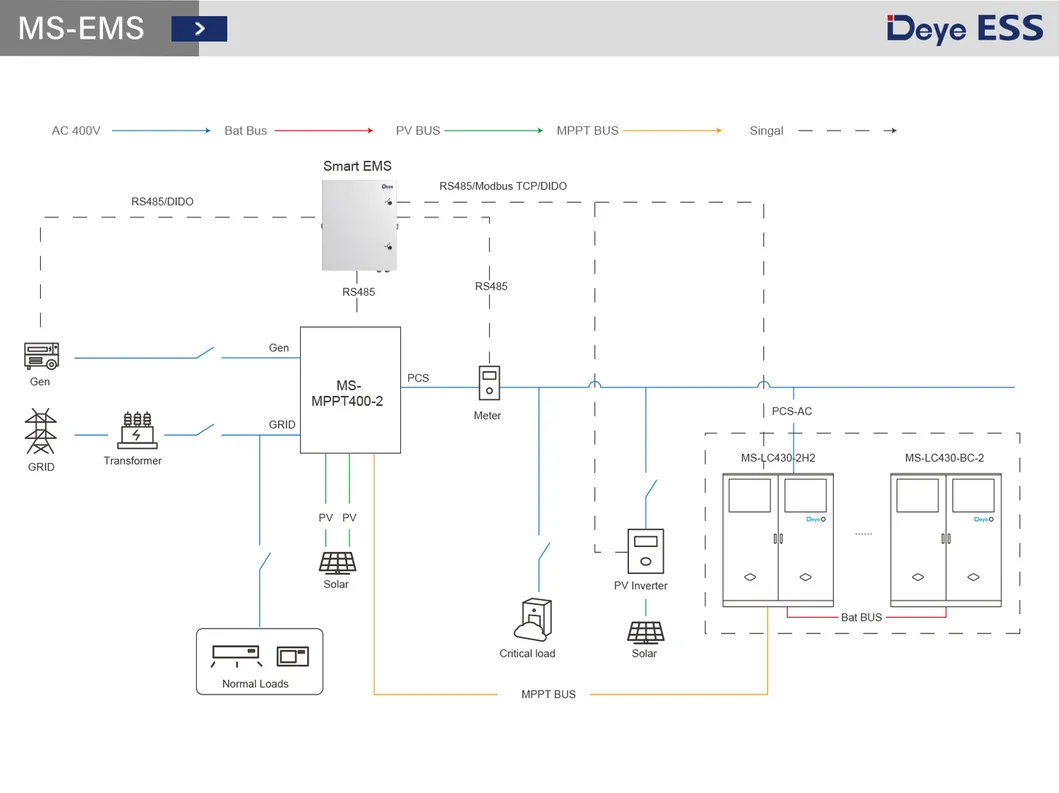

System Architecture Technical Layout
❓ Frequently Asked Questions
What is the cooling technology used in the MS-LC430-2H2?
This model features an advanced Liquid Cooling system, which ensures optimal temperature management and higher efficiency compared to traditional air cooling.
What safety features are integrated for fire protection?
The system is equipped with a dual-layer fire suppression mechanism using both Aerosol and Water-based systems to ensure maximum safety.

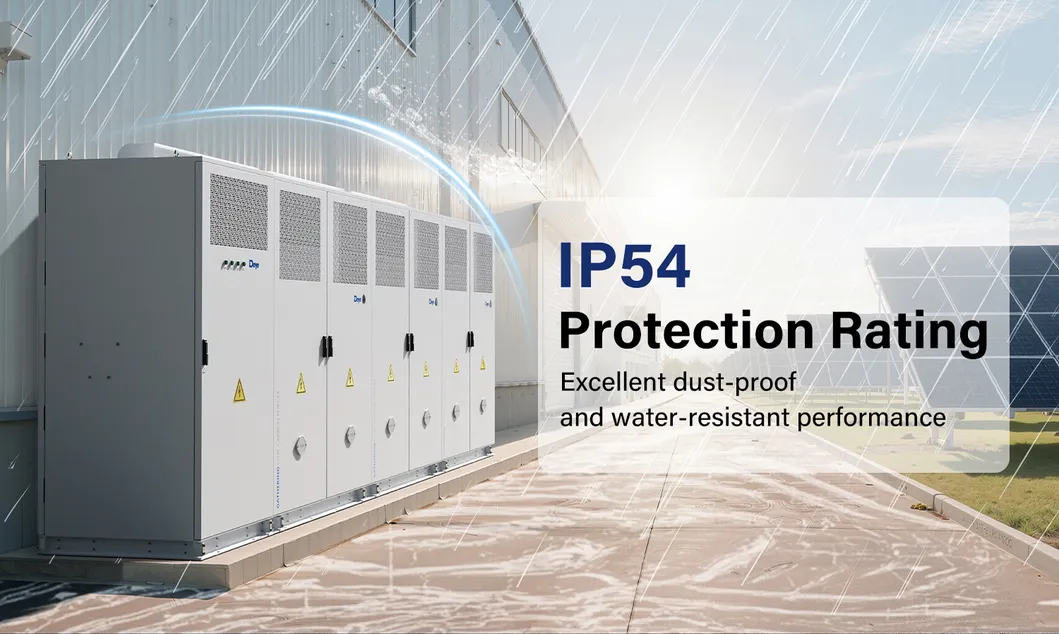

Is this energy storage cabinet suitable for outdoor installation?
Yes, it features an IP54 ingress protection rating and a corrosion resistance grade of ≥C4, making it highly durable for various outdoor environmental conditions.
What is the total energy capacity of the system?
The system provides a nominal capacity of 280Ah and a total nominal energy storage of 430.08kWh.
What communication protocols does the system support?
It supports standard industrial communication protocols including RS485, Modbus TCP, and DIDO for seamless integration with monitoring systems.
Can the system operate in extreme weather conditions?
Yes, it is designed to operate reliably within a wide temperature range of -25°C to +55°C, suitable for diverse climates.
