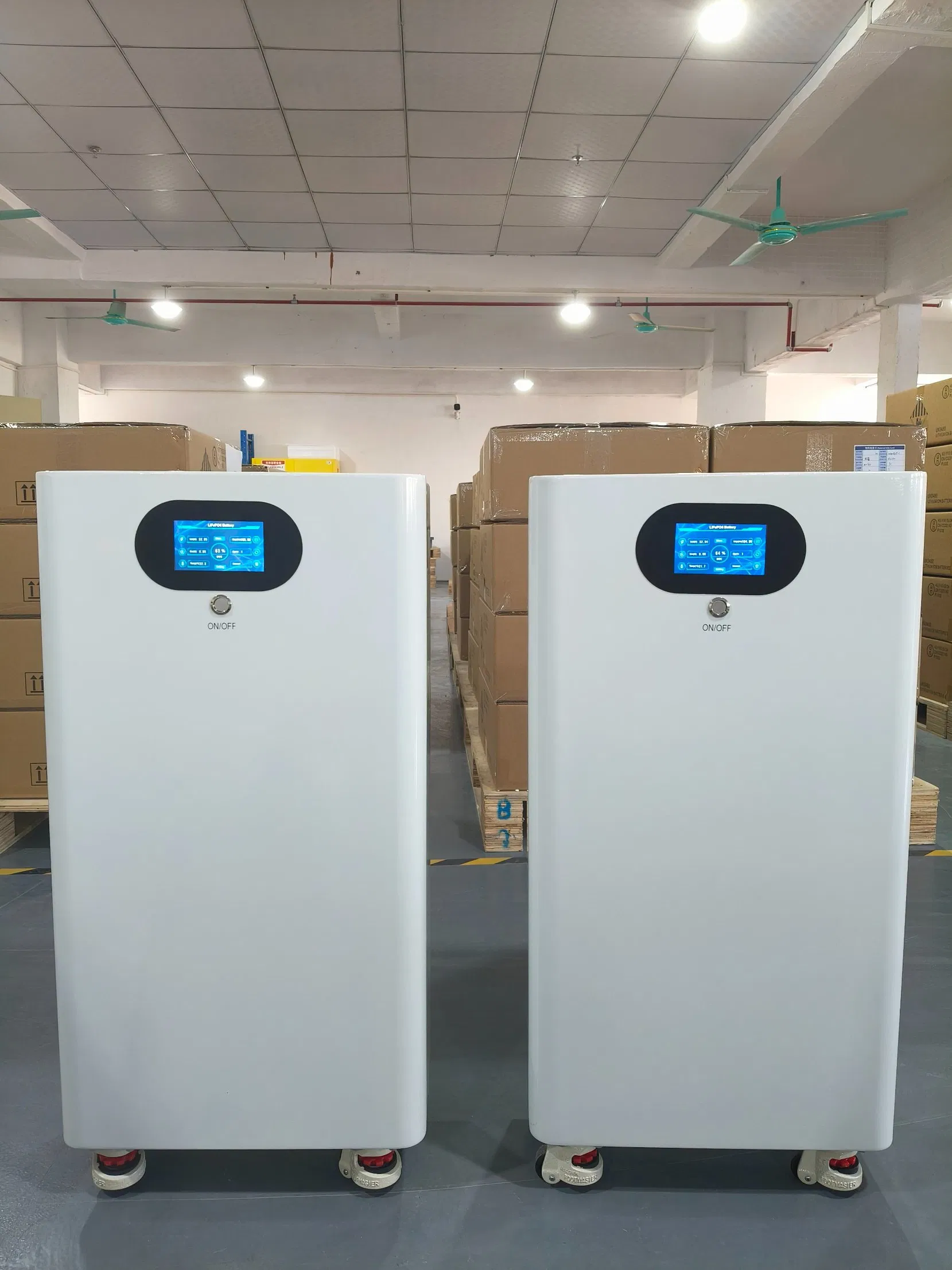

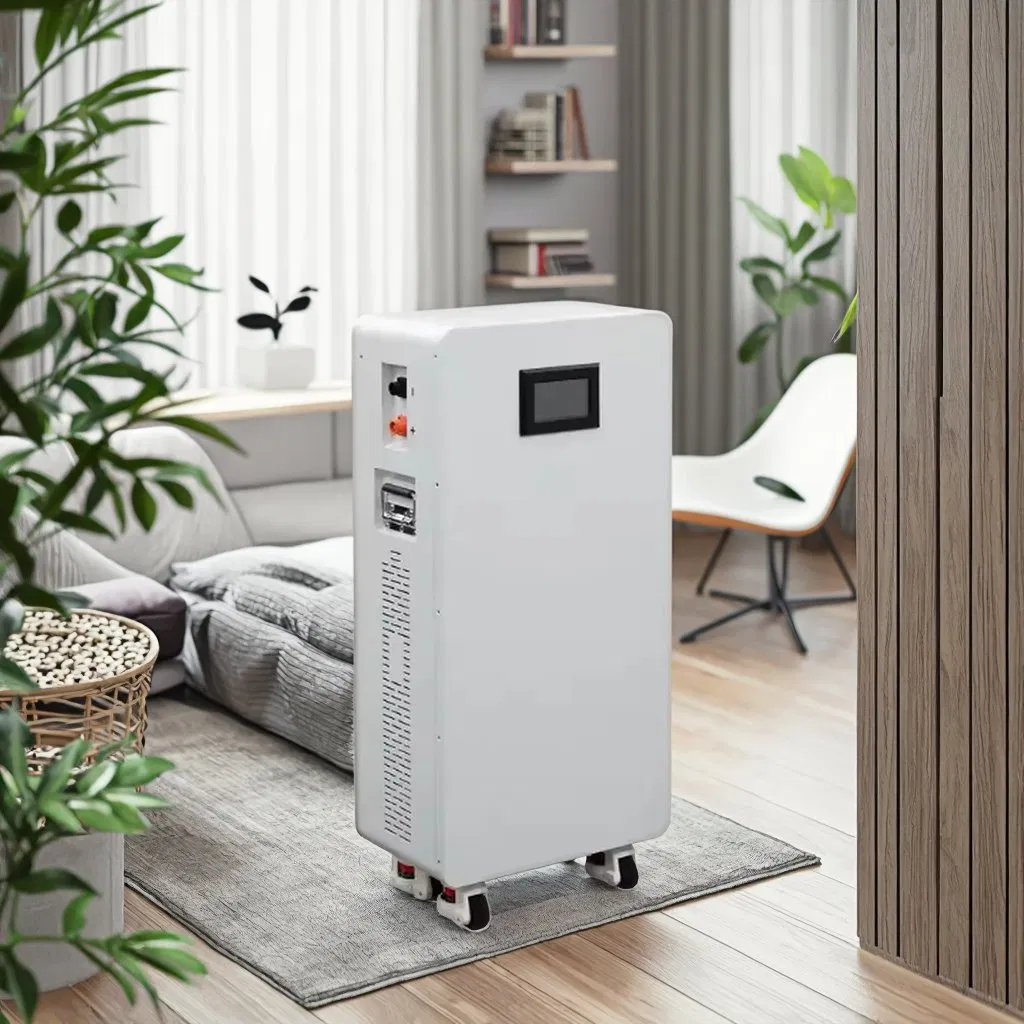

2294 48V Lithium Ion Battery Deep Cycle Rechargeable LiFePO4 Battery 48V 100ah 200ah 300ah 280ah 314ah Solar Storage Li Ion Battery

Still deciding? Get samples of $ !
Request Sample

Product Description

⚡ Basic Info.
Model NO.48V 100Ah
Voltage48V
TypeLithium-Ion Battery Pack
Connection ModeSeries and Parallel
RechargeableChargeable
Discharge RateUltrahigh Discharge Rate
Accessories TypeBattery
Rated Capacity>1000mAh
Standard Voltage>12V
ElectrolyteLi-ion
Production Capacity20000pieces/Month
📋 Product Description
Lithium Ion Battery Overview
Energy Battery Charging Voltage Standard Charge Current Max Charge Standard Discharge Current Max Cont. Discharge Dimension (L×W×H) Weight
15 KWH 51.2V 300Ah 58V 50A 100A 50A 120A 840*600*258mm 120Kg
Technical Specifications
Energy Battery Charging Voltage Discharging Voltage Max Charge Max Cont. Discharge Dimension(L×W×H) Weight
2.5 KWH24V 180Ah29.2V20V100A100A610*440*215mm26.5kg
5.0 KWH24V 200Ah29.2V20V100A100A610*440*215mm52.5kg
7.5 KWH24V 300Ah29.2V20V100A100A610*440*215mm68kg
2.4 KWH48V 50Ah54V44V50A50A510*480*180mm32kg
5 KWH48V 100Ah54V44V120A120A650*480*190mm53kg
7 KWH48V 150Ah54V44V120A120A650*480*190mm65g
10 KWH48V 300Ah54V44V120A120A680*485*180mm97Kg
Energy Storage Models

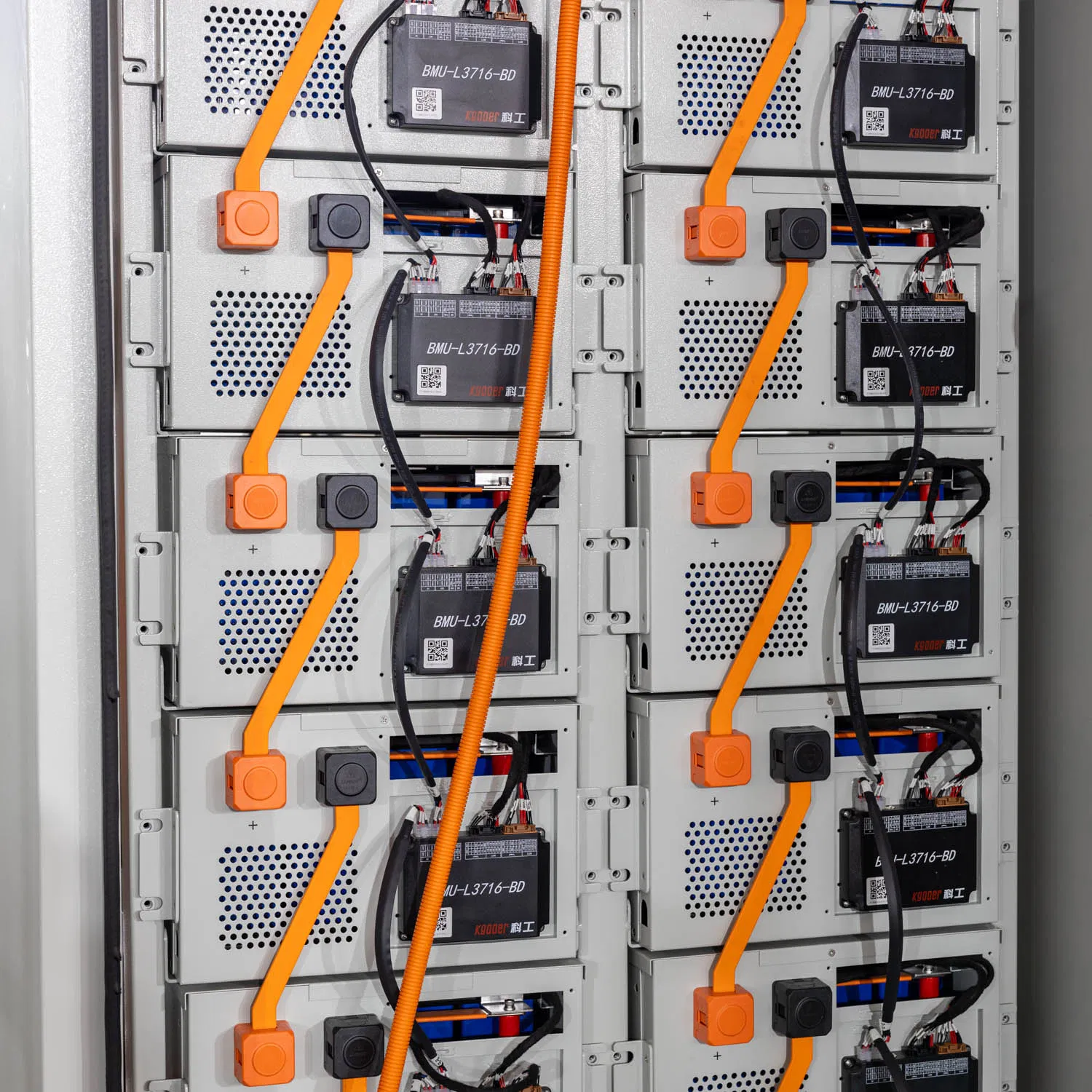

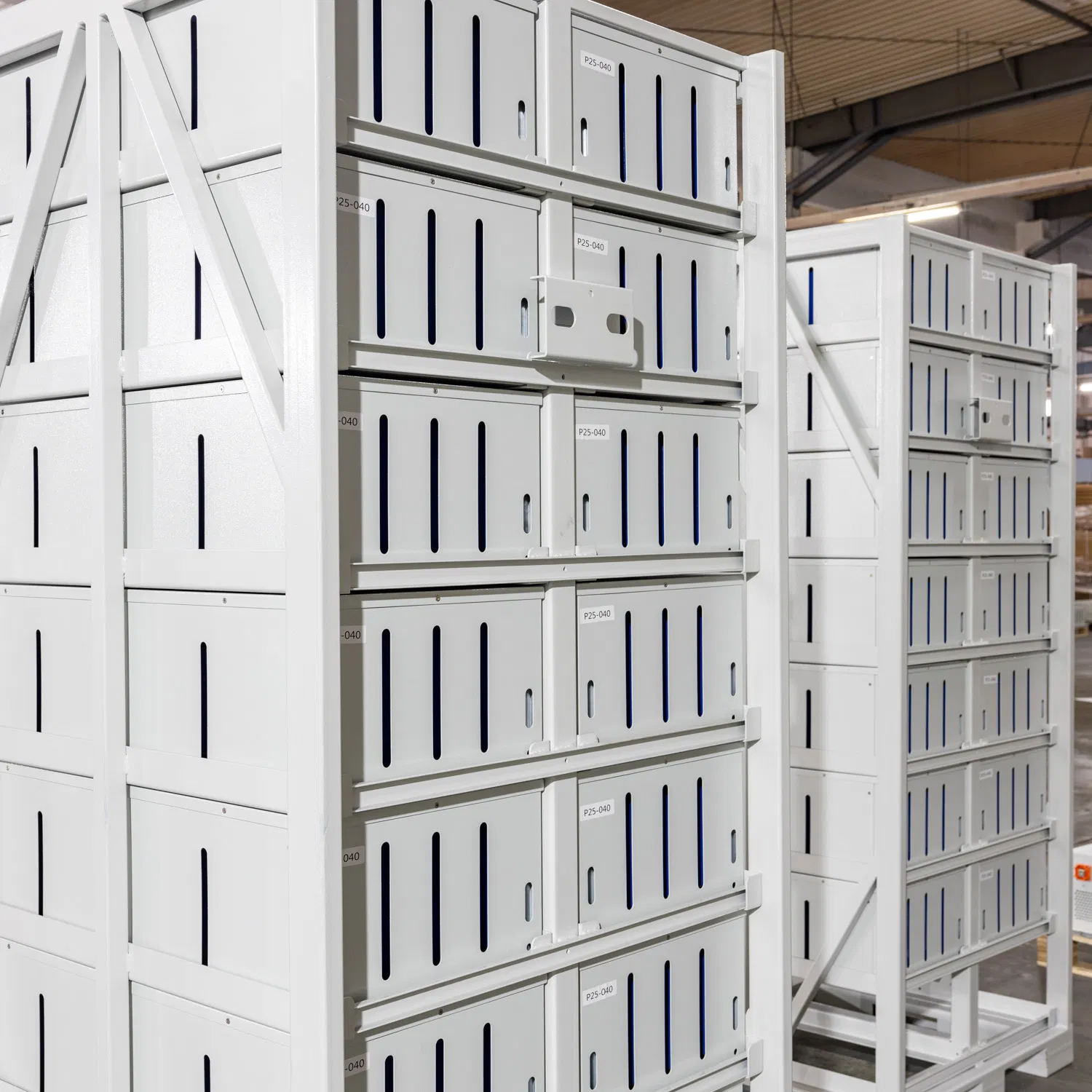

Battery Rack Options
Energy Battery Charging Voltage Max Charge Max Cont. Discharge Dimension(L×W×H) Weight
5KWH48V/51.2V 100Ah54V / 58V120A300A(1S)650*480*190mm53 / 58.5Kg
7KWH48V/51.2V 150Ah54V / 58V120A300A(1S)650*480*190mm65 / 73.3Kg
10KWH48V/51.2V 200Ah54V / 58V120A300A(1S)650*480*190mm85 / 96Kg
Configuration Details

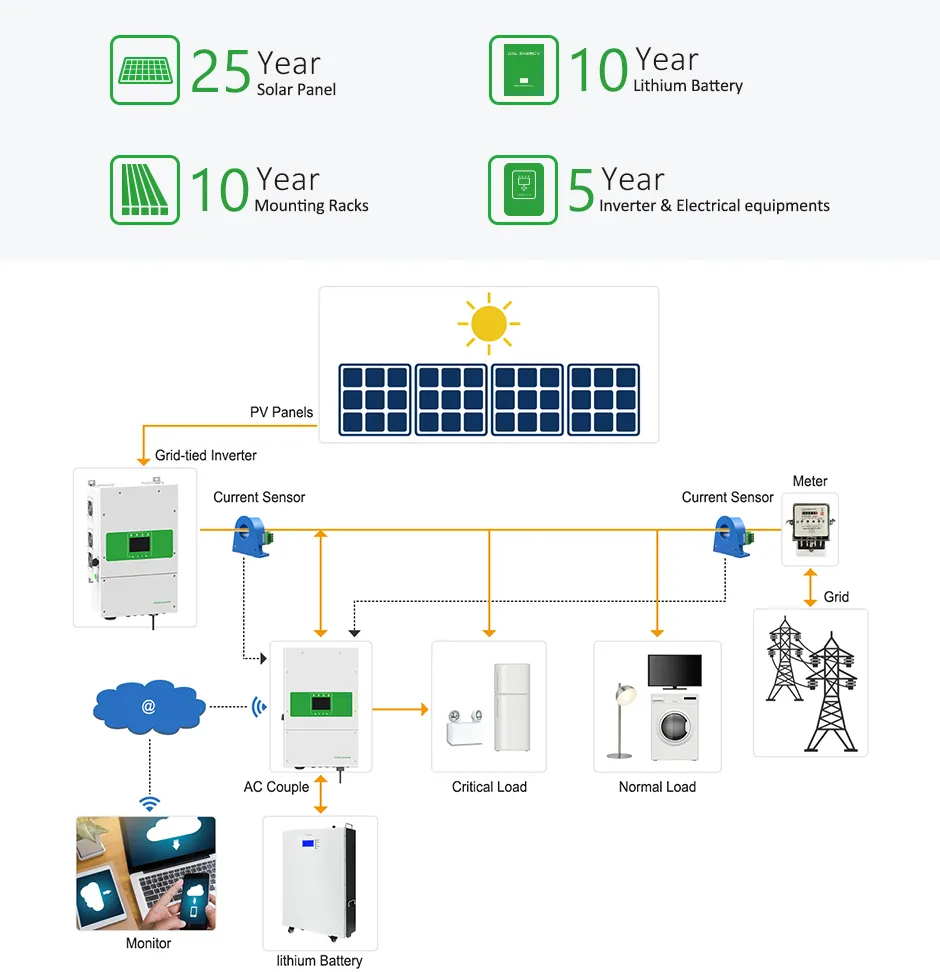

Battery Architecture
📷 Detailed Photos

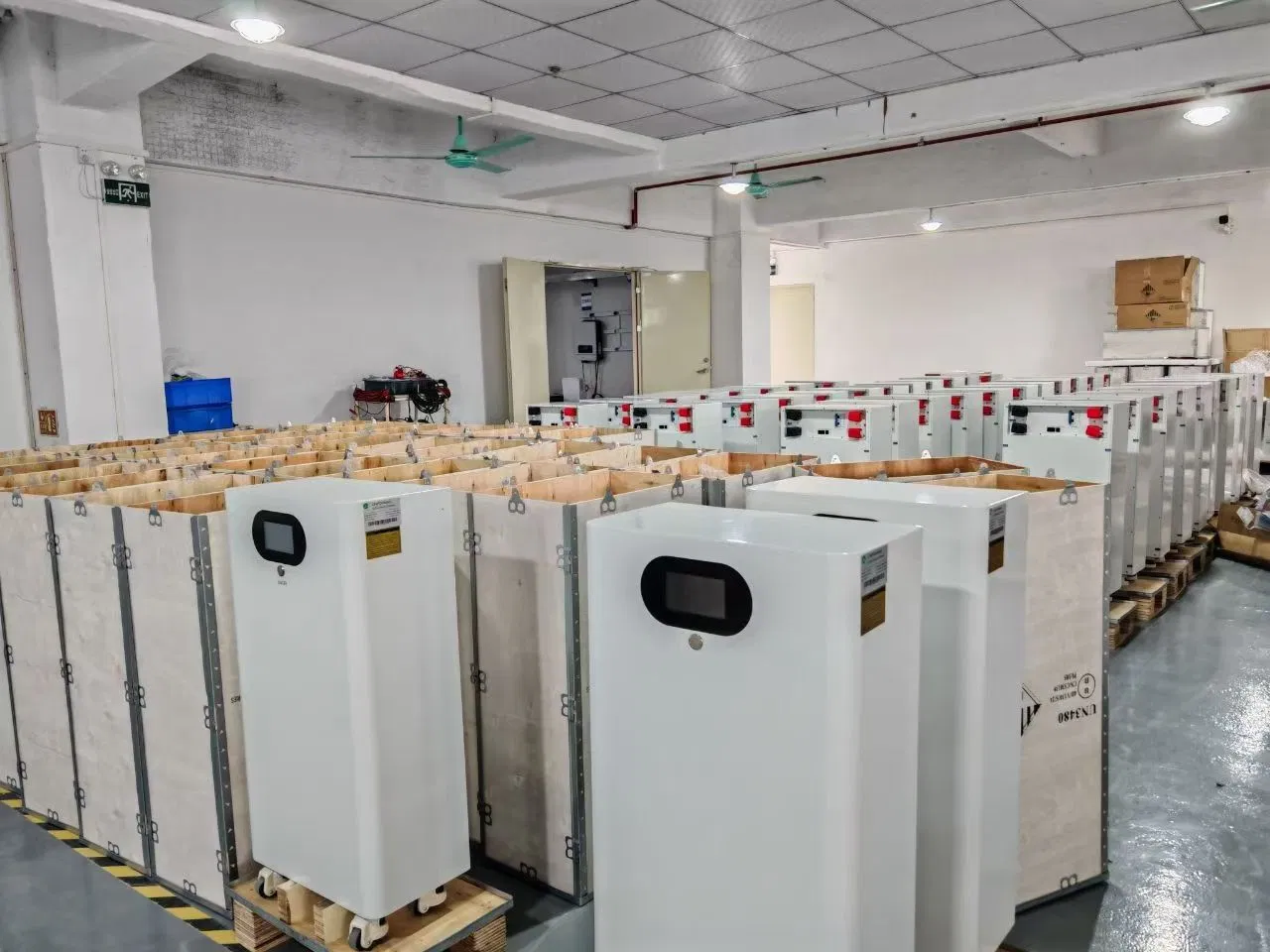

Professional battery production facilities

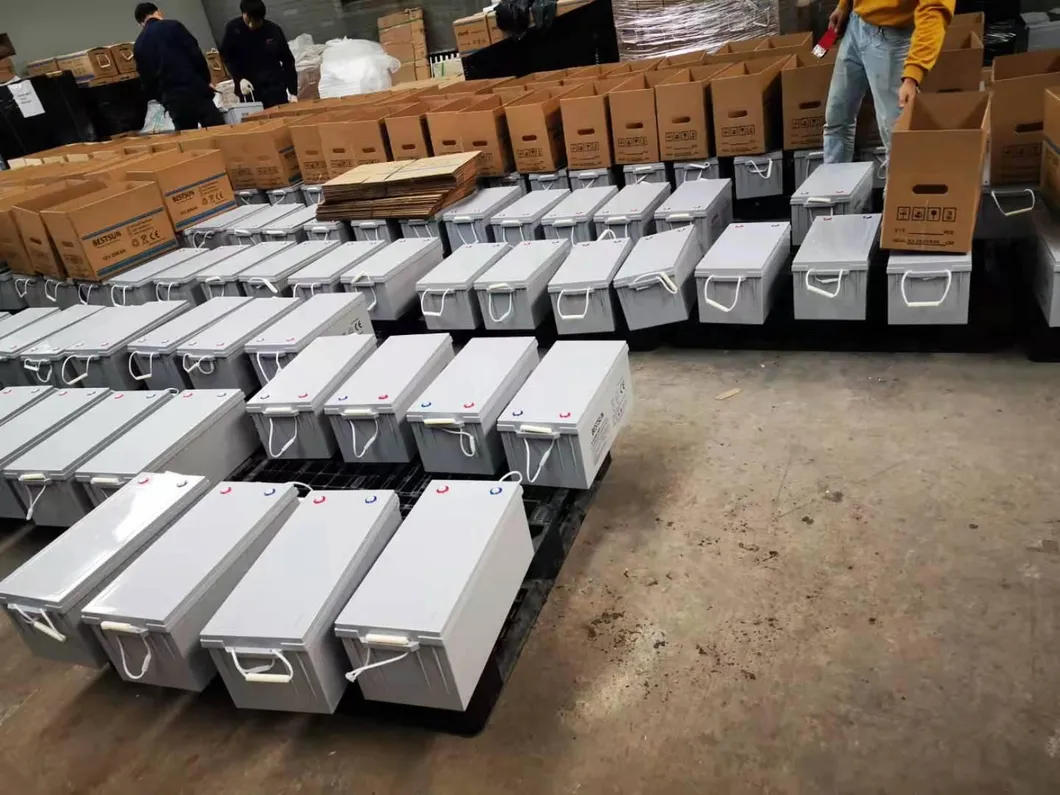

Battery Detail 1

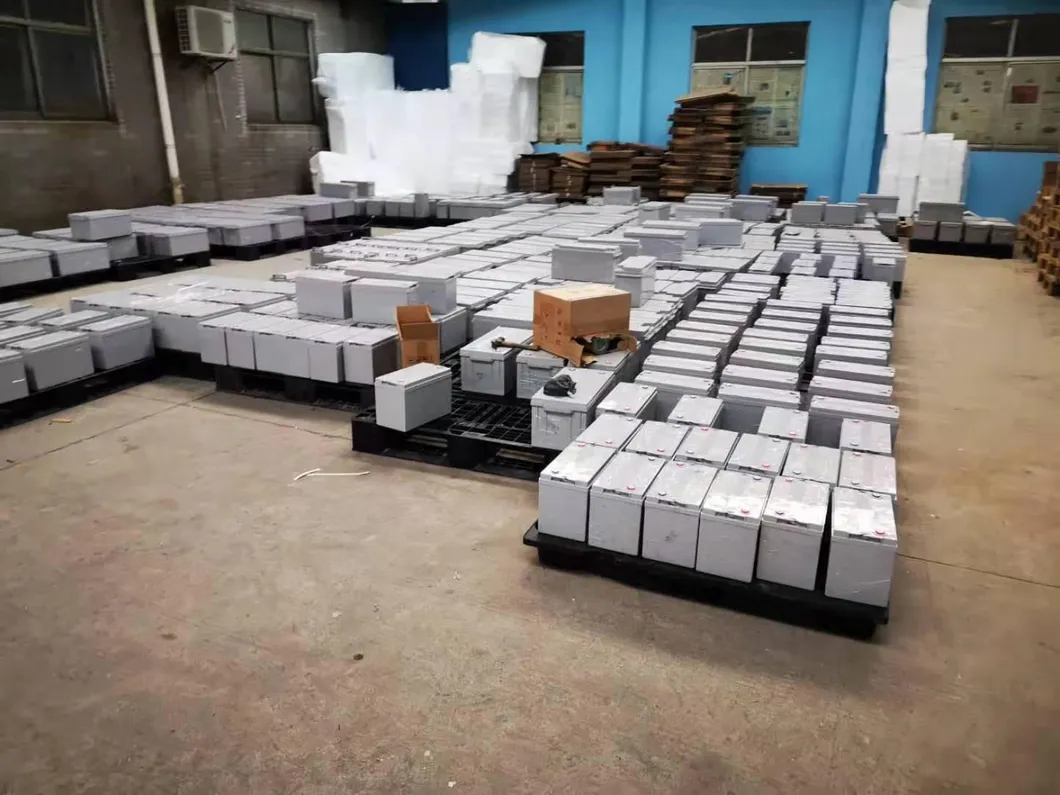

Battery Detail 2

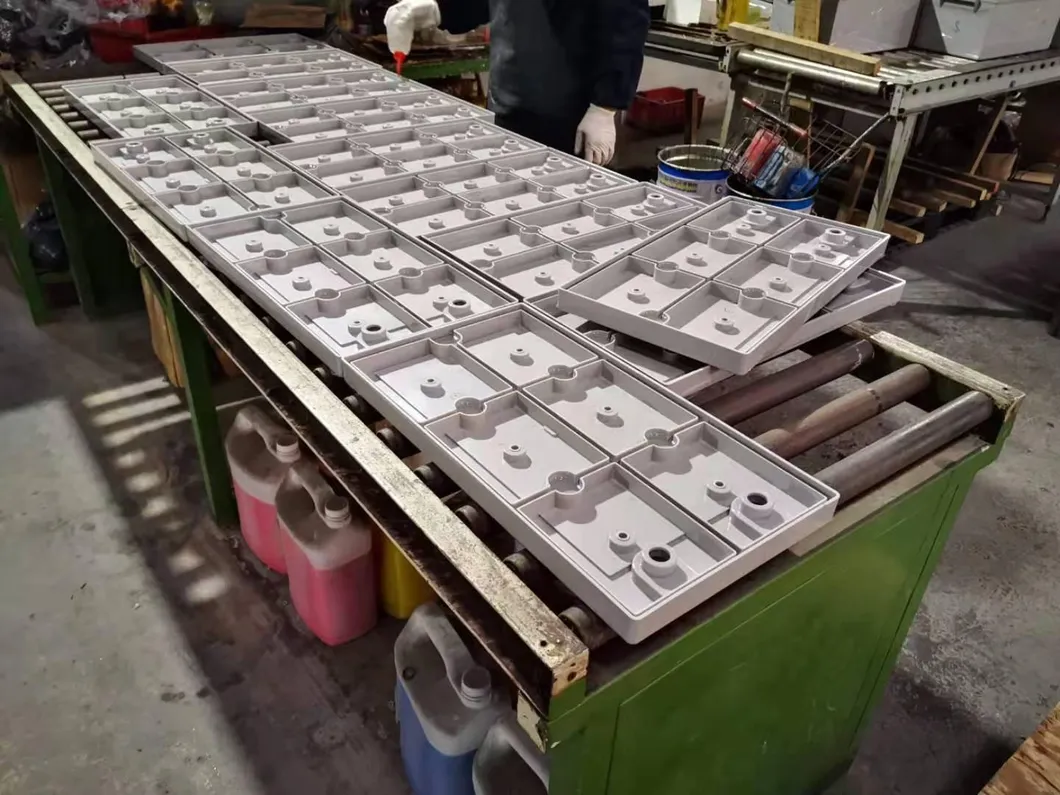

Battery Detail 3

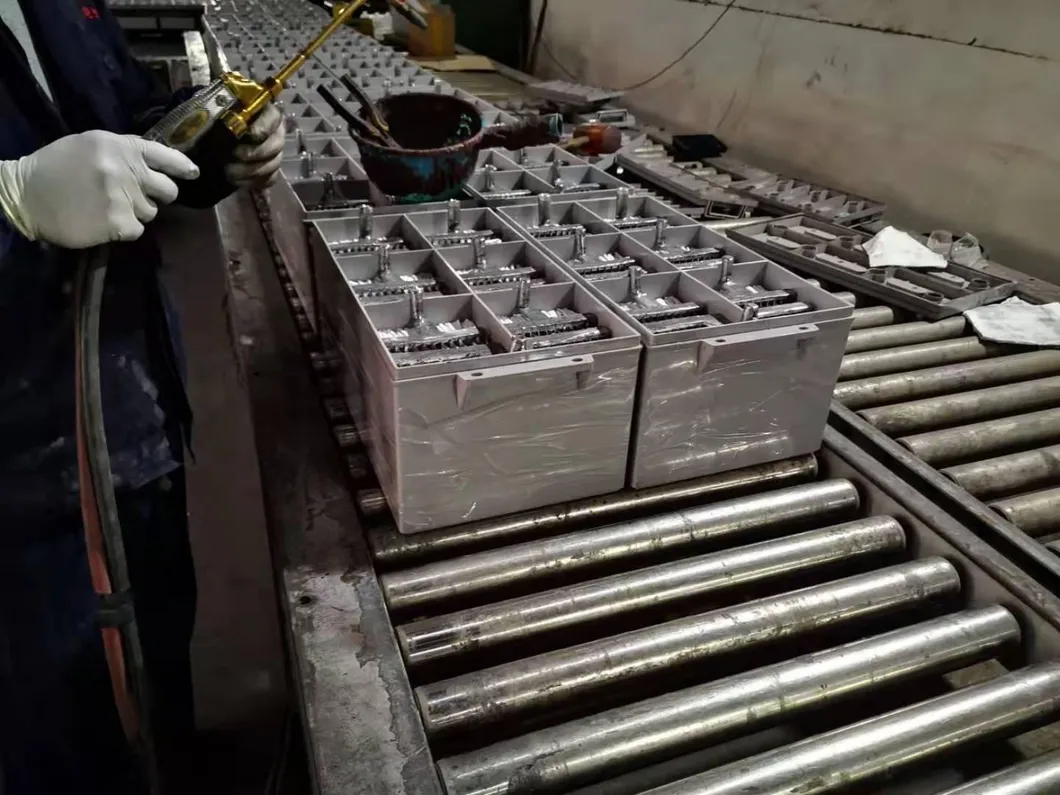

Battery Detail 4

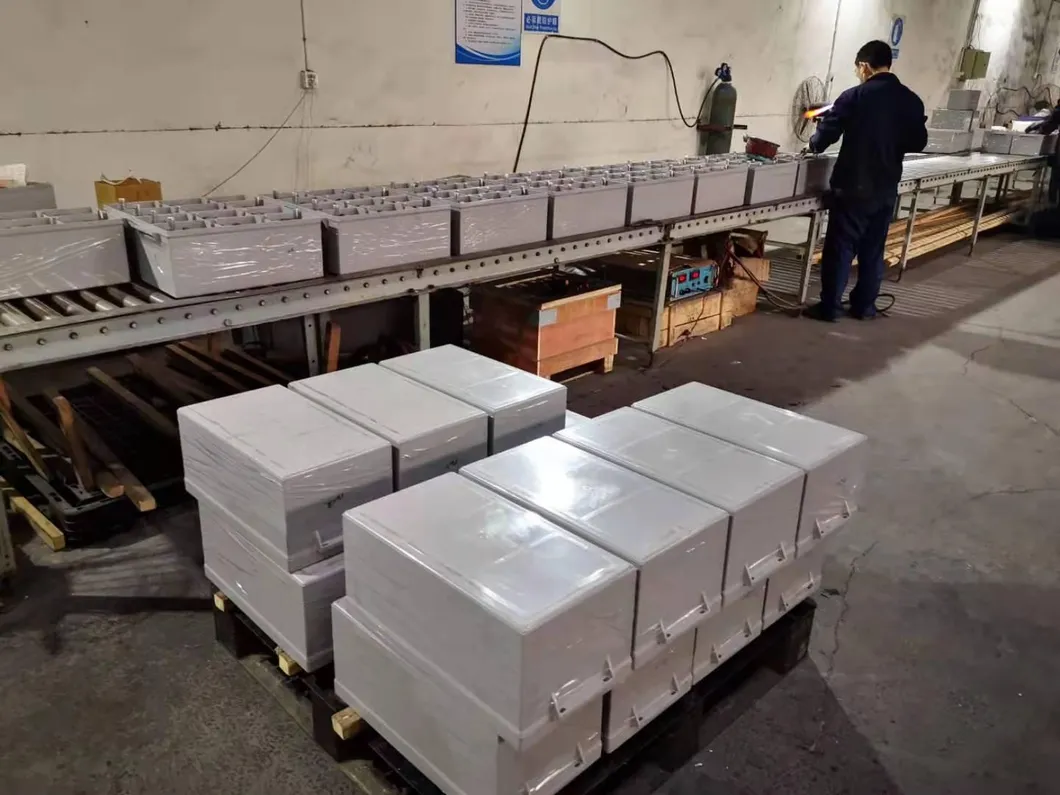

Battery Detail 5

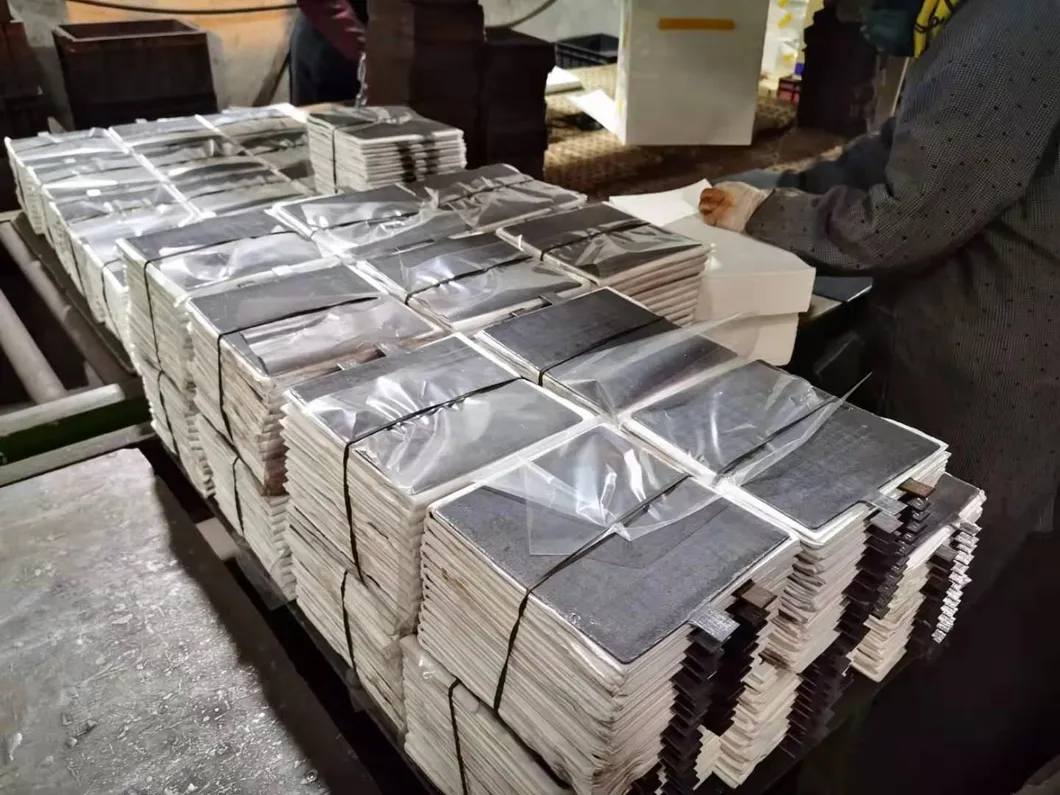

Battery Detail 6
❓ Frequently Asked Questions
What is the cycle life of this LiFePO4 battery?
These lithium-ion battery packs typically offer over 4000-6000 cycles at 80% Depth of Discharge (DOD), ensuring a long-term reliable energy storage solution.
Can these batteries be connected in parallel for larger capacity?
Yes, our batteries support both series and parallel connections. However, we recommend connecting the same model and capacity for optimal performance.
Does the battery pack include a Battery Management System (BMS)?
Absolutely. Every pack comes with an integrated high-performance BMS that protects against over-charge, over-discharge, over-current, and short circuits.
What applications are these batteries suitable for?
They are ideal for solar energy storage, home backup power, off-grid systems, telecommunications, and high-discharge industrial applications.
How should I store the battery if not in use for a long time?
Store the battery in a cool, dry place with a state of charge (SOC) around 50-60%. It is recommended to recharge it every 3-6 months.
Is it compatible with most solar inverters on the market?
Yes, our 48V systems are designed to be compatible with most standard hybrid and off-grid solar inverters.
