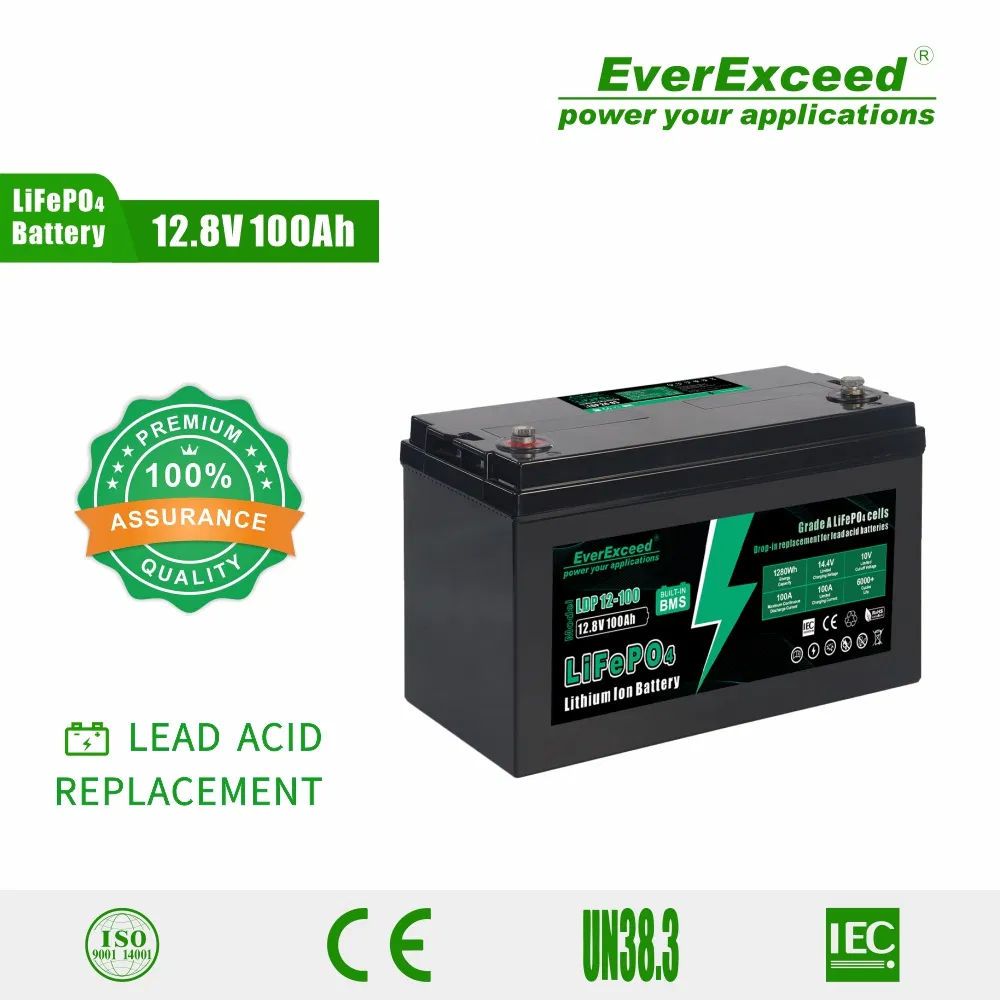

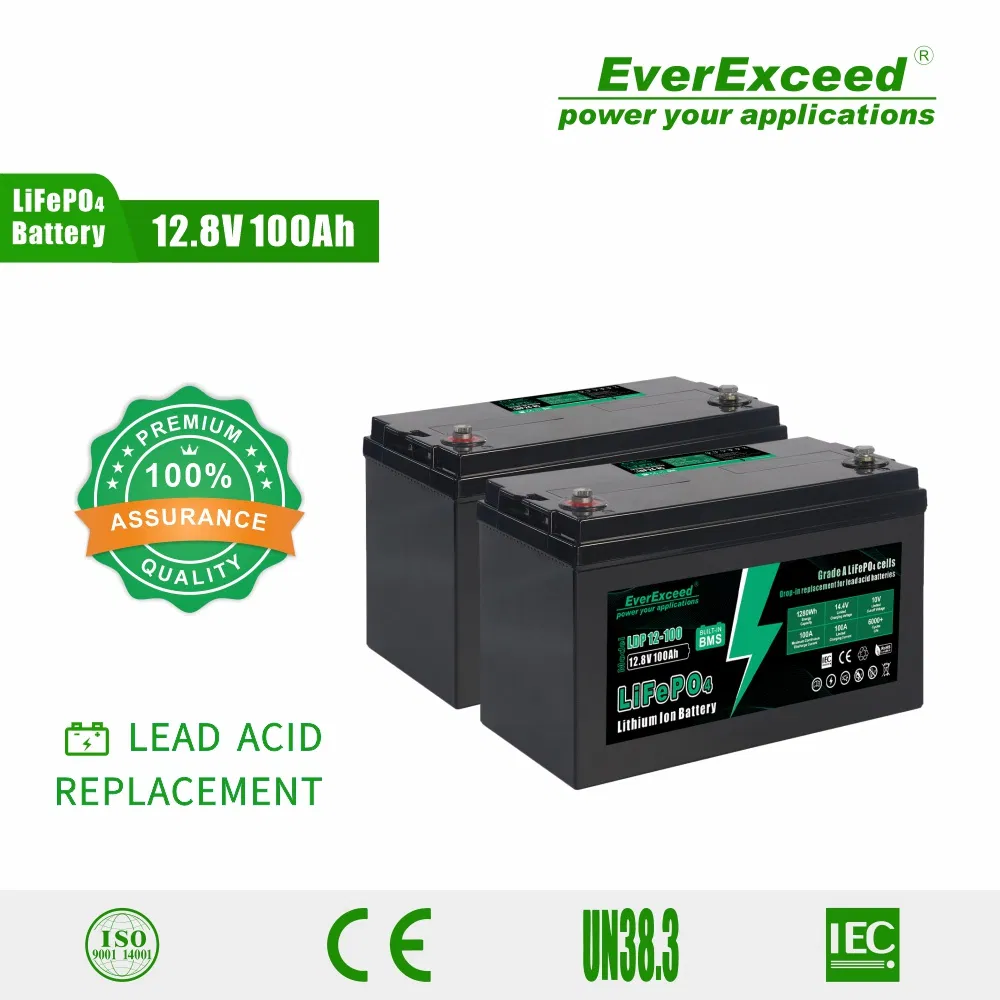

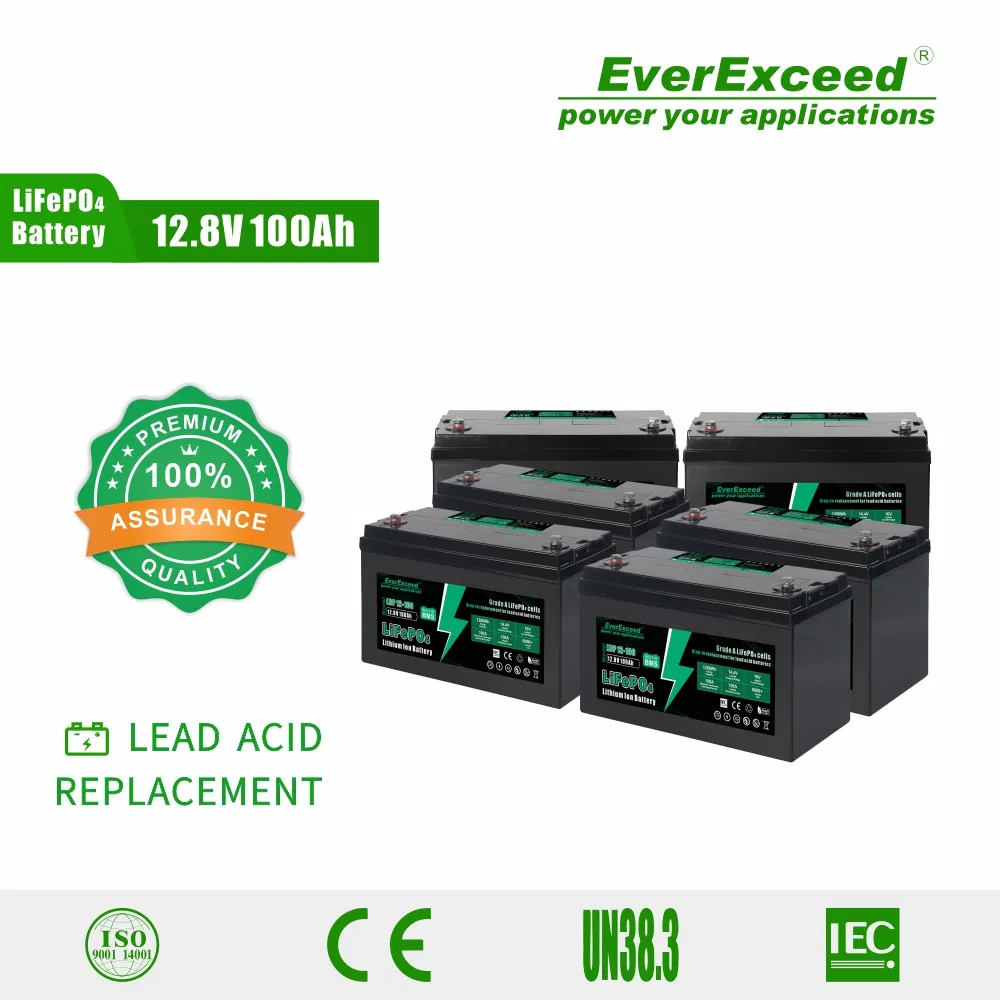

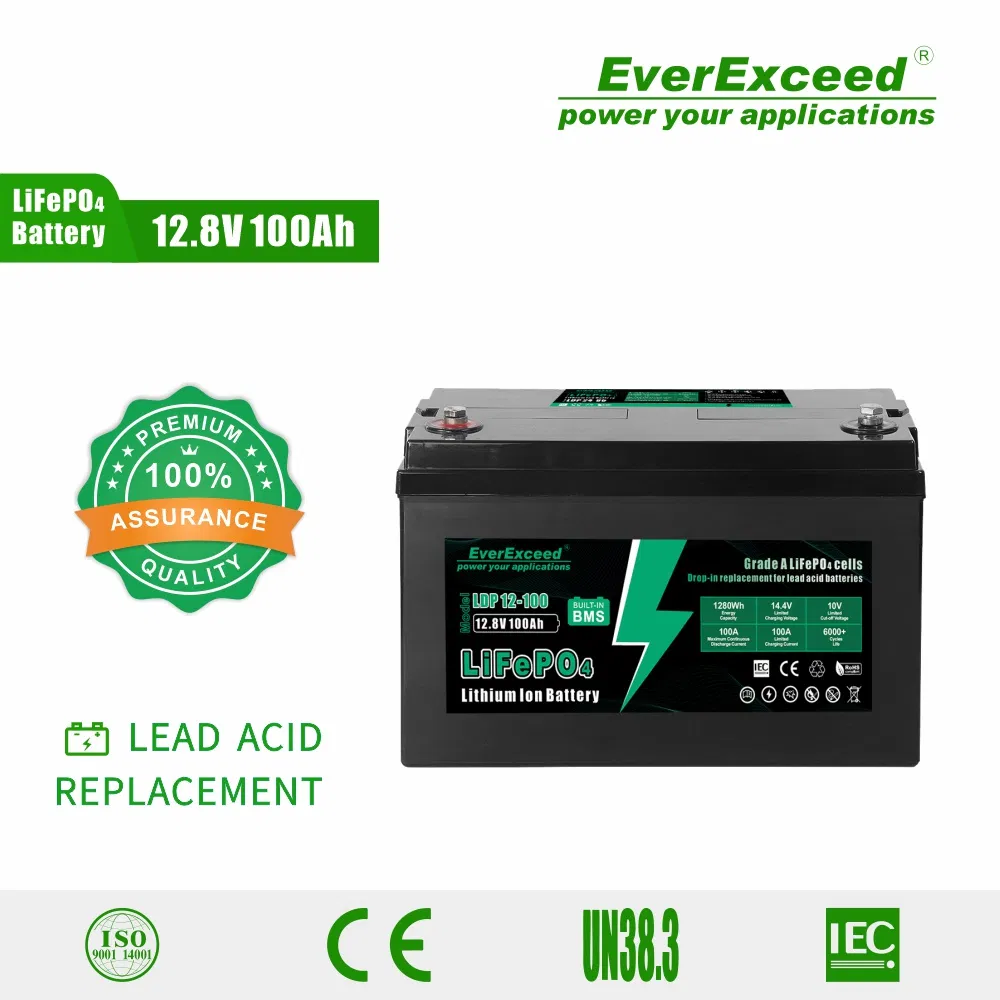

Solar Rechargeable Lithium Battery 12V 100ah Deep Cycle LiFePO4 Battery Pack for Lead Acid Battery Replacement

1 / 5

Solar Rechargeable Lithium Battery 12V 100ah Deep Cycle LiFePO4 Battery Pack for Lead Acid Battery Replacement

Customization:	Available
Type:	Li-ion Battery
Cathode Material:	LFP

Send Inquiry

Product Description

📊 Basic Information

Model NO.

LDP-12100

Rechargeable

Yes

Certificates

UL/ CE/ IEC/ Un38.3

Design Life

12-15 Years

Battery Voltage

12V / 12.8V

Battery Type

LiFePO4 (Lithium Iron Phosphate)

Usage

UPS, Lighting, Solar, Telecom, RV

Electrolyte

Li-ion

Case Material

ABS (IP55)

📝 Product Description

As a factory-direct manufacturer with 20+ years of battery production experience, we deliver lithium battery solutions that combine durability, safety, and performance. Our batteries are fully certified with UL, CE, UN38.3, IEC, and RoHS standards, ensuring reliable use in a wide range of environments.

LDP Series Lithium Iron Phosphate (LiFePO4) Battery is the popular choice for users for its many advanced features. These battery systems are popular for their fast charging ability, high energy density, conversion efficiency, environment friendliness, high cycle times, and excellent high-temperature performance.

⭐ Key Features

🛡️ Advanced BMS

Built-in Battery Management System for safety and long life.

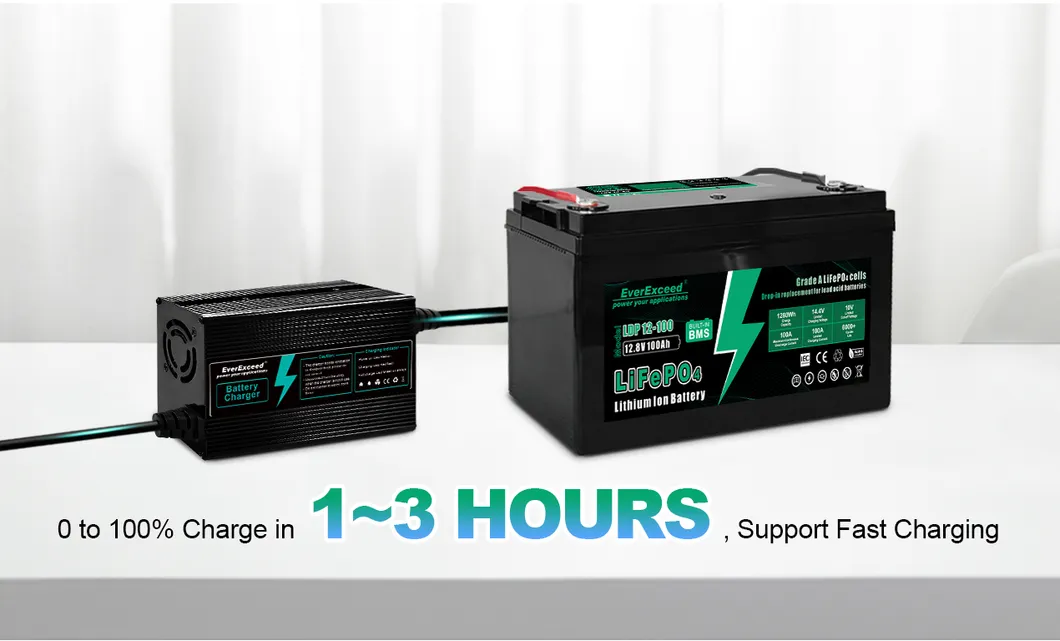

⚡ Fast Charging

Accepts up to 1C continuous charging. Fully charged in 1-3 hours.

📱 Smart Monitoring

Optional Bluetooth APP to check status and parameters at any time.

🔄 Lead-Acid Replace

Efficient and cost-effective direct replacement for lead-acid units.

⚙️ Technical Parameters

Basic Electrical Parameters
Nominal Voltage	12.8V
Nominal Capacity	100Ah
Energy	1280Wh
Series Connections	Up to 4 Units
Parallel Connections	Up to 4 Units
Maximum Continuous Discharge	100A
Peak Discharge Current	200A (5S)
Dimensions (L x W x H)	328x172x220mm
Weight	11.5kg
IP Rating	IP55 (IP68 Optional)

🚀 Applications

✅ Solar/Wind Energy Storage

✅ UPS Backup Power

✅ Electric Vehicles & Robots

✅ Telecommunications

✅ Medical Equipment

✅ Marine & Yacht Power

❓ Frequently Asked Questions

What is the battery cell type?

We use high-safety Lithium Iron Phosphate (LiFePO4) cells. They offer no fire risk, no explosion, and a wide operating temperature range to ensure maximum safety.

Does the battery include a BMS?

Yes, the battery has a built-in BMS with protection against overcharge, over-discharge, over-current, short circuit, and temperature extremes.

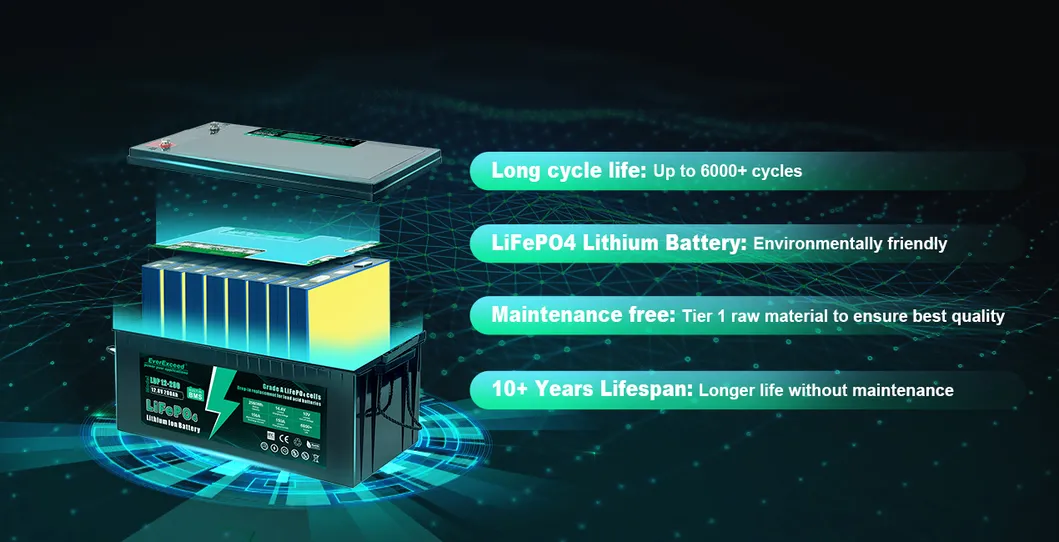

What is the cycle life of this battery?

The battery is designed for a 15-year life span and can reach up to 6,000 cycles under recommended conditions.

How long does it take to fully charge?

This depends on the charging current. If using a 0.5C charger, the battery can be fully charged in approximately 2 hours.

Can these batteries be connected in series or parallel?

Yes, you can connect up to 4 units in series (max 51.2V) and up to 4 units in parallel.

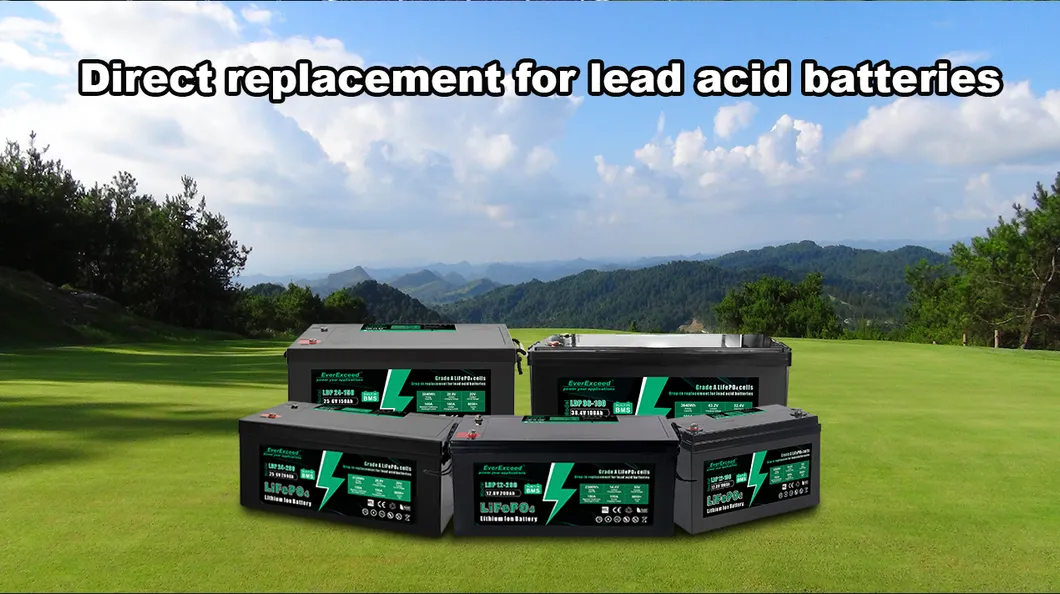

Can it replace my lead-acid battery?

Yes, it can directly replace lead-acid battery packs up to 48V, provided the maximum output current meets your system's requirements.
