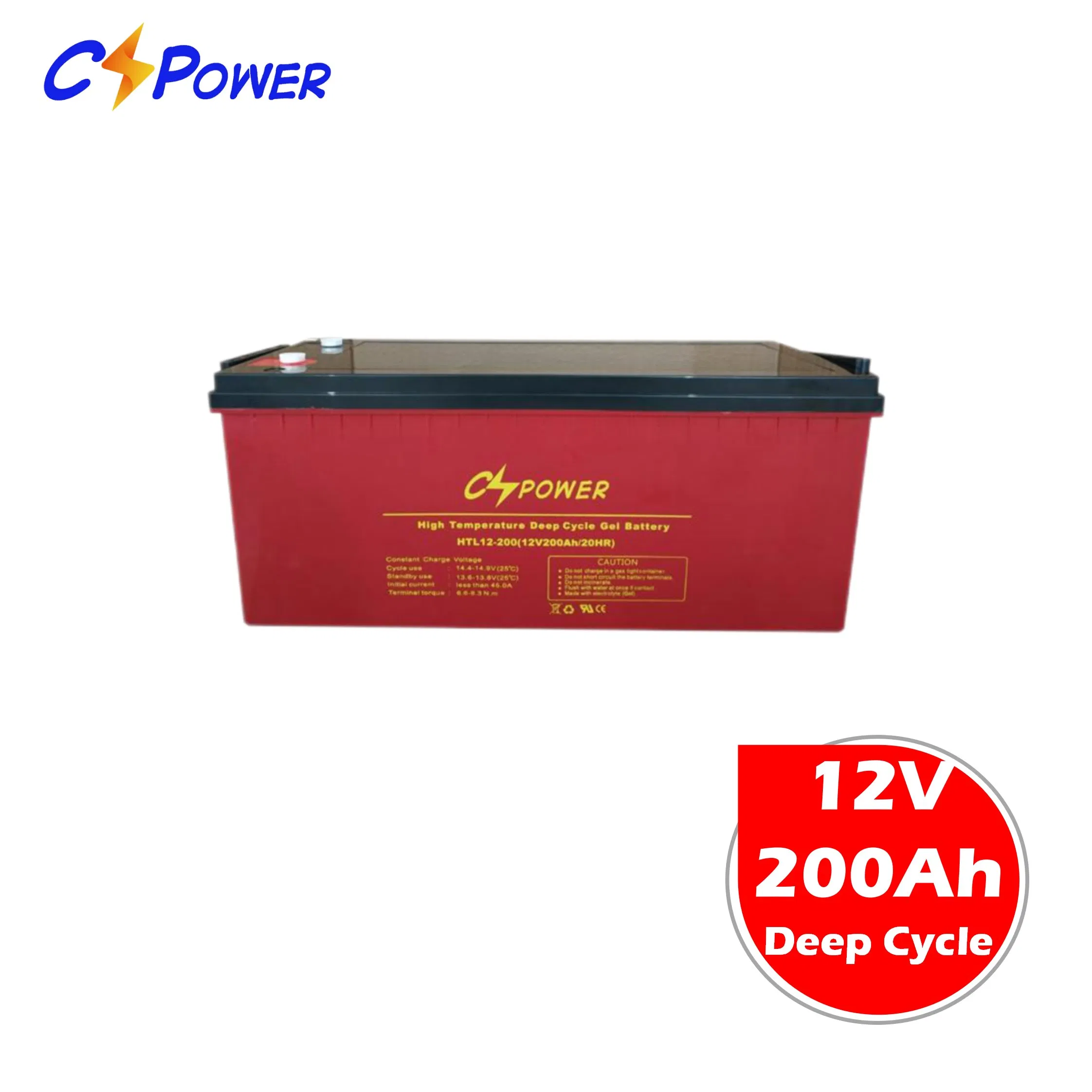

Cspower Deep Cycle Gel Htl12-200 12V 200ah Solar Battery with IEC 61427/IEC 60896/ CE Certificate

Still deciding? Get samples of $ !
Order Sample

Product Description

Basic Specifications

Model NO.
HTL12-200 (12v 200Ah)
Nominal Voltage
12V 6V 8V
Discharge Rate
0.2-0.5c
Electrolyte
Gel
Size
522*240*216mm
Capacity
200ah
Weight
58.7kgs
Warranty
3 Years
Design Life
20 Years
Terminal
Pure Copper M8
Casing
ABS Fire Resistance
Cycle Life
50% DoD 1600 Cycles
Constant Safe Power For You

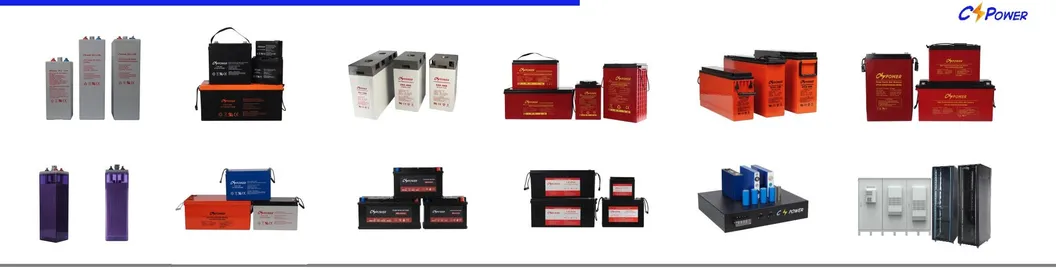

Deep Cycle Gel Battery

Patented High-Temp Deep Cycle Solar Gel Battery

This series of GEL deep cycle batteries are recognized as the most reliable and high-quality battery systems in the industry. Designed with advanced patented GEL technology, they offer a service life of 15-20 years and 1500-1600 cycles at 50% DOD. The batteries comply with international standards such as IEC60896-21/22, BS6290-4, and the Eurobat Guide.

Environmentally friendly
Completely Maintenance-Free
Non-Spillable Construction
Temp Range: -20°C to +60°C
20 Years Design Life
Explosion Proof Design

Product Structure & Components

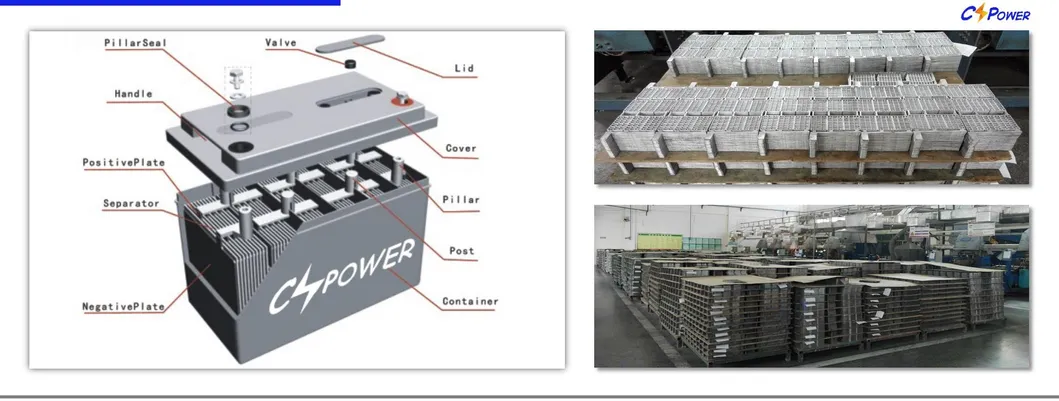

Battery Structure
Component Positive plate Negative plate Container & Cover Safety valve Terminal Separator Electrolyte
Features Thick high Sn low Ca grid Balanced Pb-Ca grid Fire resistance ABS Si-Rubber resistance Female Copper Insert Advanced PVC/AGM Silicon Gel

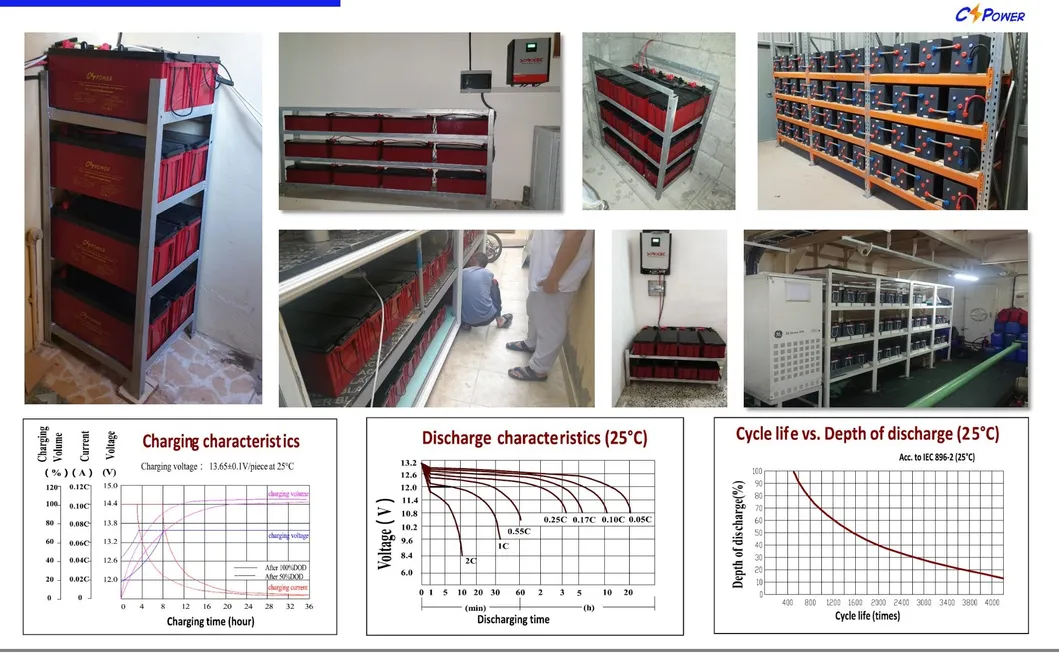

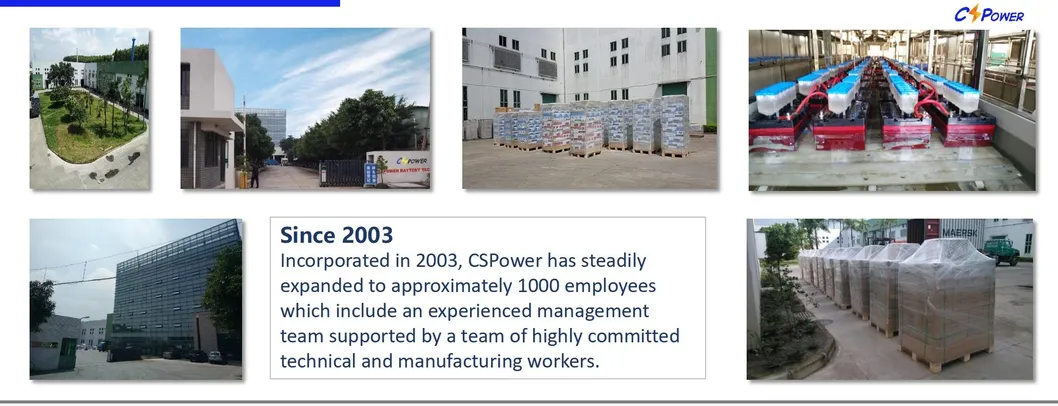

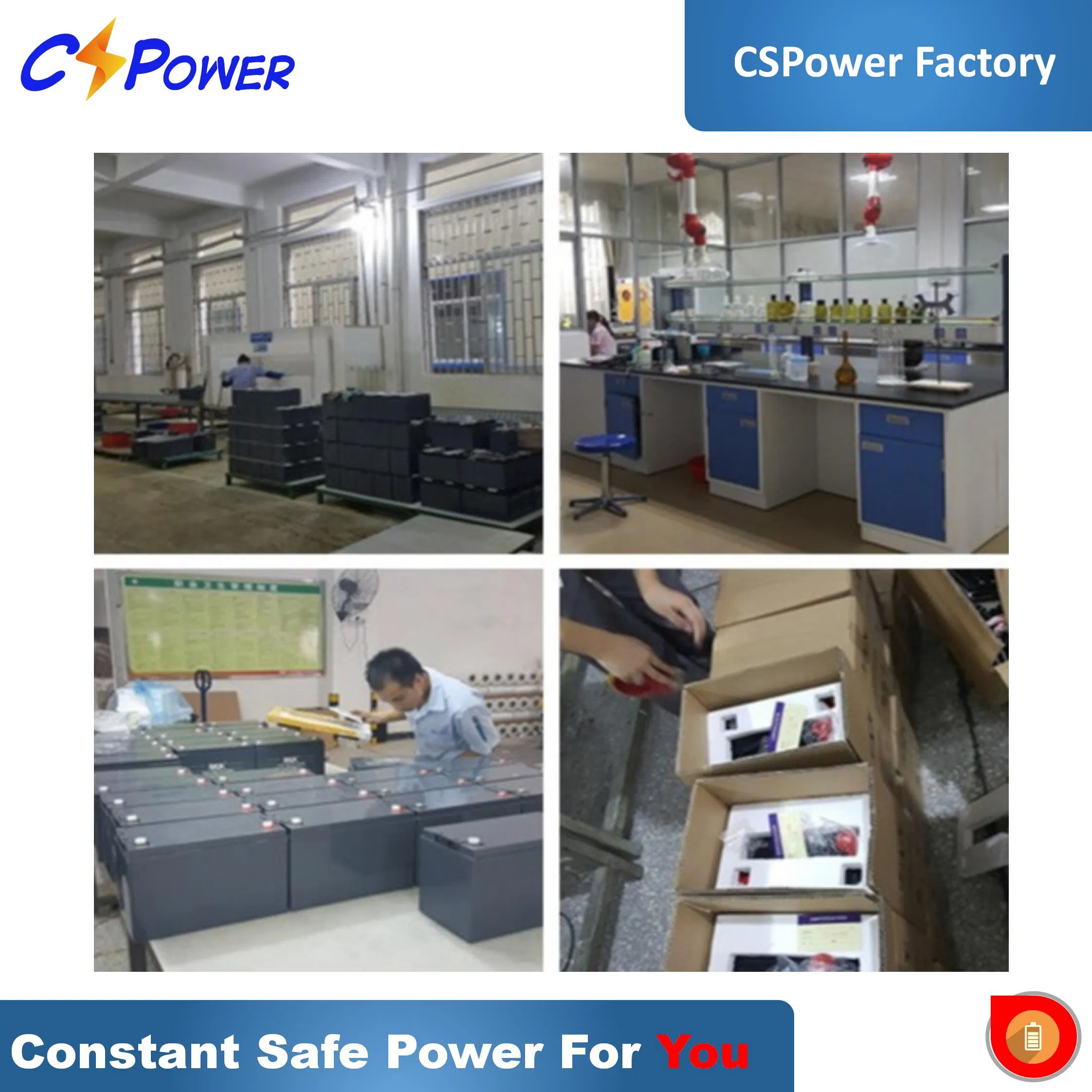

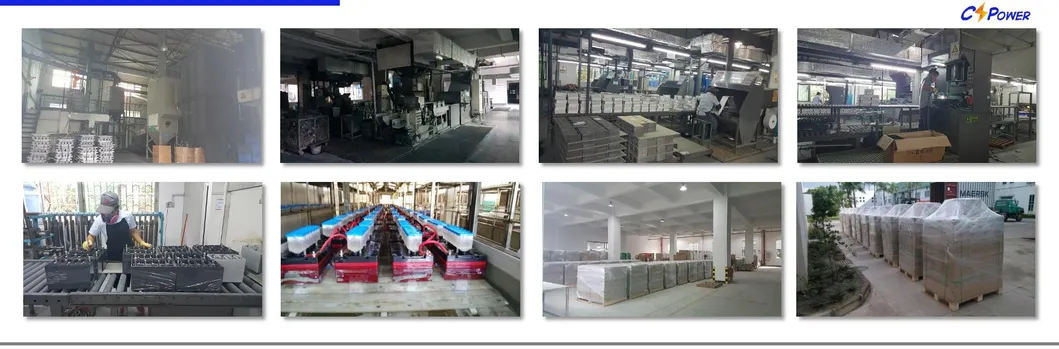

Manufacturing & Global Projects

Versatile Applications

Our batteries are designed for high-performance across various sectors:

Solar & Wind Power Systems
Telecommunication Equipment
UPS & Emergency Systems
Electric Powered Vehicles
Medical & Marine Equipment
Power Generation Plants
Applications

Packaging & Export

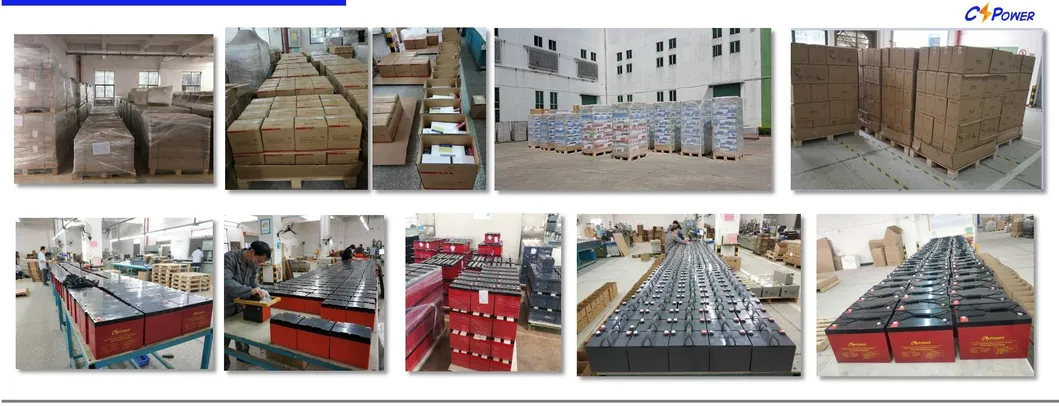

Packing

We provide updated strong five-layer corrugated cartons and pallets for secure global shipping. OEM and ODM orders are available to meet customer-specific branding requirements.

Frequently Asked Questions

Q1: Can the battery be delivered by sea and air? A: Yes, our batteries are certified for both sea and air transport. We provide MSDS and test reports for safe transport as non-dangerous products.
Q2: What is the expected design life of the HTL series? A: The HTL series is designed for high-temperature durability with an expected float design life of up to 20 years.
Q3: How many cycles does the battery offer at 50% DOD? A: It provides approximately 1500 to 1600 cycles when discharged at a 50% Depth of Discharge.
Q4: Is fast charging recommended for these GEL batteries? A: Fast charging is generally not recommended as it can be harmful to the long-term health and capacity of the battery.
Q5: How does the battery perform in hot environments? A: The HTL series is specifically patented for high-temperature performance, operating stably in ranges from -20°C up to +60°C.
Q6: What maintenance is required for these batteries? A: These are valve-regulated lead-acid (VRLA) batteries and are completely maintenance-free throughout their service life.
