Overview - Basic Information
DC Voltage Range
1165~1498VDC
Rated Charge/Discharge Rate
0.5c
Operating Temperature
-25℃~55℃
Altitude
≤2,000m (Derating Above 2,000m)
Compliance
Un38.3, IEC62477, IEC61000, IEC62619, IEC63056, UL
Specification
1,300*1,300*2,400 (mm)

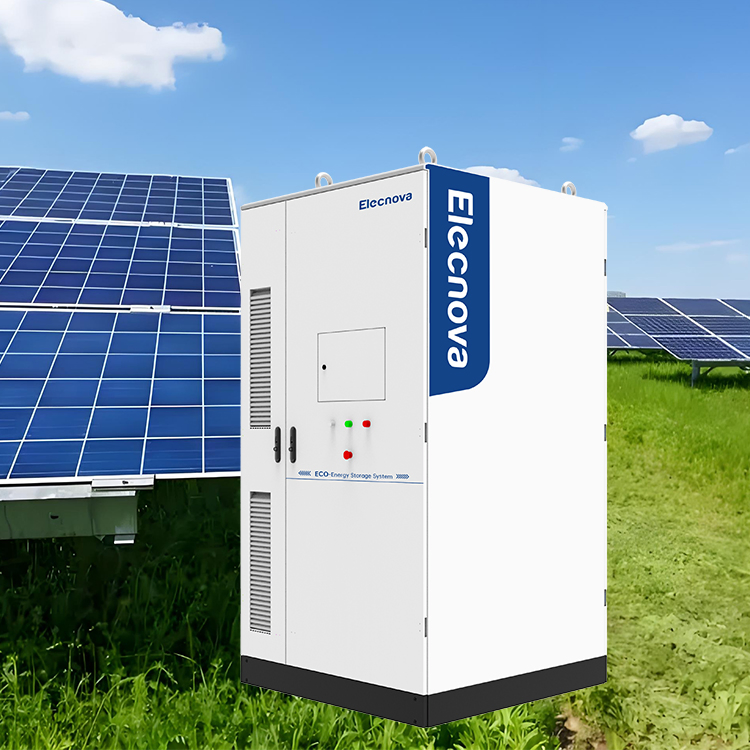

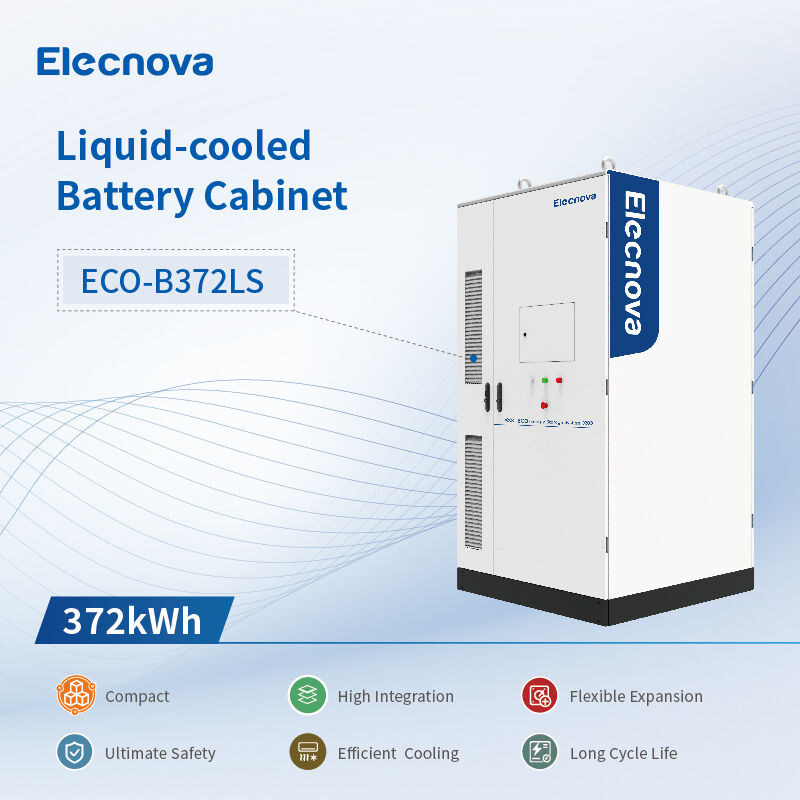

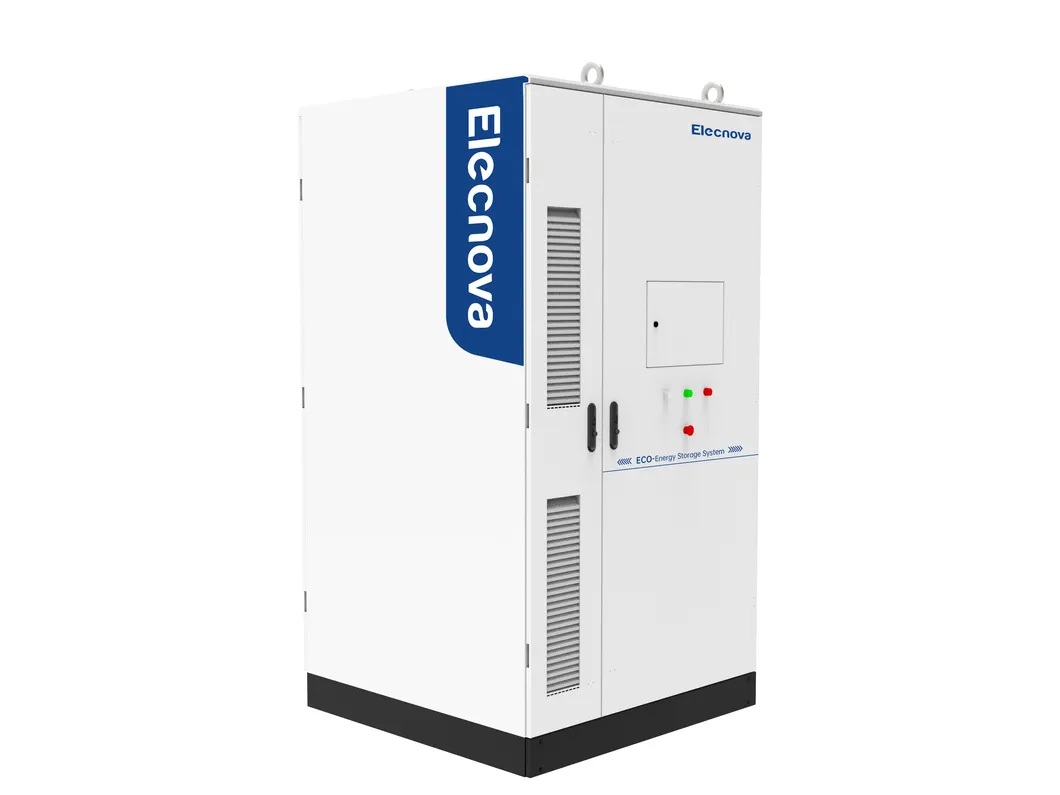

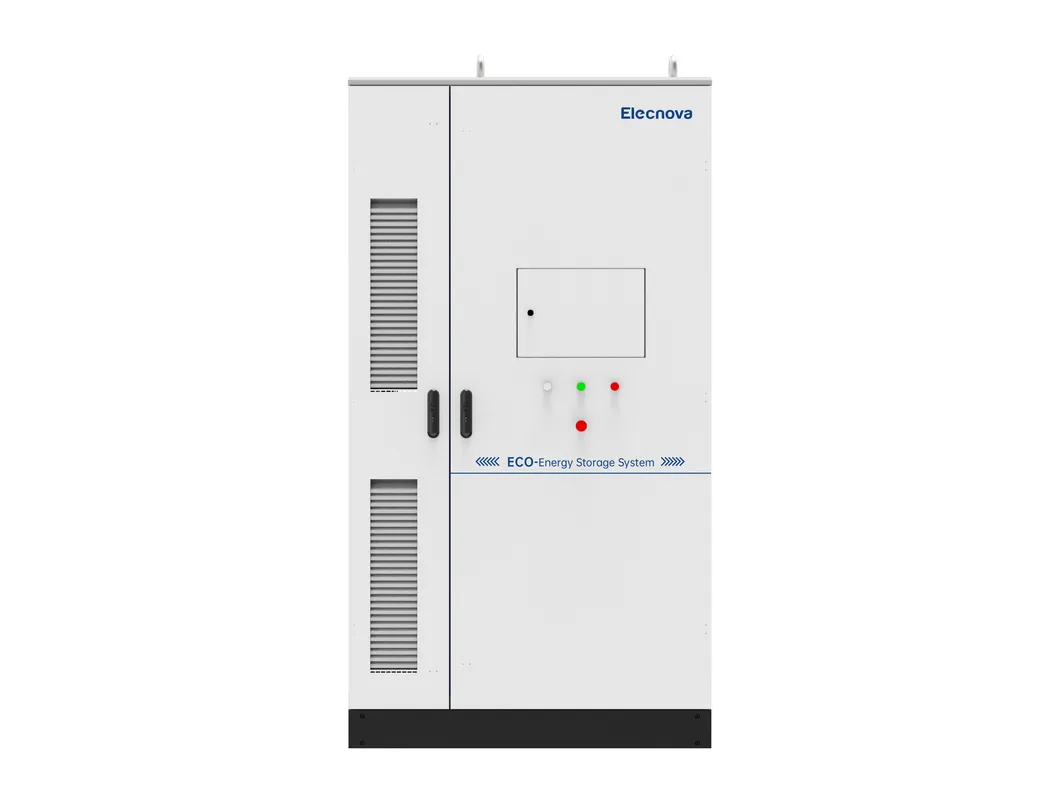

Product Introduction

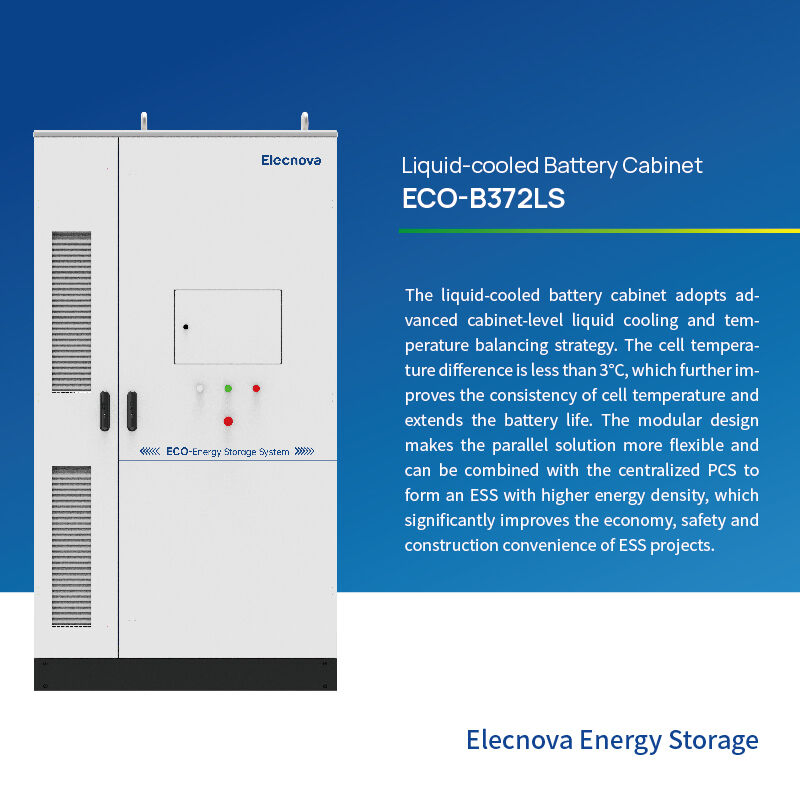

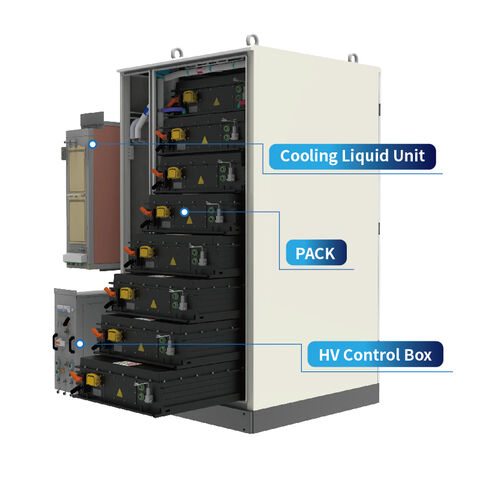

The liquid-cooled battery cabinet adopts advanced cabinet-level liquid cooling and temperature balancing strategy. The cell temperature difference is less than 3°C, which further improves the consistency of cell temperature and extends the battery life. The modular design makes the parallel solution more flexible and can be combined with the centralized PCS to form an ESS with higher energy density.
Product Advantages
◈
High Performance: High voltage access and high power density.
◈
Durability: Ultra-long life and ultra-low loss.
◈
Versatility: Multi-energy complementation of high voltage platform.
◈
Protection: High protection level and easy installation and maintenance.
Technical Specifications
| Item |
Specification |
| Cell type | LFP280Ah |
| DoD | 95%(25±2ºC) |
| Configuration | 1P416S |
| Rated Energy | 372kWh |
| Rated Voltage | 1331.2Vdc |
| DC Voltage Range | 1165~1498Vdc |
| PACK Ingress Rating | IP65 |
| Rated Charge/Discharge Rate | 0.5C |
| Operating Temperature | -25ºC~55ºC |
| Cycle Life | ≥8000 times |
| Fire Safety | Aerosol |
| Ingress Rating | IP55 |
| Cooling | Liquid cooling |
| Altitude | ≤2,000m |
| Dimensions (W*D*H) | 1,300*1,300*2,400 (mm) |
| Weight | 3,660kg |
| Compliance | UN38.3, IEC62477, IEC61000, IEC62619, IEC63056, UL9540A |

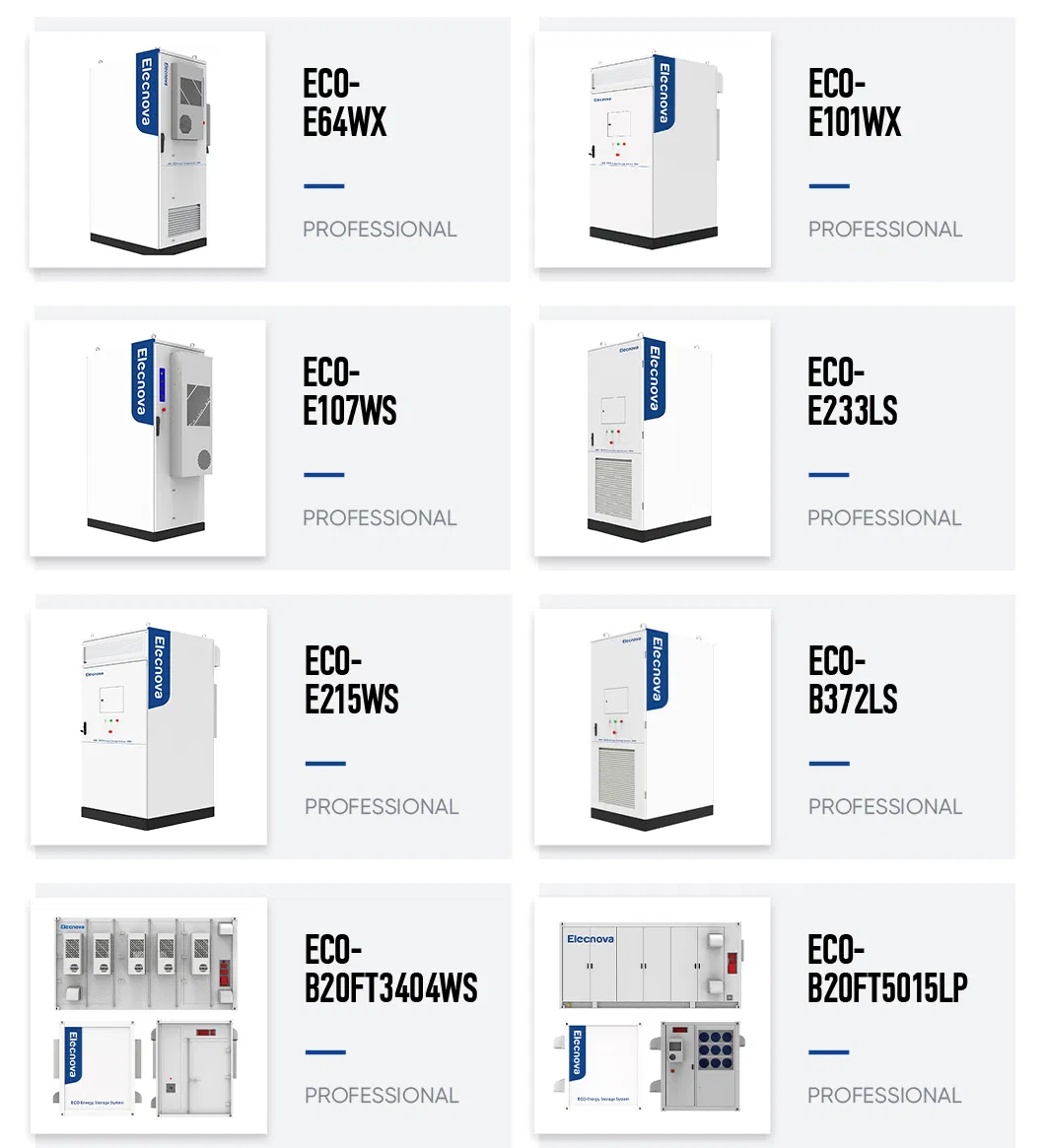

Main Product
Profile

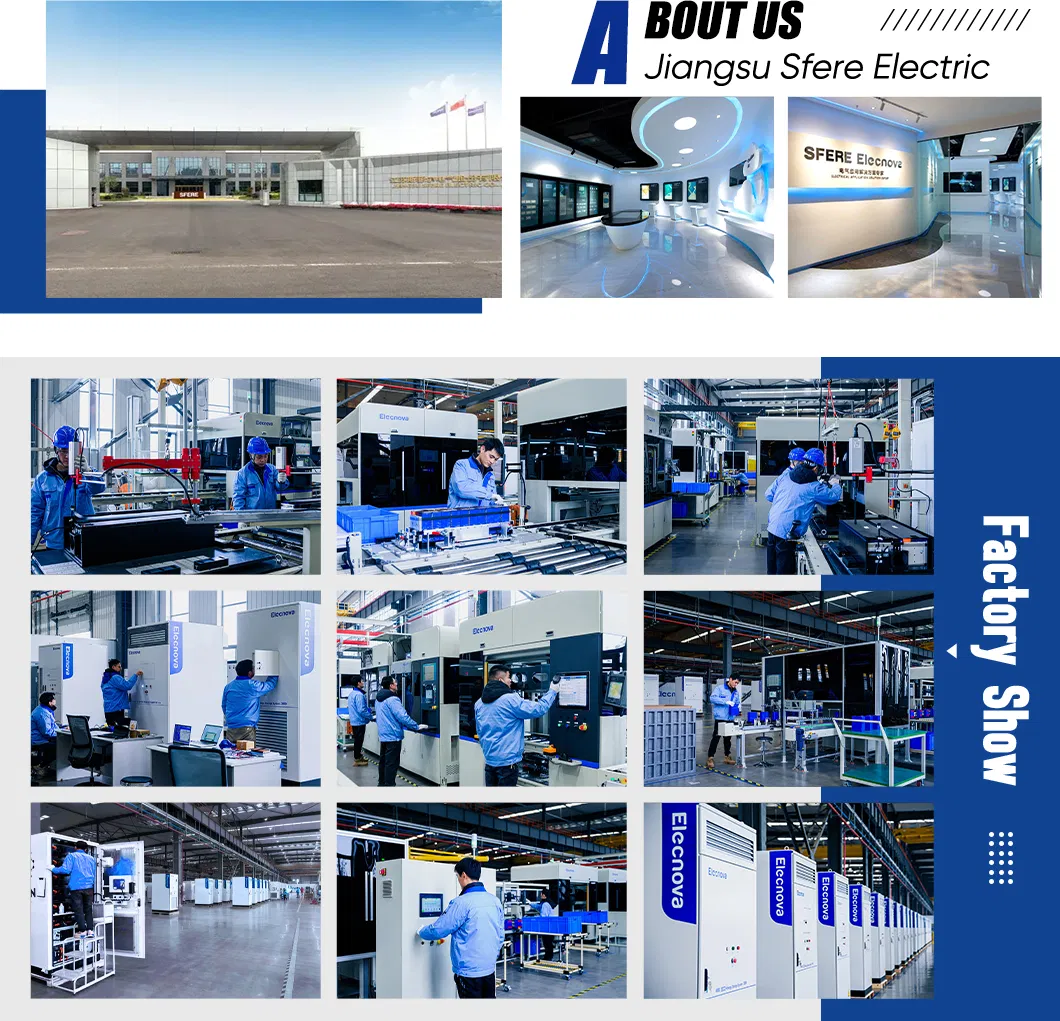

The manufacturing center integrates R&D, manufacturing, sales and service, maintaining a complete product ecosystem from smart terminal components to Internet of Things platforms. The electrical application solutions empower users with intelligent and digital energy management, providing reliable data services for energy saving, safety, and refined management.
With a focus on power monitoring systems, power quality mitigation products, electrical components, and energy storage systems, the facility leverages abundant technology accumulation to maintain a leading industry position. The operation has obtained over 122 patents and 42 software copyrights.
Our Certificate
Exhibition
Packaging & Shipping
Frequently Asked Questions
Q: Are you a trading company or a manufacturer?
A: We are a manufacturer. Our manufacturing center is located with 600+ employees, including 3 R&D centers and 1 CNAS lab.
Q: Can you supply OEM & ODM services?
A: Yes, we welcome long-term strategic business partners to implement OEM & ODM projects.
Q: Can you ship battery products by sea or by air?
A: Our products have obtained UN38.3 certification, which is required for international sea shipments.
Q: How long is the warranty period?
A: We provide warranties of 3, 5, or 10 years depending on different pricing tiers and conditions.
Q: How do you provide after-sales service?
A: We have overseas affiliates and business partners worldwide for on-site maintenance and support.
Q: Can I request a sample?
A: Yes, please provide your contact details and our sales team will reach out to you shortly.
