24ah to 200ah 250ah 100ah 150ah Deep Cycle Rechargeable Maintenance Free 12VDC Energy Storage AGM Solar Gel Battery

1 / 5

24ah to 200ah 250ah 100ah 150ah Deep Cycle Rechargeable Maintenance Free 12VDC Energy Storage AGM Solar Gel Battery

Customization:	Available
Type:	Lead-Acid Batteries
Usage:	Car, Bus, UPS, Electric Power, Lighting, Electric Bicycle, Boat

Send Inquiry

Product Description

Basic Information

Model NO.

GEL

Nominal Voltage

12V

Discharge Rate

Low Discharge Rate

Shape

Square Battery

Electrolyte

Acid

Installation

Packaged

Rechargeable

Chargeable

Size

520*240*224cm

Application

Solar Power System

Product Name

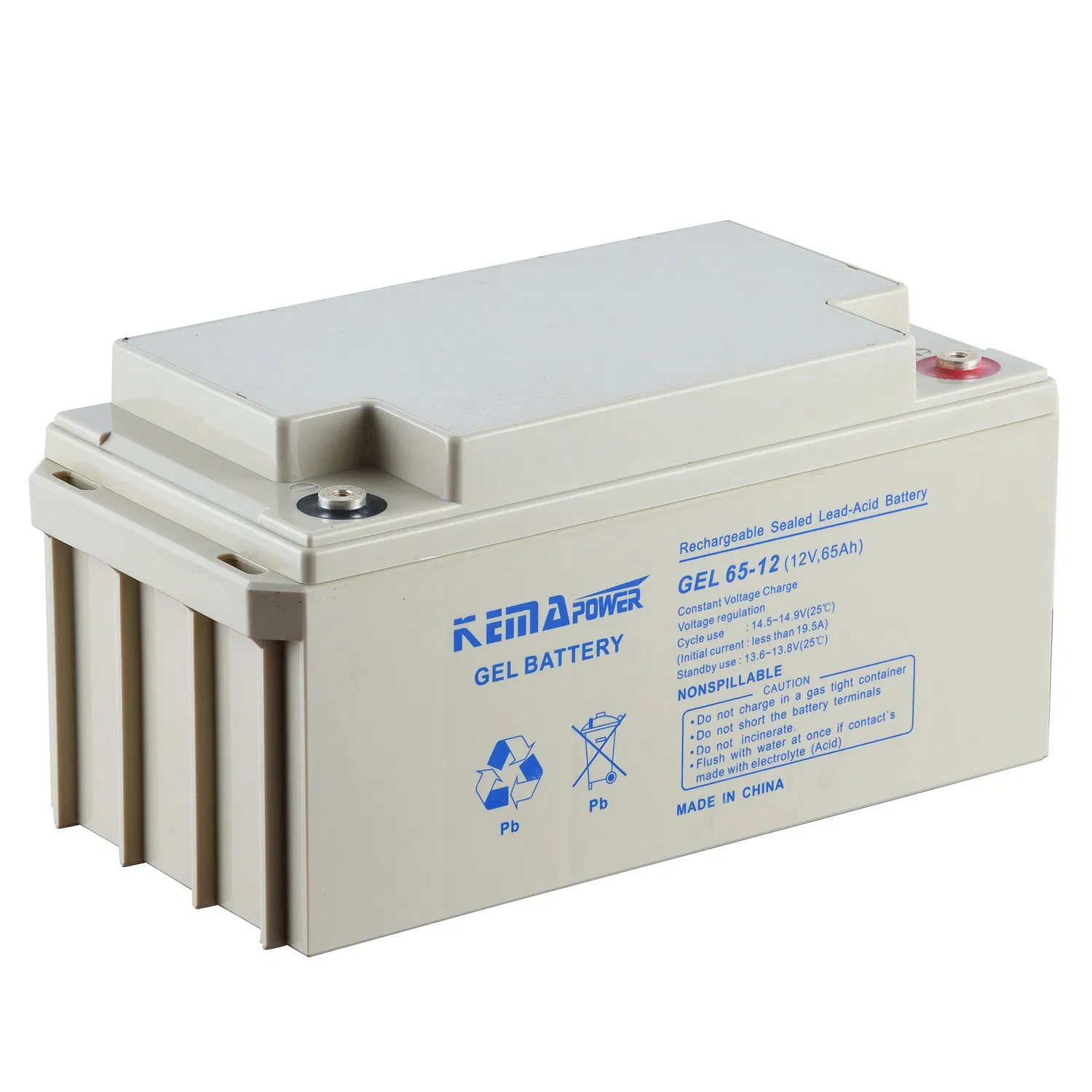

Gel65-12 Flat Plate Gel VRLA 12VDC Battery

Service Life

10 years

Specification

24AH-250AH

HS Code

8507200000

Production Capacity

60,000PCS/Year

Packaging & Delivery

Package Size

166.00cm * 125.00cm * 182.00cm

Gross Weight

9.000kg

Transport

Seaworthy Packing

Key Features

🛡️

Fully Sealed Design: Double seal design for cover and pole to prevent electrolysis leakage and oxygen/dust entry.

🔧

Free Maintenance: High sealed reaction efficiency ensures no water compensation is needed during use.

⚠️

Safety Guaranteed: Equipped with a reliable gas pressure venting system and anti-explosion device.

⏳

Long Cycle Life: Utilizes anti-erosion Pb-Ca multi-alloy and high-quality ABS material for extended service life.

🌡️

Temperature Adaptability: Performs safely within a wide temperature range of -25ºC to 50ºC.

💰

Economical Performance: Offers the lowest maintenance cost and high performance for better ROI.

Technical Specifications

BATTERY MODEL	Voltage (VDC)	Capacity (Ah)	Resistance (mΩ)	Charge Voltage (VDC)		Max Charge Amp	Size (MM)			Weight (KG)	Terminal
BATTERY MODEL	Voltage (VDC)	Capacity (Ah)	Resistance (mΩ)	Cycle	Float	Max Charge Amp	L	W	H	Weight (KG)	Terminal
GEL24-12	12	24	<=13	14.4-15	13.65	6A	166	125	175	8.00	M6
GEL26-12	12	26	<=11	14.4-15	13.65	7.5A	166	125	175	8.50	M6
GEL38-12	12	38	<=10	14.4-15	13.65	9.5A	197	165	170	12.00	M6
GEL40-12	12	40	<=8	14.4-15	13.65	12A	197	165	170	12.00	M6
GEL55-12	12	55	<=6.5	14.4-15	13.65	14A	227	138	206	17.20	M6/L-6
GEL65-12	12	65	<=6.1	14.4-15	13.65	16.25A	350	166	178	21.00	M6

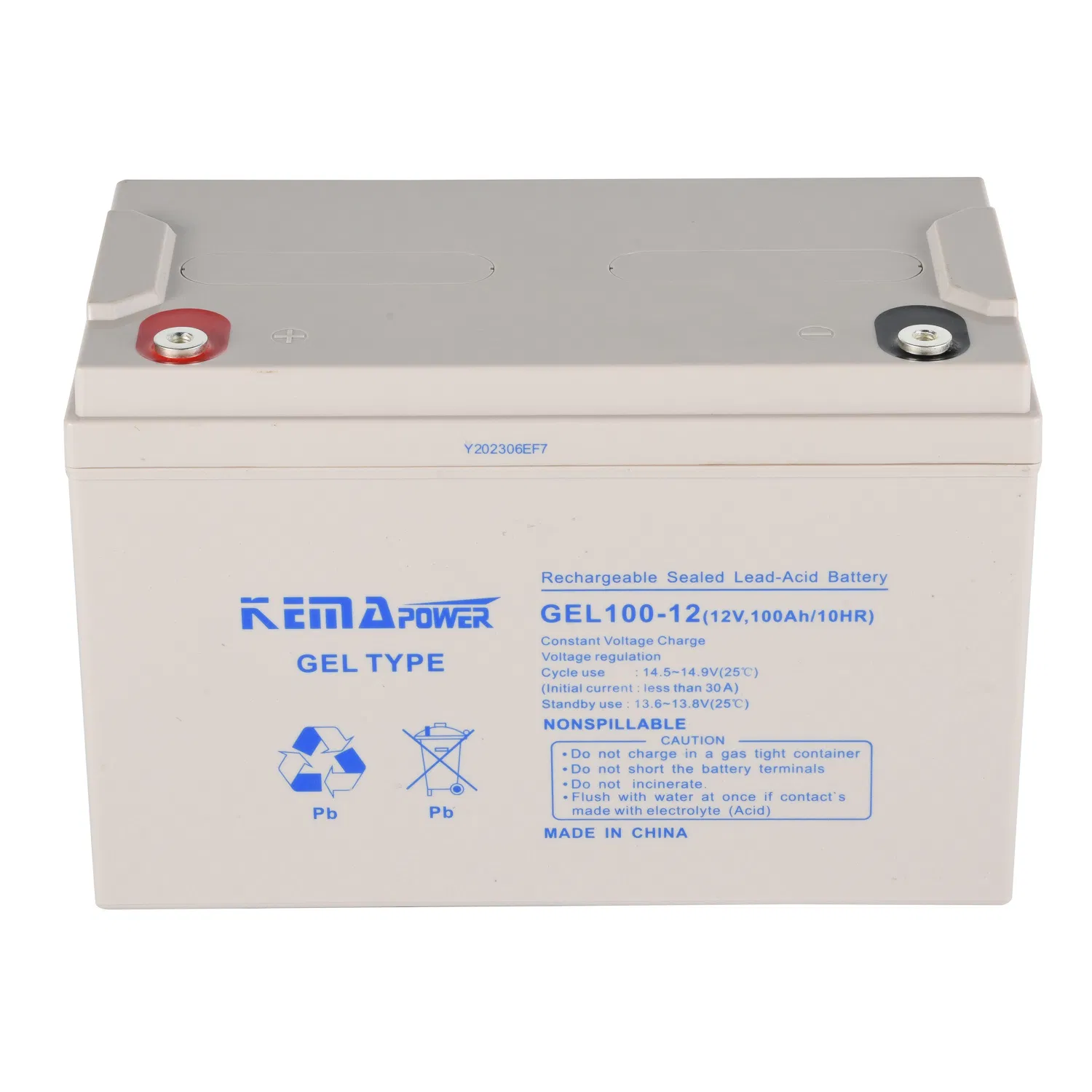

GEL100-12D	12	100	<=5	14.4-15	13.65	25A	330	173	220	28.50	M8
GEL150-12	12	150	<=3	14.4-15	13.65	35A	485	171	241	43.00	M8
GEL200-12	12	200	<=3	14.4-15	13.65	50A	520	240	224	63.00	M8
GEL230-12	12	230	<=1	14.4-15	13.65	55A	520	269	203	67.00	M8

*Note: 10-year service life with ABS shell. Parameters are subject to change without notice. "L" terminal denotes quadrate terminal.

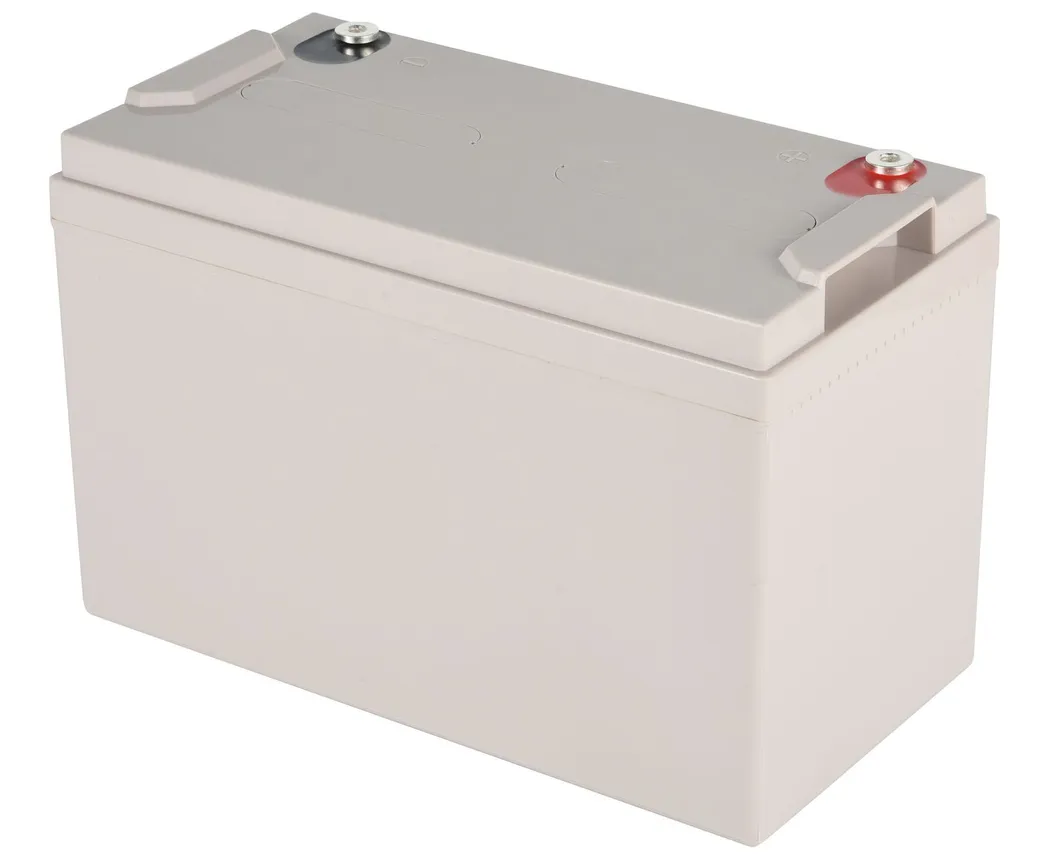

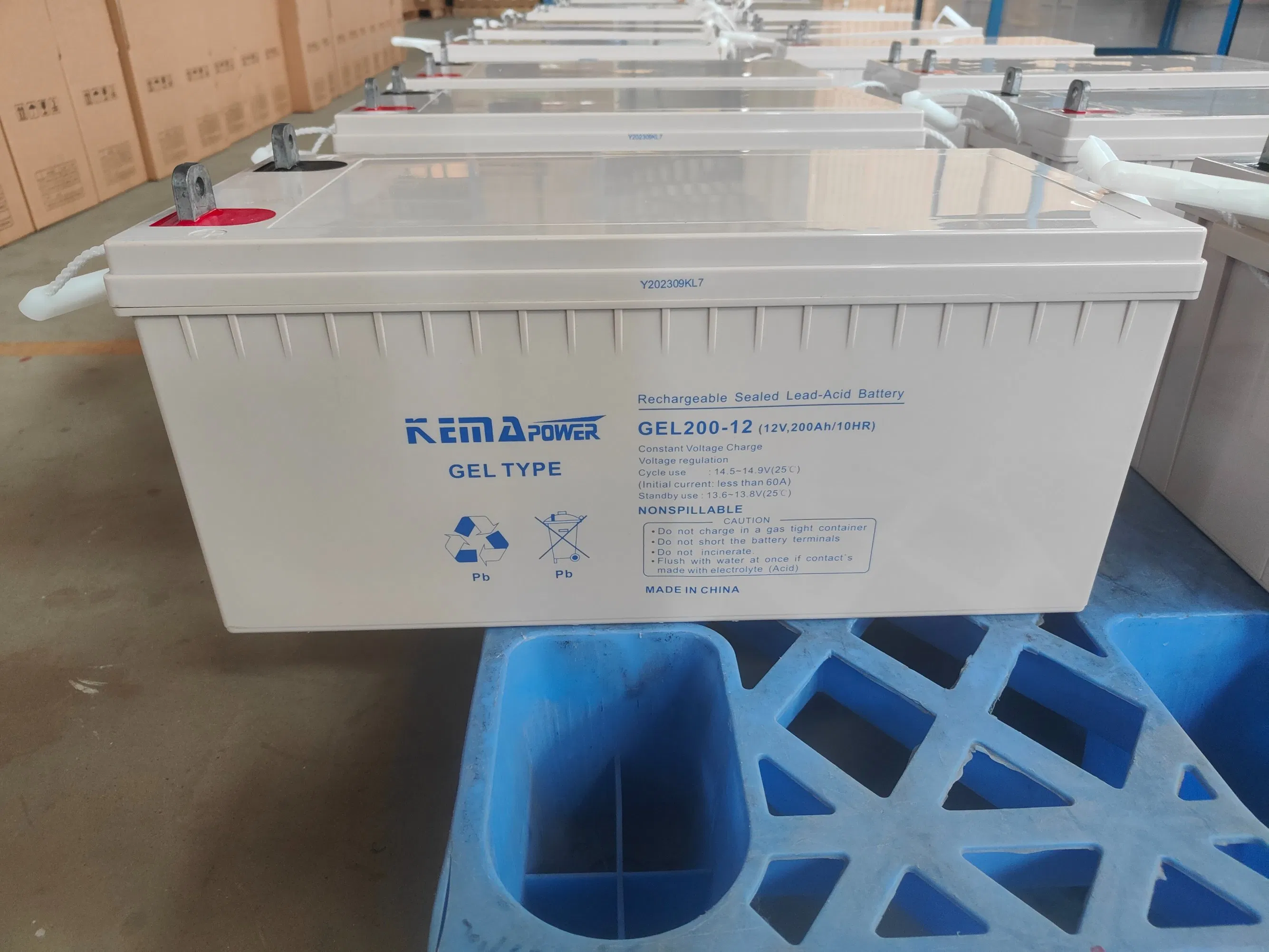

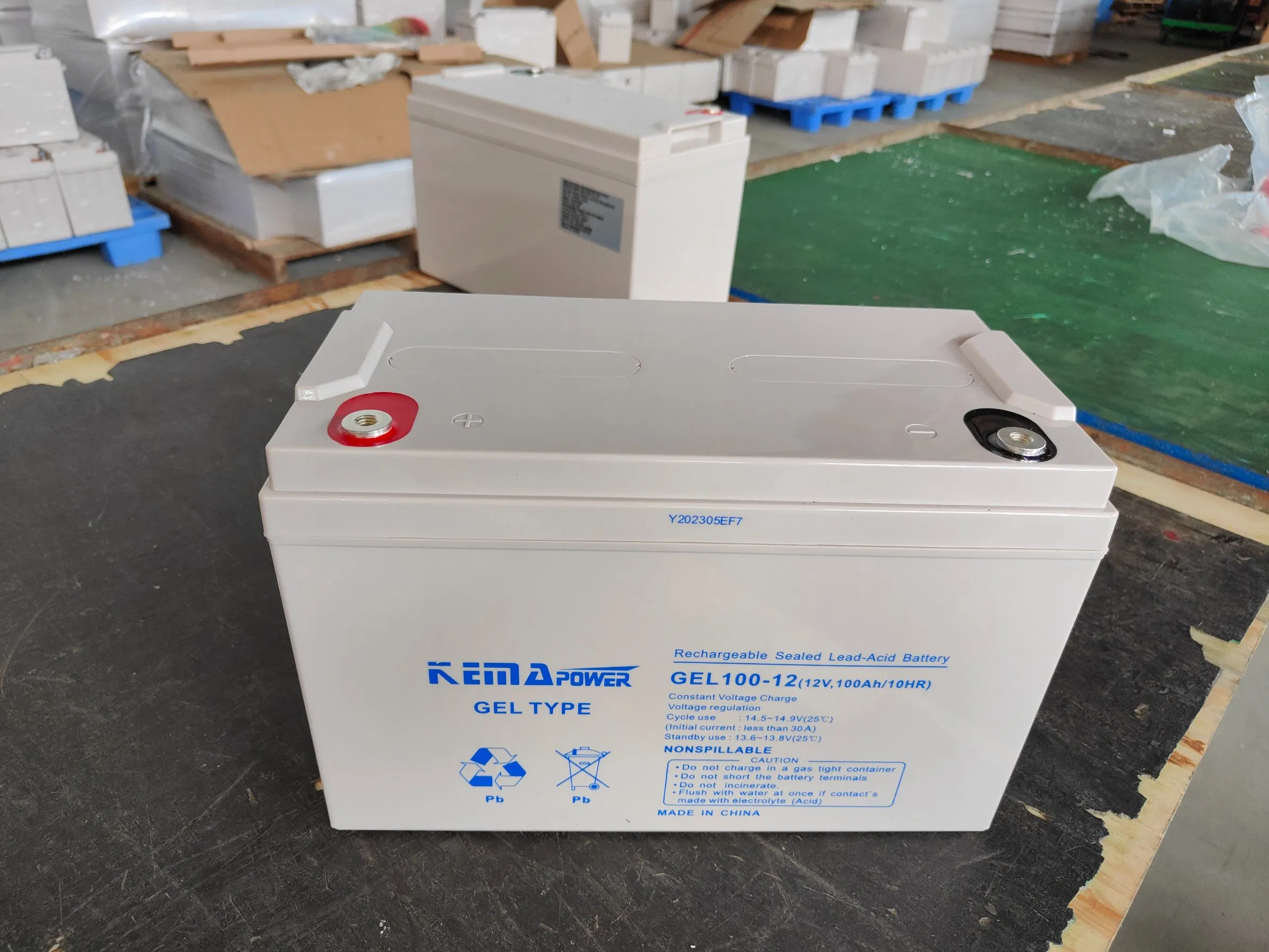

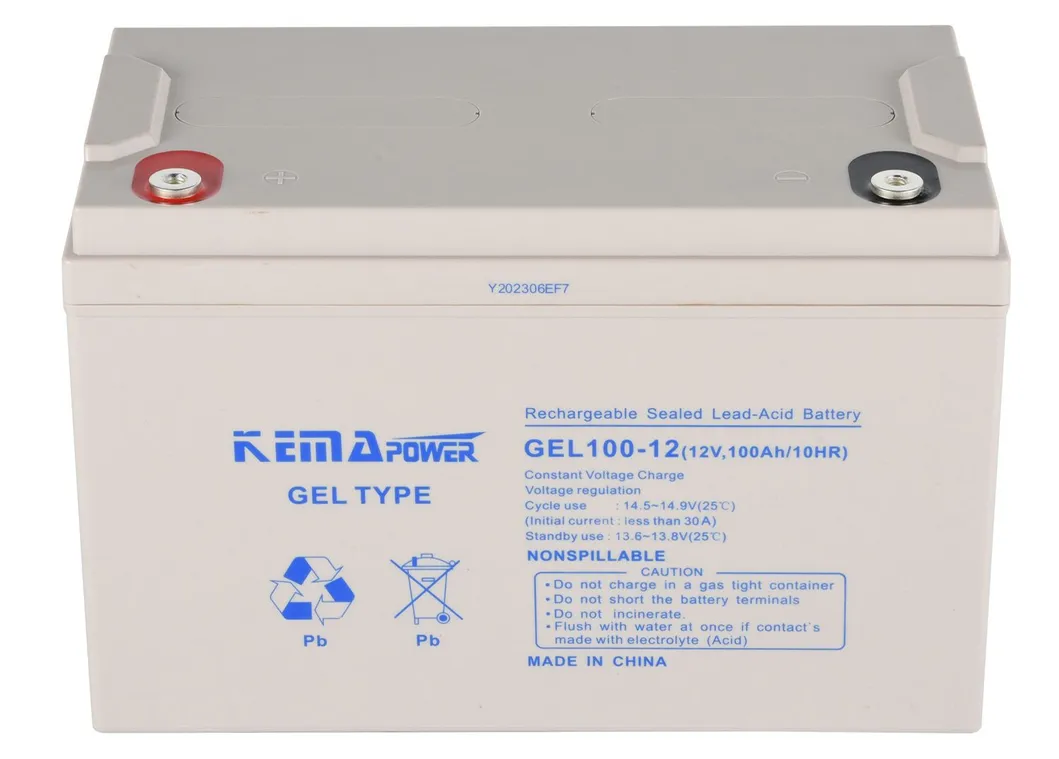

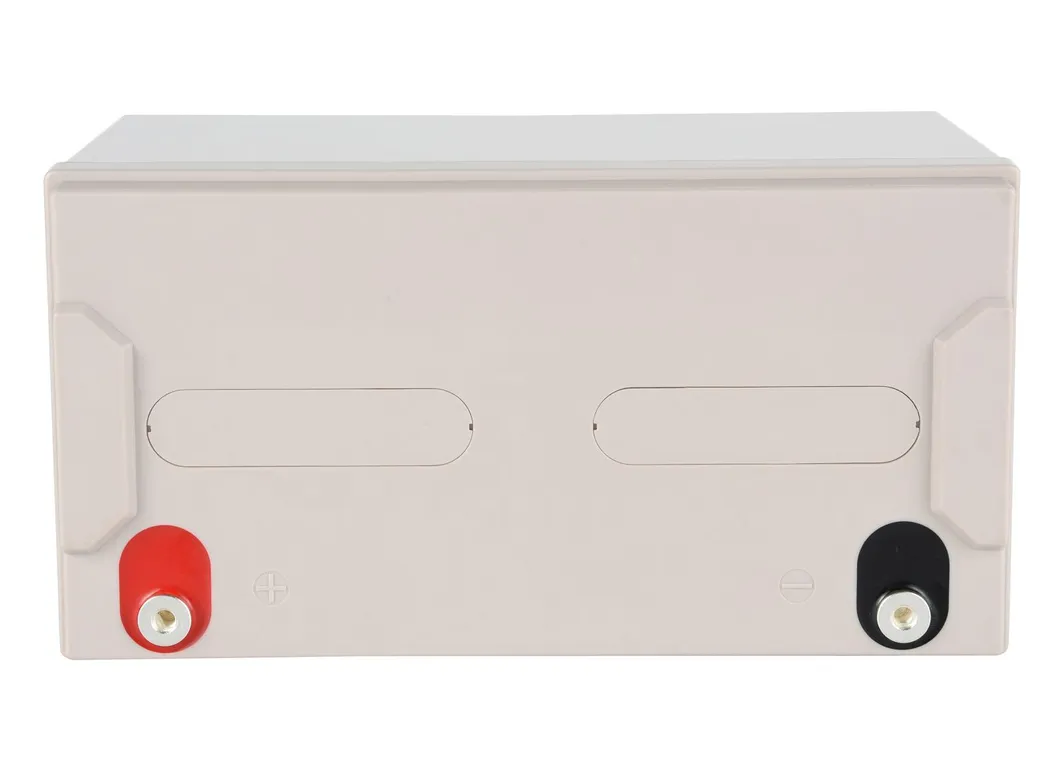

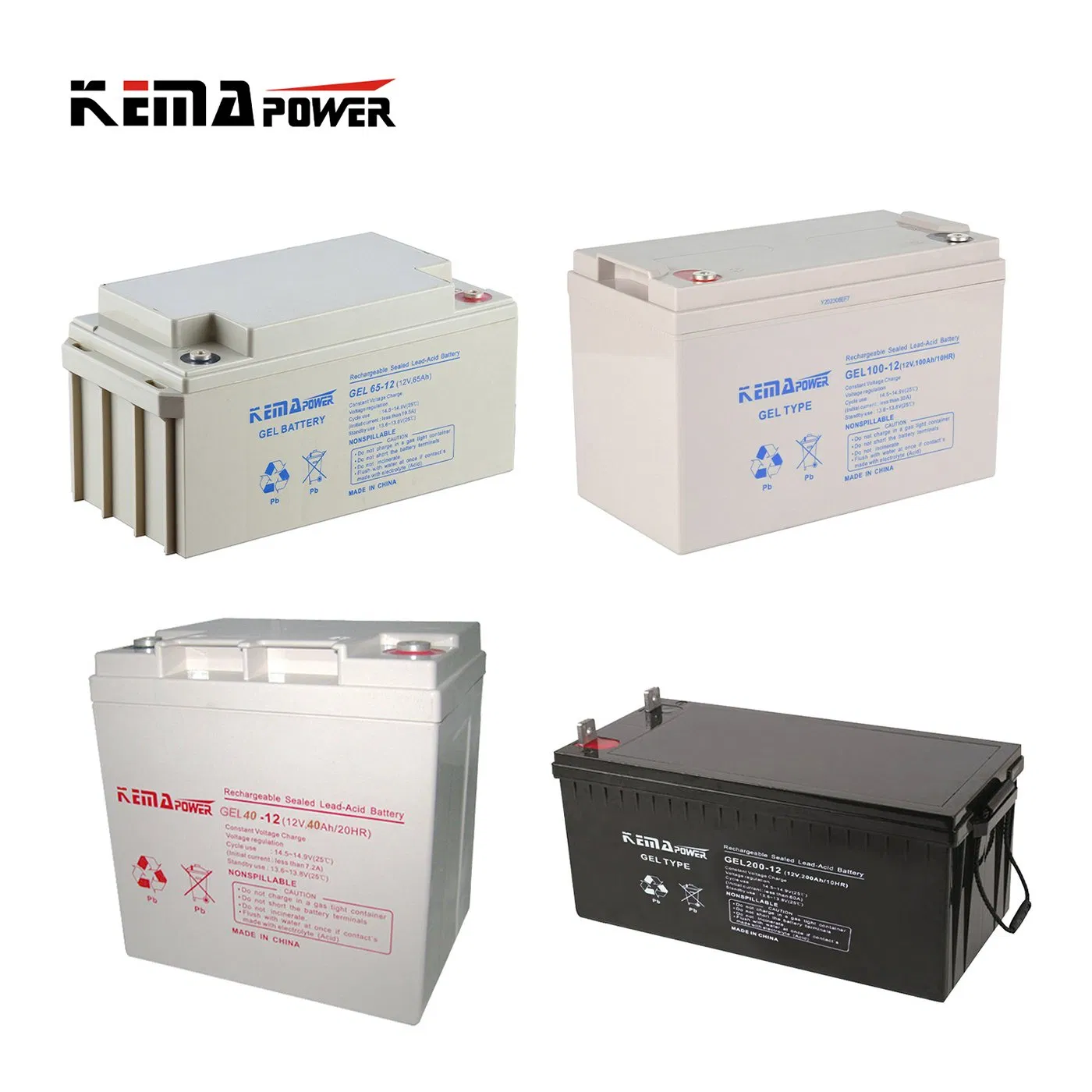

Product Display

Frequently Asked Questions

1. What is the expected service life of the FLAT PLATE GEL VRLA battery? The battery is designed with a long cycle life and can provide up to 10 years of service life under optimal conditions.

2. Does this battery require regular water refilling? No, this is a maintenance-free battery. Due to its high sealed reaction efficiency, there is no need for water compensation during its entire service life.

3. What are the primary applications for this 12VDC Gel battery? These batteries are ideal for Solar Power Systems, energy storage, and other deep cycle applications requiring stable power.

4. Can the battery operate in extreme weather conditions? Yes, it features excellent temperature adaptability and can be used safely in environments ranging from -25ºC to 50ºC.

5. Is the battery safe for international transport? Absolutely. The battery is fully sealed with no free electrolysis, allowing it to be transported by sea and railway as non-hazardous material.

6. What safety features are included to prevent leakage or explosions? The battery includes a double-seal design for the cover and poles, a reliable gas pressure venting system, and an anti-explosion device for maximum safety.
