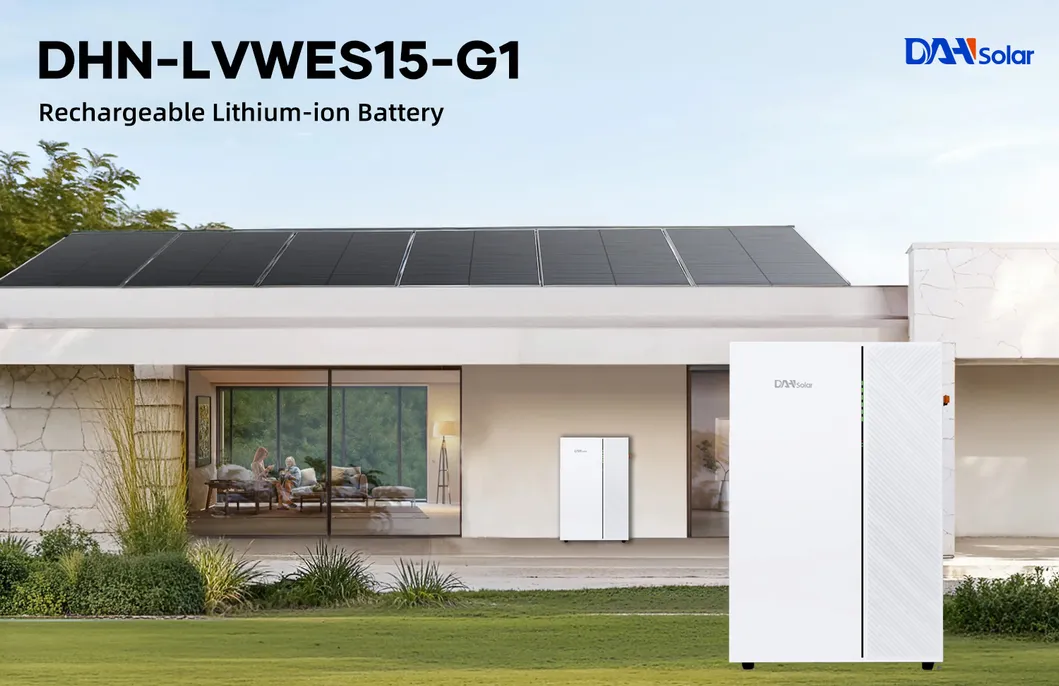

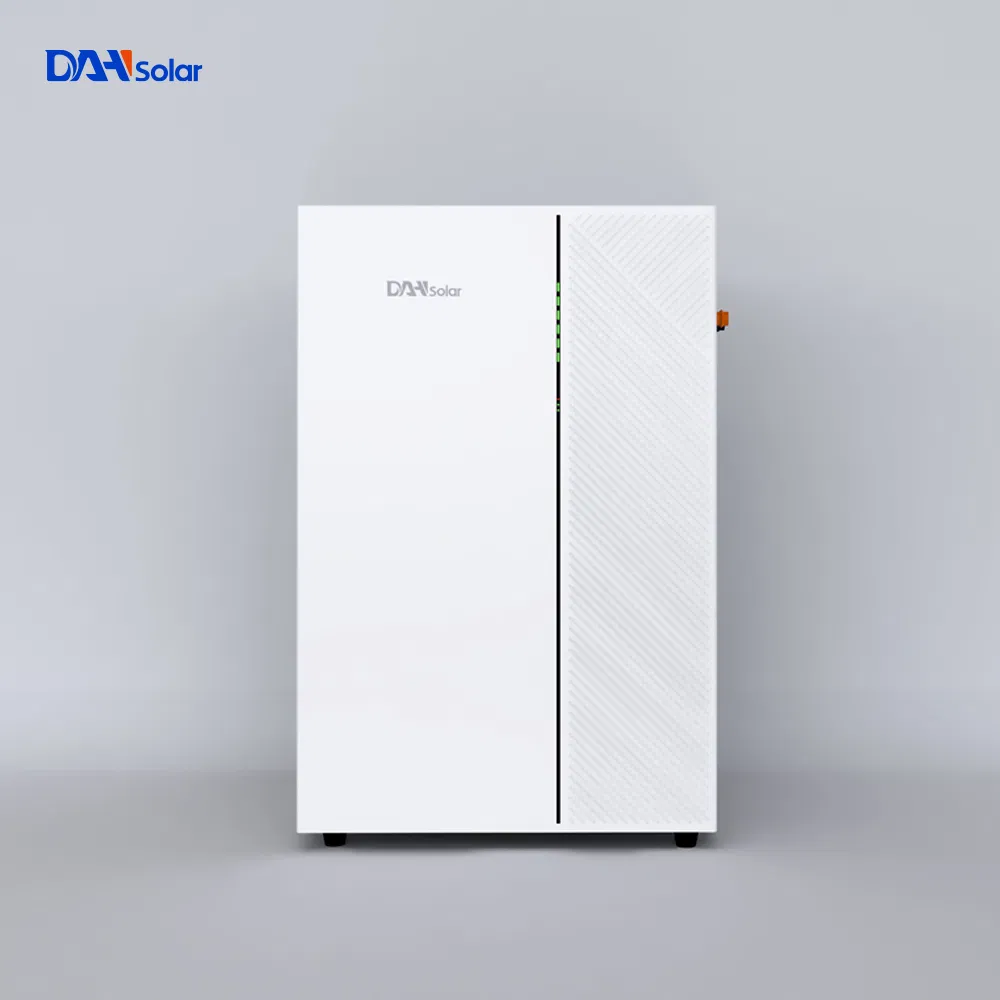

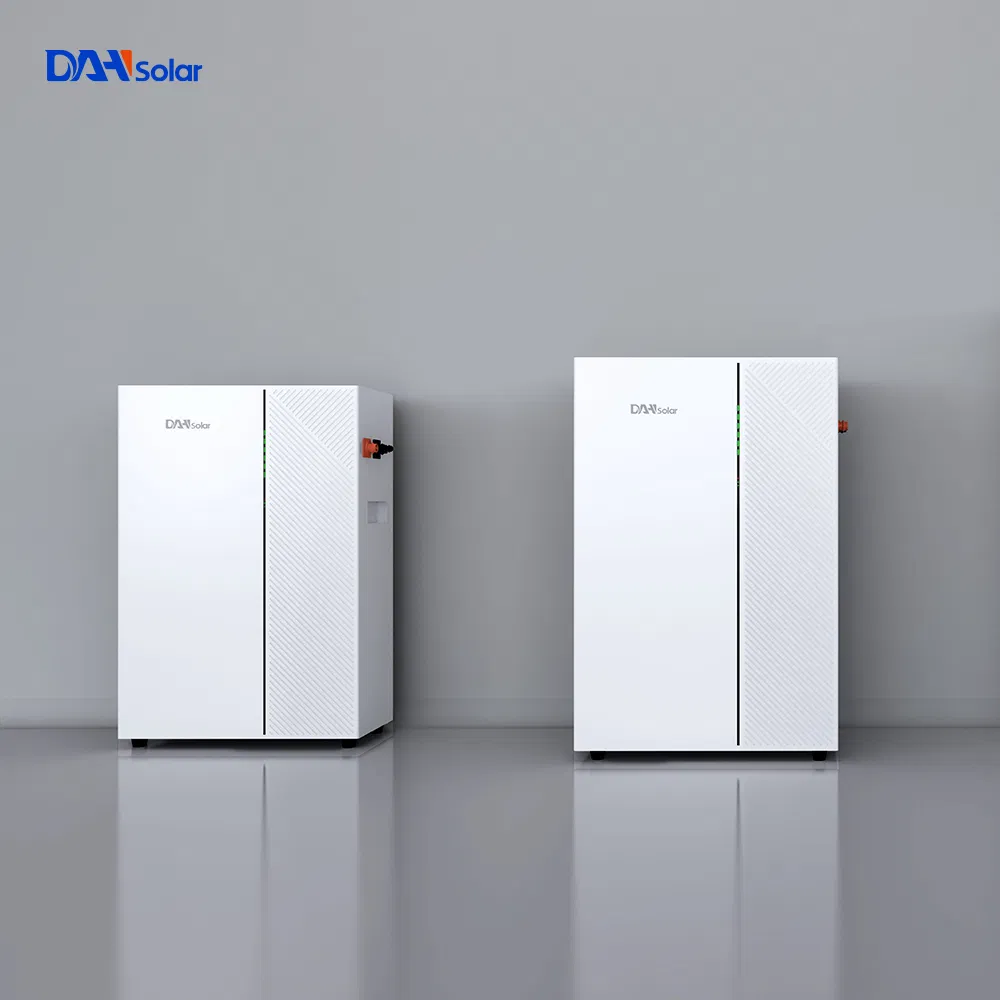

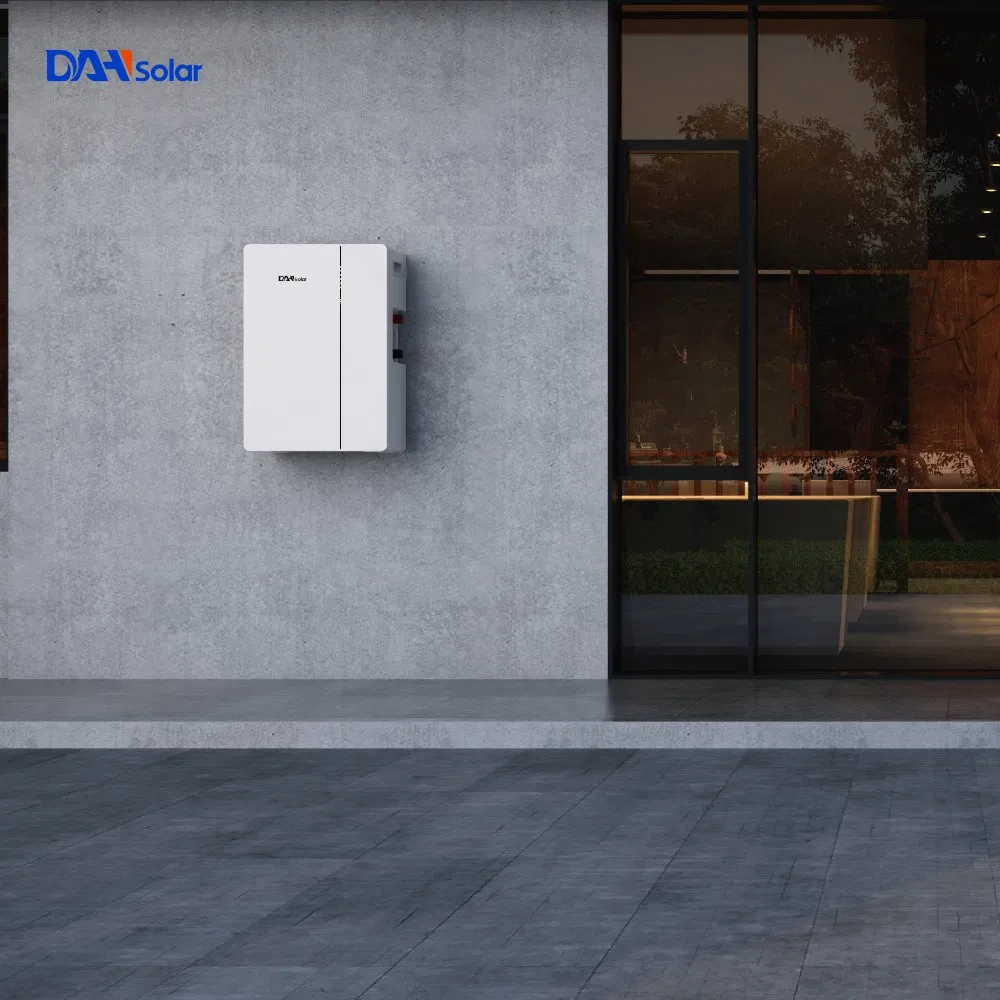

DHN-LVWES15-G1 Rechargeable Lithium-ion Battery

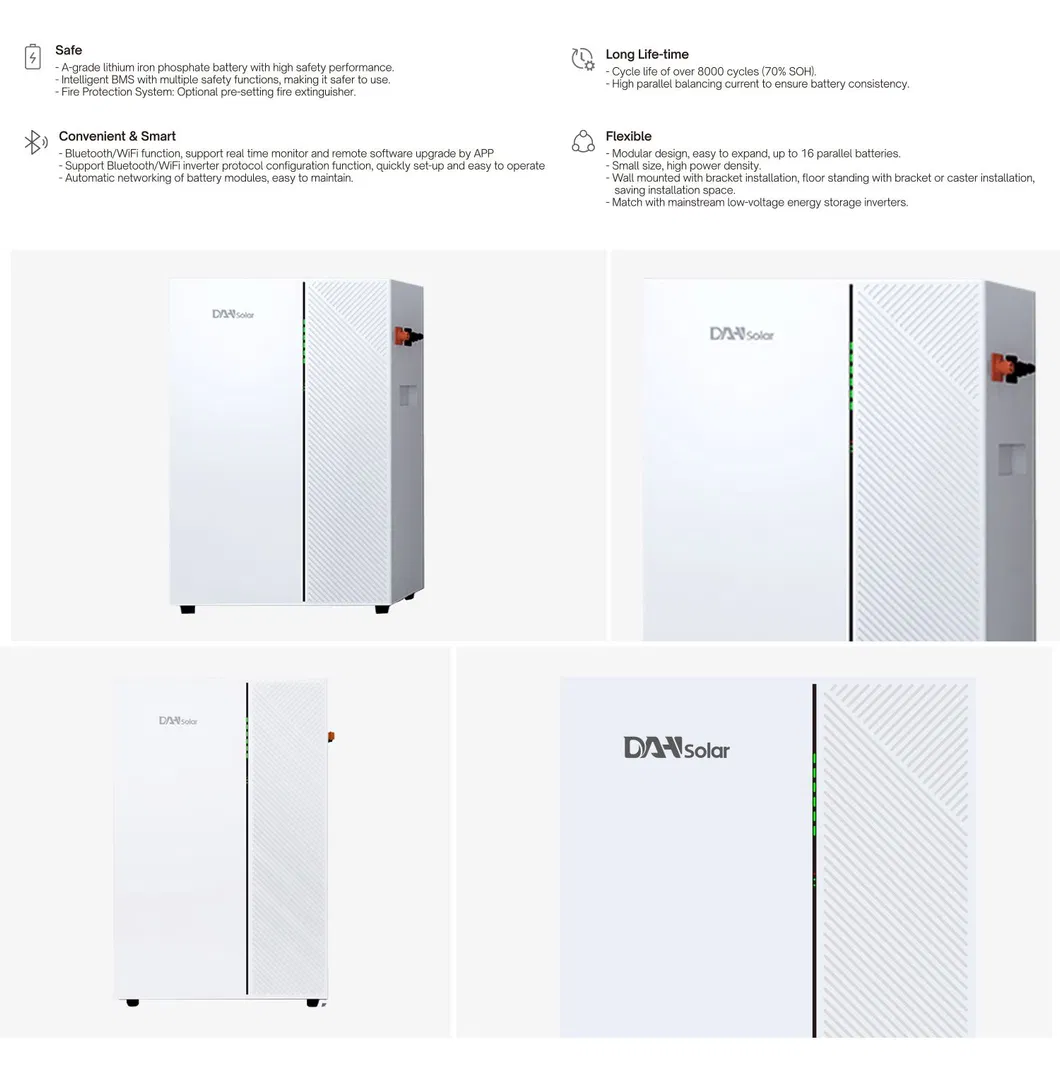

The DHN-LVWES series is a low-voltage energy storage battery designed for efficient and reliable power solutions for households and businesses. Utilizing top-tier lithium iron phosphate (LiFePO4) cells, it offers exceptional safety, stability, energy density, and a long service life. The built-in intelligent Battery Management System (BMS) ensures high-performance operation through comprehensive monitoring.
| Model | DHN-LVWES15-G1 |

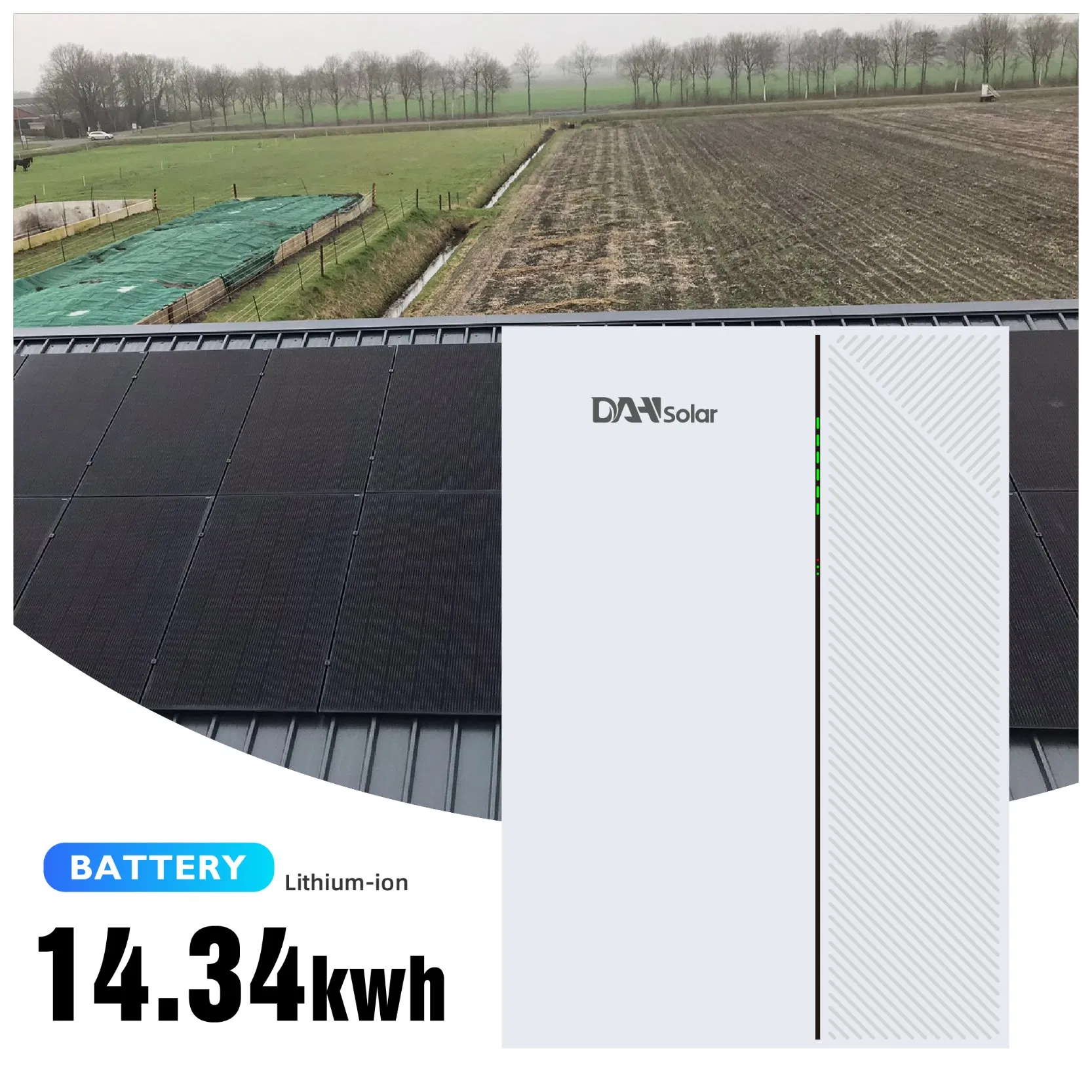

| Battery Rated Energy (kWh) | 14.34 |
| Battery Rated Capacity (Ah) | 280 |
| Scalability | Parallel connection of up to 16 units |
| Operating Voltage (V) | 43.2 ~ 57.6 |
| Recommend Charge/Discharge Current (A) | 140 |
| Max. Charge/Discharge Current (A) | 200 |
| System Dimension (W/D/H, mm) | 520 x 680 x 232 |
| System Weight (kg) | 114 |
| IP Rating | IP20 |
| Operating Temperature (ºC) | Charge: 0~55 / Discharge: -20~55 |
| Cycle Life | ≥8000 (25±2ºC, 0.5C/0.5C, 70%EOL) |

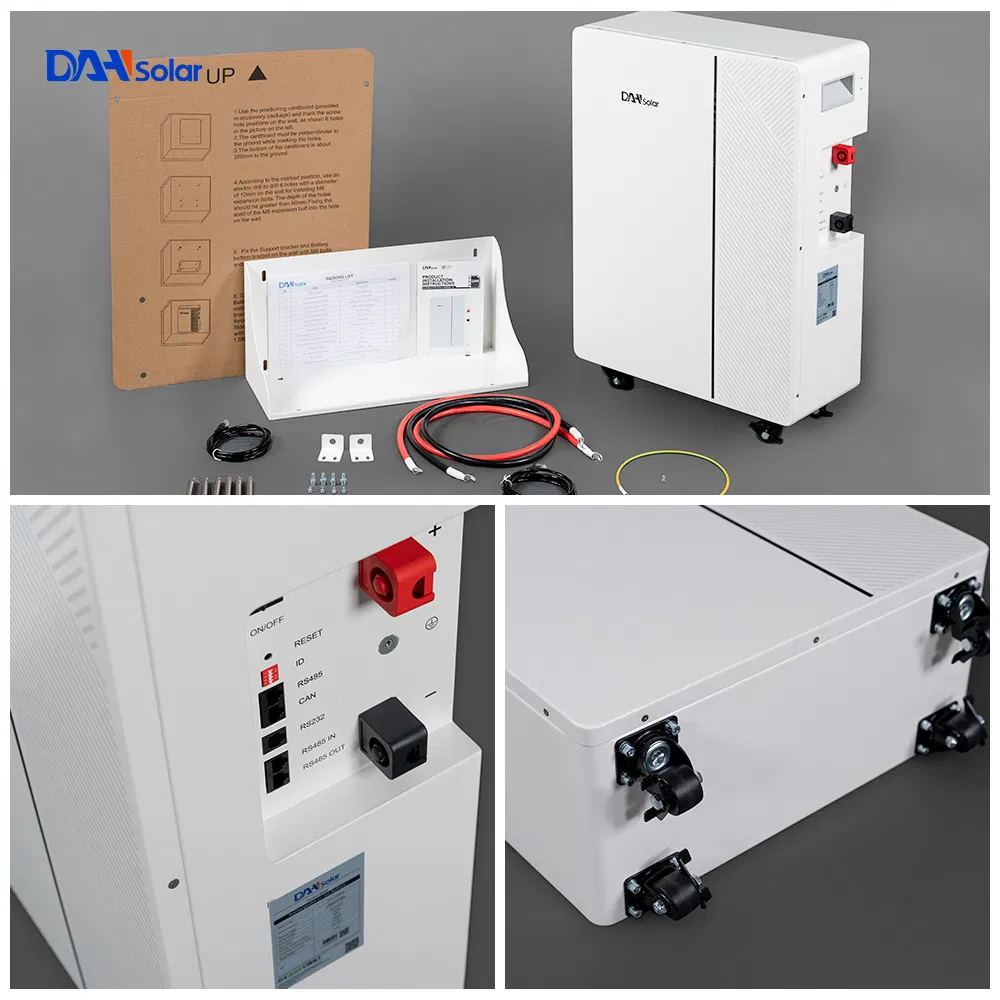

| Communication Methods | CAN2.0 / RS485 |
| Compatible Inverters | LUXPOWERTEK, SENERGY, SRD, etc. |
