Sliver Battery
1 / 5

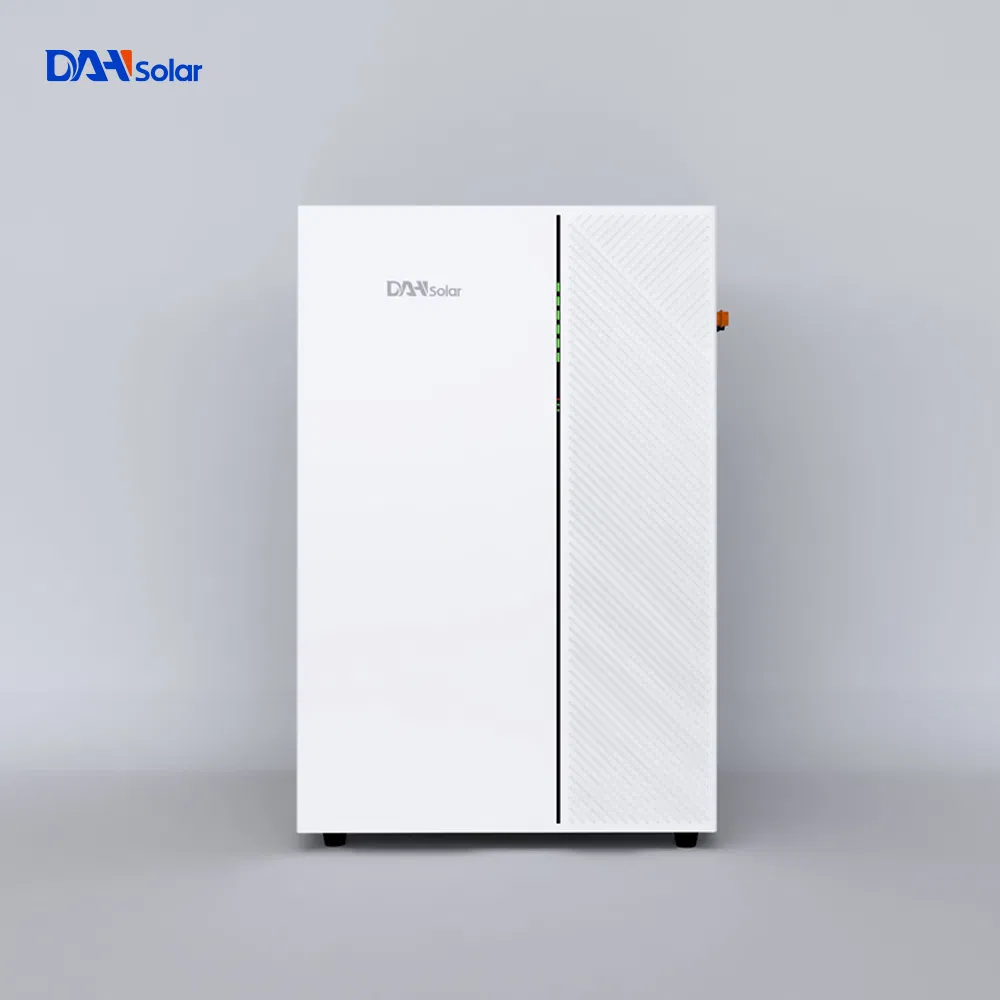

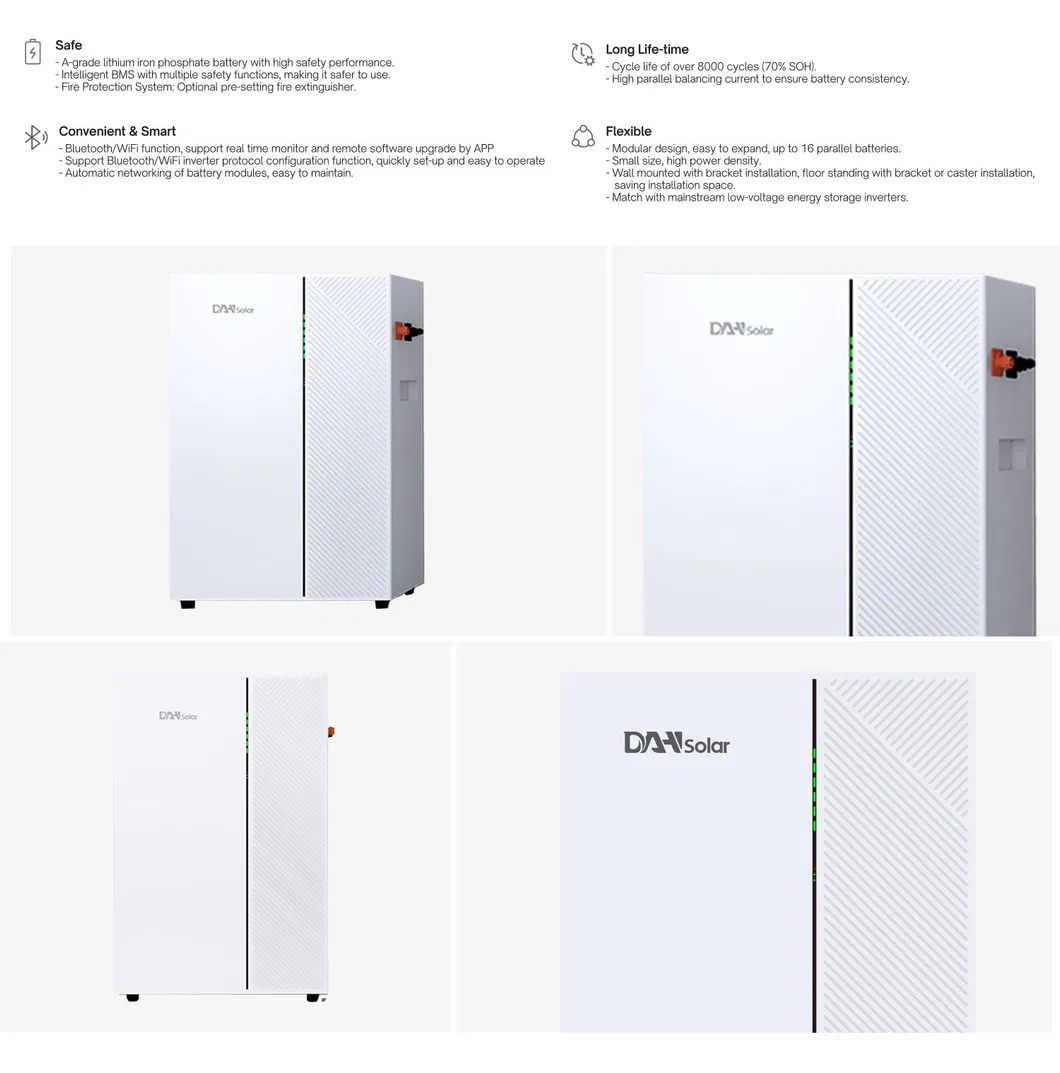

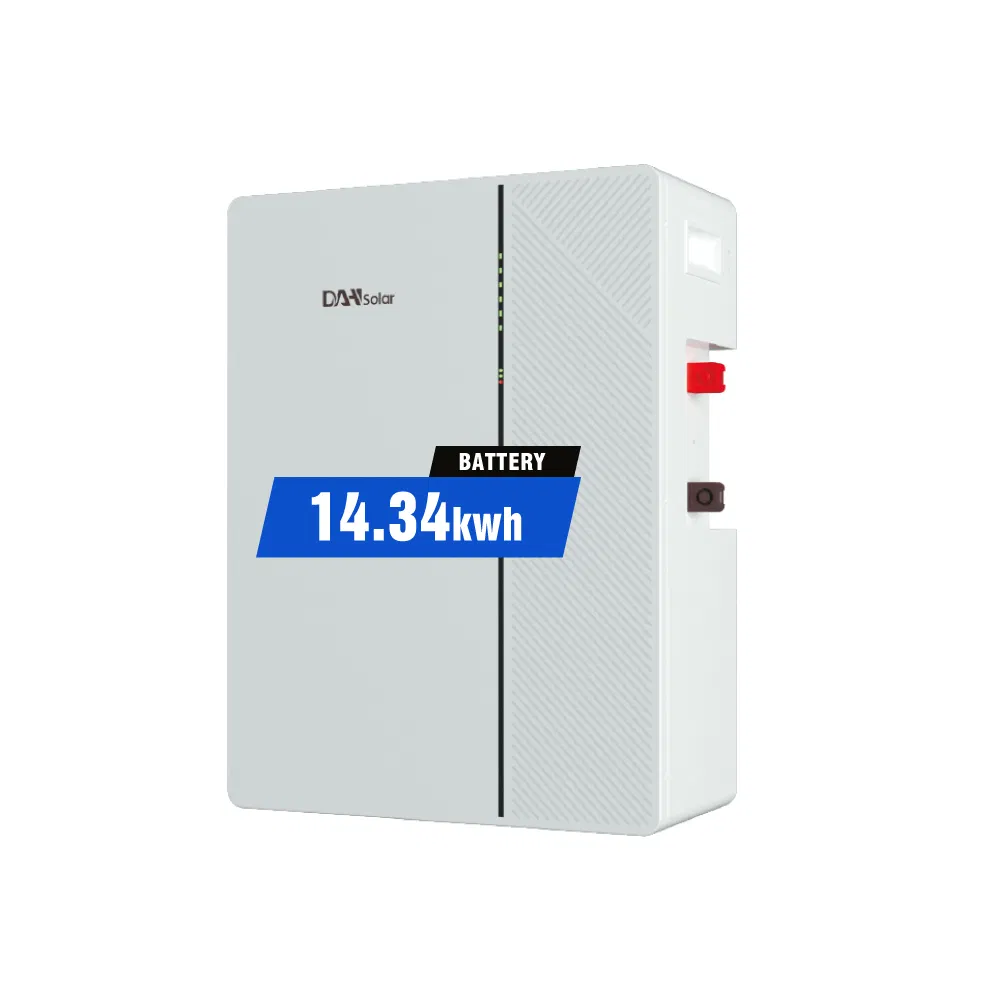

The DHN-LVWES series product is a low-voltage energy storage battery designed to provide efficient and reliable energy storage solutions for households, businesses, and specific occasions. Adopting top-tier brand lithium iron phosphate battery cells, with high safety, stability, energy density, and long cycle life. Built-in efficient intelligent battery management system (BMS), comprehensively monitoring and controlling the battery energy storage system to ensure its safe, stable, and high-performance operation.
| Model | DHN-LVWES15-G1 |
| Battery Rated Energy (kWh) | 14.34 |
| Battery Rated Capacity (Ah) | 280 |
| Scalability | Parallel connection of up to 16 units |
| Nominal Voltage (V) | 51.2 |
| Operating Voltage (V) | 43.2 ~ 57.6 |
| Recommend Charge/Discharge Current (A) | 140 |
| Max. Charge/Discharge Current (A) | 200 |
| Recommend Depth of Discharge | ≤90% |
| System Dimension (W/D/H, mm) | 520 x 680 x 232 |
| System Weight (kg) | 114 |
| Master LED Indicator | 6LED (SOC:16.6%~100%), 3LED (ON/OFF, RUN, ALARM) |
| Operating Temperature (ºC) | Charge: 0~55 / Discharge: -20~55 |
| Communication Methods | CAN2.0 / RS485 |
| Cycle Life | ≥8000 (@25±2ºC, 0.5C/0.5C, 70%EOL) |

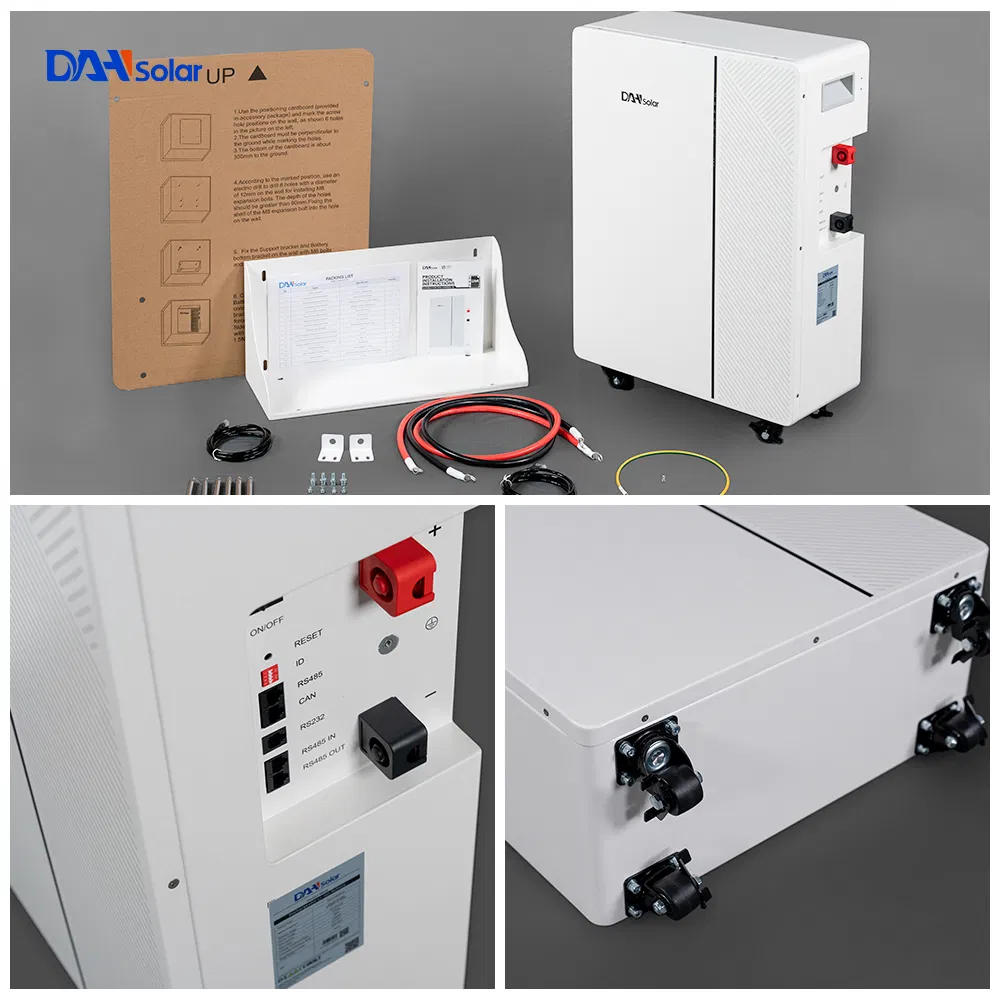

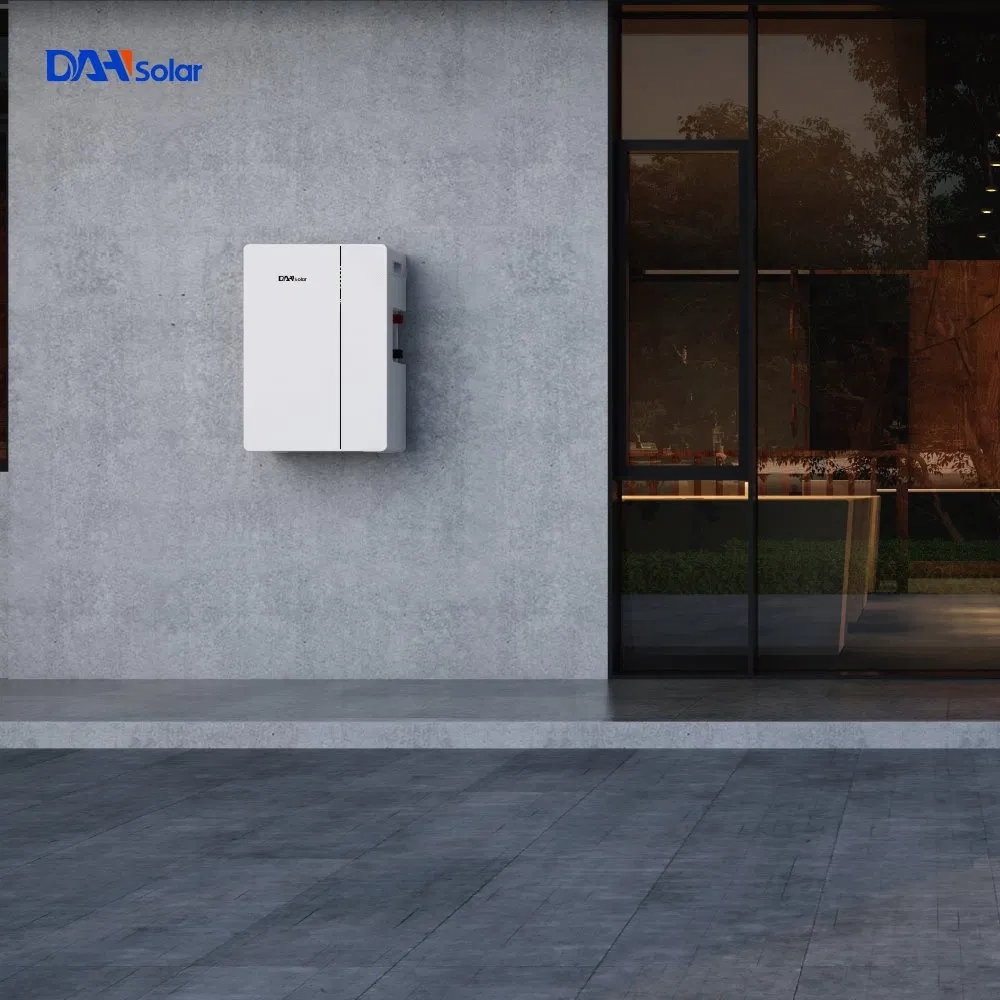

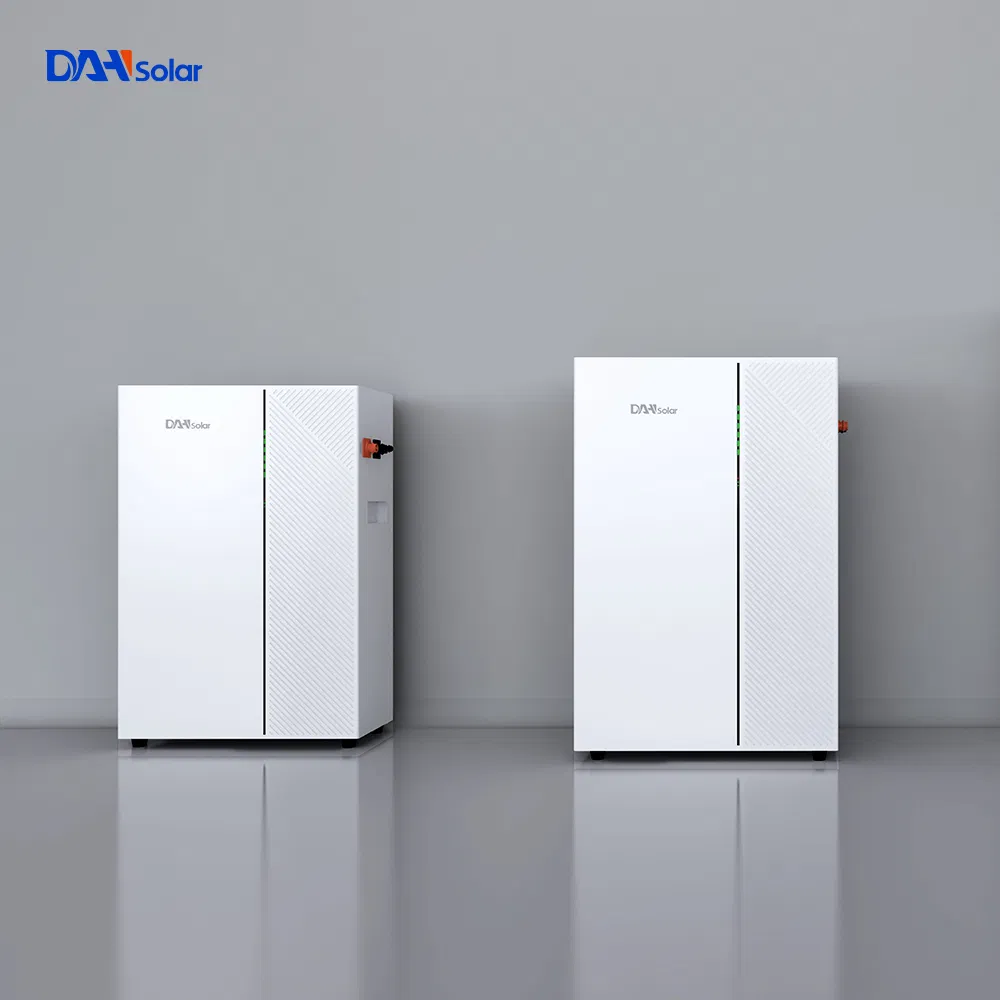

| Installation | Floor-Mounted / Wall-Mounted (optional wheel) |

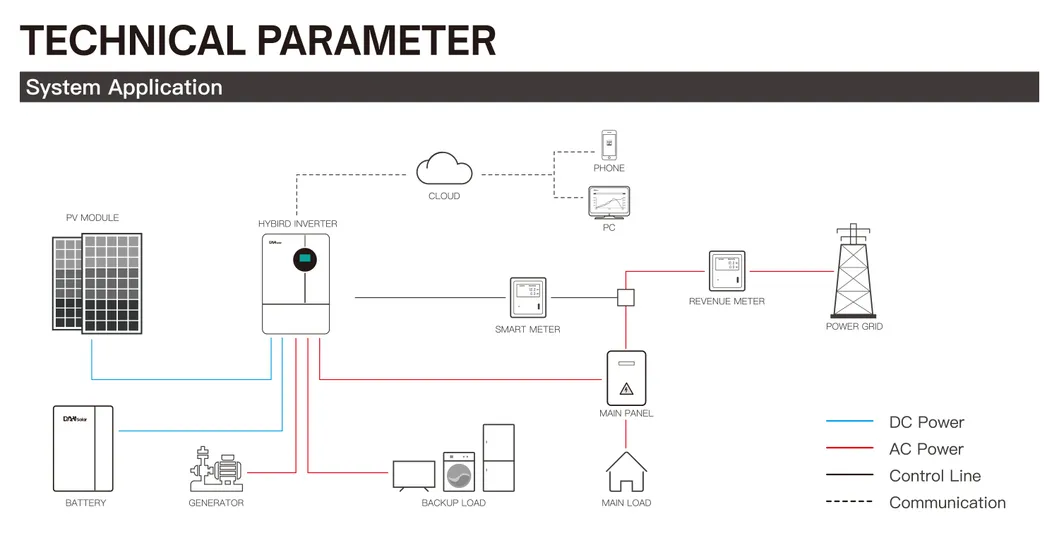

| Compatible Inverters | LUXPOWERTEK, SENERGY, SRD, etc. |
