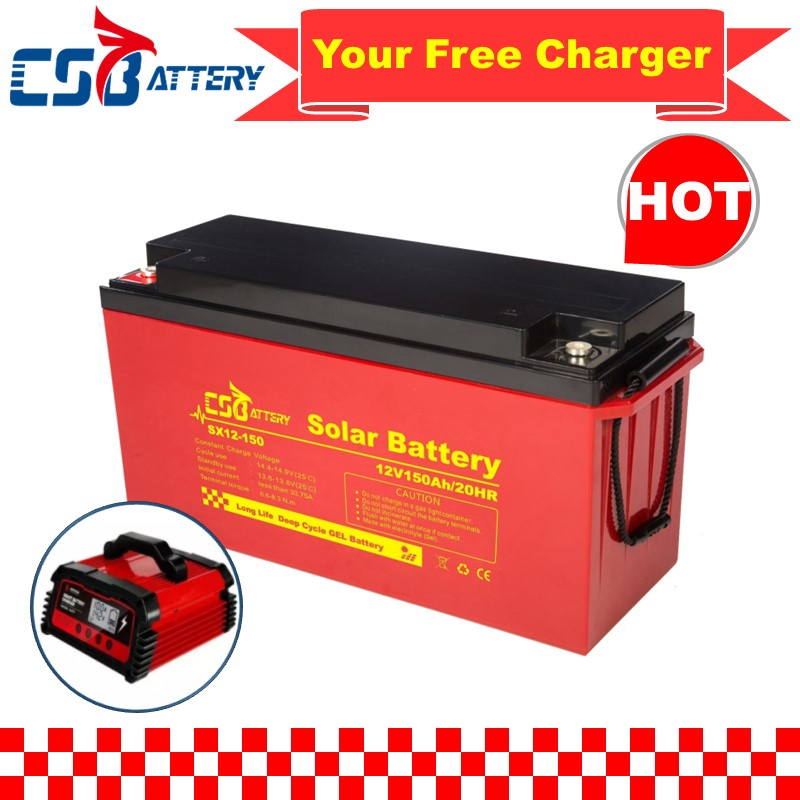

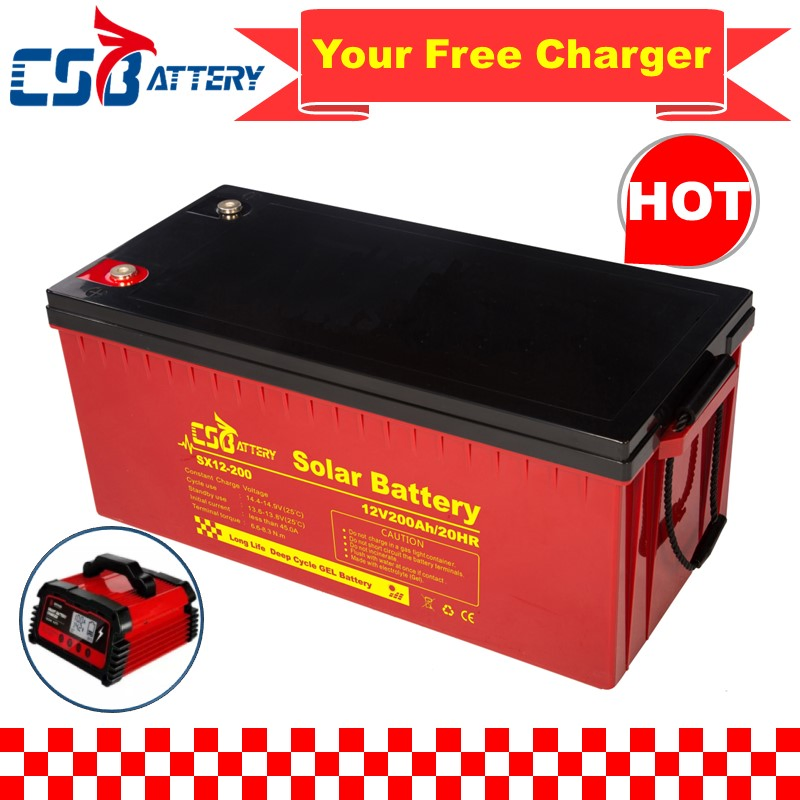

Csbattery 12V 100ah/150ah/200ah Deep-Cycle Gel Rechargeable Storage Battery for Solar Panel/Inverter/Power-Tool/UPS/Electric-Scooter/Bicycle/Vehicle/Pack/6V/Csb

1 / 5

Csbattery 12V 100ah/150ah/200ah Deep-Cycle Gel Rechargeable Storage Battery for Solar Panel/Inverter/Power-Tool/UPS/Electric-Scooter/Bicycle/Vehicle/Pack/6V/Csb

Customization:	Available
Type:	Gel Battery
Usage:	off Grid Solar, UPS, Golf Car

Send Inquiry

Product Description

Basic Information

Model NO.

HTB12V HTB6V HTB8V

Nominal Voltage

12V, 6V, 8V

Discharge Rate

0.2-0.5c

Electrolyte

Gel+Acid

Warranty

3 Years

Expected Cycle Life

20 Years

Certificates

CE, IEC, ISO

Casing

ABS or UL94 Fire Resistance

Proof

Water Proof, Non Spillable

Capacity Range

Max 12V300ah, 6V420ah, 8V200ah

Product Overview

Patented High-Temp Deep Cycle Solar GEL Battery is designed for a 15-20 year service life. It is the ideal choice for solar markets and high-temperature environments. These batteries utilize advanced patented GEL technology, offering 1500-1600 cycles at 50% DOD, complying with international standards such as IEC60896-21/22, BS6290-4, and Eurobat Guide.

Advanced Features

✓Environmentally friendly

✓Completely Maintenance-Free

✓Non-Spillable construction design

✓Wide Operating Temp (-20°C~+60°C)

✓Explosion Proof

✓Low Self Discharge

12V Series Model Specifications

Model	Voltage (V)	Capacity (Ah)	Length (mm)	Width (mm)	Height (mm)	Net Weight (kg)	Terminal
HTB12-100	12	100	307	169	211	30.2	M6
HTB12-120	12	120	407	173	210	39.2	M8
HTB12-150	12	150	484	171	241	45.5	M8
HTB12-200	12	200	532	206	216	58.6	M8
HTB12-250	12	250	520	269	203	71	M8
HTB12-300	12	300	520	269	220	77	M8

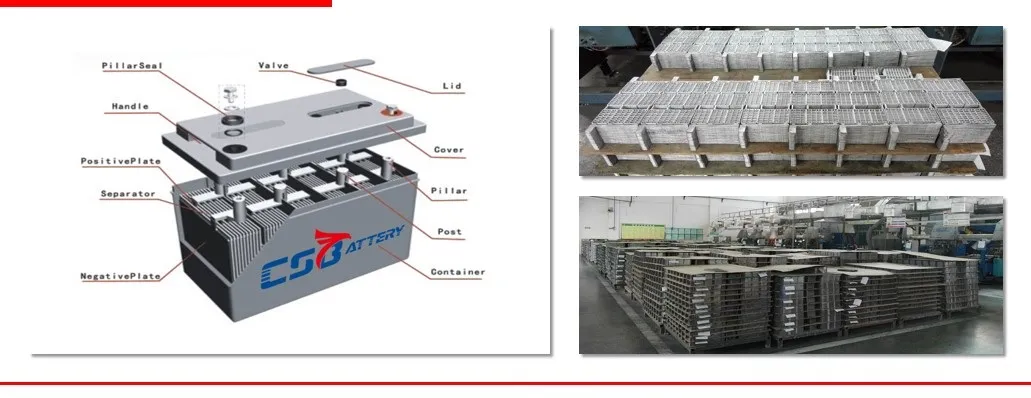

Internal Structure & Quality

Key Components

Positive Plate

Thick high Sn low Ca 3D flat pasted plate

Separator

Imported PVC separator for GEL battery

Electrolyte

Nano GEL electrolyte

Container

High-temperature resistance ABS

Certifications & Applications

Frequently Asked Questions

Can the batteries be delivered by sea and air?

Yes, our batteries can be delivered both by sea and by air. We provide MSDS and test reports for safe transport as non-dangerous products.

Is it possible to fast charge the battery?

Fast charging is not recommended as it can be harmful to the long-term health and cycle life of the battery.

Can I perform a partial replacement of my battery bank?

Partial battery replacement of lead-acid battery banks is not recommended. It is best to replace the entire set to ensure balanced performance.

What is the typical delivery time?

Usually about 7 days for stock items, 20 days for partial containers, and 30 days for full 20ft container orders.

What is the shelf life of these VRLA batteries?

VRLA batteries self-discharge less than 3% per month at 25°C. They should not be stored for more than 6 months without a recharge. In hotter climates, recharge every 3 months.

How is quality controlled during production?

We adopt the ISO 9001 system, including Incoming Quality Control (IQC), In-process Quality Control (PQC), and Outgoing Quality Control (OQC) to ensure zero defects.
