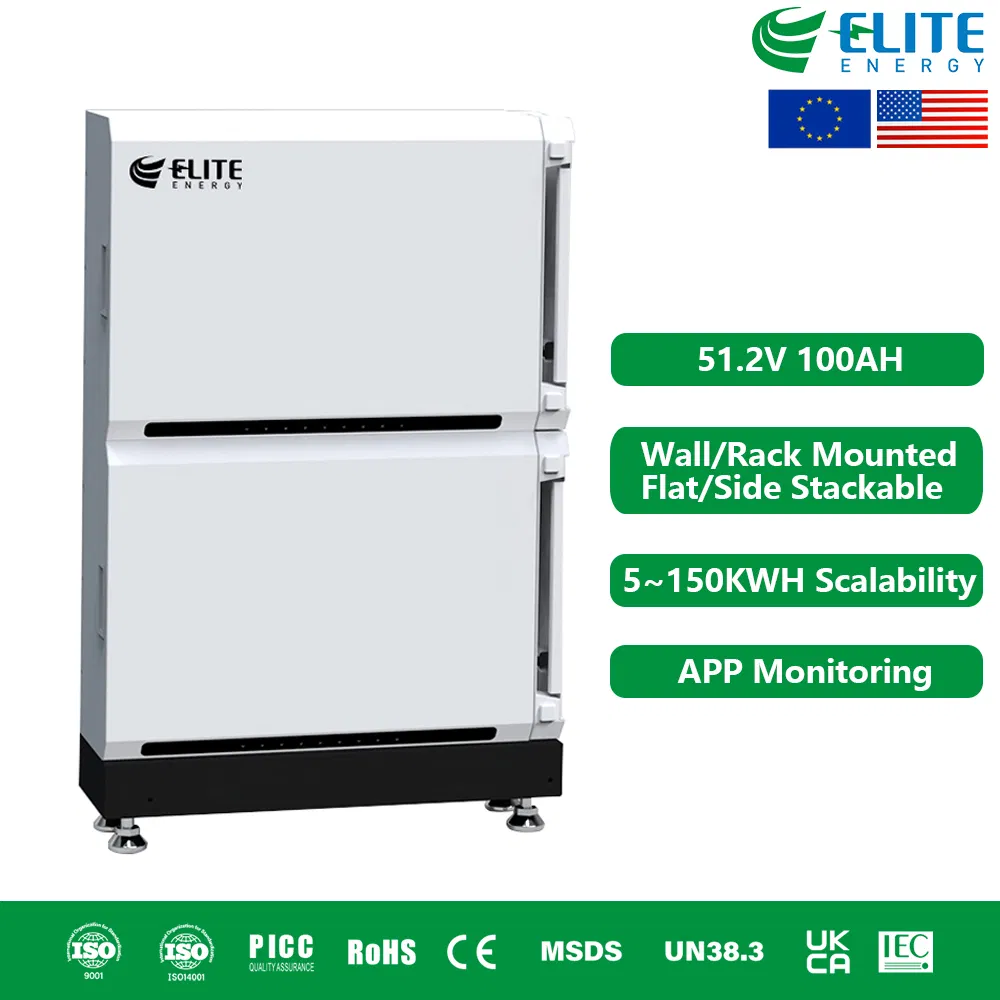

48V 100ah 15kwh 20kwh 30kwh 40kwh 50kwh Stackable Battery Wall Mounted Rack Mounted LiFePO4 Lithium Battery Pack for Household Solar Energy Storage

📊 Basic Specifications

Model NO.

ELT5000H

Rechargeable

Yes

Voltage

48V/51.2V

Capacity

100ah to 800ah

Energy Options

5kwh - 50kwh

Cycle Life

6000 Times

Certification

CE/RoHS/Un38.3/MSDS

Warranty

5 Years

Features

Stackable

Weight

43 Kg (Module)

🔋 Product Overview

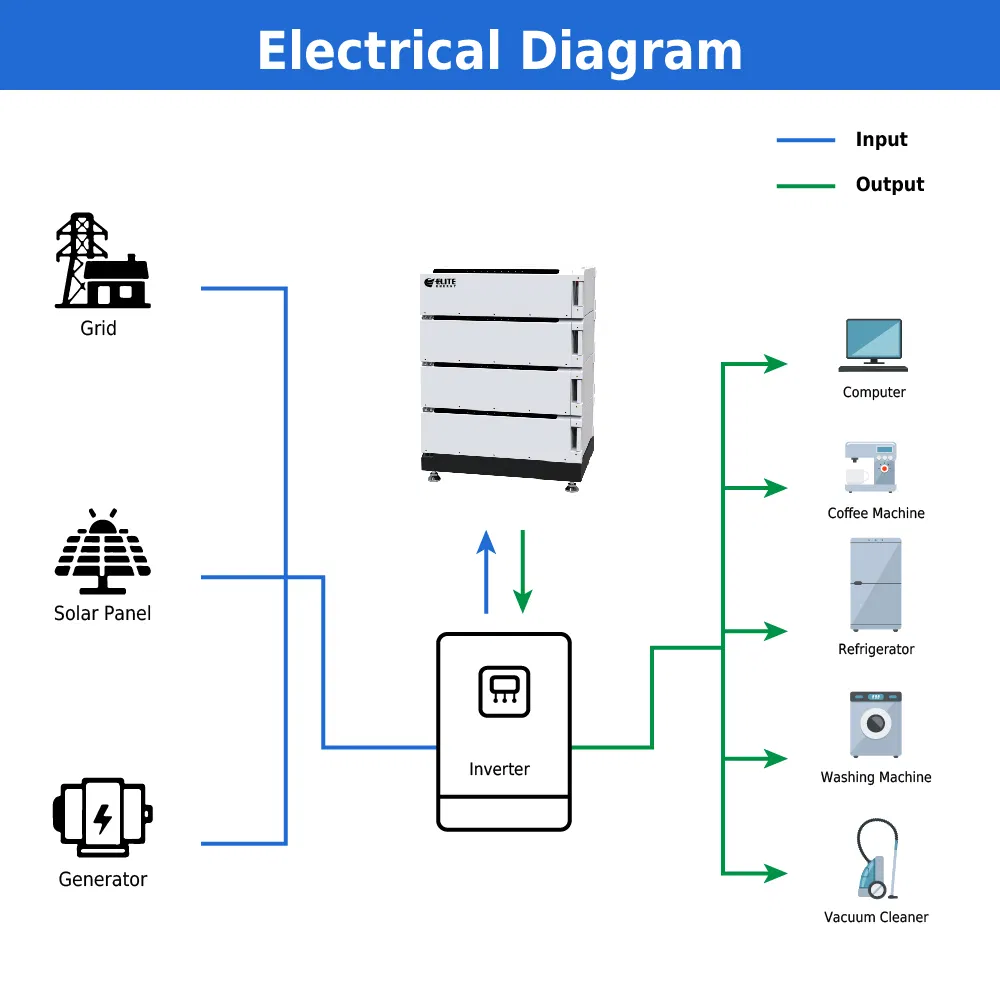

Original Lithium Ion LiFePO4 Battery Pack for Energy Storage System (ESS) and Motivation Power System Industry. Highly suitable for High Voltage and 48V 100Ah Stackable Low Voltage Battery Packs, PowerWall applications, and All-in-One Home Storage Solar Systems.

⭐ Key Features

✔ Performs 6000+ cycles.

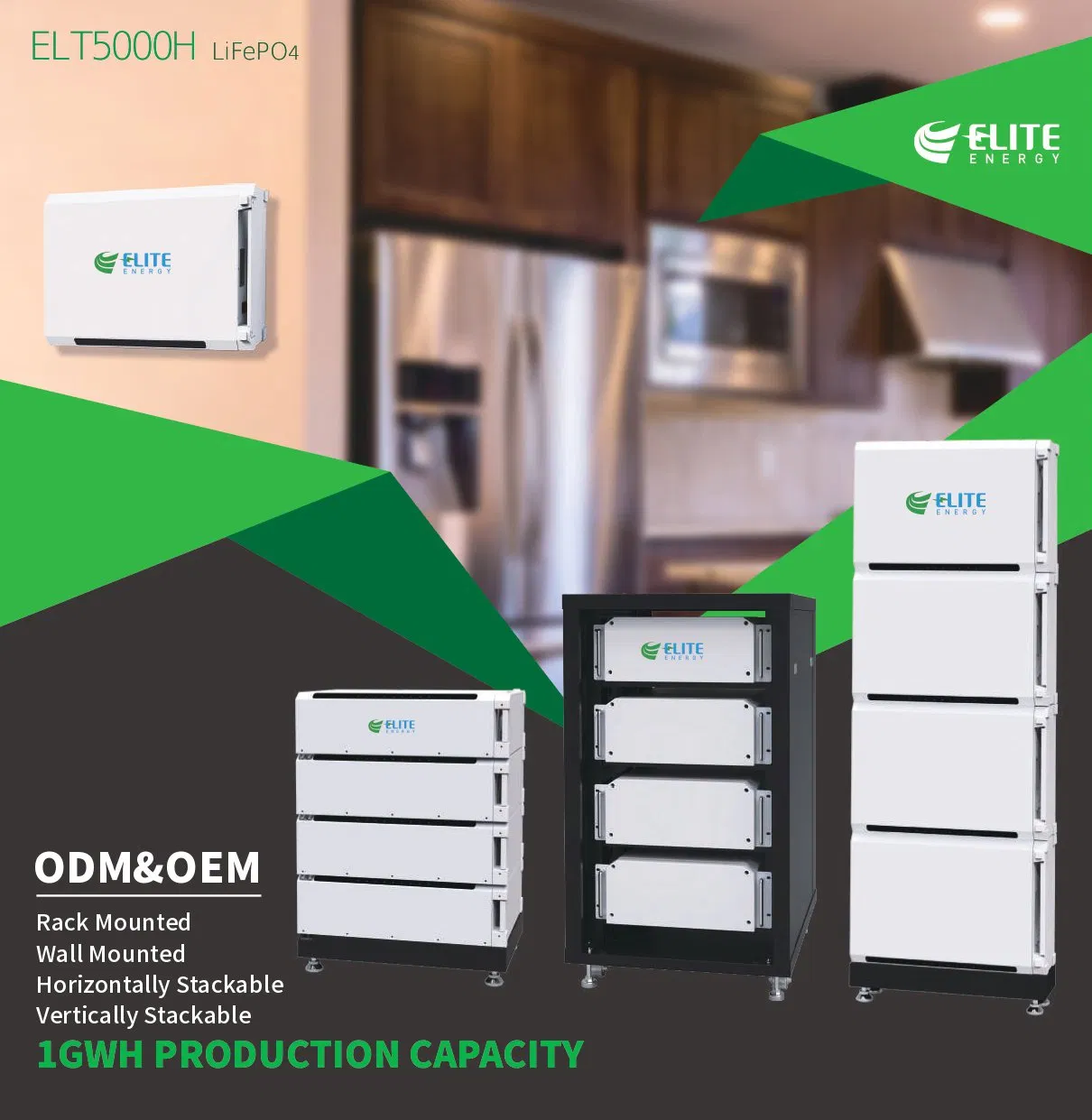

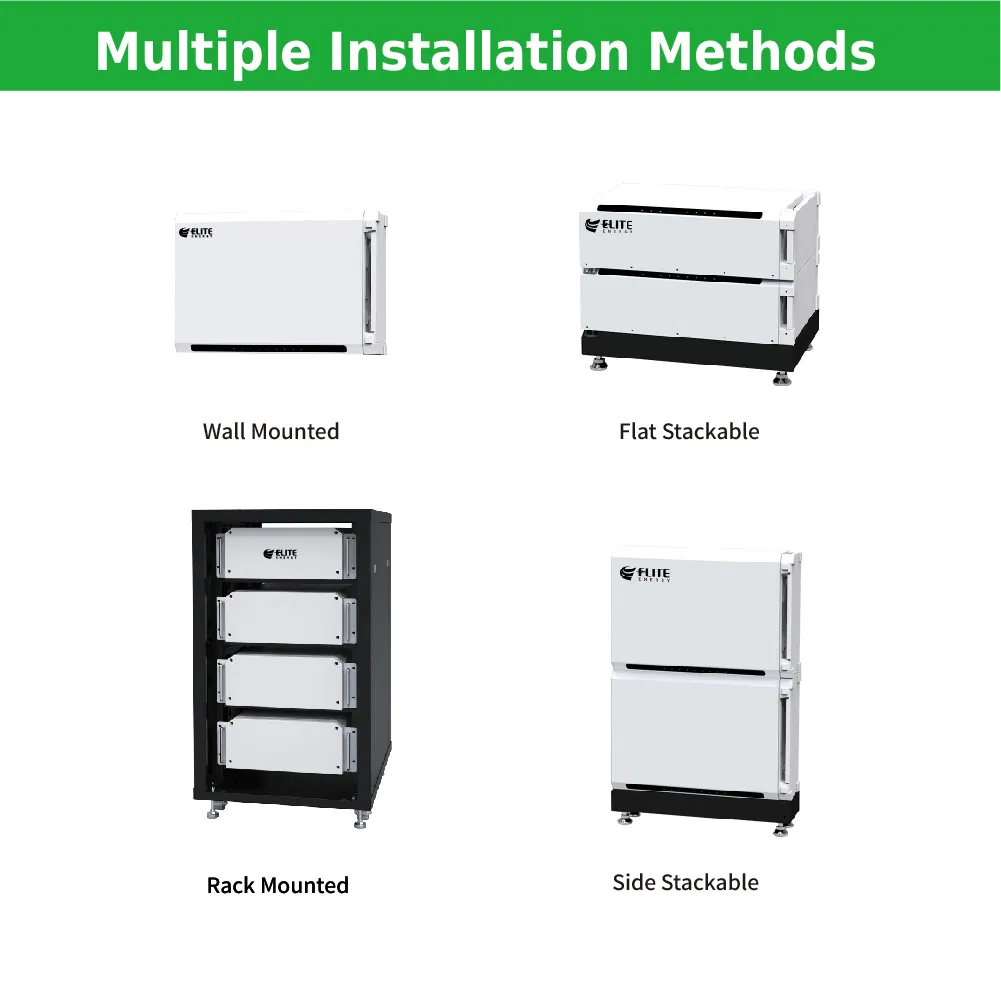

✔ Flexible connection: Side stackable, Flat stackable, Rack mounted or Wall mounted.

✔ Support max. 30pcs in parallel to increase capacity up to 150kWh.

✔ Wide compatible with main brand inverters & multiple communication protocols.

✔ Integrated Bluetooth for real-state monitoring via App.

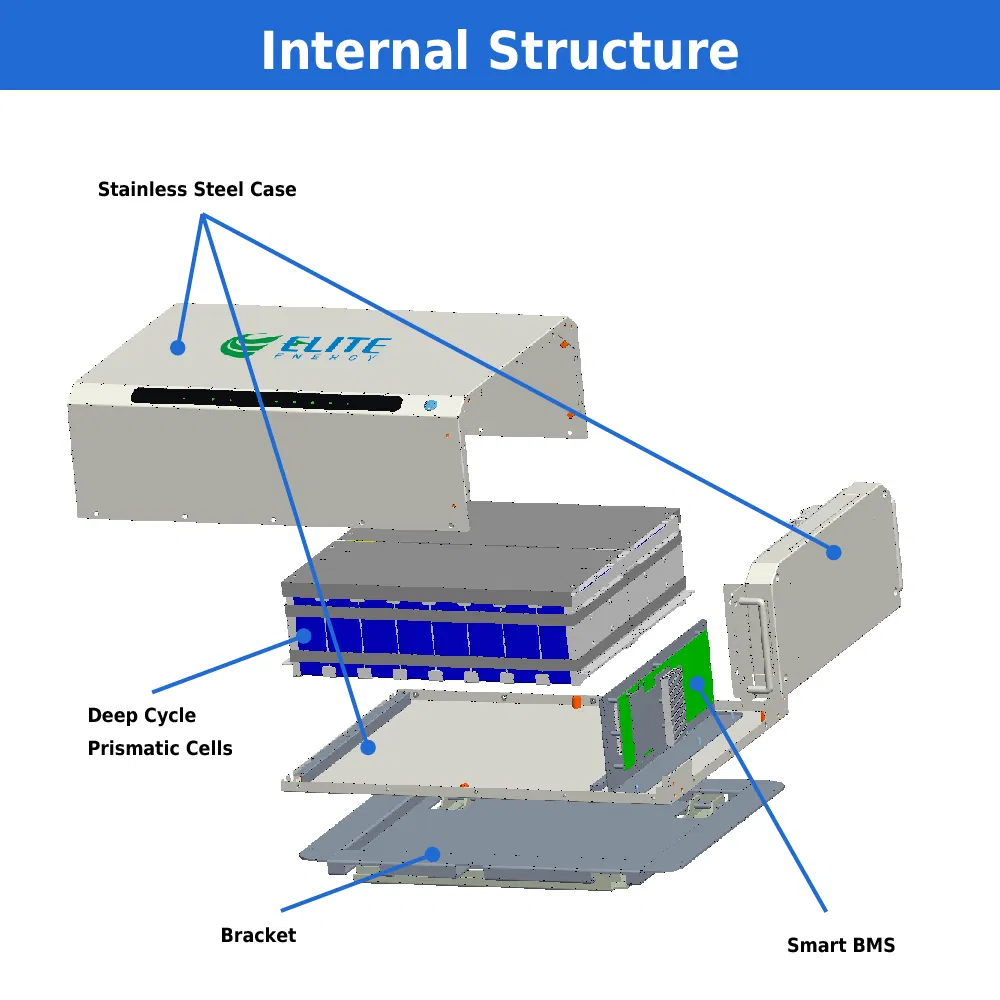

✔ Built-in smart BMS for excellent safety and temperature performance.

📋 Technical Parameters

System Parameter Details
Battery Type	LiFePO4 Battery Cell
Battery Module	51.2V 100Ah
Nominal Energy	5120Wh
Nominal Voltage	51.2V
Operating Voltage	40V - 58.4V
Max. Continuous Current	100A
Max. Peak Current	150A (5s)
Depth of Discharge	100%
Communication	CAN/RS485 / Bluetooth 5.0
Dimensions (WHD)	592400176mm
Cooling Method	Natural Convection

📸 Product Showcase

❓ Frequently Asked Questions

Do you have a Minimum Order Quantity (MOQ)?

No, we do not have an MOQ limit. 1 piece sample orders or small quantities are available for testing.

What is the lead time for orders?

Standard samples take 3-5 days, while bulk orders typically take 3-4 weeks. Customized products also follow a 3-4 week timeline.

How long do LiFePO4 batteries last?

Our LiFePO4 batteries provide over 6000 cycles. Compared to standard lead-acid batteries, the service life is 8 to 10 times longer.

Does the BMS have low-temperature protection?

Yes. The BMS includes a low-temperature cutoff function. Charging is protected at 0ºC ± 4ºC and discharging is protected down to -20ºC ± 4ºC.

What are the charging options for these batteries?

You can use a dedicated lithium iron phosphate charger (14.6V for 4-string systems), photovoltaic solar panels via MPPT, or an inverter with a built-in AC to DC charging function.

Are these batteries safe for residential use?

Yes. Using automotive-grade cells and a stable chemical structure, they are resistant to high temperatures and impacts. The built-in BMS protects against overcharge, deep discharge, and short circuits.
