Basic Specifications
Model NO.DHDJ-5000
Cycle Life6000 Times
Nominal Capacity5kwh-60kwh
MaterialLiFePO4
Battery CellGrade A+
BMSYes
Voltage51.2V
Capacity5120Wh
Cell Capacity100Ah
Transport PackageCartoon Box
Specification602*532*215mm
OriginChina
HS Code8507600090
Production Capacity500 Sets/Month
Product Description

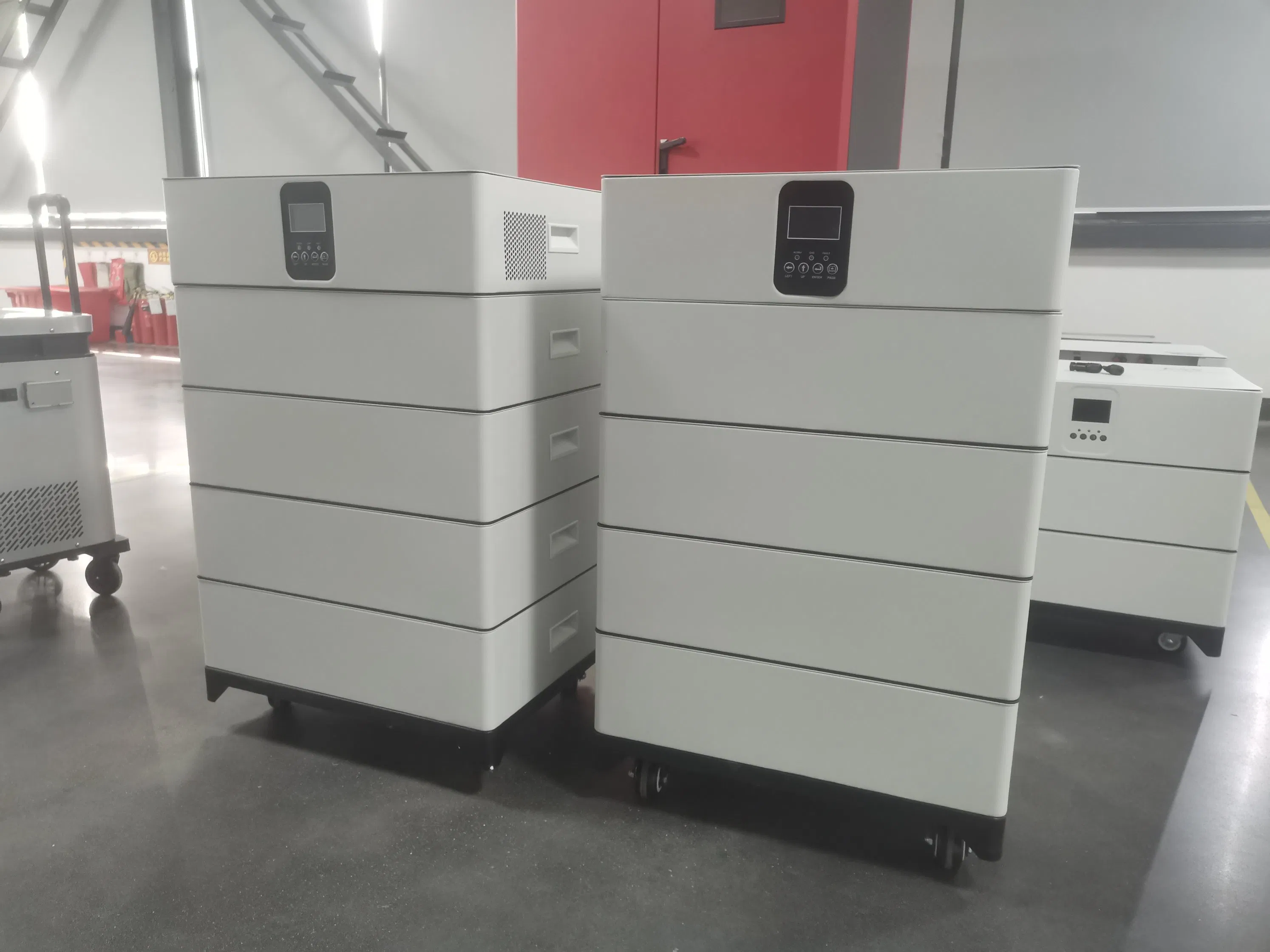

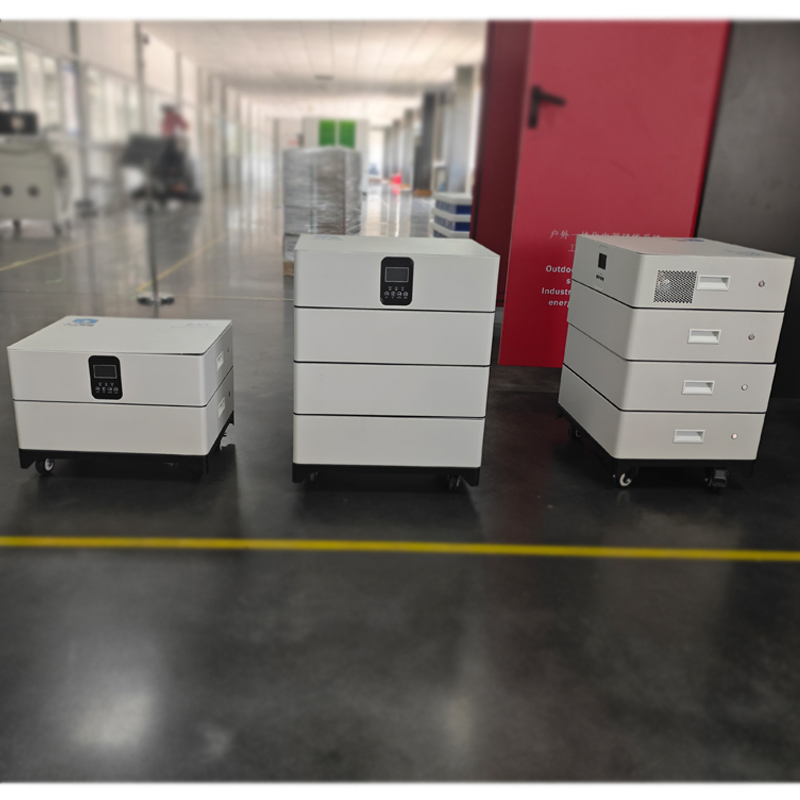

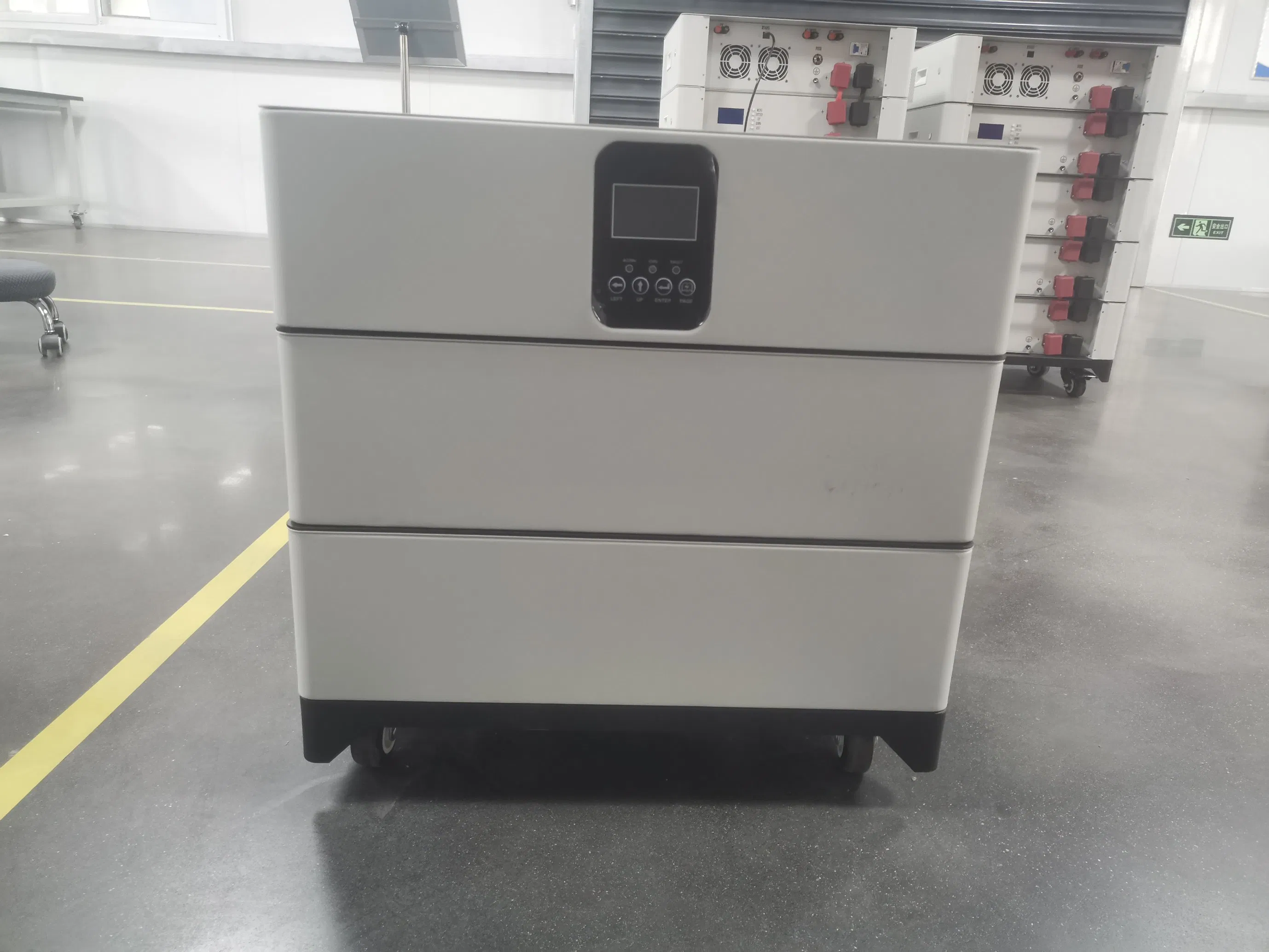

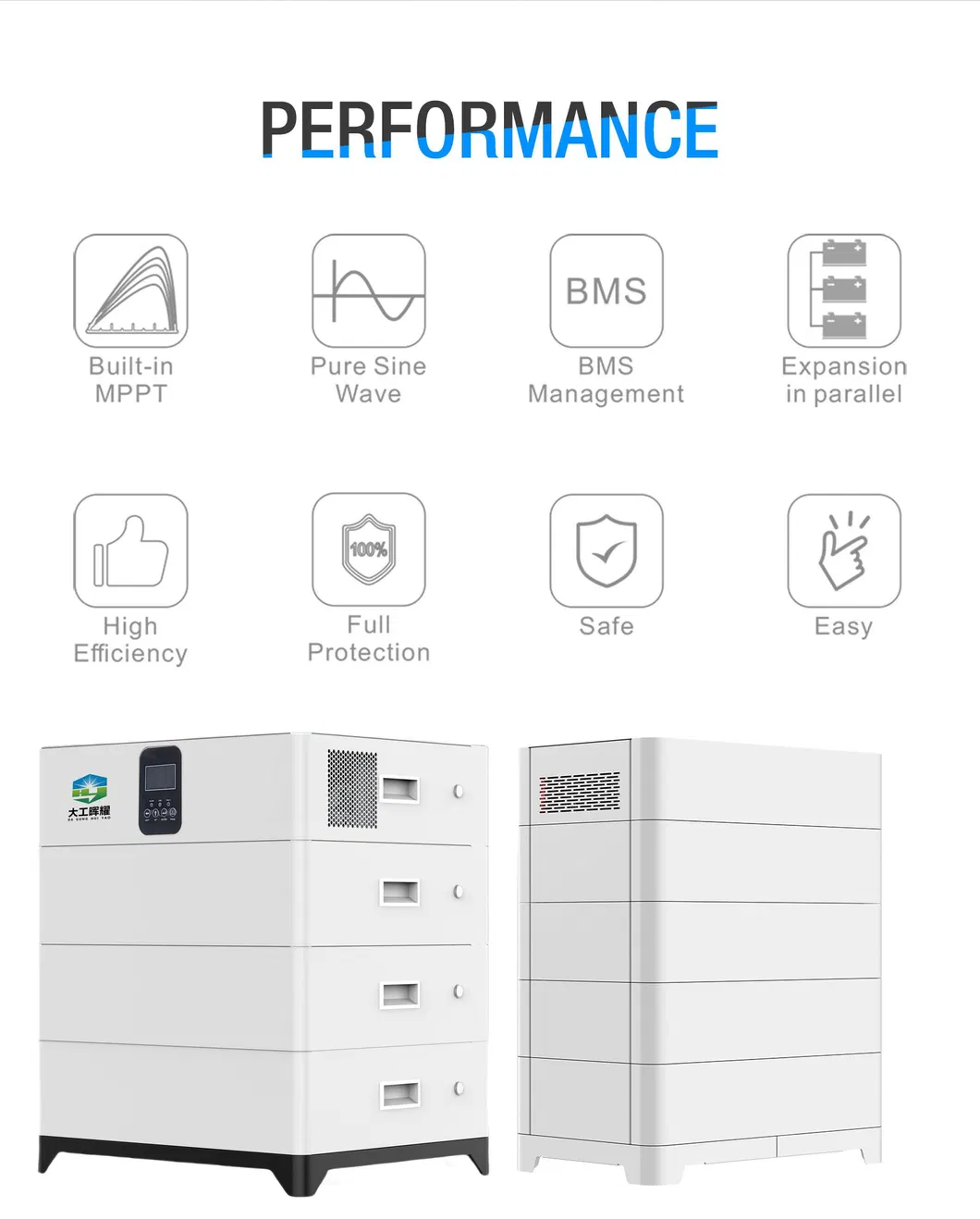

Battery Module Stacking Design
Design a smart Battery Management System (BMS) to monitor the voltage, temperature, and current of the battery pack in real-time, ensuring safe and stable operation. Use a modular design to allow users to flexibly adjust battery capacity based on household energy needs.

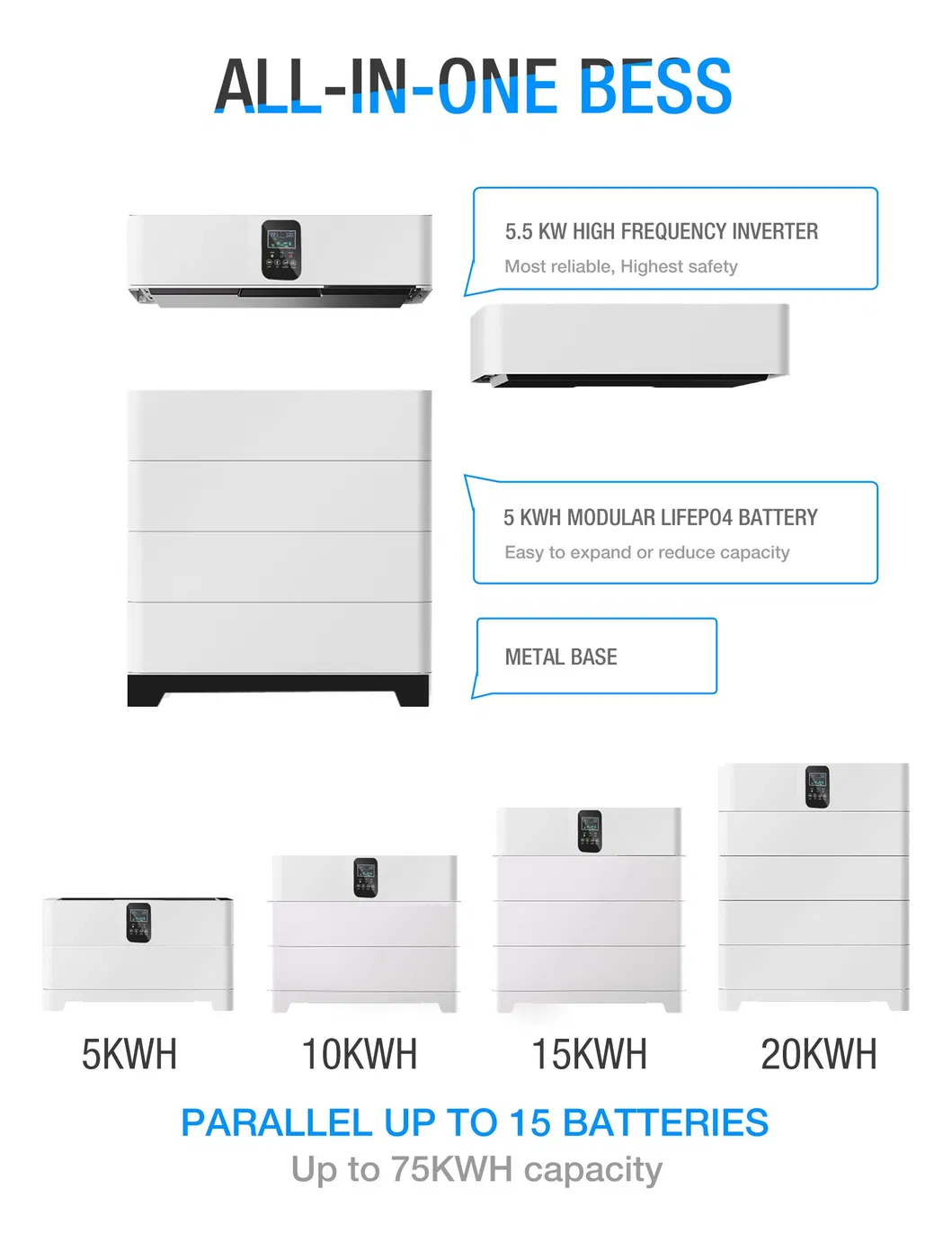

All-in-One Design
Optimize the integration of the inverter, battery, and BMS to improve space utilization and aesthetics. Employ a compact inverter and efficient cooling solutions to ensure stable operation under high loads. The streamlined exterior design will hide wiring and offer various color and material options to suit different home styles.
Communication Interface
Consider using CAN bus or RS485 to enhance anti-interference capabilities, suitable for complex electromagnetic environments. Design interfaces that support multiple communication protocols or allow software upgrades to accommodate new standards.
Product Parameters
| Battery model |
Voltage |
Energy |
Capacity |
Size |
Current |
Material |
| DHDJ-5000*1 |
51.2V |
100Ah |
5.12kWh |
602*532*215mm |
100A |
LiFePO4 |
| DHDJ-5000*2 |
51.2V |
200Ah |
10.24kWh |
602*532*430mm |
100A |
LiFePO4 |
| DHDJ-5000*3 |
51.2V |
300Ah |
15.36kWh |
602*532*645mm |
100A |
LiFePO4 |
Certifications

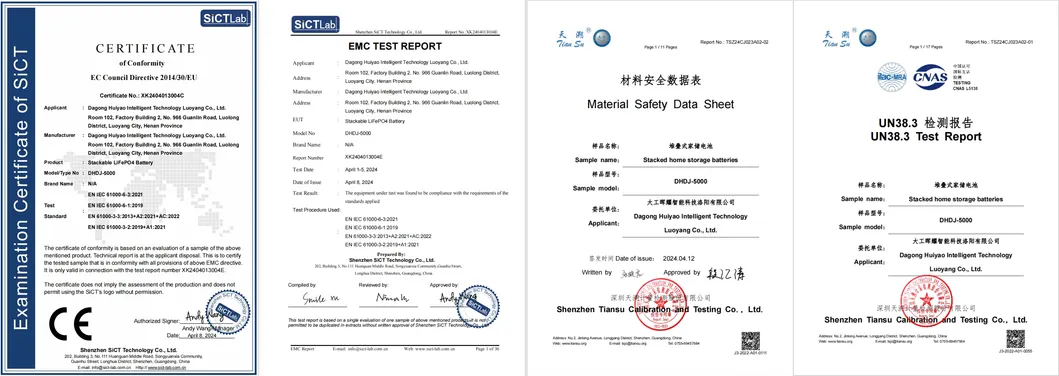

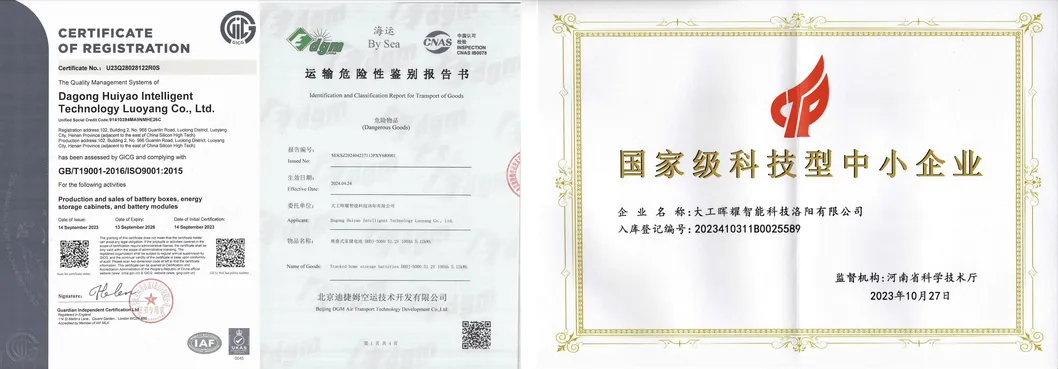

ISO 9001 CE UN38.3 MSDS
Packaging & Shipping
Our battery products are packaged using specialized, customs-approved hazardous packaging boxes to ensure compliance with international dangerous goods transportation standards. We hold safety transportation certification for both land and sea transport, proving that our packaging and transportation methods meet relevant laws and regulations.

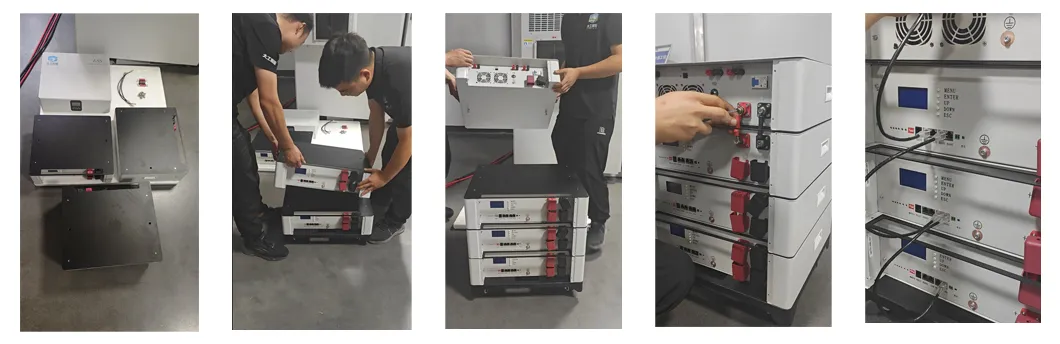

Installation Instructions
Our battery installation process is designed to be user-friendly, allowing individuals without professional electrician backgrounds to easily manage.
1. Unboxing Preparation: Open the packaging and remove the battery units designed for easy handling.
2. Stacking Batteries: Follow guidance to stack the battery units together without special tools.
3. Parallel Connection: Connect the battery units in parallel for stable power output.
4. Communication Cable: Connect the cable to the battery management system for monitoring.

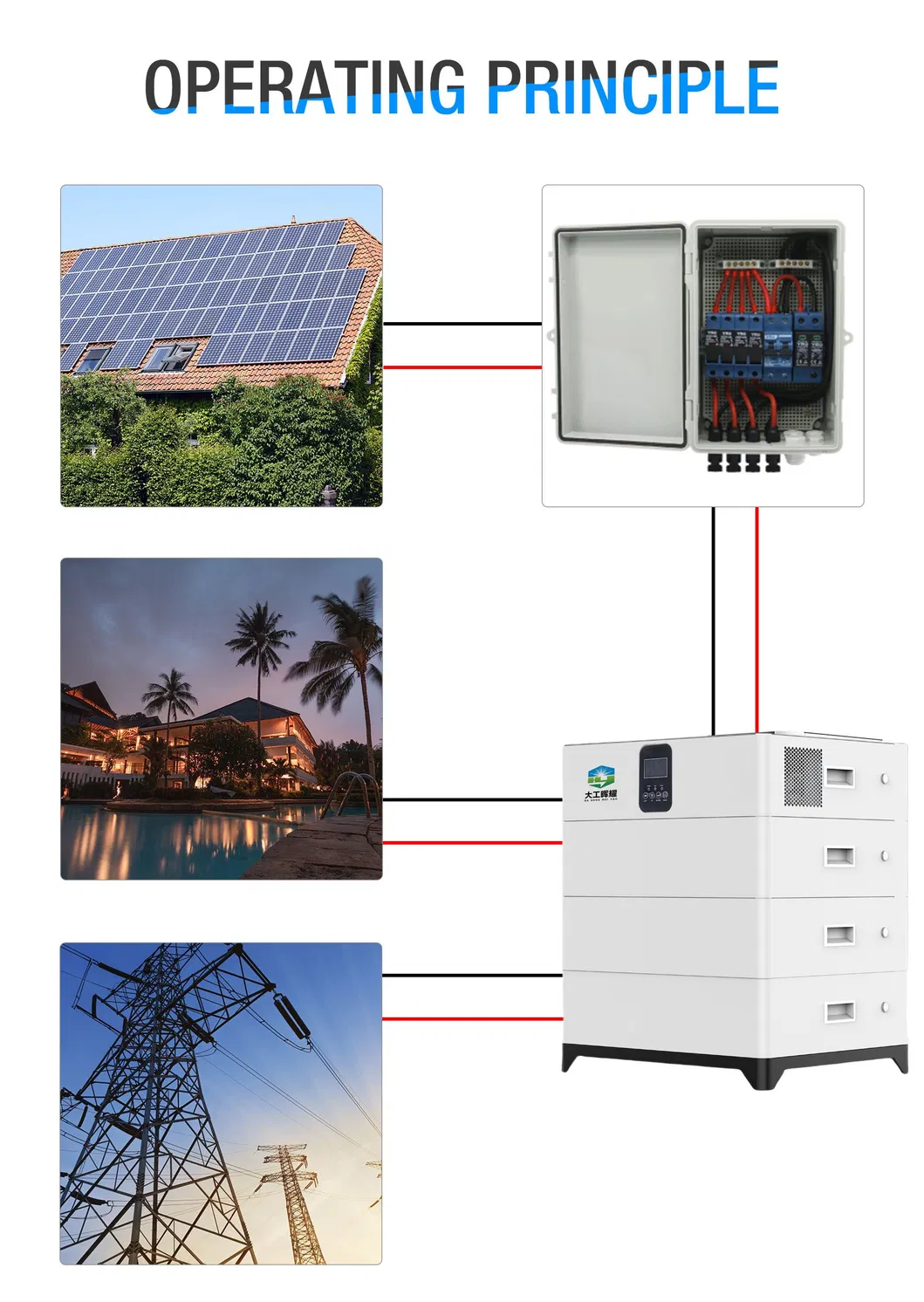

5. Connecting to Power: Integrate into PV, mains, and output supply systems.

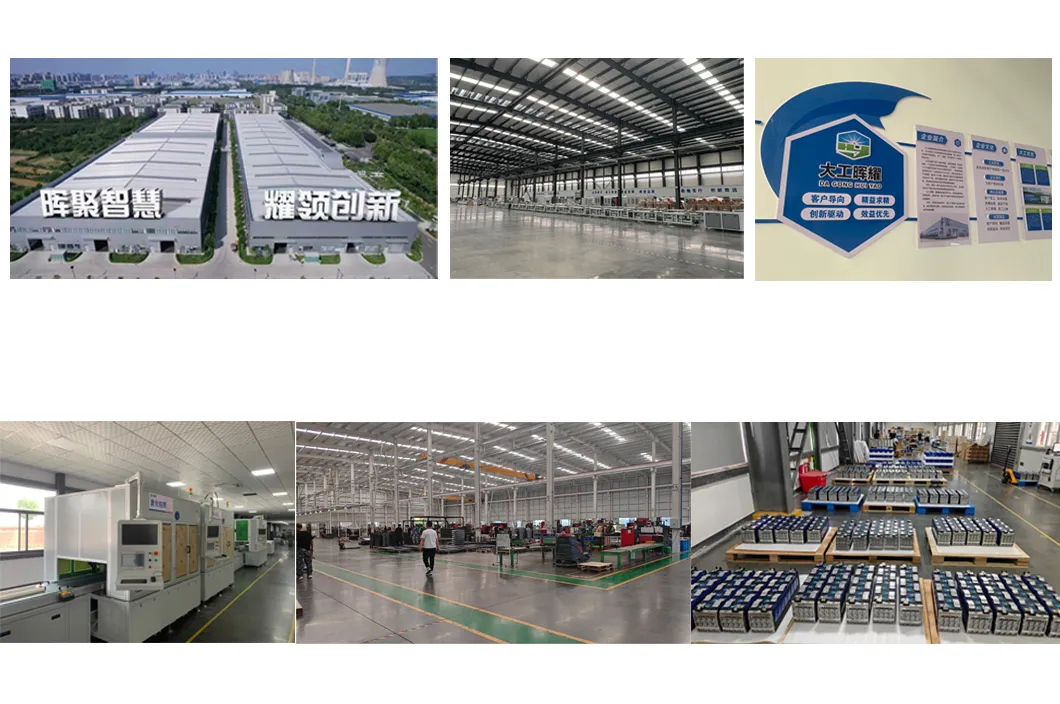

Company Profile
Founded in 2017, we are a professional battery energy storage system (BESS) provider that provides reliable energy storage solutions globally by integrating expertise in electrochemistry, power electronics, and system integration.
With over 20 agents, more than 30 partners, and a factory area exceeding 10,000 square meters, we work hand in hand with our customers toward green development and a sustainable future.
Frequently Asked Questions
Q Are there electrical or mechanical adjustments needed during first-time operation?
The system is pre-set at the factory; no manual adjustment is required as it automatically adapts.
Q What maintenance is required through operations?

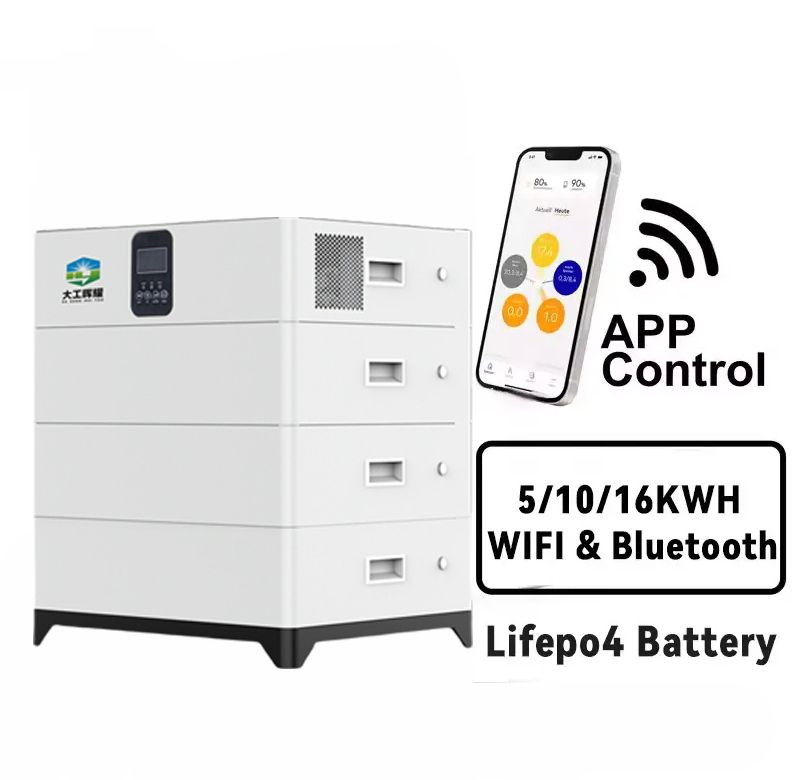

Parameters are fixed during production. You can monitor status via the LCD screen or through an APP using an optional WIFI module.
Q How do I calculate a solar system for 4000 kWh annual consumption?
4000kwh/year ÷ 365 days = ~10.9kwh/day. We determine the panels and batteries based on this daily consumption.
Q What is the primary business focus?
Our focus is on solar energy systems and components, specifically inverters and lithium battery storage.
Q What is the after-sales policy?
Within the warranty period, product defects result in free replacement. Outside of warranty, replacements are offered at a 20% discount.
Q How long is the quoted price guaranteed?
Price quotes are typically guaranteed for a duration of 15 days.
