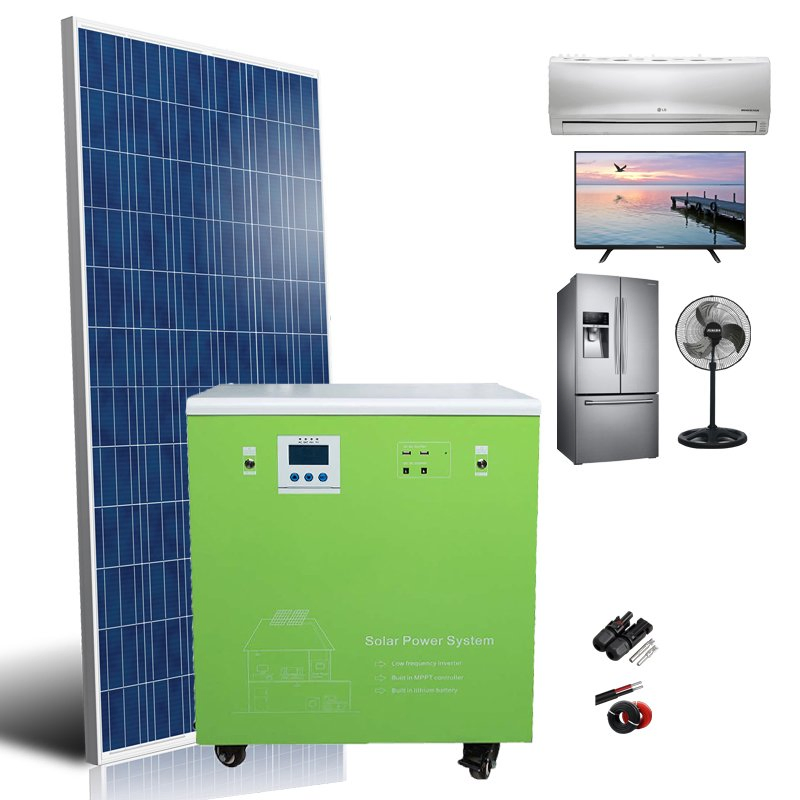

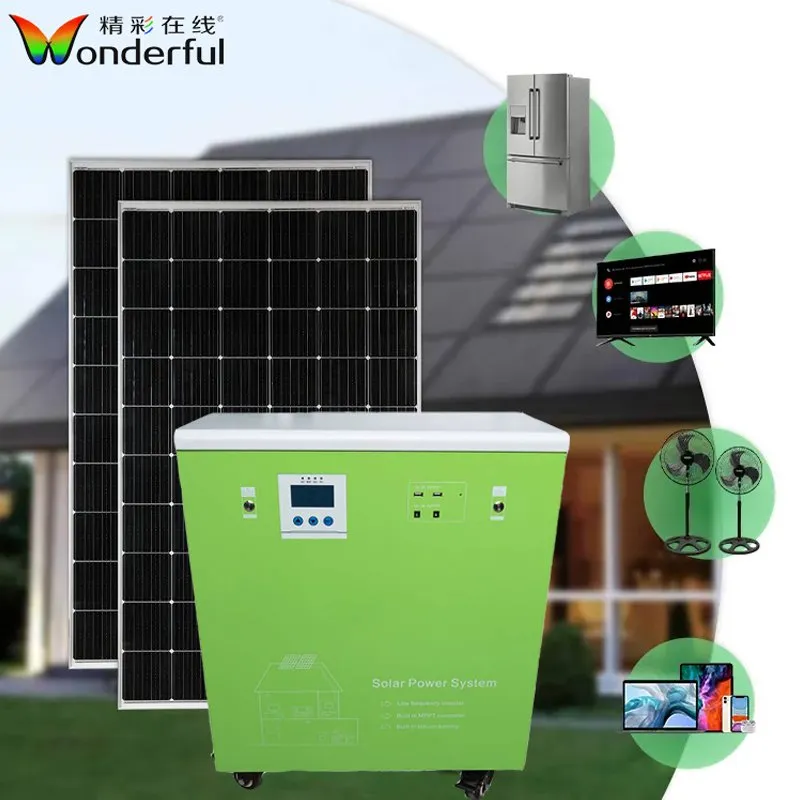

51.2V 100ah Portable Home Battery Energy Storage System Household Solar Energy System

1 / 5

51.2V 100ah Portable Home Battery Energy Storage System Household Solar Energy System

Still deciding? Get samples of $ !

Order Sample

Send Inquiry

Product Description

Overview & Basic Information

Model NO.

WON-SPS-01

Condition

New

Certification

ISO, CB, CE, RoHS

Application

Home, Industrial, Commercial

Rated Power

500W/1.5kw/3kw/6kw

Controller Charging Mode

MPPT

Battery Type

Lead Acid /Lithium Battery/Iron Lithium Battery

AC Input Voltage

165VAC-265VAC

Lifespan of Solar Panel

25 Years

Lifespan of Battery

6 Years

Transfer Time

<=4ms

Efficiency

>85%

Product Description

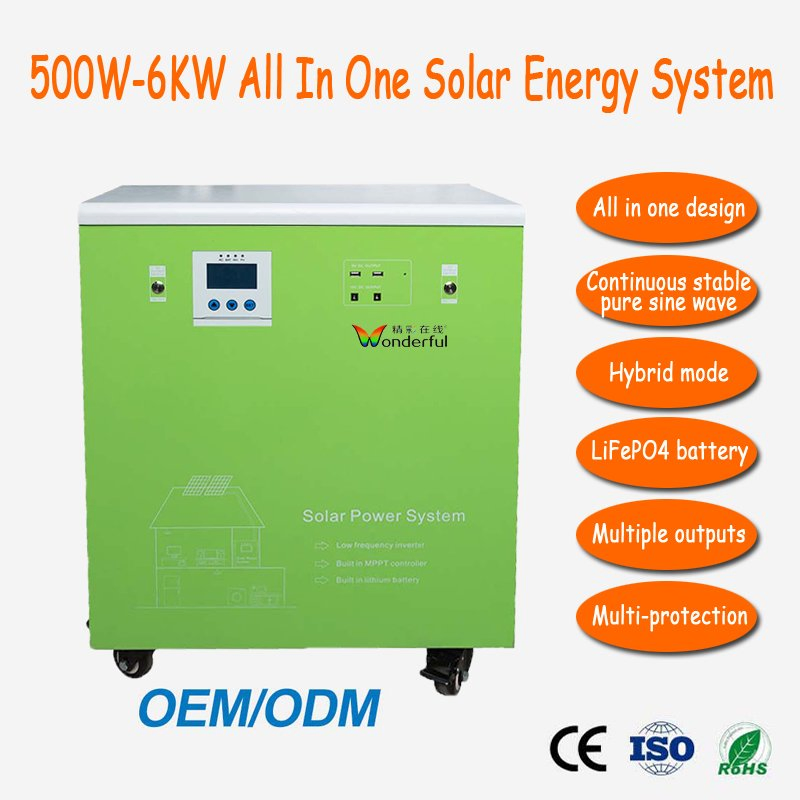

Product Features

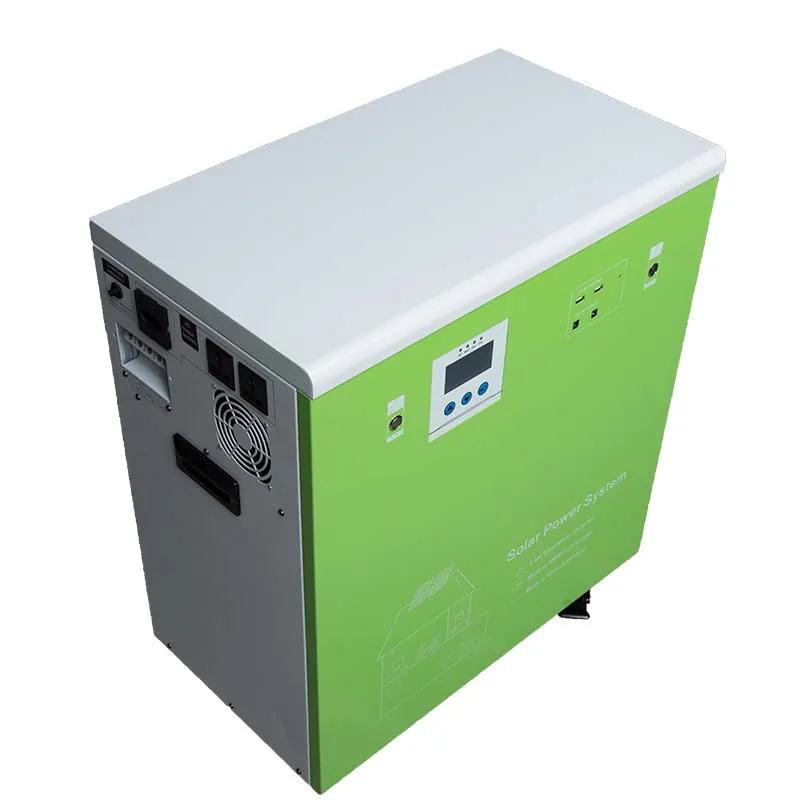

All in one design: inverter, controller and battery all built-in.
Continuous stable pure sine wave: no loss to load.
Hybrid mode: charged by solar and grid (2-3 hours).
LiFePO4 battery: 10 years lifespan.
Multiple outputs: 220V/110V AC, USB DC, 12V DC.
Multi-protection: Overload, overvoltage, high temperature, etc.

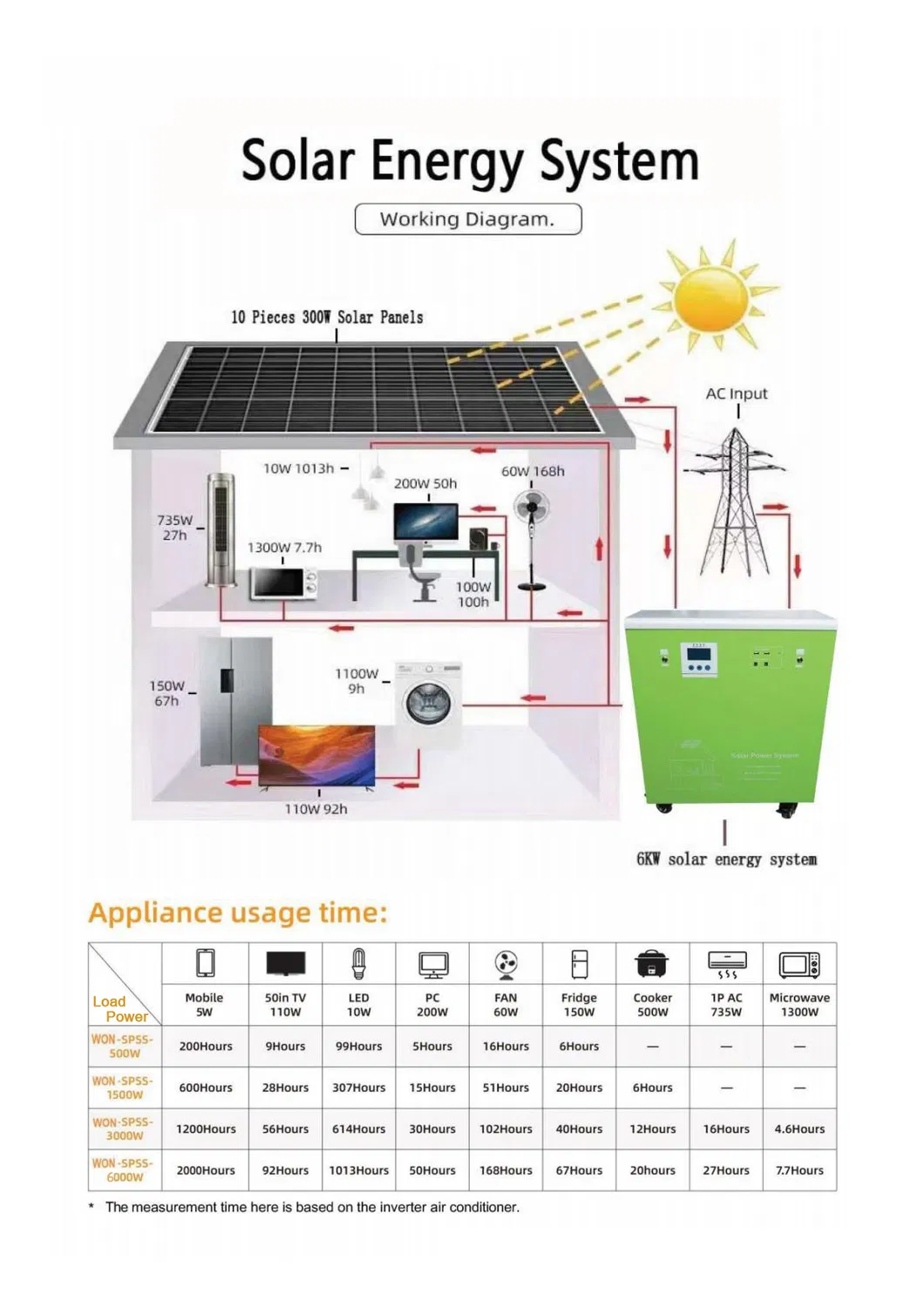

Wiring & Technical Details

Technical Specifications

Model		AP500W	AP1500W	AP3000W	AP6000W
Solar Panel	Optional Panel	100W*2pcs	250W*3pcs	300W*4pcs	300W*8pcs
	Charging Mode	PWM	MPPT	MPPT	MPPT
	Generation/Day	700WH	2600WH	4200WH	8400WH
	Weight	10KG/pc	16KG/pc	19KG/pc	19KG/pc
Integrated System	Battery Capacity	640WH	2176WH	4352WH	8704WH
	Rated Power	500W	1500W	3000W	6000W
	Product Size	430*235mm	585*310mm	585*310mm	680*315mm
	Net Weight	22KG	40KG	55KG	98KG

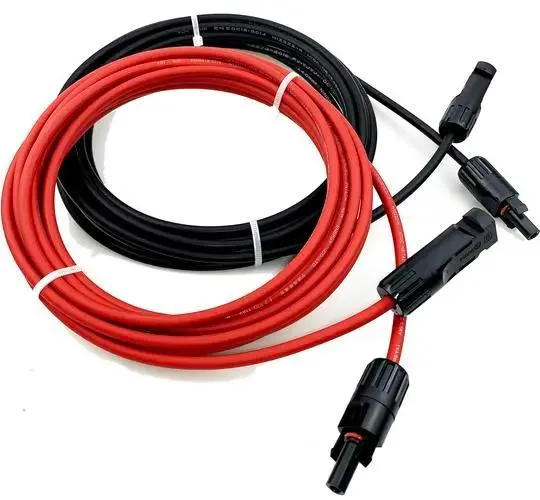

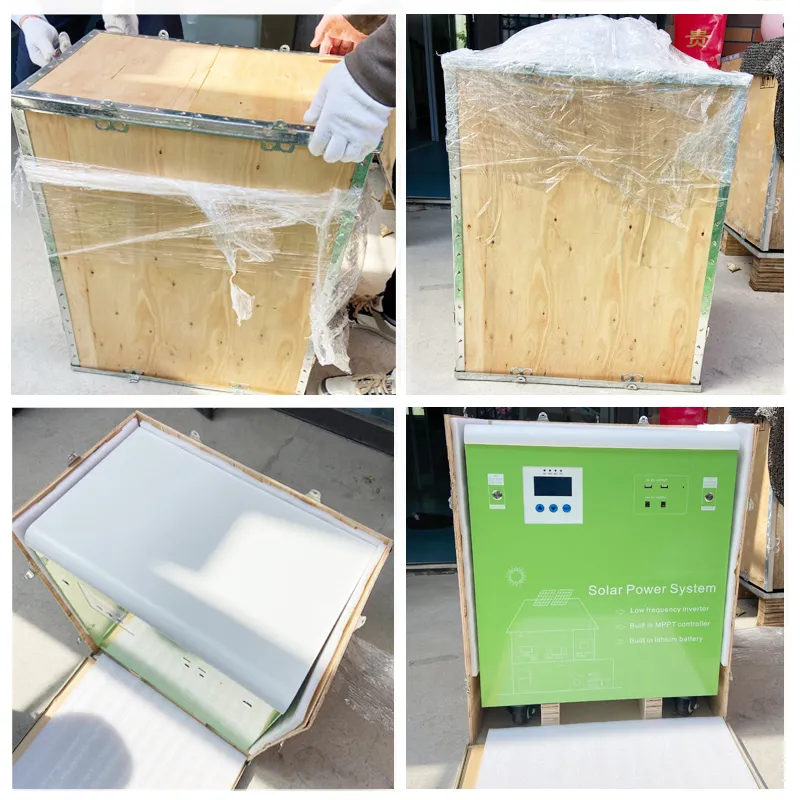

Components & Packaging

Frequently Asked Questions

1. What are the key features of this solar energy system?

The system features an all-in-one design with the inverter, controller, and battery built-in for easy installation. it provides stable pure sine wave output and supports hybrid charging from both solar and the AC grid.

2. What types of batteries are compatible with the system?

The system is designed to work with Lead Acid, Lithium, and Iron Lithium (LiFePO4) batteries. The built-in LiFePO4 battery options offer up to a 10-year lifespan.

3. How long does it take to charge the system?

In hybrid mode, the system can be charged by both solar panels and the grid. Typical charging time via the AC grid is approximately 2 to 3 hours.

4. What is the expected lifespan of the components?

The solar panels have a lifespan of approximately 25 years, while the internal battery system is rated for around 6 to 10 years depending on the battery type and usage.

5. What safety protections are included?

The system includes comprehensive automatic protections for overload, overvoltage, low voltage, high temperature, and short circuits, complete with LCD display alarms.

6. Can this system be used for industrial applications?

Yes, the system is versatile and suitable for home, industrial, and commercial applications, with rated power options ranging from 500W up to 6000W.
