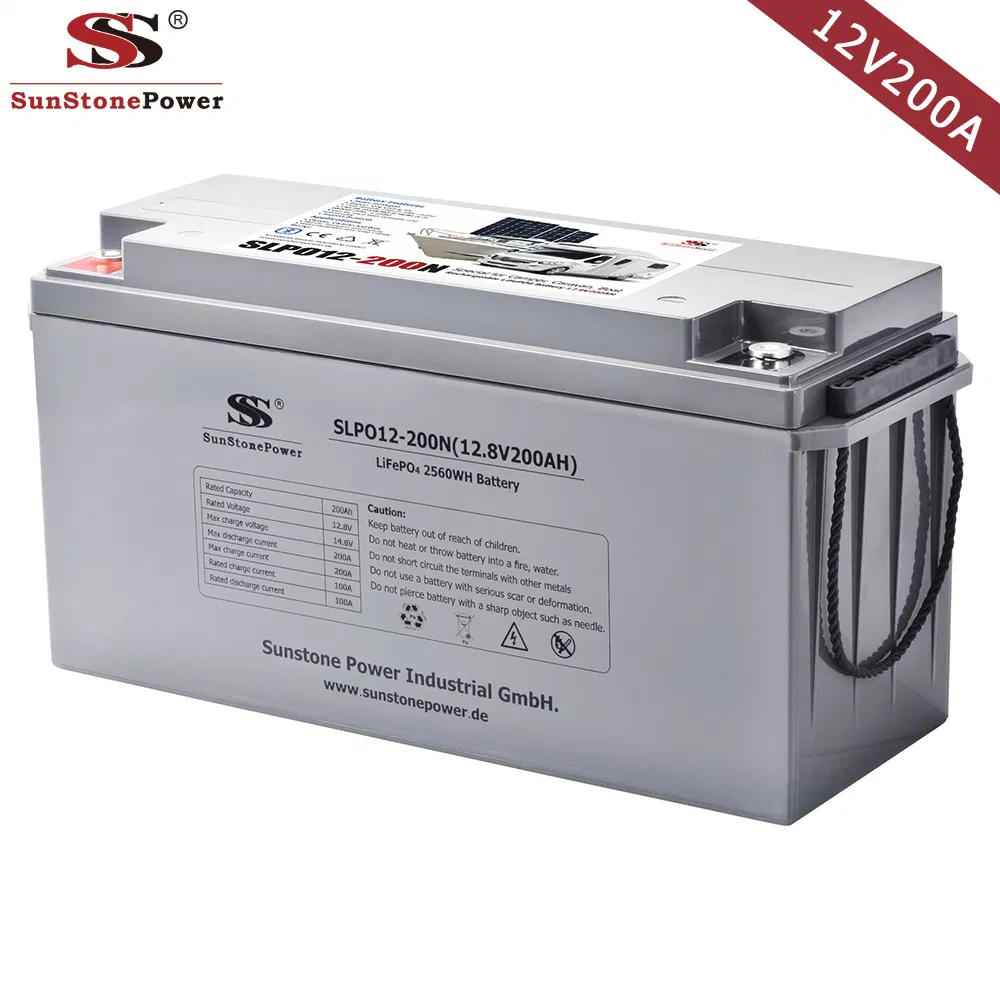

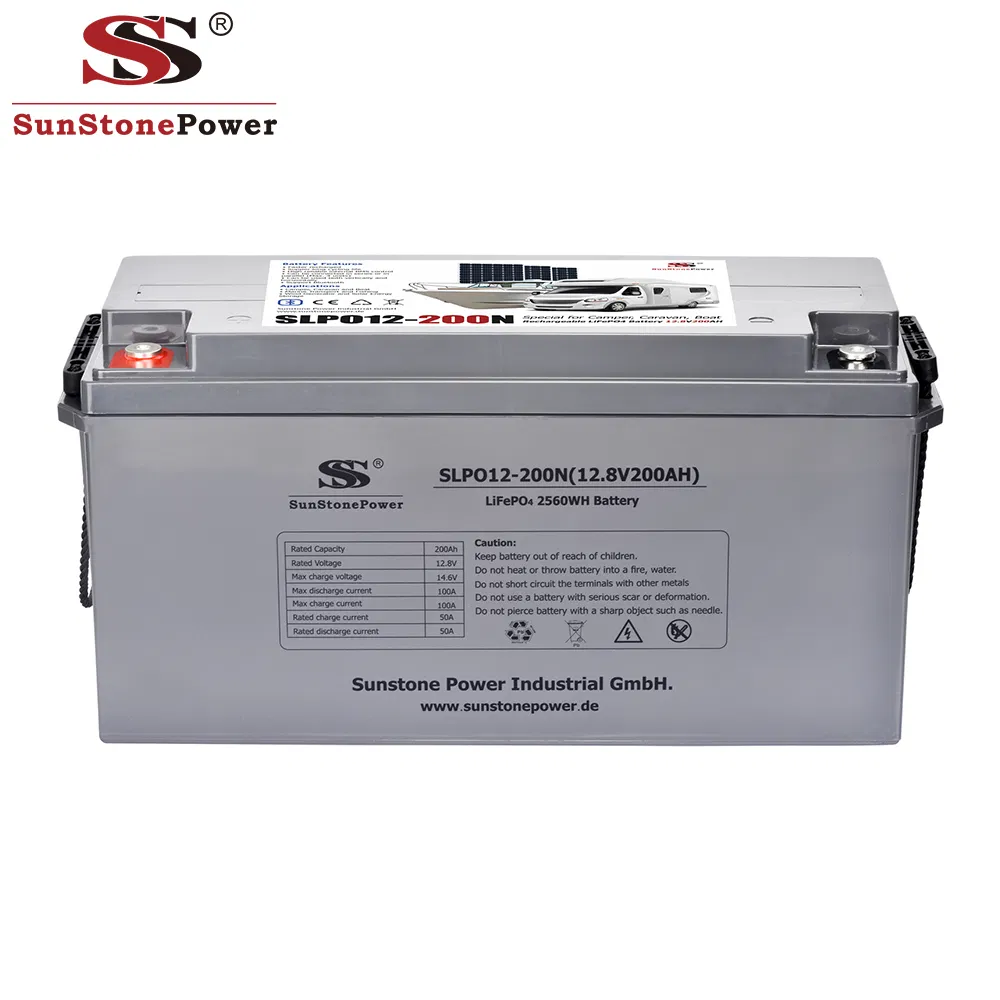

Lithium Ion 12.8V200ah LiFePO4 Smart BMS Bluetooth Connection Solar Storage Battery

Customization: Available
Nominal Voltage: 12V
Warranty: 3 Years

Product Description

📋 Basic Info.
Model NO.SLPO12-200N
Nominal Capacity200Ah
Cycle Life6000 Cycles
ShapePrismatic Cell
Rated Voltage12V
Dimension483*170*240mm
Weight20kg
Design Life10 Years
BMSIntelligent Integrated Management System
StandardCE, IEC, UN38.3
🔋 Product Description

SLPO series is a LiFePO4 (lithium iron phosphate) battery pack for backup power applications. The battery pack adopts advanced LiFePO4 technology with advantages of long cycle life, small size, lightweight, safety, and environmental protection. It features strong environmental adaptability and Bluetooth functionality, allowing users to check detailed battery status via a mobile app.

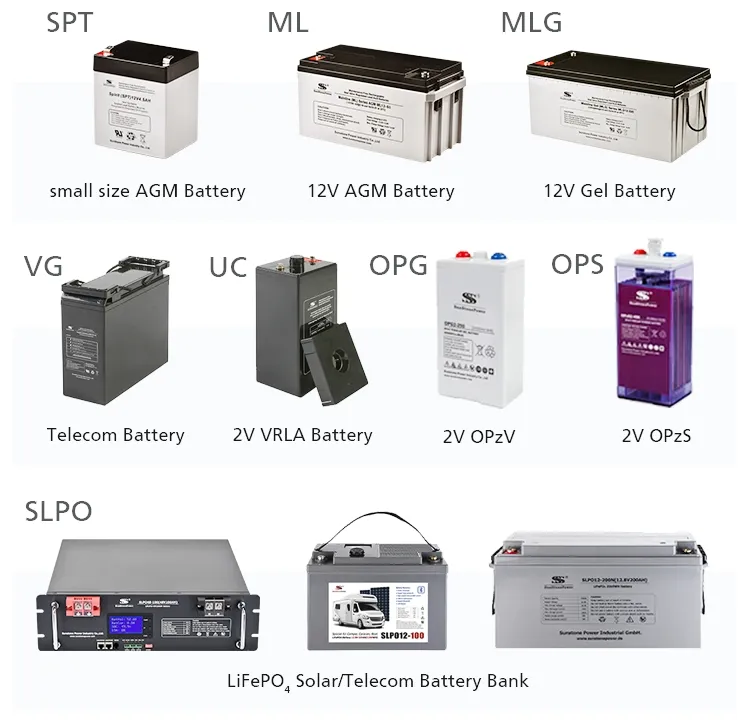

LiFePO4 Solar Battery
📊 Product Specification
ModelSLPO12-200N (12V 200AH Lithium battery)
Capacity(0.5c)200Ah
Related Voltage3.2V per cell
Battery MaterialLiFePO4
Cycle Life6000 times @ 80% depth of discharge
Connecting allowedMax. 4pcs in series or Max. 4pcs in parallel
Warranty3 Years, plus lifetime technical supporting
Charging voltage14.4V±0.2V
Peak discharge current100A
DOD Discharge rate100%
Key Features
01Super Long Cycle Life
Over 6000 cycles at 80% DOD for circular usage.
02Fast Charge Capability
Charging capability up to 50A for quick turnaround.
03Low Self Discharge
<1% per month at 25ºC ensures energy retention.
04Eco-Friendly
Nonpolluting, no acids, and no hazardous substances like lead or cadmium.
05High Safety
No risk of fire or explosion under collision. Built-in Smart BMS protection.
06Maintenance-Free
Completely maintenance-free throughout the entire battery lifetime.
📸 Detailed Photos

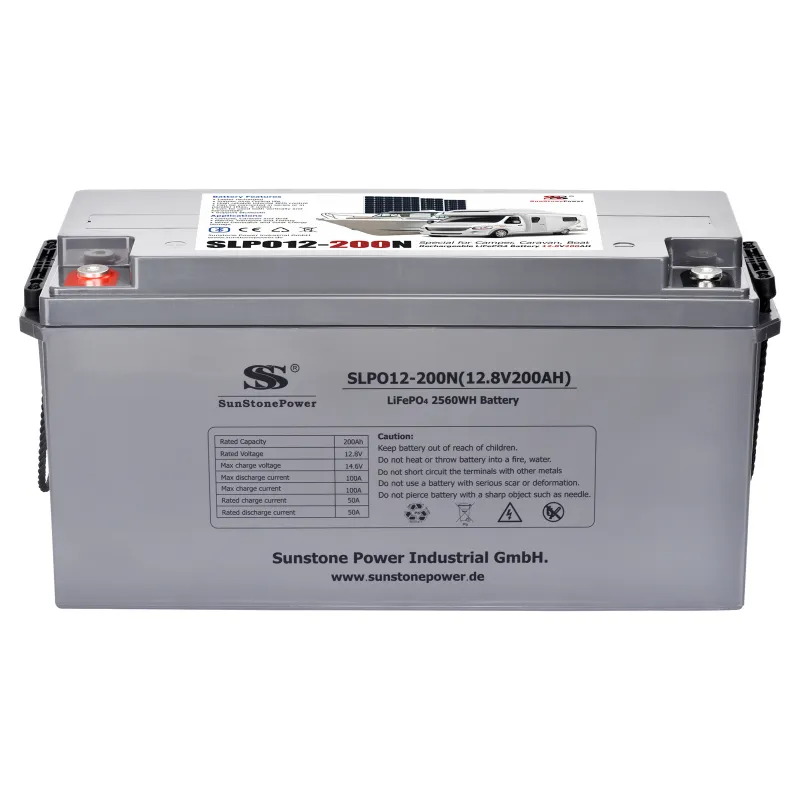

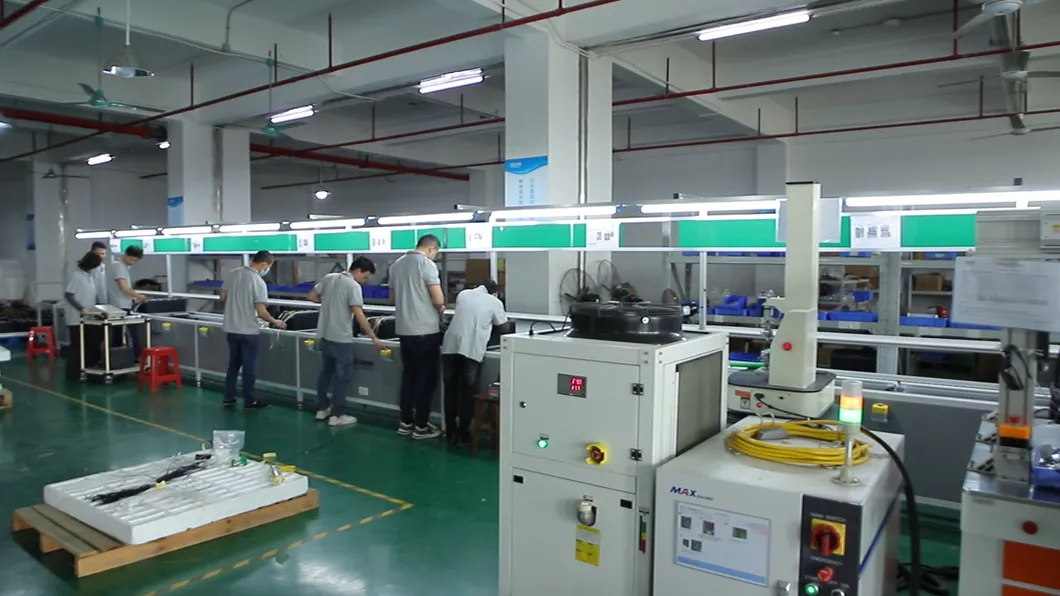

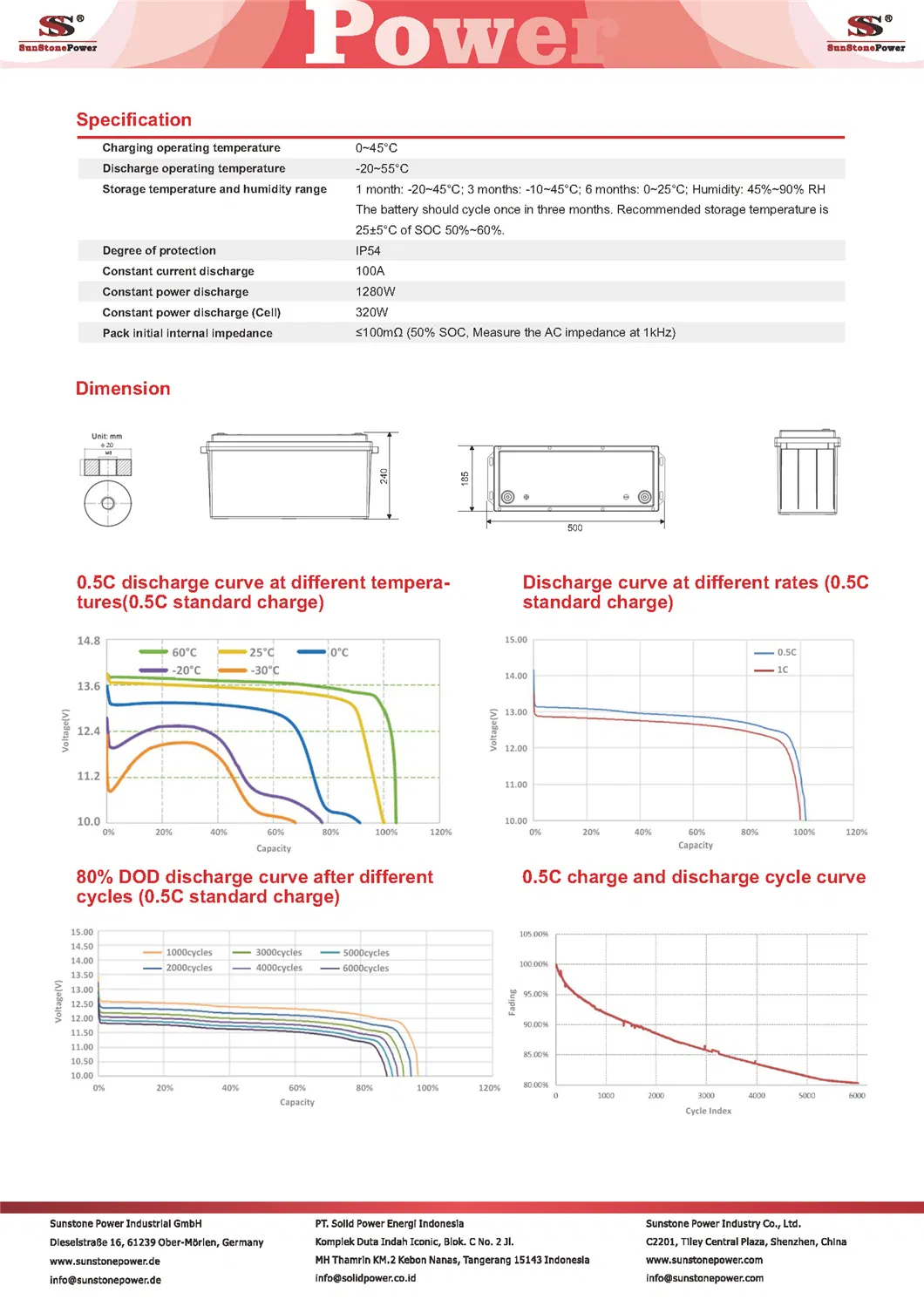

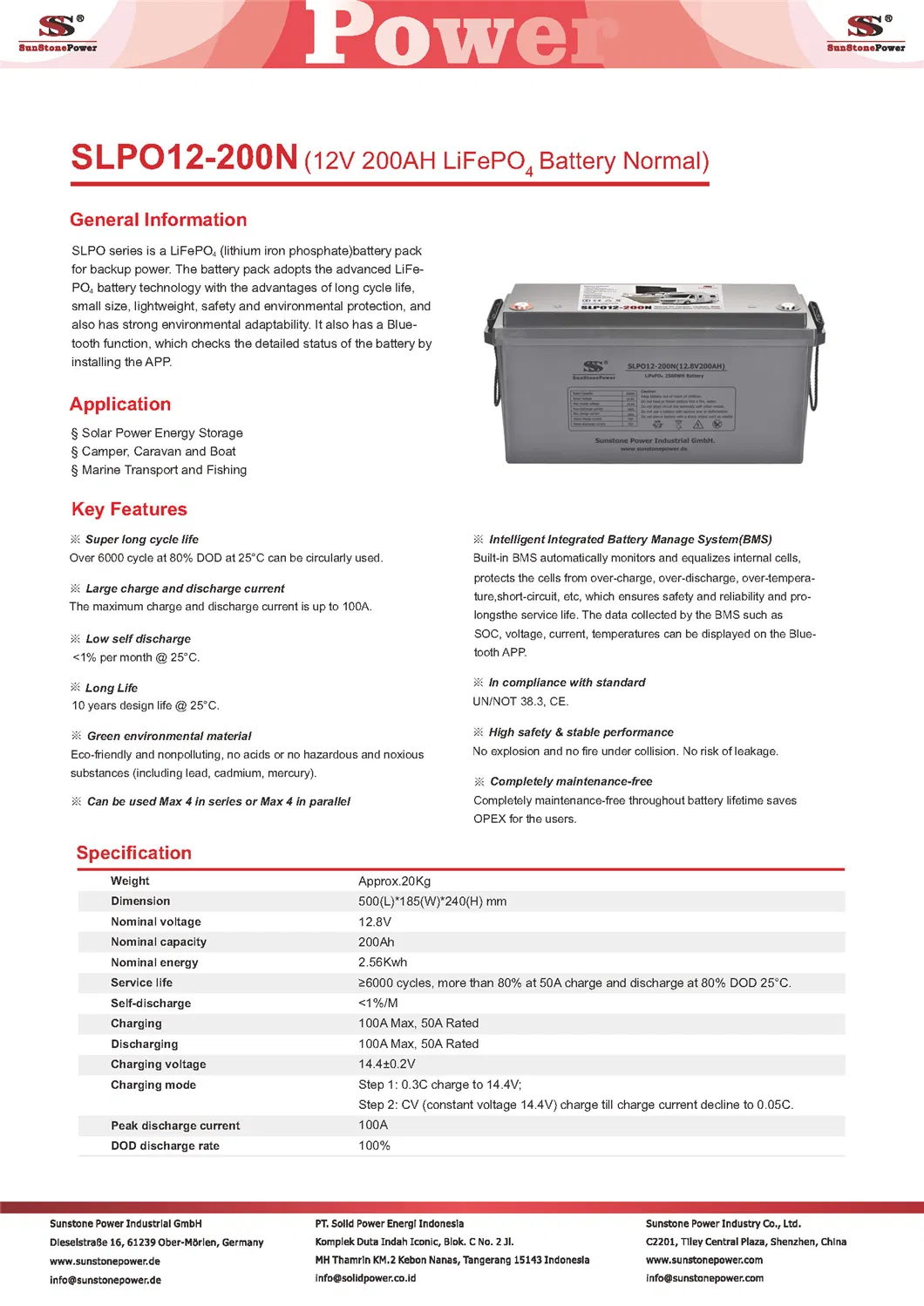

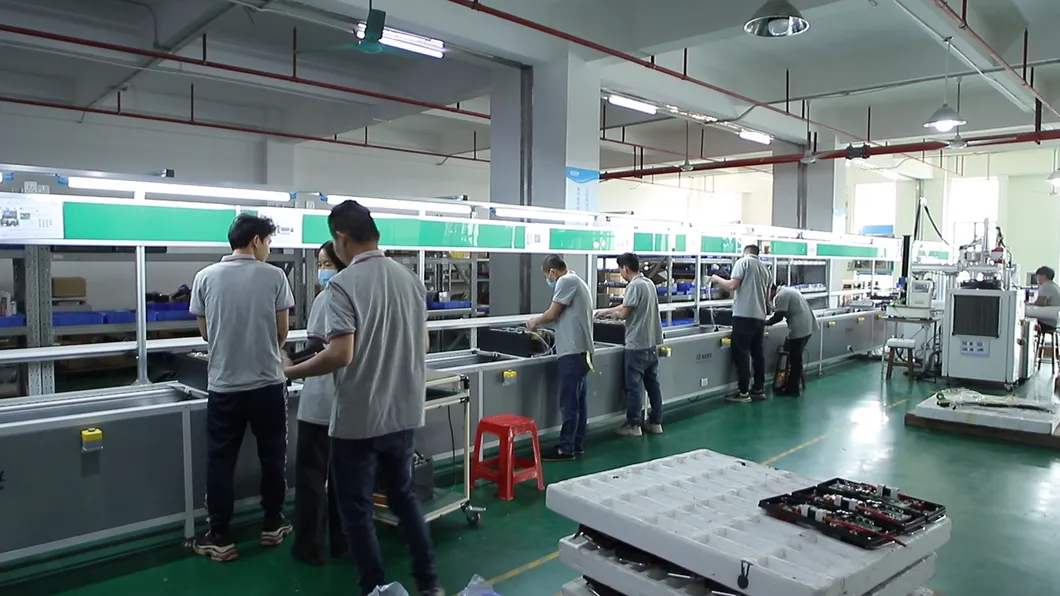

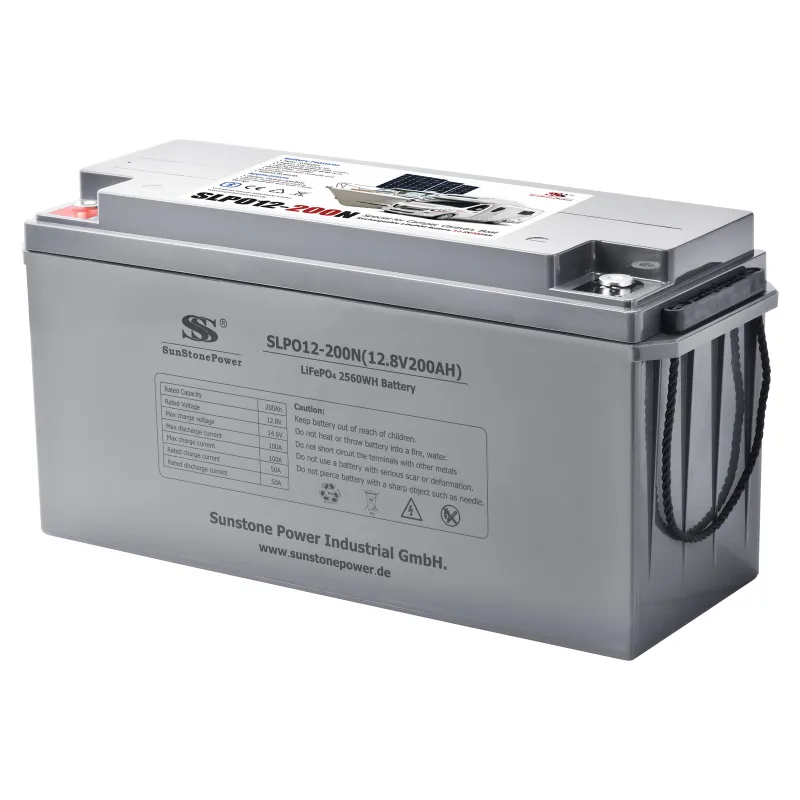

Battery Specification 1 Battery Specification 2 Battery Detail 1 Battery Detail 2 Application View 1 Application View 2
🛡️ Quality & Certifications

As a leading manufacturer and exporter of lithium batteries since 2003, we maintain professional facilities covering 70,000 square meters. Our production is ISO9001 and ISO14001 approved, ensuring the highest standards of quality control and manufacturing excellence.

Certificates

Our products have obtained globally recognized certificates including CE, IEC, VDS, and RISTI.

FAQ
1. What is the expected cycle life of this battery?
The SLPO12-200N offers over 6000 cycles at 80% Depth of Discharge (DOD), providing a design life of approximately 10 years at 25°C.
2. Can I connect these batteries in series or parallel?
Yes, you can connect a maximum of 4 pieces in series or 4 pieces in parallel. Note that you should not mix series and parallel connections in the same system.
3. How does the Bluetooth function work?
The battery includes a smart Bluetooth connection that allows you to monitor SOC (State of Charge), SOH (State of Health), voltage, and temperature through a dedicated smartphone application.
4. What kind of protection does the built-in BMS provide?
The Intelligent Integrated BMS protects internal cells from over-charge, over-discharge, over-temperature, and short-circuits, while also balancing each cell to prolong battery life.
5. Is the battery safe for indoor use?
Yes, LiFePO4 technology is highly stable. There is no risk of leakage, explosion, or fire even under collision, and it contains no hazardous substances.
6. What is the charging time and efficiency?
The battery supports fast charging up to 50A rated (100A max). It features very low self-discharge (less than 1% per month), making it highly efficient for solar storage.
