Sliver Battery
1 / 5

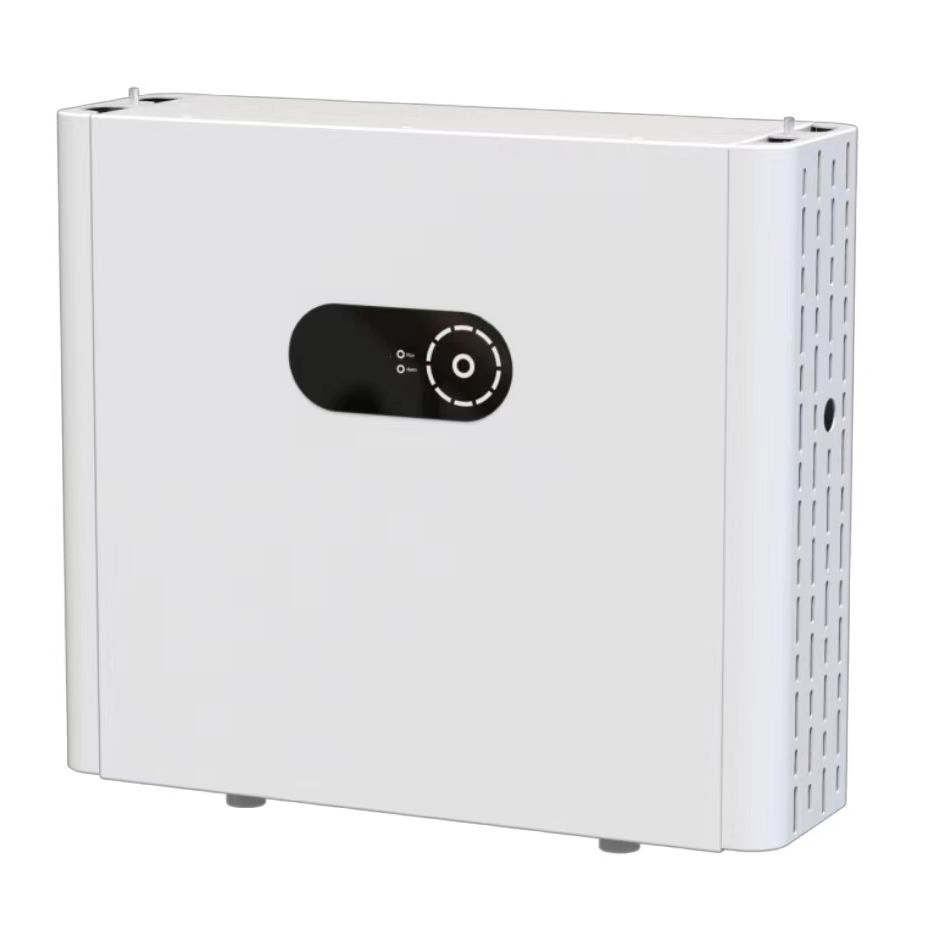

YC10-F5 LV Series battery system adopts home design style, equipped with human-computer interaction interface, is composed of 100Ah module, supports a maximum of 20 parallel groups, and the capacity can be expanded to 102kWh. The system can be matched with mainstream brands of inverters and applied to grid-connected, off-grid, photovoltaic and all kinds of green and low-carbon applications of new energy household energy storage systems.
| Cell Type | LFP |
| Nominal Voltage | 51.2V |
| Operating Voltage Range | 45.0-56.4V |
| Available Energy | 5.12kWh |
| Max. Output Power | 5kW |
| Max. Charging Current | 50A |
| Max. Discharge Current | 100A |
| General Specifications | |
| Dimensions [W*H*D] | 590*510*177mm |
| Weight | 50Kg |
| Communication | CAN/RS485 |
| Installation | Floor/Wall Hanging |
| Operating Temperature | Charge: 0~50ºC; Discharge: -20~50ºC |
| Scalability | 1~20 Parallel Units |
| Safety & Standards | |
| Certification | IEC 62619, CE-EMC, UN38.3 |
| Enclosure Rating | IP65 |
| Matching Inverter | Deye, Growatt, Goodwe, Victron, Sofar, SMA, SRNE, LUX, Solis, TBB, Soruide, Megarevo, Sungrow, Afore, Sacolar, SMK solar, Voltronic |
Appearance in stamping process, molding at a time for a sleek, modern home aesthetic.
Matches 20+ mainstream brand inverters; Bluetooth and mobile app for real-time battery status monitoring.
Utilizes 100Ah LFP Prismatic Cells, ensuring the highest standards of safety and reliability.
Ultra-long cycle cells with a design life of 15 years and cycle counts up to 6000 times.
Supports anti-theft modules, fire modules, and LCD monitoring modules for customized setups.
