Sliver Battery
1 / 5
| Model NO. | LD-005 |

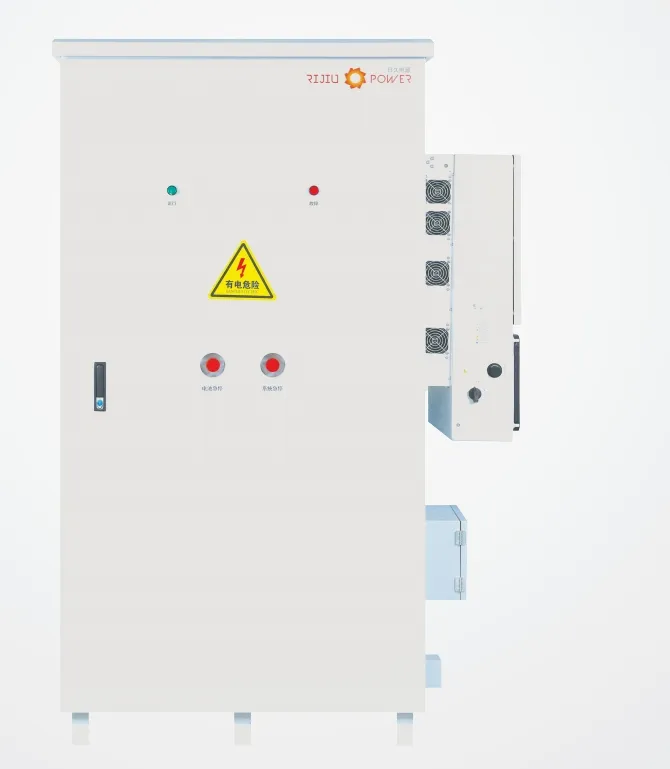

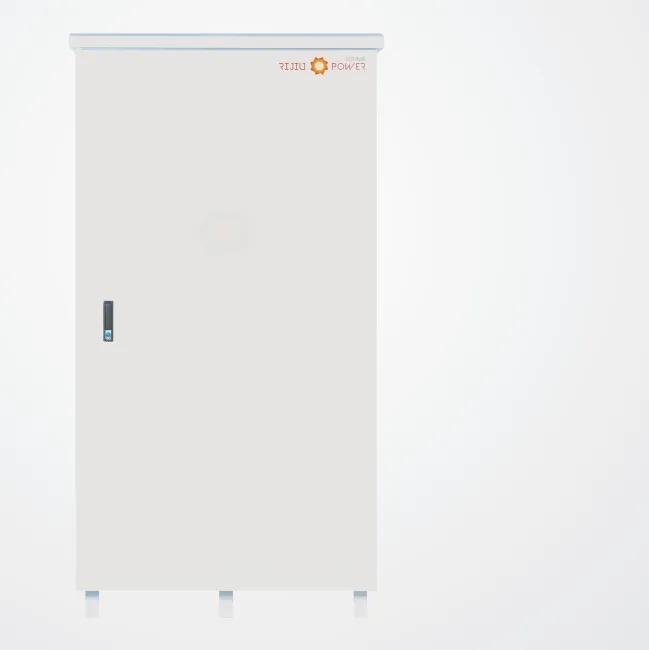

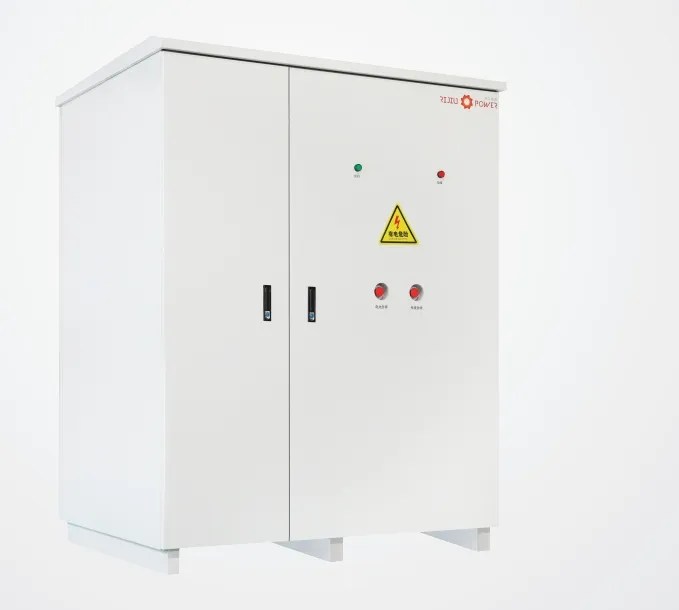

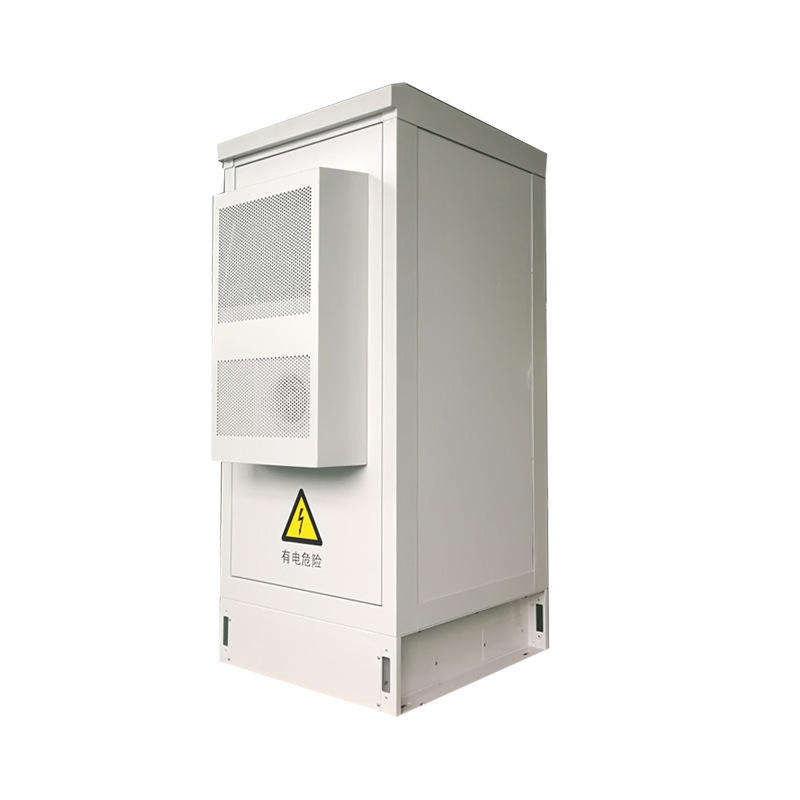

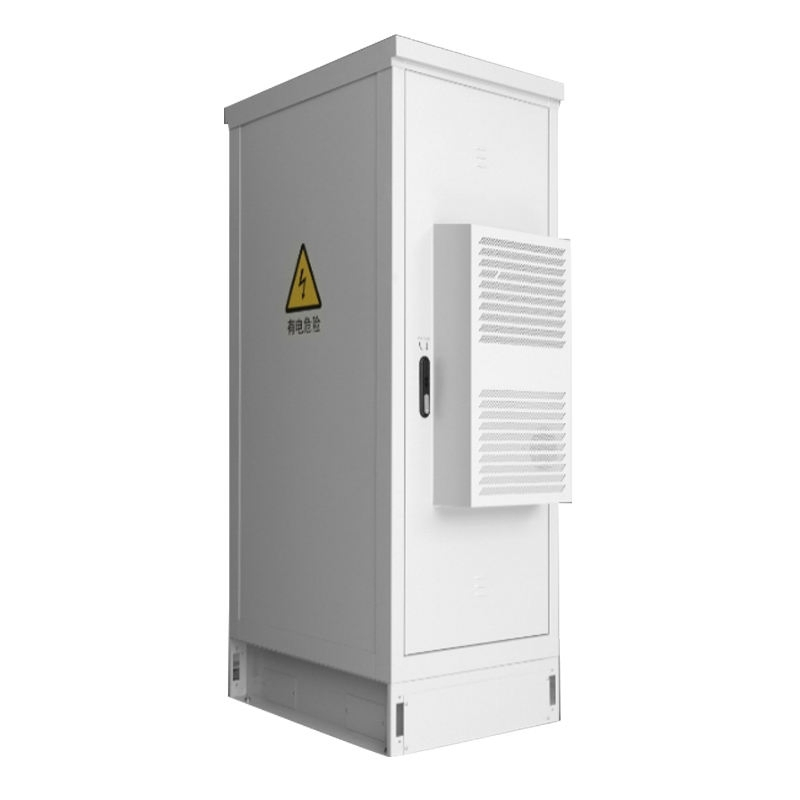

| Product Name | Solar-storage integrated machine |
| Cell Type | LFP(LiFePO4) |
| Rated Capacity | 314Ah |
| Rated Energy | 241kWh |
| Rated Voltage | 768VDC |
| Maximum Charging Voltage | 840VDC |
| Discharge Cut-off Voltage | 648VDC |
| Human-Computer Interaction | Internet of Things + APP |
| Communication Interface | CAN/RS485 |
| Protection Level | IP55 |
| Corrosion Resistance Grade | C4 (C5 Optional) |
| Fire Protection Rating | Aerosol |
| Working Temperature | 25℃ ± 5℃ |
| Operating Temp (Charging) | 0℃ - 55℃ |
| Operating Temp (Discharging) | -20℃ - 60℃ |
| Number of Cycles | > 6000 times |
| Dimensions (WxHxD) | 1545 x 2045 x 1435 mm |
| Weight | 2350kg |
Safety Foundation: GB44240-2024 "Safety Requirements for Lithium Batteries and Battery Packs Used in Electric Energy Storage Systems", applicable to the battery system in energy storage integrated machines, mandatory requirements for overcurrent, overtemperature, and short-circuit protection.
In a microgrid system, the integration of photovoltaic and energy storage is the core for achieving efficient off-grid operation. This system achieves a multi-level and adaptive power supply system through the dynamic coordination of photovoltaic and energy storage: when there is sufficient sunlight, photovoltaic power is prioritized to meet the load demand, and the surplus electricity is intelligently stored in batteries; when sunlight is insufficient, the energy storage battery responds immediately and precisely releases the stored energy to ensure seamless power supply.
| Package Size | 1545.00cm * 2045.00cm * 1435.00cm |
| Package Gross Weight | 2350.000kg |
| Application Scenarios | Industrial parks, zero-carbon parks, production-oriented factories, green transportation, commercial services, data centers. |

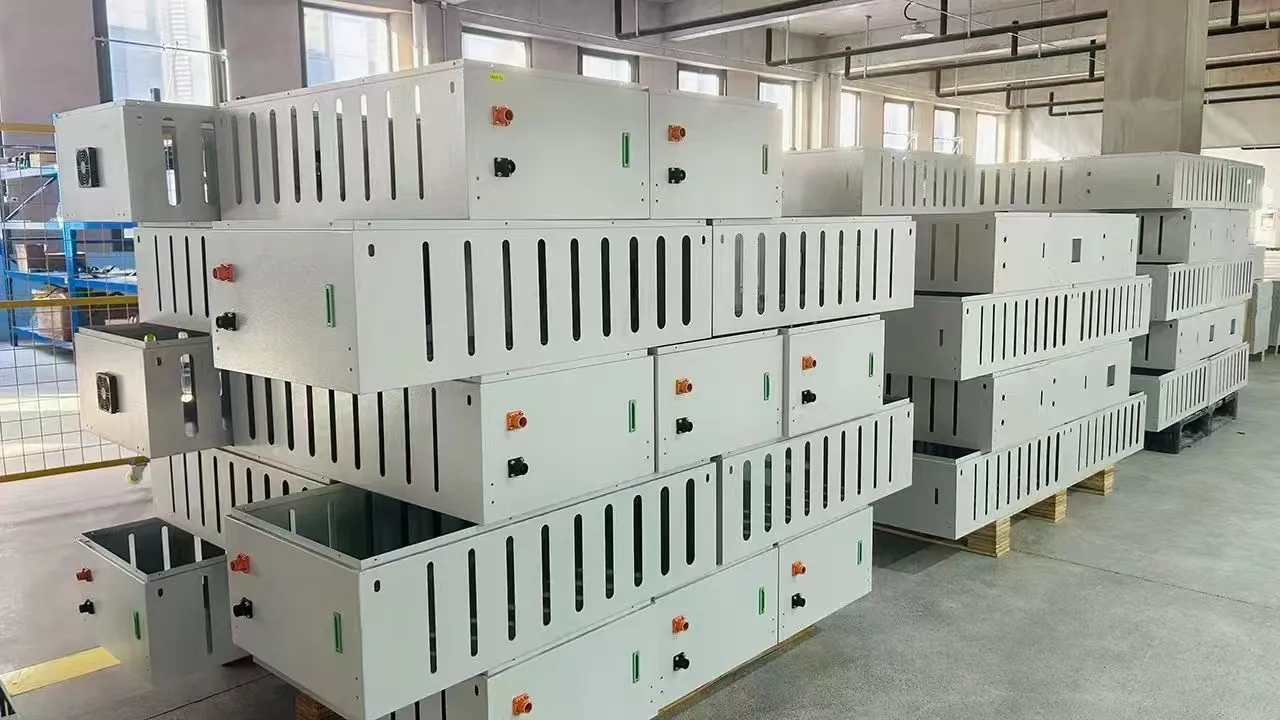

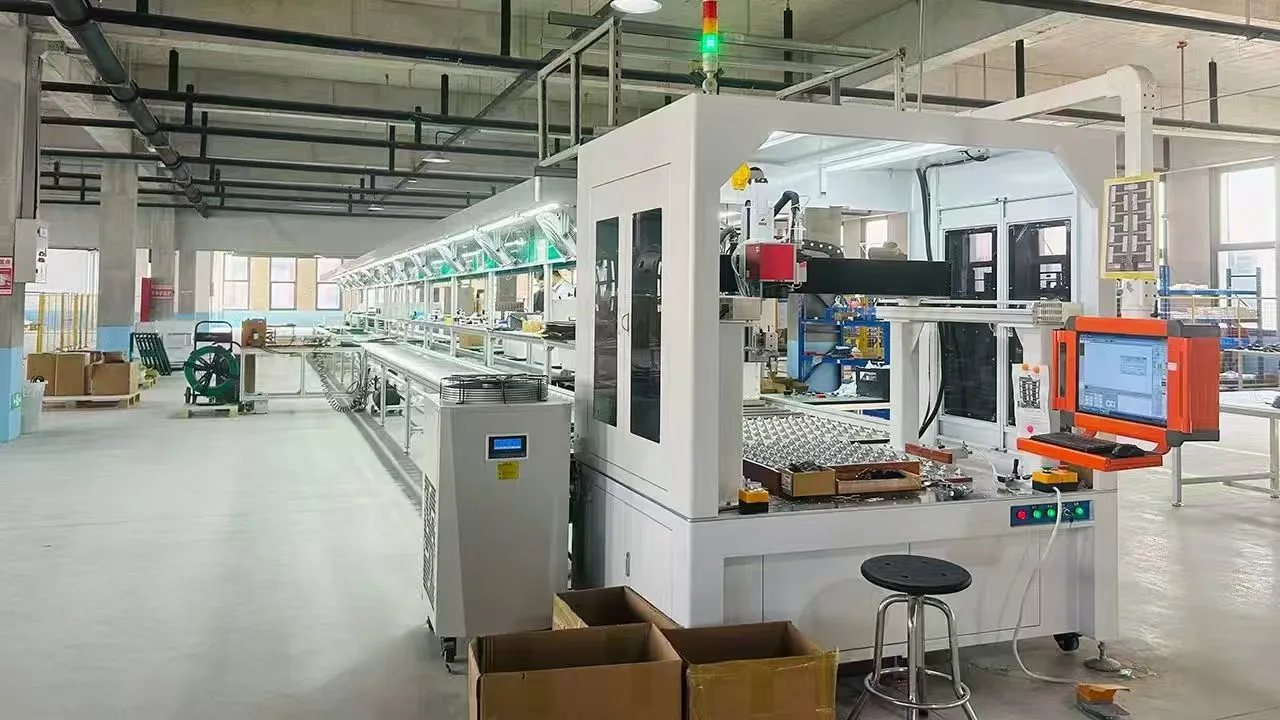

Professional Introduction: Having been deeply engaged in manufacturing for many years, we have always taken quality as the foundation and focused on industrial upgrading. In response to the green development trend, our company has strategically ventured into the photovoltaic energy storage field, forming a dual-track development pattern. Relying on mature supply chain management experience, we combine the rigor of traditional manufacturing with the efficiency of new energy to provide reliable and environmentally friendly products.
Value-Oriented Philosophy: Adhering to the development philosophy of "pragmatic innovation and green win-win", we have accumulated solid production management and market service experience. We are dedicated to providing customers with efficient, stable, and environmentally friendly photovoltaic energy storage equipment.
