📋 Basic Information
Inverter Type
Pure Sine Wave Inverter
Battery Type
Lead-Acid, Lithium Ion (LiFePO4)
Solar Panel
Monocrystalline Silicon
System Type
Hybrid System AC

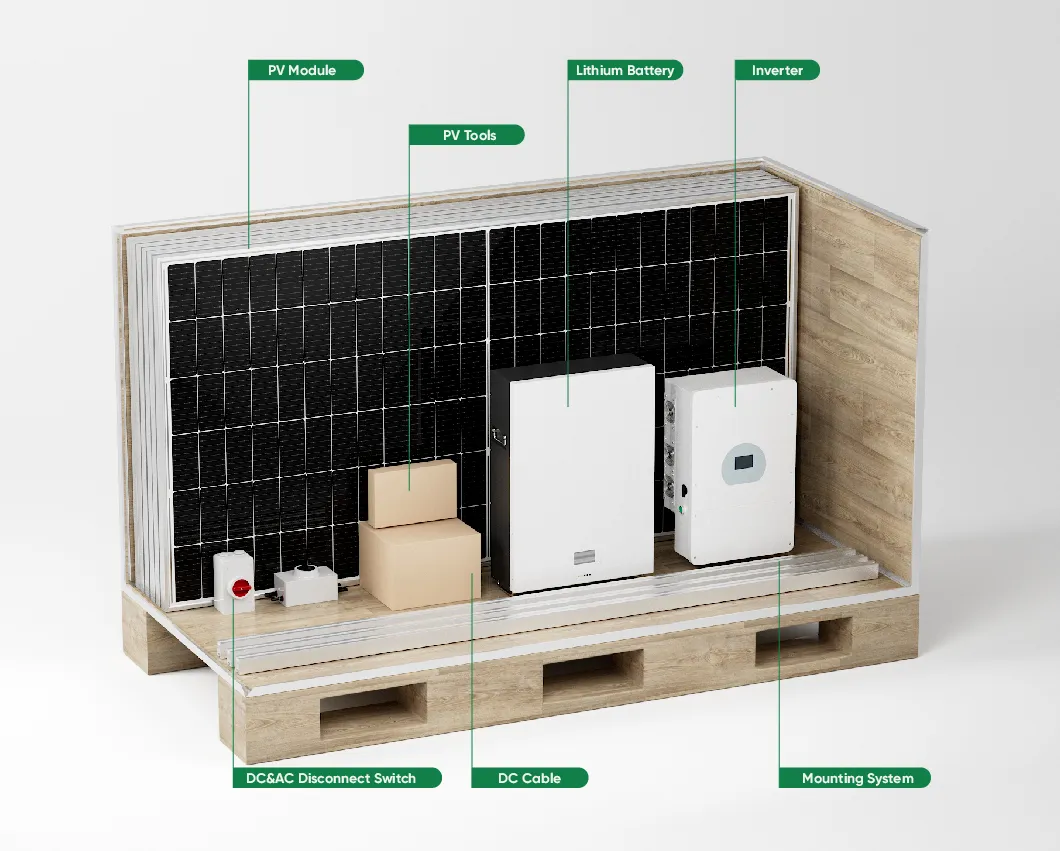

Package
Standard Wooden Box
🔍 Product Description

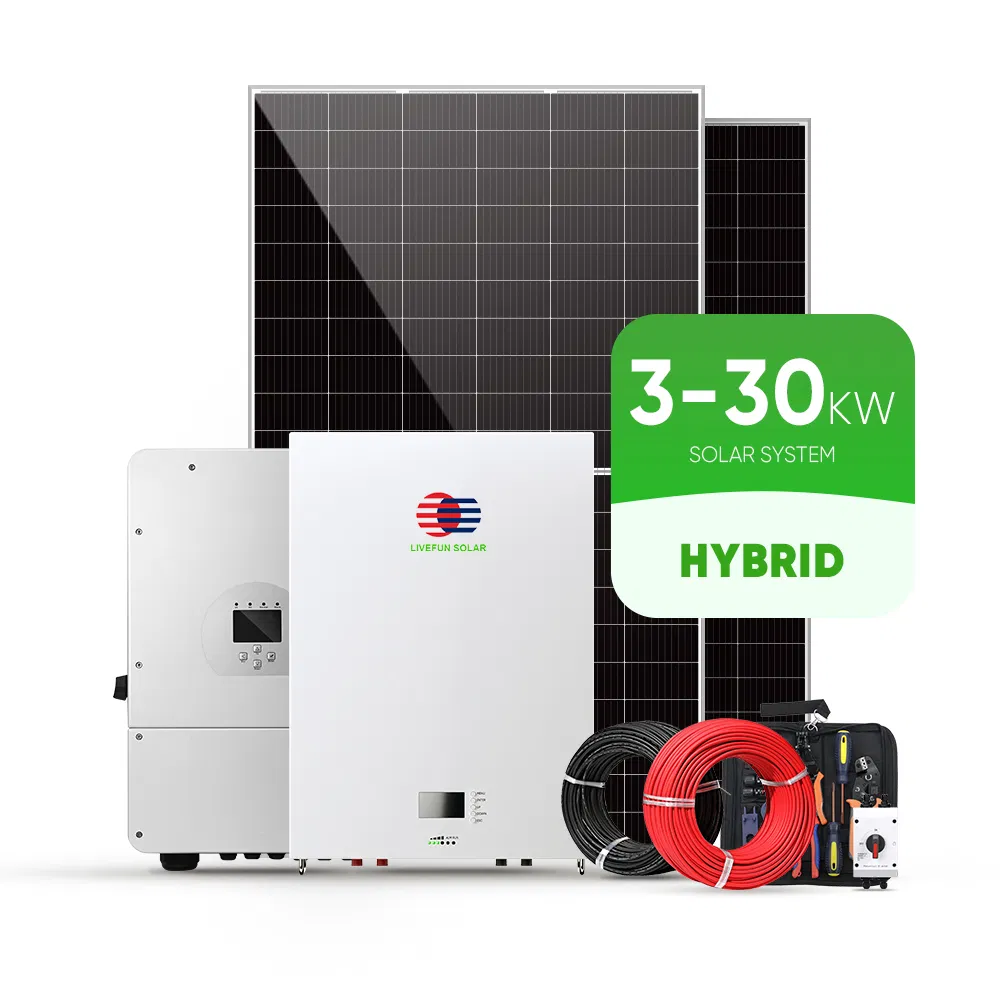

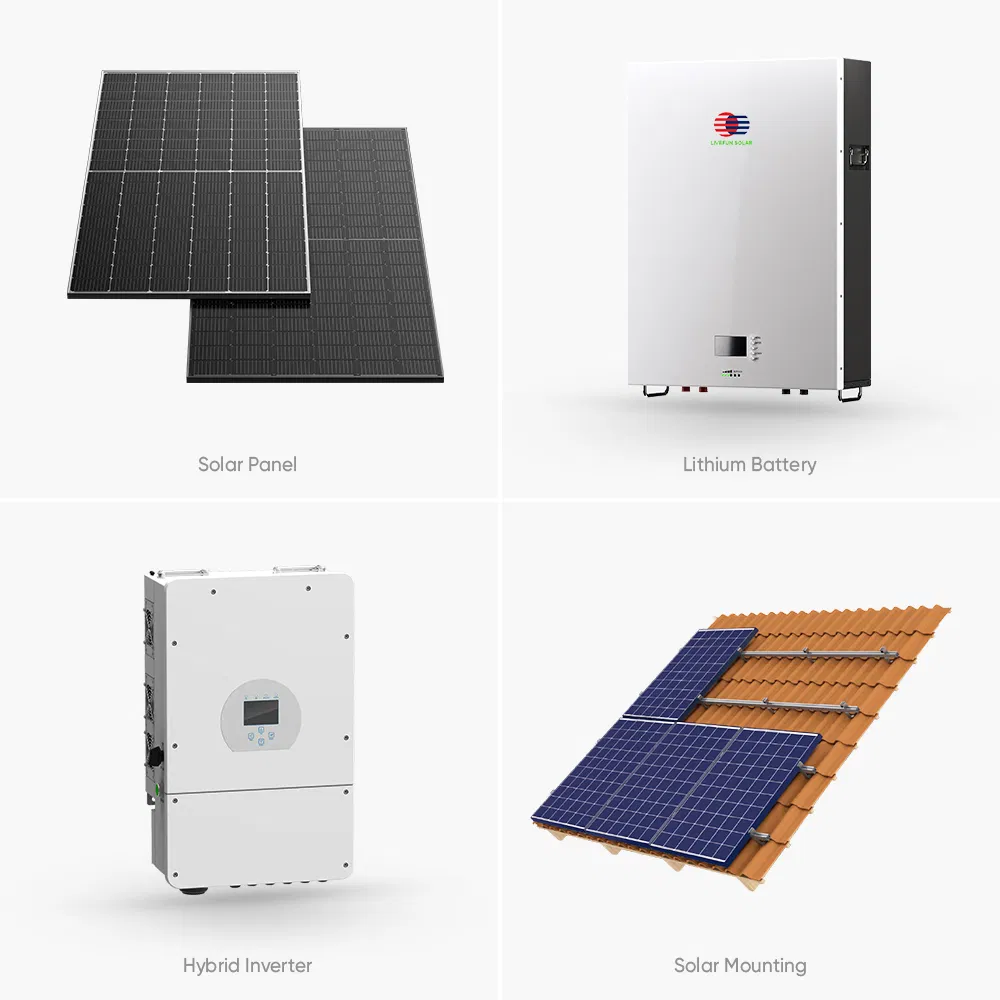

Household Hybrid Grid Tied Solar Energy System Kit with Solar Storage Battery

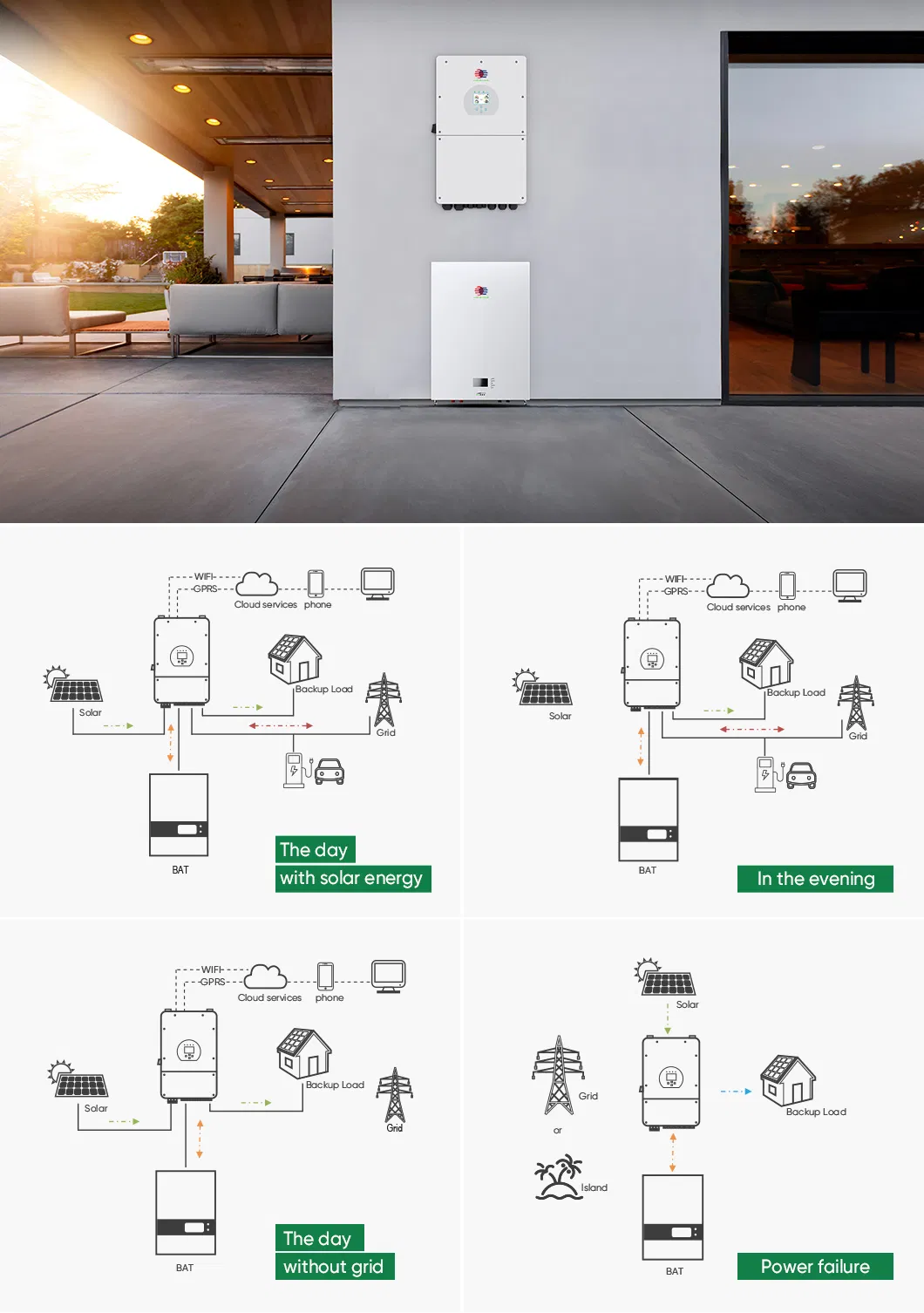

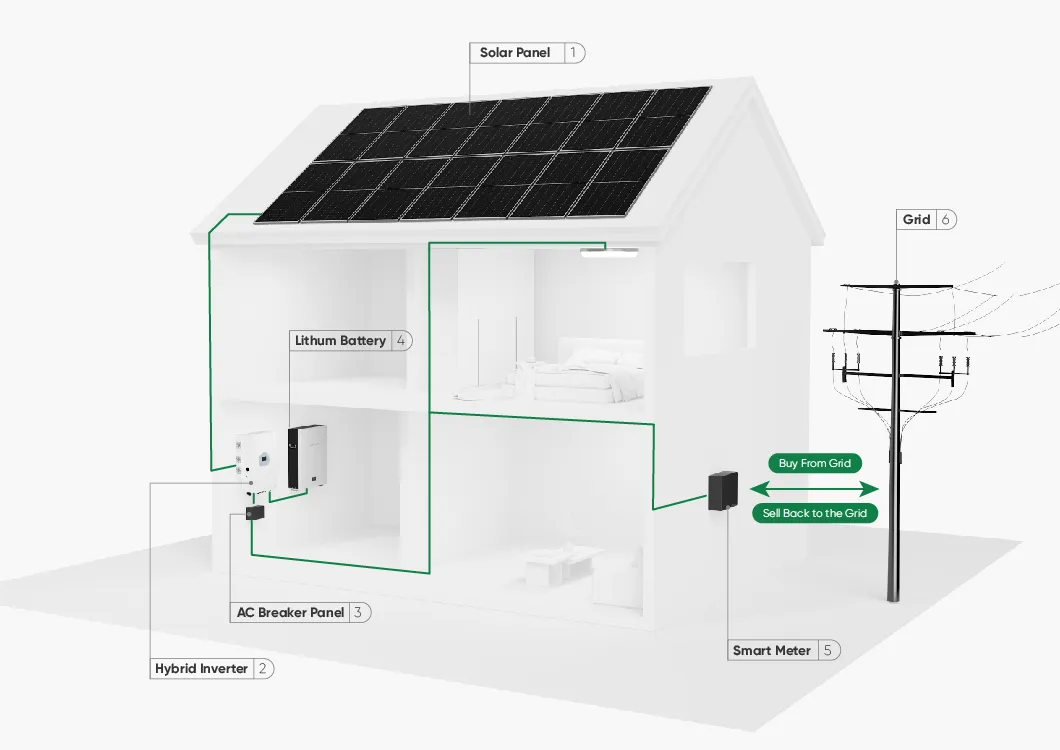

How it works
📊 Technical Specifications
| Model |
LF-3KW-HY |
LF-5KW-HY |
LF-10KW-HY |
| Mono 550W Solar Panel | 6 Pieces | 10 Pieces | 20 Pieces |
| Hybrid Inverter | SUN-3K-SG04LP1-EU | SUN-5K-SG03LP1-EU | SUN-10K-SG04LP3-EU |
| LiFePo4 Battery | 5Kwh | 5Kwh | 10Kwh |

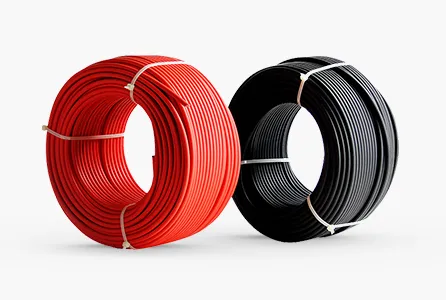

| DC Cable 4mm2 | 100 meter | 200 meter | 400 meter |
| MC4 Connector | 10 Pairs | 10 Pairs | 10 Pairs |
| Model |
LF-15KW-HY |
LF-20KW-HY |
LF-30KW-HY |
| Mono 550W Solar Panel | 30 Pieces | 42 Pieces | 63 Pieces |
| Hybrid Inverter | 3x SUN-5K-SG03LP1-EU | 2x SUN-10K-SG04LP3-EU | 3x SUN-10K-SG04LP3-EU |
| LiFePo4 Battery | 15Kwh | 20Kwh | 30Kwh |
| DC Cable 4mm2 | 600 meter | 800 meter | 1000 meter |
🔍 Product Details

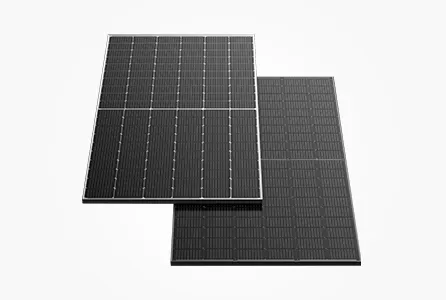

Half Cut Mono 550W Solar Panel
Peak Power: 550W | Max Voltage: 42.06V | Max Current: 12.84A
Dimensions: 2279x1134x35mm | Weight: 26.9 kg

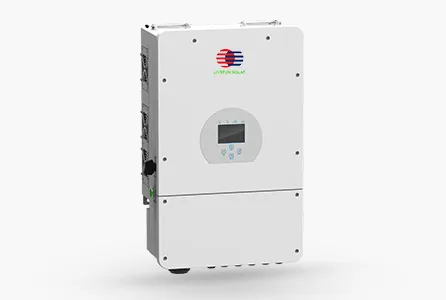

Hybrid Solar Inverter
48V low voltage battery support, transformer isolation design. 6 time periods for charging/discharging. Max 240A current. Supports parallel connection up to 10pcs.

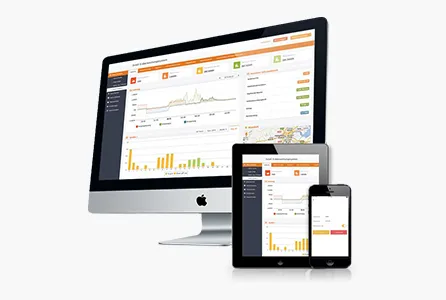

Monitoring System
One-click installation and registration. Real-time data storage, traceable logs, and safe operation ensuring data security and reliability.

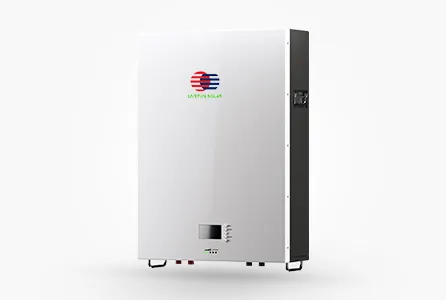

Wall Mounted LiFePo4 Battery
15-20 years design life. 6000+ cycles. Built-in high quality BMS. Scalable modular design for larger storage needs.

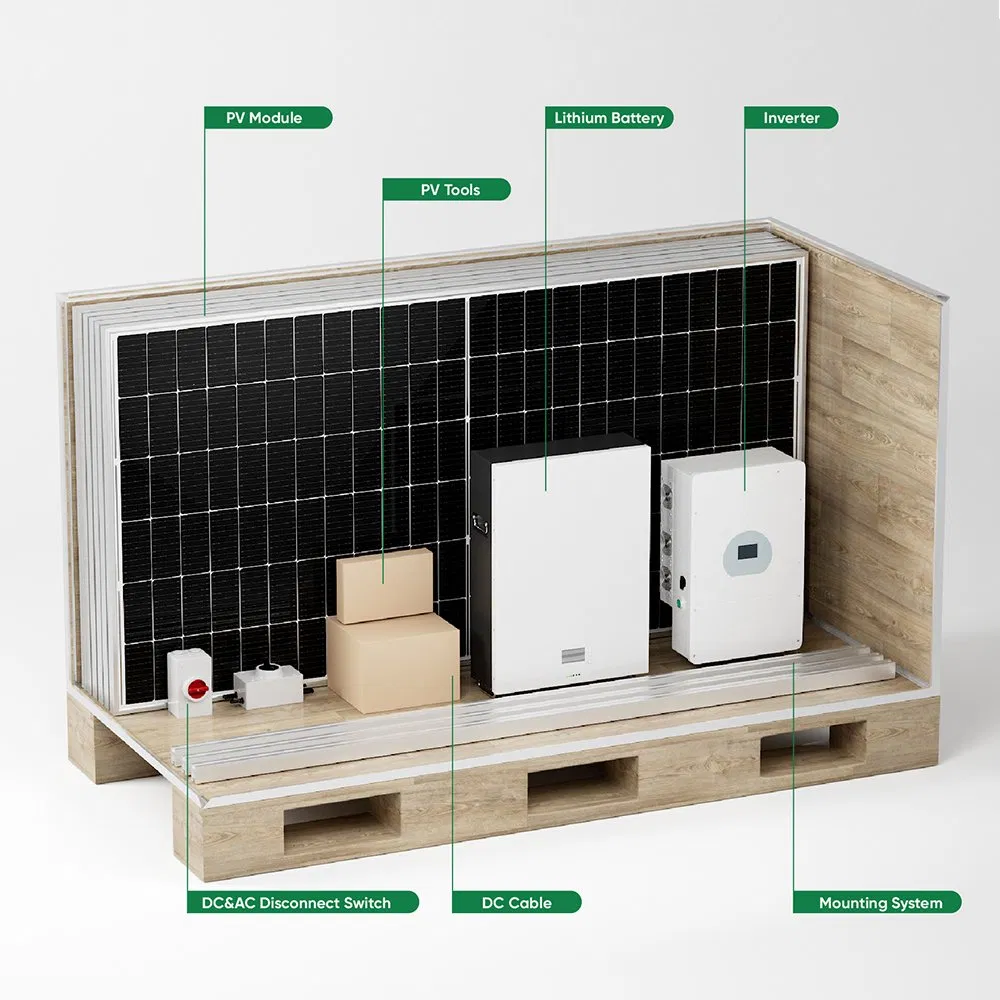

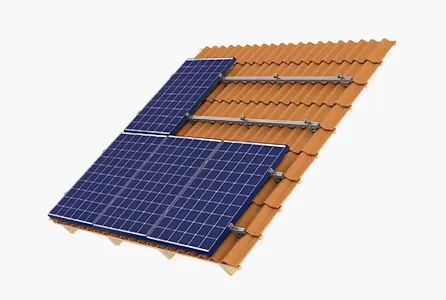

PV Mounting System & Components

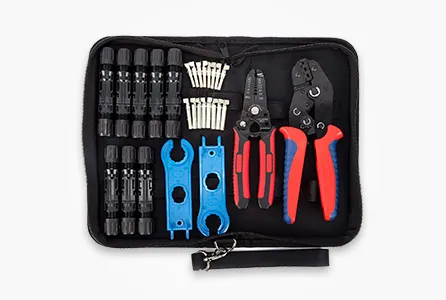

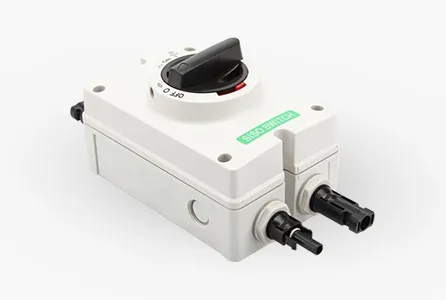

AI6005 & SUS304 bolts. Customized for roof or ground. Includes DC/AC disconnect switches (IP66, 1000VDC) and professional PV installation tools.
❓ Frequently Asked Questions
1. How long does the solar energy system last?
Our monocrystalline solar panels are designed for a service life of over 25 years, while the LiFePO4 batteries offer a design life of 15-20 years with more than 6000 cycles.
2. Can this hybrid system work during a power outage?
Yes, the hybrid system is designed to provide backup power from the battery storage when the utility grid goes down, ensuring your home stays powered.
3. What maintenance is required for the system?
The system is largely maintenance-free. We recommend cleaning the solar panels occasionally to remove dust and ensuring the monitoring system is active to track performance.
4. Is the battery safe for home installation?
Absolutely. We use Lithium Iron Phosphate (LiFePO4) chemistry, which is the safest lithium battery technology available, equipped with an advanced BMS for overcharge and thermal protection.
5. Can I expand my system in the future?
Yes, the system is scalable. The hybrid inverters support parallel connection, and the battery modules are modular, allowing you to add more capacity as your energy needs grow.
6. Does the system support remote monitoring?
Yes, our system includes a smart monitoring gateway that allows you to track energy production and consumption in real-time via a mobile app or computer.
