Sliver Battery
1 / 4

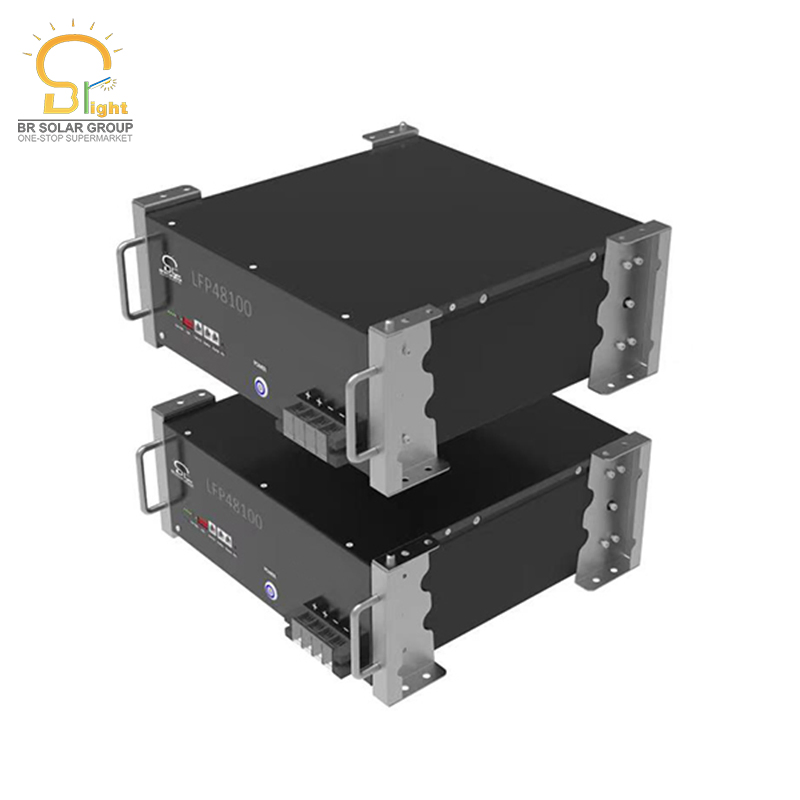

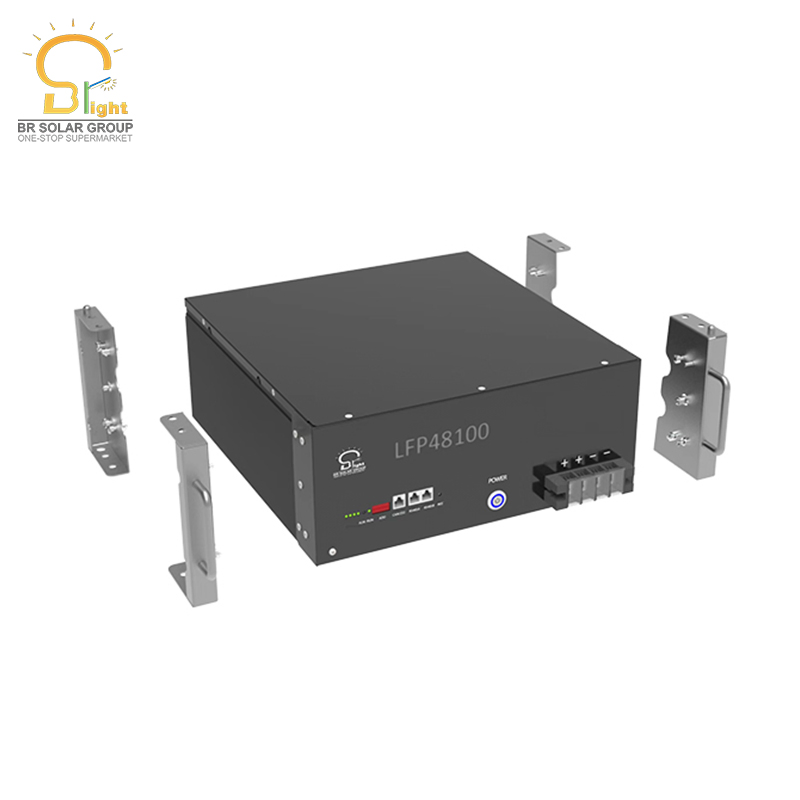

1. Size and Weight
| Product | Nominal Voltage | Nominal Capacity | Dimension | Weight |
|---|---|---|---|---|
| LFP-48100 | DC48V | 100Ah | 453*433*177mm | ≈48kg |
2. Performance Parameters
| Item | Parameter Value |
|---|---|
| Nominal Voltage(v) | 48 |
| Work Voltage Range(v) | 44.8-57.6 |
| Nominal Capacity(Ah) | 100 |
| Nominal Energy(kWh) | 4.8 |
| Max.Power Charge/Discharge Current(A) | 50 |
| Charge voltage (Vdc) | 58.4 |

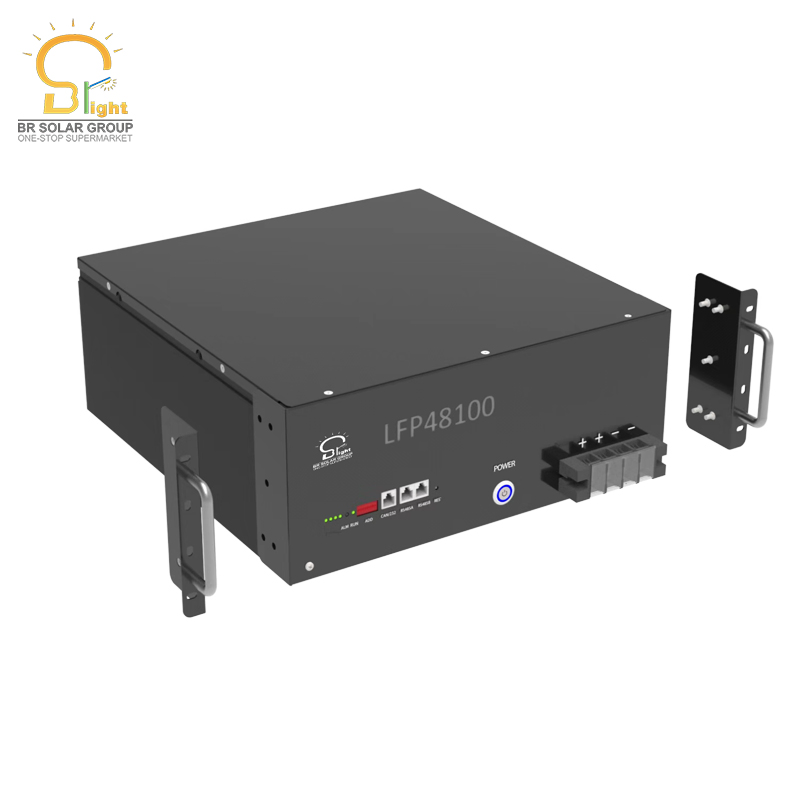

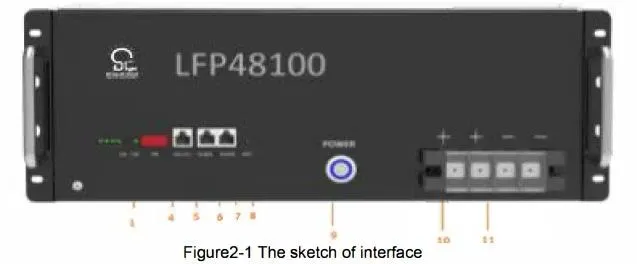

| Item | Name | Definition |
|---|---|---|
| 1 | SOC | Green lights show the remaining power. |
| 2 | ALM | Red light flashing for alarm; always on for protection status. |
| 3 | RUN | Green light flashing during standby/charging; always on when discharging. |
| 4 | ADD | DIP switch |
| 5 | CAN | Communication cascade port, supports CAN. |
| 6/7 | RS485/SA485 | Communication ports, support 485 communication. |
| 8 | Res | Reset switch |
| 9 | Power | Power switch |

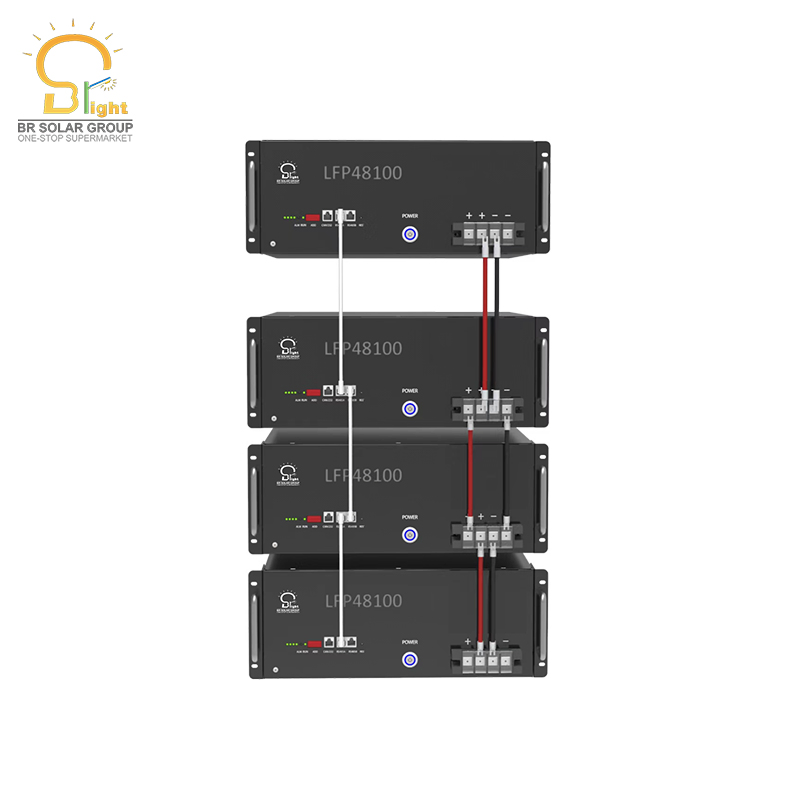

| 10/11 | +/- Socket | Battery output or parallel connection ports. |
Our projects are applied all around the world. We choose quality materials because quality is our culture. Our solar products have been successfully applied in more than 110 countries, including UN and NGO projects.
| T/T | EXW / FOB | 30% In Advance, 70% Balance Paid Before Delivery |
| CFR / CIF | 30% In Advance, 70% Against Copy Of B/L | |
| L/C | Total Amount Above USD100,000, L/C At Sight Accepted | |
| Others | PayPal / Western Union for amounts less than USD1,000 | |
| Delivery | 15-20 Working Days After Receiving Down Payment | |
