| SOLAR OFF GRID SYSTEM SPECIFICATIONS | ||||
|---|---|---|---|---|
| System DC Voltage | 12 VDC | |||

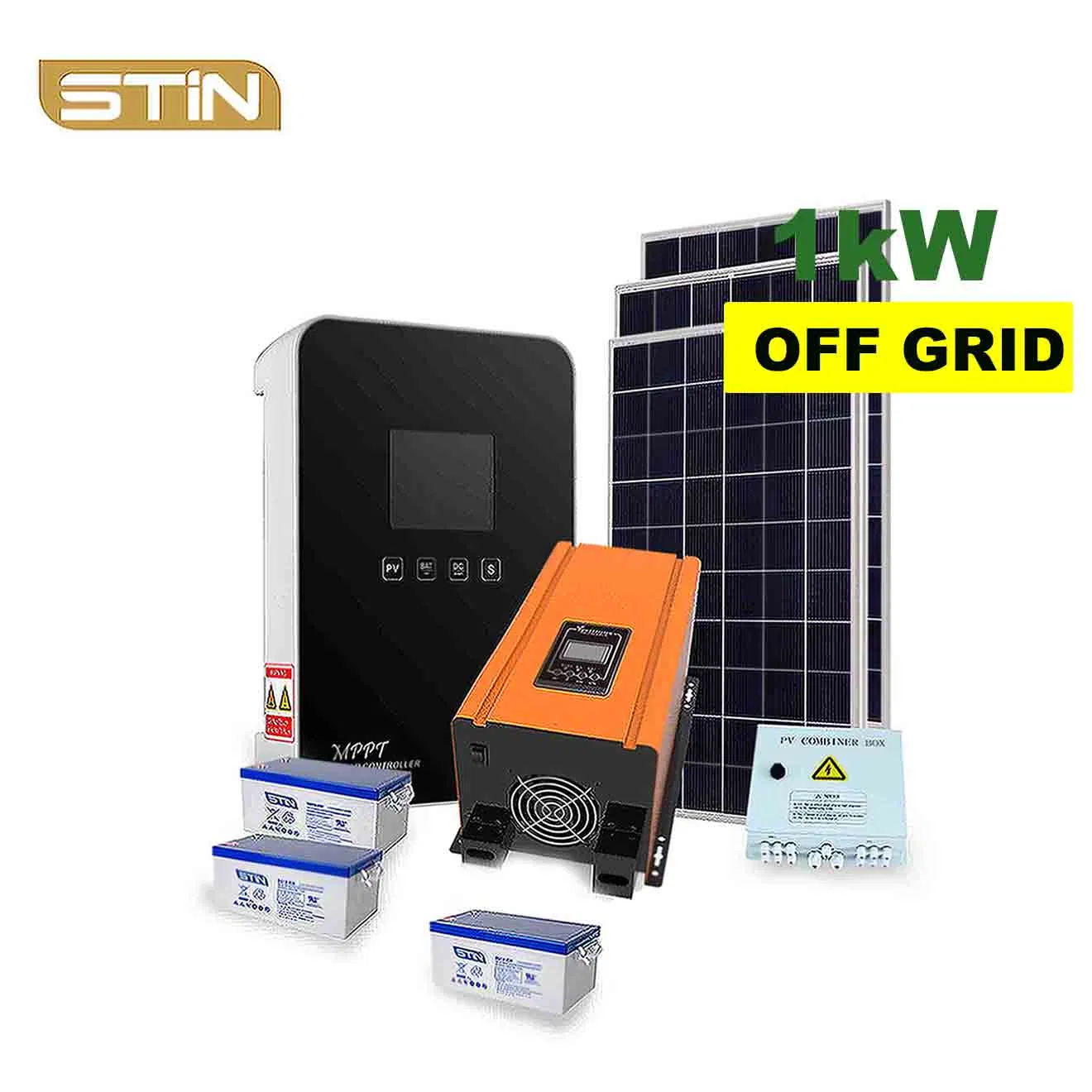

| System Requirement | 1000W Off-grid Photovoltaic System | |||
| Item | Part | Specification | Quantity | Remarks |

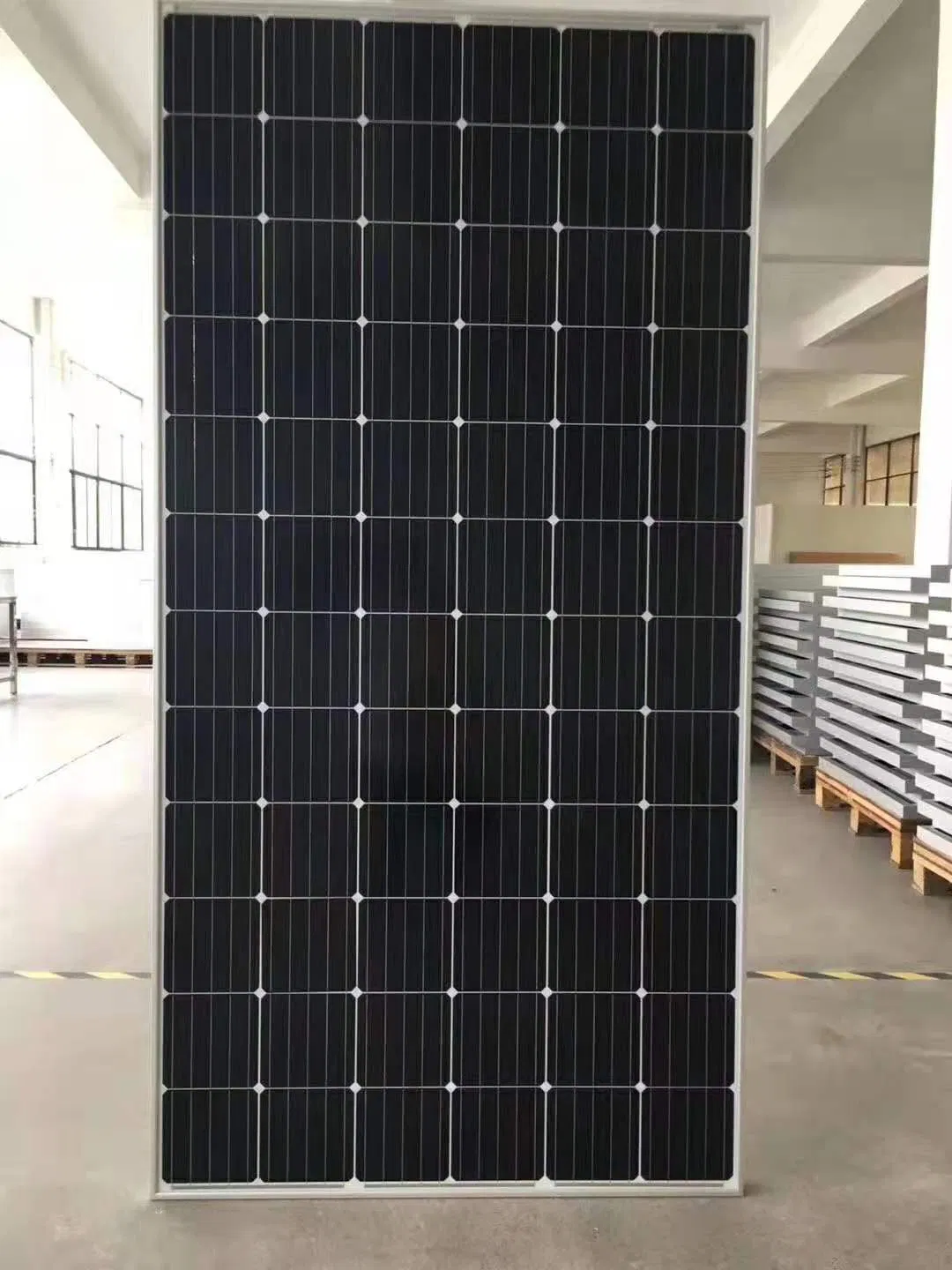

| 1 | Solar panel | Poly 290W | 2 PCS | 2pcs in one string |
| 2 | PV combiner box | 1 input, 1 output | 1 SET | - |
| 3 | Bracket | C-shaped steel | 1 SET | Hot-dip zinc |

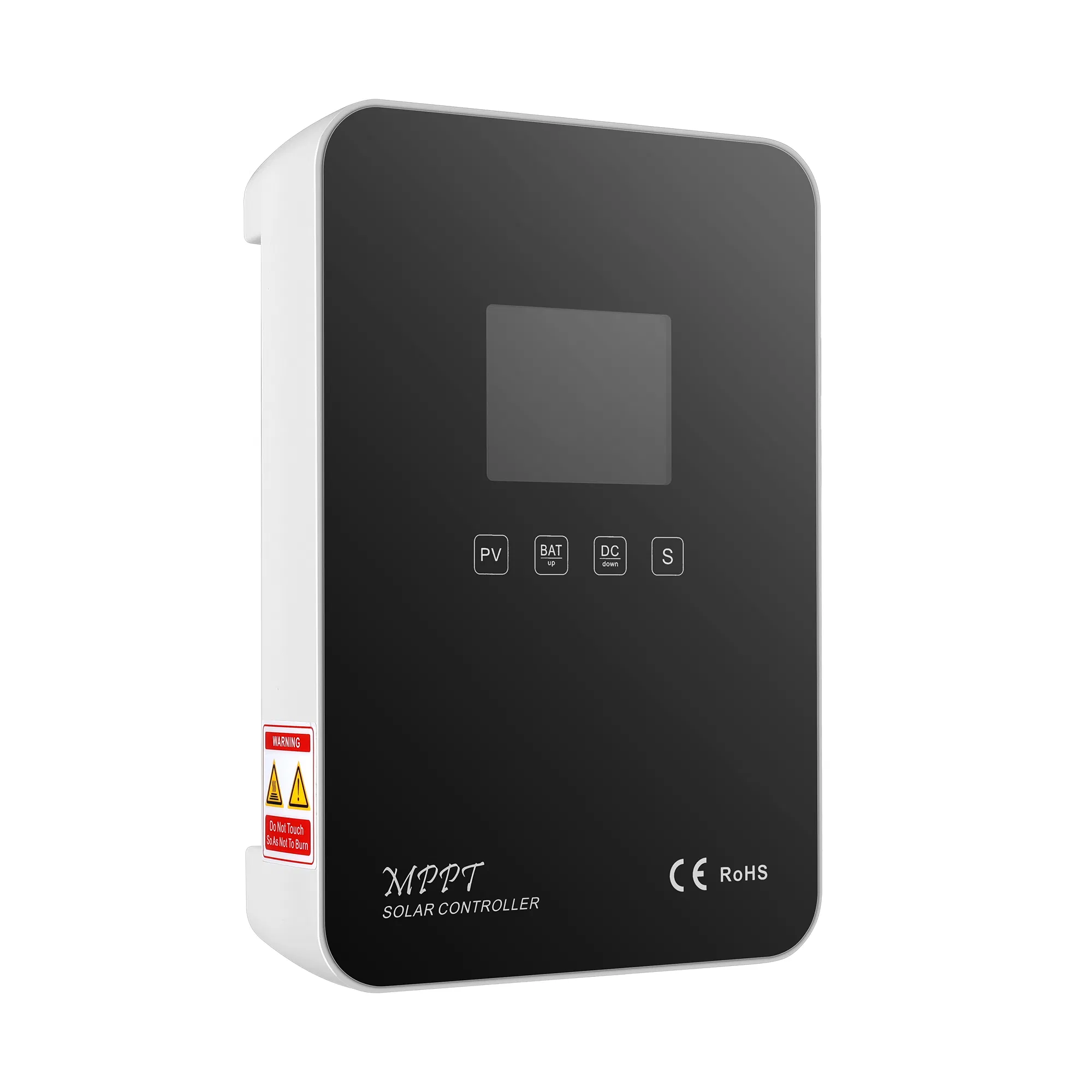

| 4 | Mppt charge controller | 12V 50A | 1 SET | - |

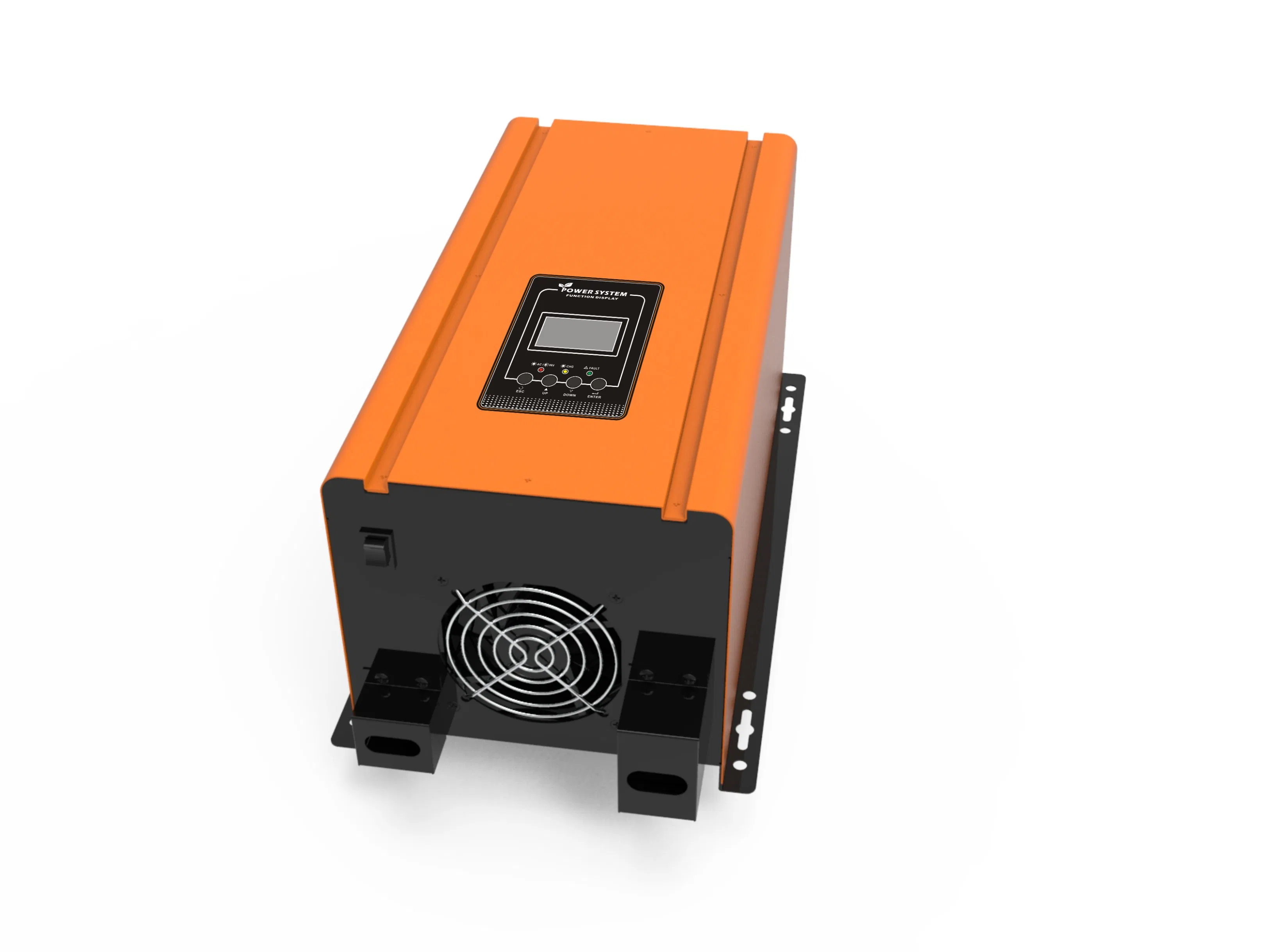

| 5 | Power frequency inverter | 1000W | 1 SET | - |

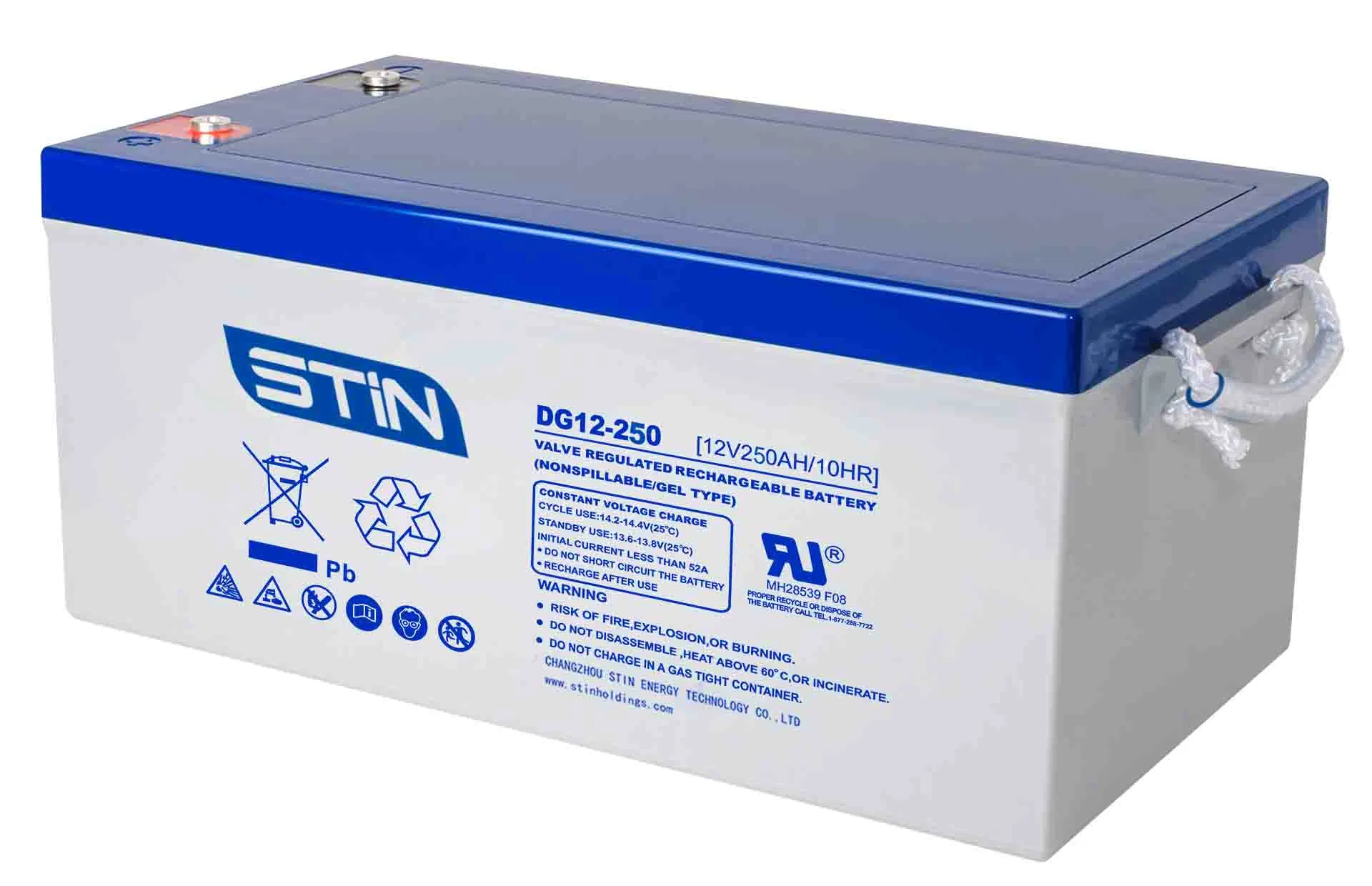

| 6 | Gel battery | 12V-250AH | 1 PC | - |
| 7 | DC breaker | MCCB 100A 2P | 1 PC | Battery to inverter |
| 8 | Connector | MC4 | 1 pair | PV cable to panel |
| 9 | PV cables | 4mm² | 100M | 50M red + 50M black |
| 10 | BVR cables | 6mm² | 30M | 15M red + 15M black |
| 11 | BVR cables | 16mm² | 10M | 5M red + 5M black |
| 12 | BVR cables | 25mm² | 10M | 5M red + 5M black |
