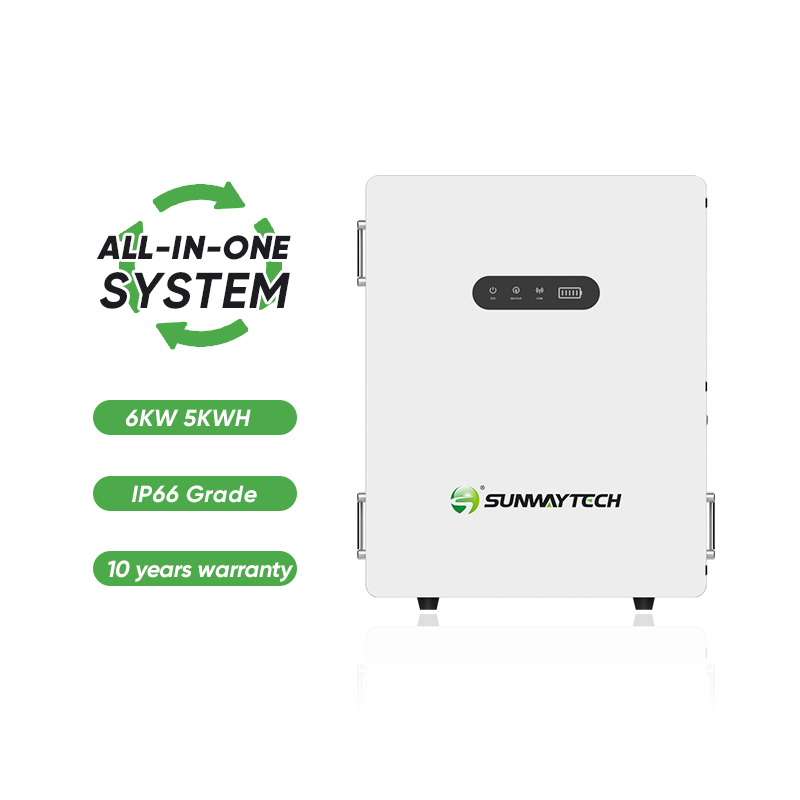

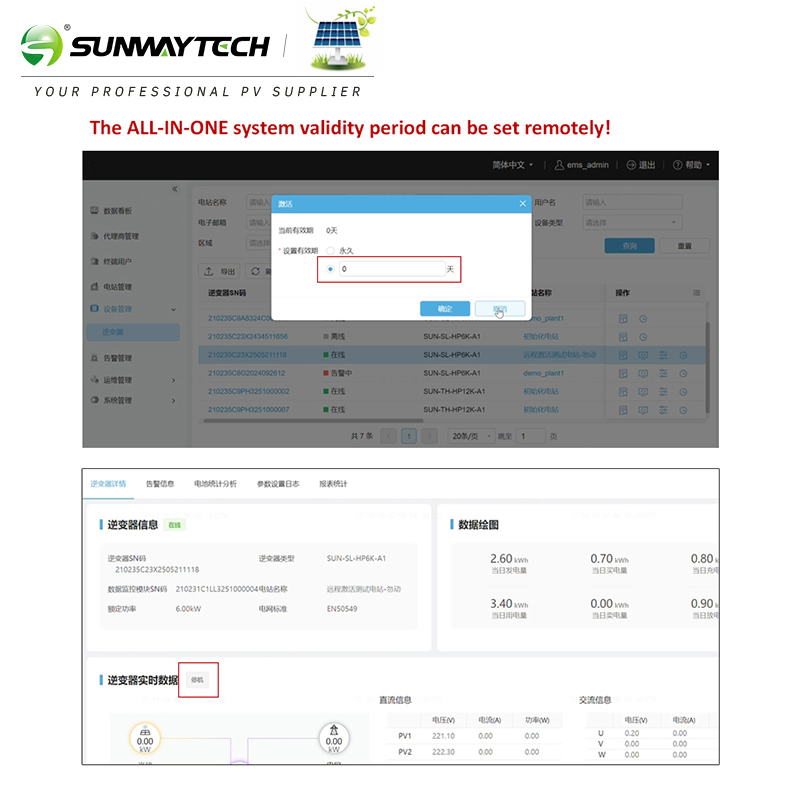

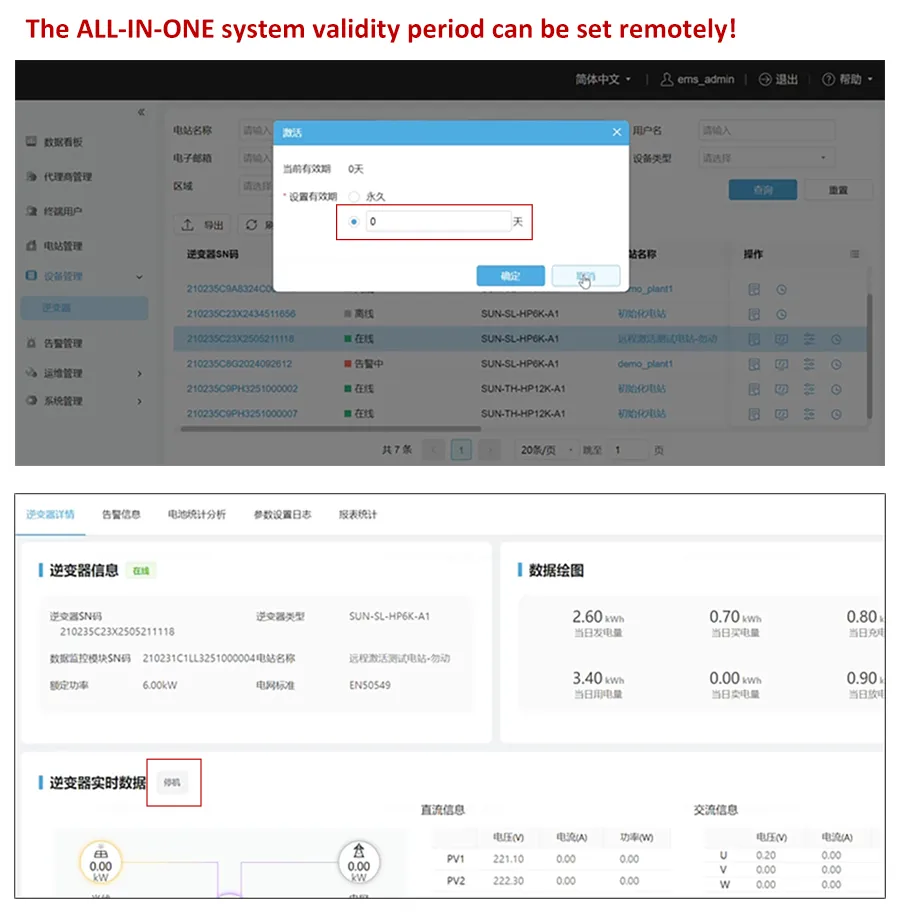

This integrated system features a 6kW hybrid inverter, a 5.12kWh lithium battery, and a built-in Wi-Fi module for real-time monitoring via a mobile app. It supports power input from the grid and dual MPPT solar inputs. Delivering up to 6kW AC output, it is designed to power household appliances efficiently, store excess energy, or feed power back to the grid for optimized energy management.
| PV String Input Data | |
| Max. PV Input Power | 5400W |
| Max. PV Input Voltage | 600V |
| Rated PV Input Voltage | 360V |
| Start-up Voltage | 120V |
| MPPT Voltage Range | 100-550V |
| No. of MPPT Trackers | 2 |
| Battery Input Data | |
| Battery Type | Li-ion (LiFePO4) |
| Battery Voltage Range | 40~60V |
| Max. Discharging/Charging Current | 80A |
| Nominal Capacity | 100Ah |
| Cycle Life | 6000 |
| AC Output Data (Back-up) | |
| Rated Output Power | 6000W |
| Peak Output Apparent Power | 7200W@60s / 6600W@10s |
| Switch Time | 10ms |
| General Data | |
| Ingress Protection | IP66 |
| Operating Temperature Range | -25~60℃ |

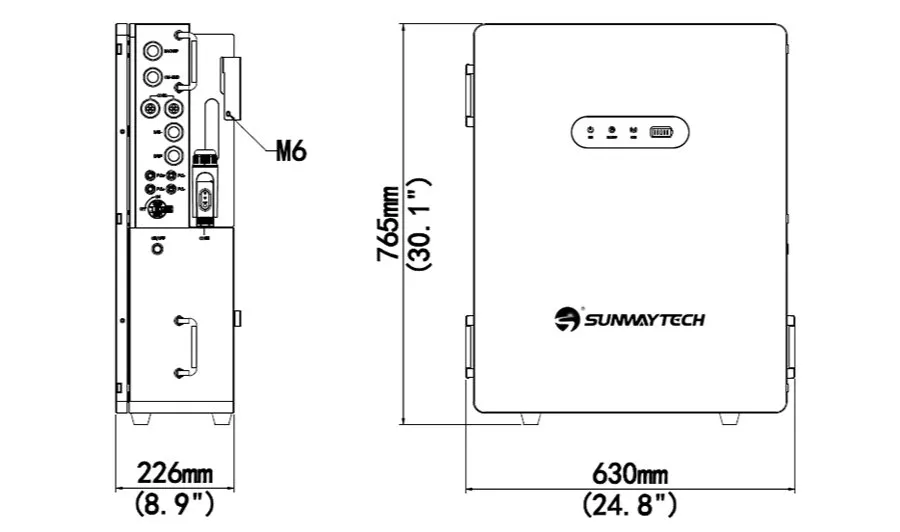

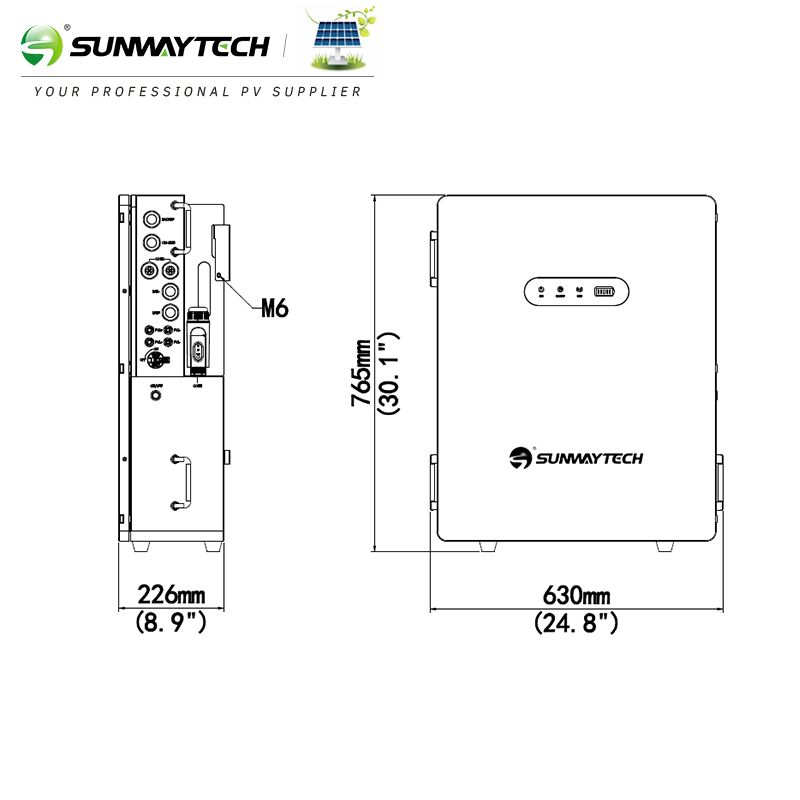

| Dimensions (W×D×H) | 630*226*765mm |
| Weight | 63.8kg |
