Sliver Battery
1 / 5

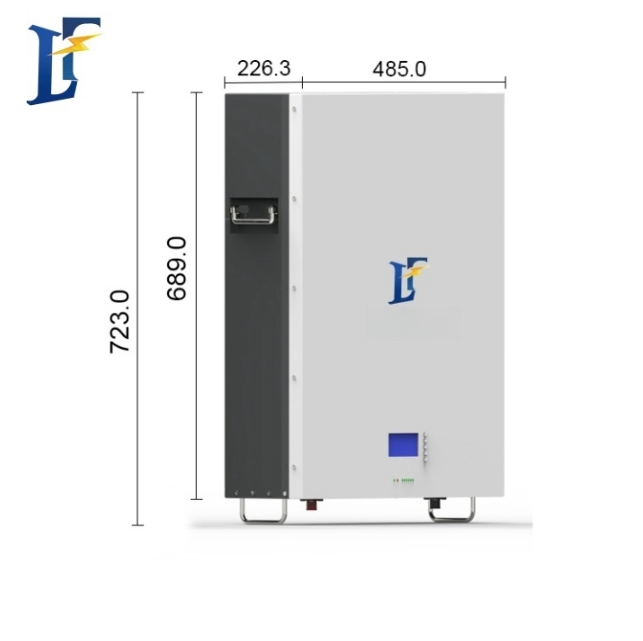

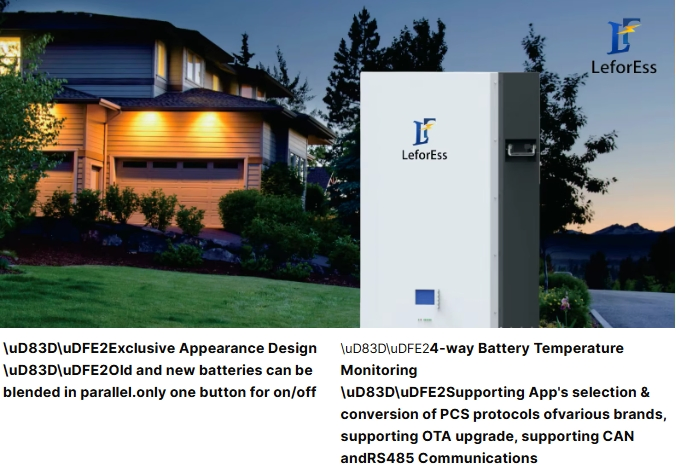

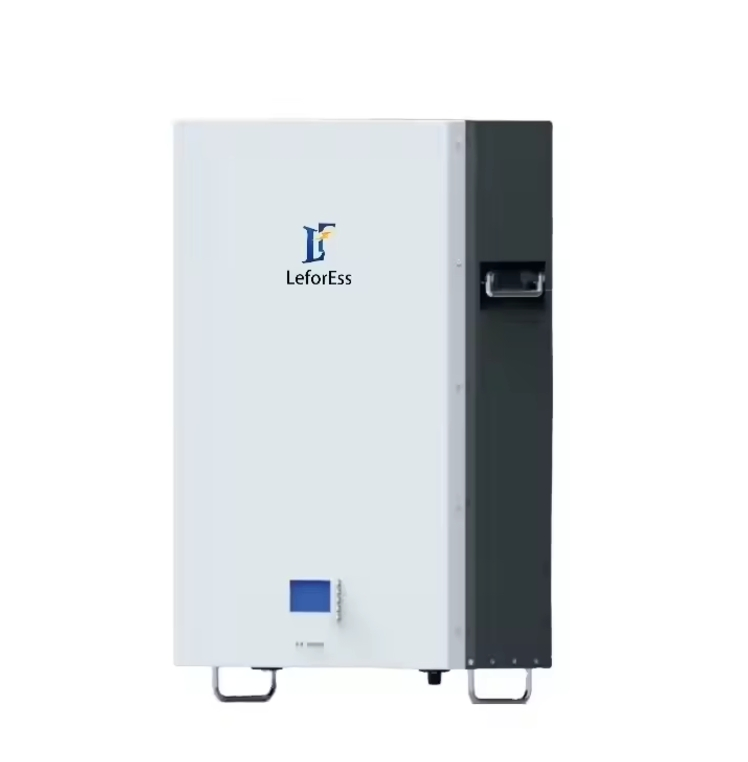

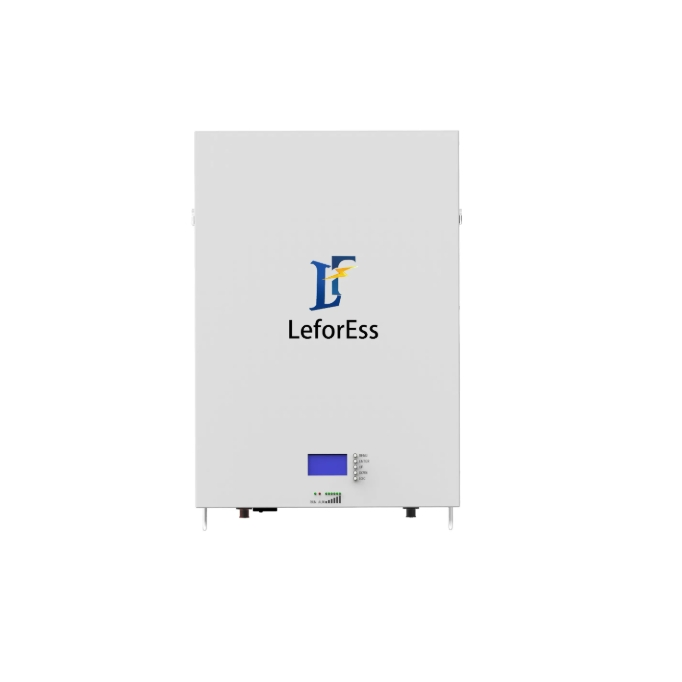

48V 200Ah LiFePO4 battery 9.6kwh Powerwall type with screws, rack and accessories. Warranty: 5 years, Customized OEM ODM orders acceptable.
| 5/10K Wall-Mounted Battery Specifications | ||
|---|---|---|
| Model | LF-LPW-24-5K1 | LF-LPW-48-9K1 |
| Nominal voltage | 25.6V (8S) | 48V (15S) |
| Rated capacity | 200Ah | 200Ah |
| Size | 660*450*240mm | 850*570*285mm |
| Maximum operating current | 100A | 150A |
| Cycle times | ≥6000 cycles @ 80% DOD, 25°C, 0.5C | |
| Design life | ≥10 years | |
| Communication | RS232-PC, RS485(B)-PC, RS485(A)-Inverter, Canbus-Inverter | |
Equipped with advanced Battery Management System (BMS). Offers real-time data monitoring, ensuring safety against overcharging, over discharging, overheating and over current.
Built with high-quality Grade-A battery cells, ensuring high safety, reliable performance, and excellent consistency.
Outstanding functionality boasting a cycle life of over 6,000 cycles under standard conditions, maximizing your investment's value.
Easily connect multiple battery modules in parallel to flexibly expand capacity, catering to a wide range of energy demands.

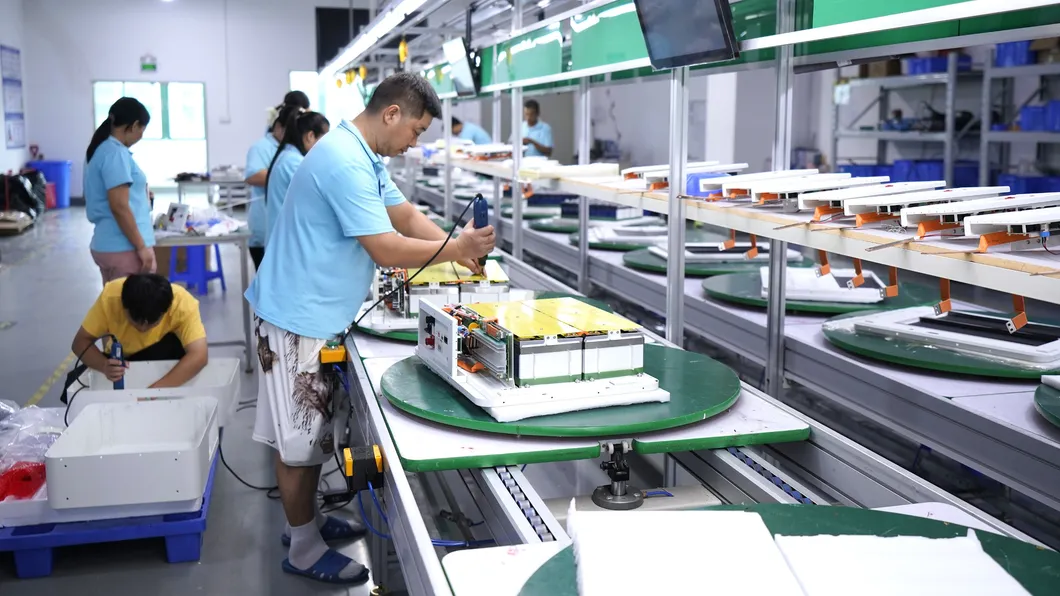

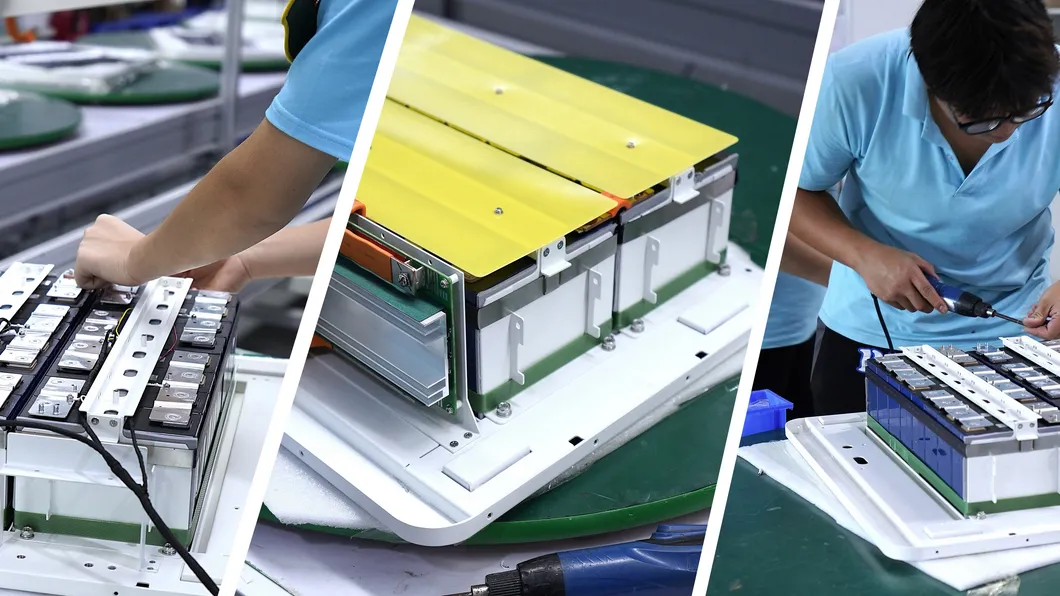

All products are carefully designed, manufactured and 100% tested end of line to ensure perfect condition.
